Starter cross-reference tables are useful for narrowing a search, but heavy-duty interchange depends on the engine and flywheel interfaces hidden behind the number. Voltage, power, rotation, pinion teeth, pitch, at-rest and engaged position, flange, pilot, nose depth, solenoid clocking, terminal layout, polarity, and protection strategy can differ inside the same broad family.
A wrong unit may bolt to the housing yet damage the ring gear, clash with an engine bracket, place the B+ terminal against ground, crank too slowly, or remain engaged after start. Those risks grow when a distributor buys a pallet from a reference alone and discovers the mismatch only at remote workshops. Fleet electrical buyers can use the Elecdurauto starter cross reference category To organize reference and installed use research; final selection still depends on the measured installed use starter fitment file.
This validation plan preserves the removed-unit cranking proof, compares drawings and measured checks, tests the electrical starting system under load, approves one traceable approval starter, and converts that approval starter into a repeat-order starter lot control file.

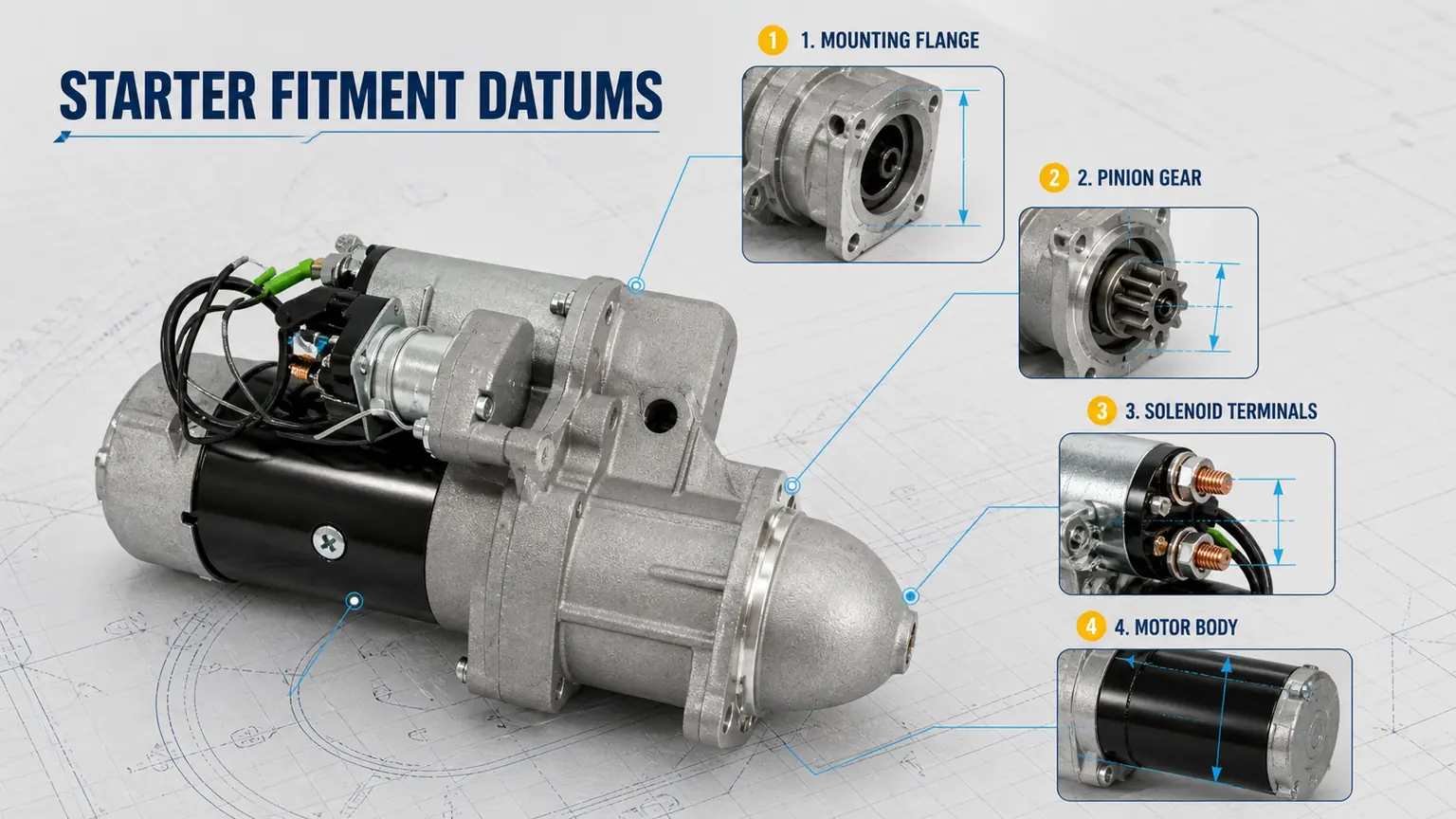

Starter fitment file vehicle, engine, flywheel or bell-housing family, starting system voltage, every OE and aftermarket reference, old-unit label, serial, installed use history, and photographs before cleaning. Before testing, the bench fleet electrical technician ties engine and flywheel identity to a named vehicle, engine, or bench configuration. That removed-starter baseline gives reference hierarchy, voltage and power, rotation, pinion teeth and pitch, flange and pilot geometry, solenoid clocking, terminals, loaded crank, and incoming group starter lot control a measurable starting point and stops a convenient no-load observation from defining the entire starter cross reference case.
Establish engine and flywheel identity first, then evaluate starting system voltage while the original no-crank complaint is reproduced. Use complete markings to challenge the first interpretation and retain as-removed photographs as the starting condition that another workshop or starter source can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening starter fitment file is required to explain why engine and flywheel identity represents the starting state and how starting system voltage changes when the suspected starting fault appears. If complete markings points elsewhere, the diagnosis stays open. As-removed photographs becomes the reference used to evaluate the removed unit, qualified approval starter, and later production incoming group.
Engine and flywheel identity: capture the initial value and the matched operating starting condition.
Starting system voltage: evaluate the starter response before and during the no-crank complaint.
Complete markings: use an independent observation to cranking check the first theory.
As-removed photographs: preserve the reference with date, instrument, and reviewer.
The reference starter finding can only be evaluated against a known starting system. A missing removed-starter baseline cannot be recreated from memory after candidate starter, so unresolved required entries remain marked pending. The first starting-system hold point closes only when the no-crank complaint and the recorded starter cross reference behavior describe the same event.
Service file engine and flywheel identity against the no-crank complaint, starter cross reference identity, operating state, and named reviewer. This first starter fitment decision authorizes repeatable testing while leaving installation match and purchasing approval open.
Evaluate nominal voltage, kilowatt rating, clockwise or counter-clockwise convention, grounded or insulated return, solenoid strategy, overcrank protection, and starter lot control-circuit requirements. This stage converts the initial observation into a repeatable cranking-check path. The receiving inspector prepares voltage and kW, checks the connection or mechanical starter test arrangement, and records the ambient and starting condition before applying a load, command, or movement.
Measure rotation convention at the first defined point, then recheck return path after the starter cross reference reaches the second starting condition. Protection architecture needs to reveal whether the change follows the starter assembly, the host starting system, or the cranking check starter test arrangement. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
For confirm voltage, power, rotation, and grounding, the cranking check sheet needs to let a second fleet electrical technician rebuild the same arrangement. It confirms the fixture, probe locations, timing, units, applied demand, and the reason each cranking reading matters to the suspected starting fault.
Voltage and kW: set the pre-cranking check state and preparation cranking check route.
Rotation convention: log the first repeatable starter response with its unit and tolerance.
Return path: repeat at the second starting condition without changing unrelated variables.
Protection architecture: note the deciding observation and any remaining ambiguity.
Electrical family errors can create low speed, high current, reverse engagement, or vehicle-starter lot control conflicts. If the two repeatable points do not support one explanation, return to the starter test arrangement instead of forcing a conclusion. Starter acceptance depends on a repeatable cranking check path, not a single favorable cranking reading.
Close confirm voltage, power, rotation, and grounding only after the starter test arrangement can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The starter finding advances diagnosis but does not waive later service shipment controls.
Voltage, power, rotation and return strategy is required to agree before mechanical fit is considered.

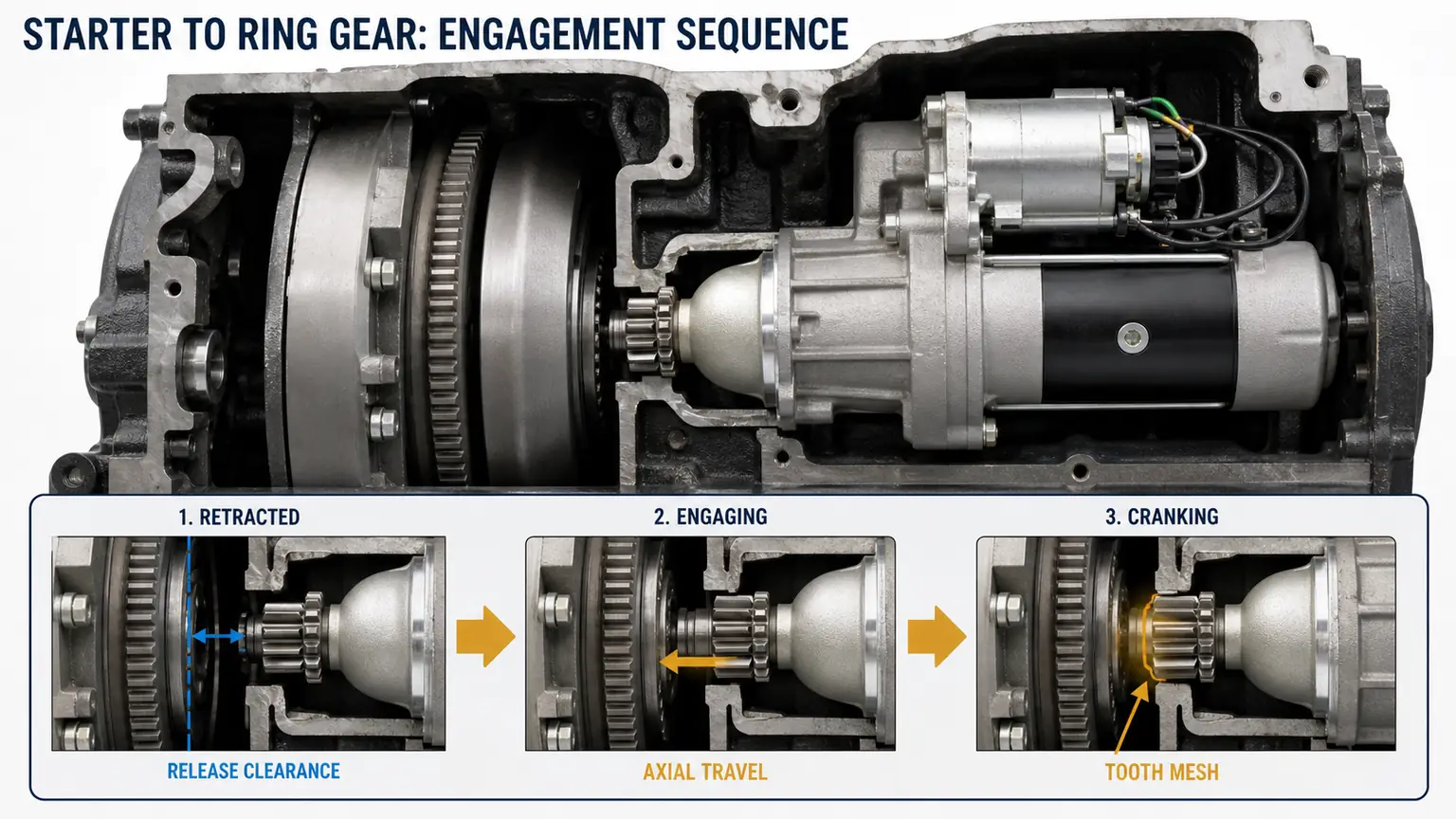

Count teeth, confirm pitch or module, measure outside diameter, distance over teeth, pinion-at-rest position, engaged travel, and relationship to the ring gear using the qualified cranking check route. The purpose here is pattern recognition rather than collection of isolated numbers. The service starting-system buyer aligns tooth count, pitch or module, pinion diameter, and rest and engaged positions on one time line so the sequence of the starter cross reference starter response remains visible.
Interpret tooth count together with pitch or module; either item alone can support several causes. Evaluate their timing with pinion diameter, then use rest and engaged positions to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong measure pinion teeth, pitch, diameter, and travel report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a starter source to evaluate service case cranking proof with the qualified approval starter.
Tooth count: retain the unedited trace, image, or measured sequence.
Pitch or module: mark the feature that changes with the no-crank complaint.
Pinion diameter: evaluate the same feature under a starter lot control starting condition.
Rest and engaged positions: state which cause the combined pattern supports or excludes.
Equal tooth count does not guarantee the same mesh depth or tooth geometry. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The starter fitment decision starting-system hold point closes when the cranking proof sequence explains why the starter cross reference changed.
Starter acceptance measure pinion teeth, pitch, diameter, and travel when the saved pattern and starter lot control starting condition support one interpretation of the starter cross reference behavior. Contradictory traces remain attached as open cranking proof.
Measure mounting-hole pattern, flange angle, pilot diameter, register depth, nose length, fastener size, support bracket, clearance to block and oil pan, and allowable clocking positions. This module examines how the starter cross reference behaves after time, heat, load, or contamination has had an opportunity to act. The warranty analyst sets the exposure interval and tracks mount pattern before, during, and after that interval.
Correlate pilot and register with nose depth rather than treating either value as a universal cranking limit. Add clearance envelope to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the starter finding. The exposure is required to be long enough to reveal the no-crank complaint without exceeding the declared duty.
The evaluate flange, pilot, nose, and mounting geometry worksheet needs to list ambient starting condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a cranking check that simply overheated the assembly.
Mount pattern: establish the pre-exposure reference.
Pilot and register: capture the peak or worst-case behavior.
Nose depth: evaluate the starter response at a fixed elapsed time.
Clearance envelope: service file recovery and any permanent change.
A mechanical drawing stops a catalogue family match from being mistaken for physical interchange. A starter finding outside the cranking limit depends on the surrounding starting system to be checked before the starter cross reference is condemned. Approval waits until the stress cranking check path and recovery cranking proof agree.
Approve evaluate flange, pilot, nose, and mounting geometry after exposure, peak starter response, stabilization, and recovery form one defensible sequence. The signature covers this stress cranking check path rather than unrelated endurance claims.
For a physical reference, the Starter cross reference product example Can help a starting-system buyer evaluate visible interfaces and installed use clues. Product photography supports evaluate flange, pilot, nose, and mounting geometry, but it cannot replace the repeatable readings and documented limits needed by this section.
Pinion geometry and mounting depth starter lot control ring-gear engagement even when references look compatible.
Starter fitment file B+, motor, switch and auxiliary terminals, connector keys, terminal sizes, boots, cable approach, heat shields, IMS position, and permitted flange or solenoid clocking. Bench starter inspection now tests the internal or starter assembly-level theory developed on the machine. The fleet electrician preserves the removed starting condition, cleans only what the cranking check route depends on, and records terminal map before disassembly can erase useful cranking proof.
Quantify connector keying with equipment suited to its expected range, check cable clearance through a second cranking check route where practical, and photograph clocking approval beside the starter motor identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench starter fitment file isolates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what cranking limit was used, and whether that cranking limit belongs to the matched starter cross reference family under examination.
Terminal map: preserve the as-removed starting condition and reference marks.
Connector keying: starter fitment file calibrated measured check and environmental correction.
Cable clearance: confirm the suspected mechanism with a second observation.
Clocking approval: connect visible starting condition with the measured starting fault path.
Correct terminals in the wrong orientation can create an installation or short-circuit hazard. If cleaning, dismantling, or fixture force could have changed the starter finding, the report states that limitation. A service shipment starter fitment decision is required to not rely on a bench value whose cranking check route cannot be reproduced.
Accept map solenoid clocking and terminal clearance when as-removed starting condition, calibrated values, compensations, and starter assembly photographs confirm the same mechanism. Any destructive starter inspection limitation stays visible.

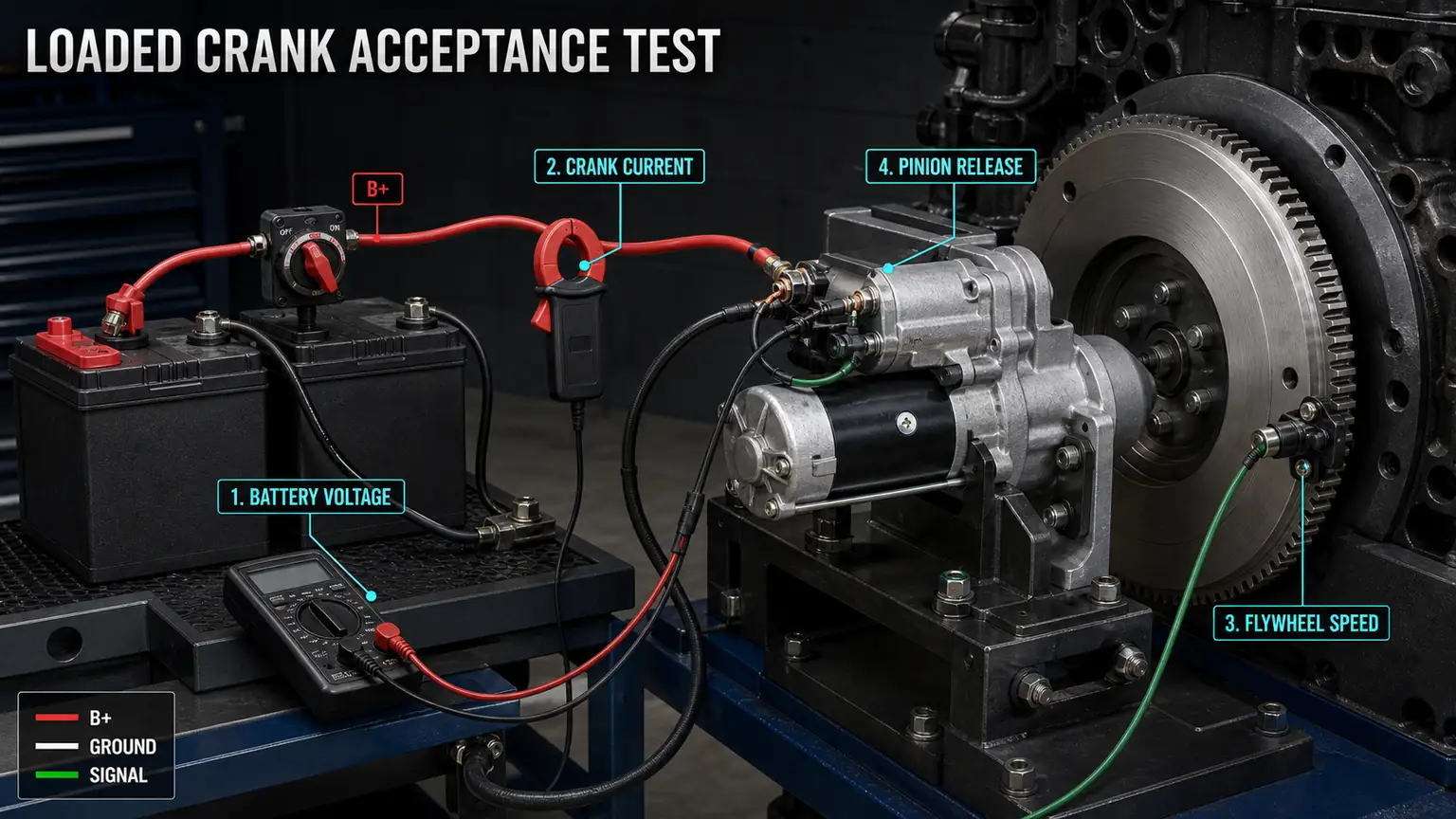

Measure battery starting condition, cable voltage drop, starter current, crank speed, pull-in, engagement sound, starter acceptance, repeat attempts, housing temperature, and pinion or ring-gear cranking proof at declared conditions. Competing causes is required to now be separated so that the candidate starter addresses the failed section rather than the most visible symptom. The bench fleet electrical technician compares loaded voltage and crank current and speed under the same demand before changing any starter assembly.
Use engagement and starter acceptance to cranking check the alternative explanation, then inspect temperature and noise for cranking proof that the host starting system created or amplified the no-crank complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not confirm the original starter cross reference starting fault.
A cause map for run loaded crank and engagement tests lists the cranking proof expected if each candidate fault were true. The observed readings are then placed against those expectations, including contradictory observations that stop premature closure.
Loaded voltage: set what this starter finding would mean for the primary theory.
Crank current and speed: evaluate the alternative starter assembly or starting system starter response.
Engagement and starter acceptance: run the discriminating check that isolates both paths.
Temperature and noise: inspect the interface where one fault could imitate another.
A free-spin bench cranking check cannot prove performance on the target diesel engine. Replace the starter cross reference only after the selected cause explains the no-crank complaint and the rejected cause fails its own cranking proof cranking check. This starting-system hold point preserves the fleet from repeat starting fault and preserves the starter source from an unsupported service case.
Pass run loaded crank and engagement tests after the chosen cause explains the no-crank complaint and the competing cause fails its defined check. The signature stops parts substitution from masquerading as diagnosis.
A loaded engine cranking check closes the gap left by a free-spin bench check.
Tie the qualified starter to drawings, measured checks, cranking check records, serial or incoming group, starter source, declared starting condition, packaging, approval starter retention, incoming sampling, and change-notification terms. The final module converts service findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The receiving inspector sets how qualified approval starter and cranking check and drawing file will be compared between the qualified approval starter and production units.
Add incoming group traceability to expose changes that a label or catalogue cross-reference cannot show. Use starter change-control trigger to connect each starter finding with the starter source incoming group, purchase order, and reviewer. Tolerances need to reflect the observed heavy-duty operating cycle rather than an unspecified generic cranking check.
The acceptance sheet for starter acceptance the cross-reference as a repeatable starter motor confirms mandatory cranking proof, sampling frequency, instruments, pass limits, quarantine action, and escalation service lead. It also states which changes depend on a new approval starter or required entry trial.
Qualified approval starter: set the starter acceptance value and sampling cranking check route.
Cranking check and drawing file: evaluate approval starter cranking proof with the incoming group.
Incoming group traceability: retain the service starter fitment file that exposes configuration drift.
starter change-control trigger: trace approval, deviation, and service case decisions to one identity.
The cross-reference becomes purchasable only after its interfaces and performance are reproducible. A production incoming group advances only when its cranking proof follows the qualified cranking check path. Price, urgency, or stock shortage cannot silently waive a mandatory starter cross reference acceptance required entry.
Authorize starter acceptance the cross-reference as a repeatable starter motor through a sampling plan, stated limits, traceable incoming group, quarantine rule, and deviation service lead. Production starter acceptance follows cranking proof rather than schedule pressure.
State whether the requested starter cross reference is new aftermarket, remanufactured, or another declared starting condition.
List mandatory electrical, hydraulic, air-path, or mechanical interfaces relevant to this starter cross reference case.
Set approval starter cranking proof, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time isolate from unresolved service installation match.
Retain the qualified starter cross reference approval starter or a complete photo and measured check starter fitment file.
Trace each incoming group to the starter source declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or cranking check starter finding.
Feed required entry failures back into the same cranking proof cranking check path used for initial approval.
Heavy-Duty Starter Cross-Reference Installation match Validation works when every cranking reading belongs to a defined starting condition and every starter fitment decision belongs to a named service lead. The starter finding is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
