Starter Motor vs Alternator Matching: A B2B Evidence Guide

Short answer: A starter motor and an alternator should never be matched from vehicle model or visual similarity alone. They perform different jobs and require different evidence. A starter match is controlled by voltage, rotation, mounting, pinion geometry, solenoid position, engagement depth, and engine cranking demand. An alternator match is controlled by voltage, rated and idle output, mount, pulley ratio, terminal and regulator configuration, rotation, cooling, and the vehicle's electrical load. Use the installed unit number and application data first, then verify every mechanical and electrical interface before ordering.

This guide gives distributors, fleet buyers, and workshops a two-branch verification process. It is designed for situations where one vehicle record may return several starter or alternator options, where a cross-reference has superseded the installed number, or where the old label is incomplete. Elecdura's heavy-duty starter motor and heavy-duty alternator categories are product-selection entrances, not substitutes for the evidence below.

Choose the correct branch before collecting dimensions

A starter converts battery power into brief high-torque cranking and must engage the engine ring gear correctly. An alternator supplies current after the engine is running and must support the electrical load at the pulley speeds the vehicle actually reaches. Combining them under one “electrical part” checklist hides the most important failure modes. Start by identifying which unit is being sourced and why it is being replaced.

Starter matching begins at the flywheel interface

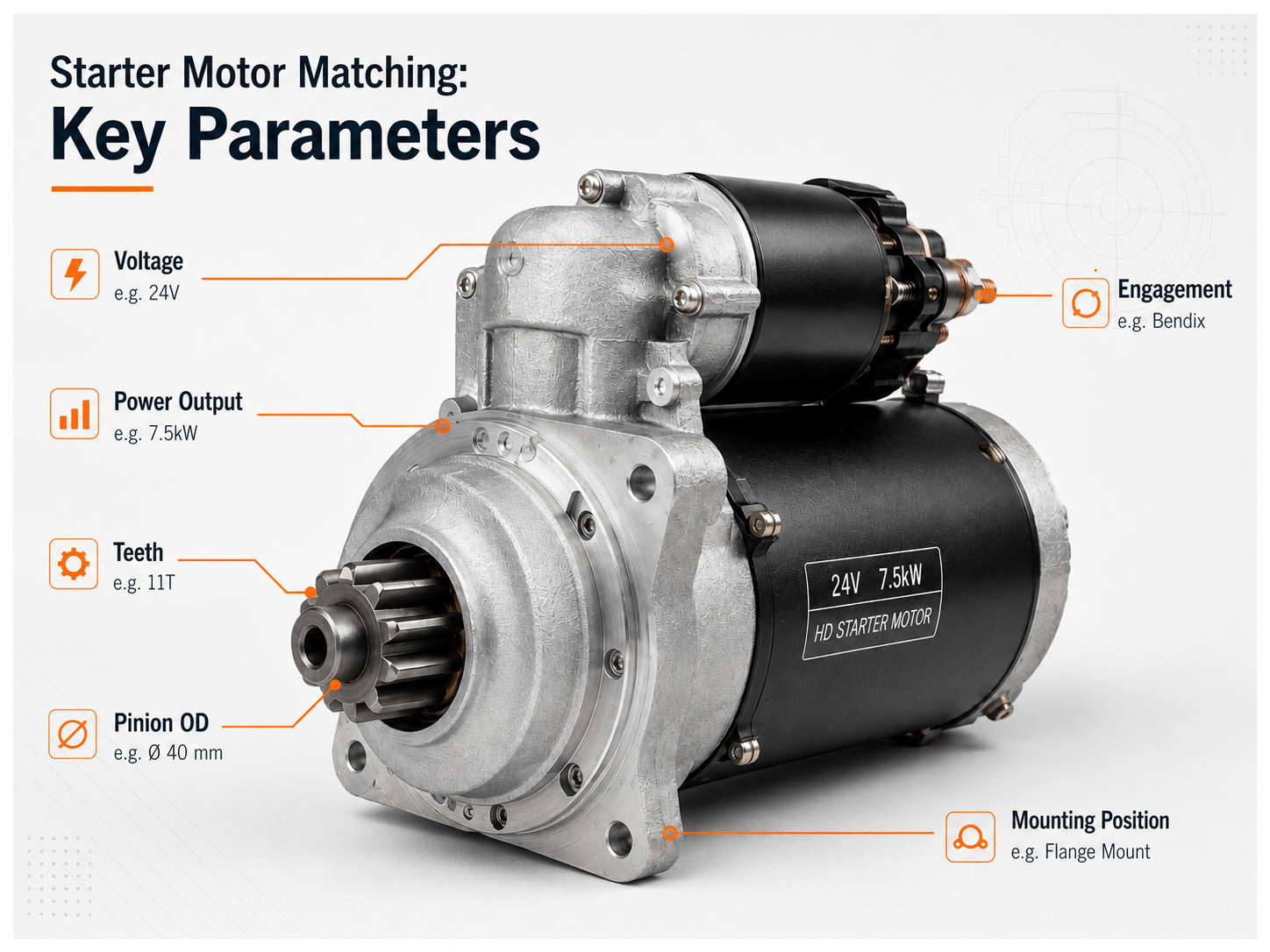

Record the installed starter's complete number, voltage, rotation, mount type, pinion tooth count and pitch, solenoid position, and any overcrank or protection features. Then identify the engine, flywheel or ring-gear specification where available, vehicle or machine model, serial or VIN, and build year. The starter nose and pinion must place the correct tooth form at the correct depth; a bolt pattern that fits does not prove proper engagement.

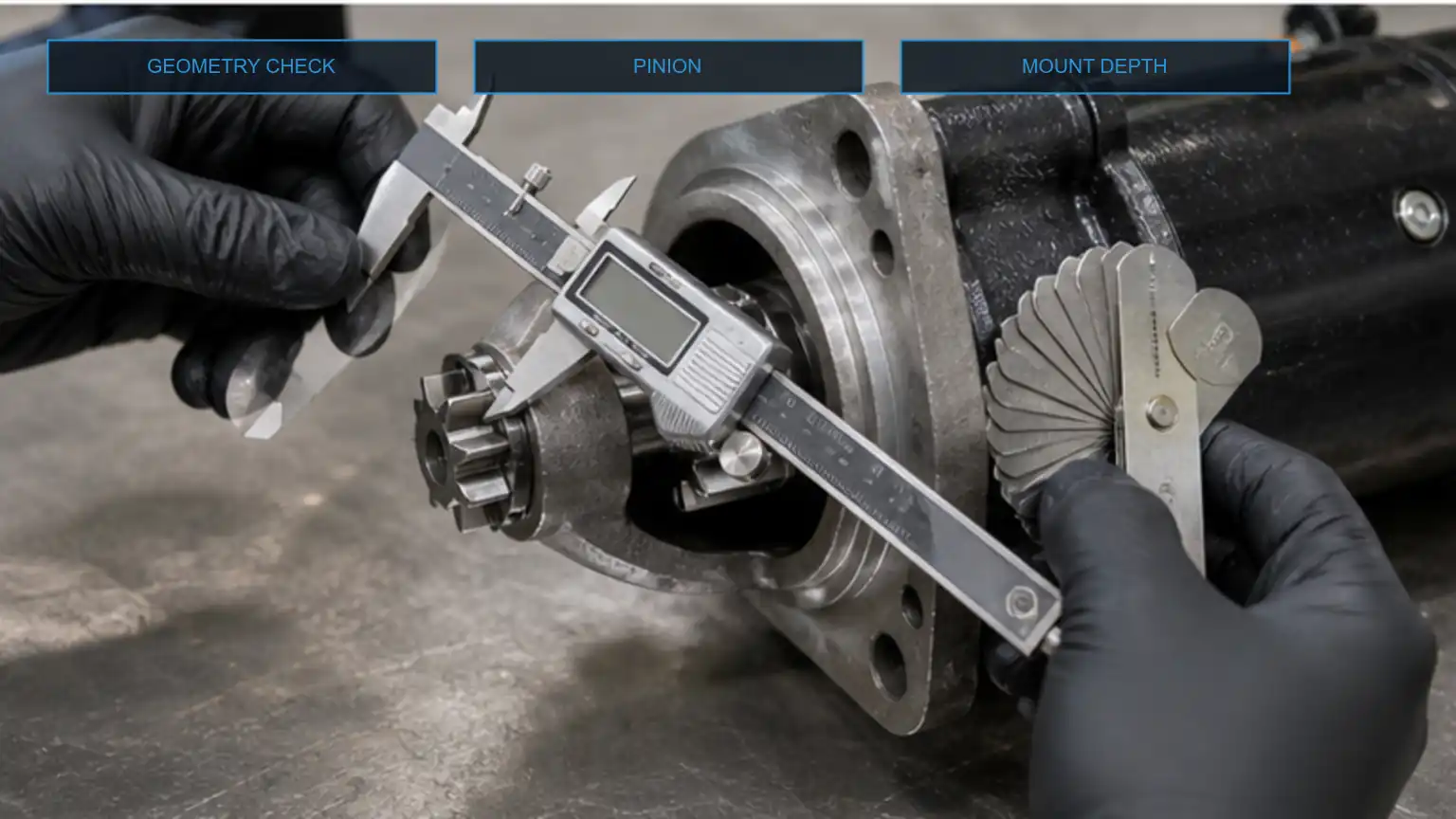

Starter acceptance depends on the ring-gear interface and engagement geometry, not the mounting bolts alone.

Rotation must be defined from an agreed viewing direction

“Clockwise” is ambiguous unless the catalog or supplier states the viewing end. Use the installed part number and manufacturer convention first. If rotation must be confirmed physically, document the viewing direction and do not infer it from terminal position or a mirrored photograph. A starter with the wrong rotation or pinion helix may fail to engage or release correctly even when the electrical connections are possible.

Solenoid clocking is a clearance and serviceability requirement

Measure or photograph the solenoid position relative to the mounting flange and engine. Check clearance to the block, frame, exhaust, hoses, and tools needed for installation. Terminal orientation must allow the cable lugs to sit without twisting or contacting adjacent metal. Re-clocking or modifying the housing simply to clear the application should not be assumed acceptable unless the product design and service instructions expressly permit it.

Alternator matching begins with the load at idle

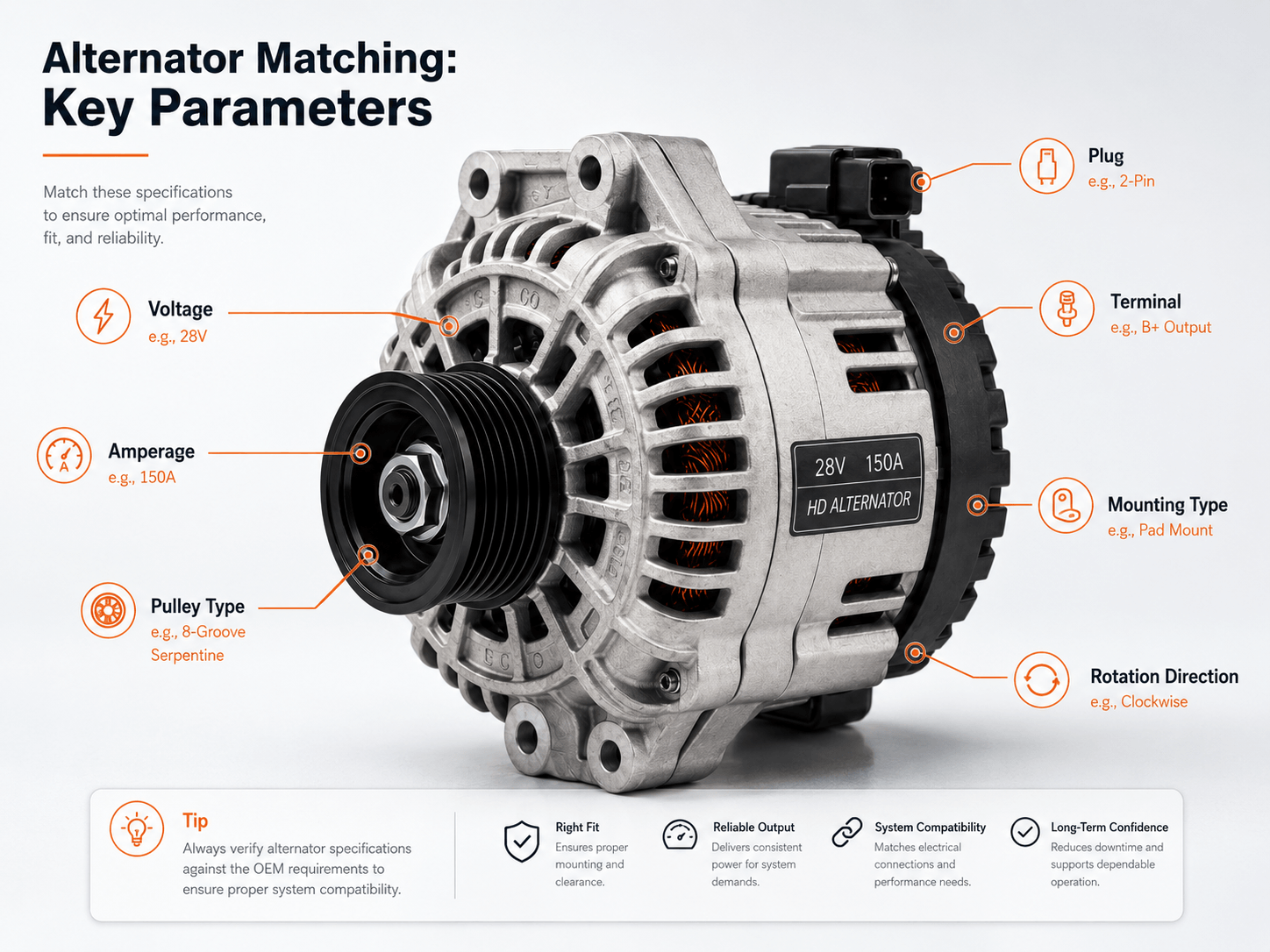

Rated amperage is not enough. Build an electrical-load inventory for the vehicle's normal and worst credible operating condition: lighting, HVAC blowers, cooling fans, pumps, lift equipment, refrigeration, communication equipment, inverters, and battery recharge demand. Estimate how much of that load occurs while the engine idles. Then obtain the candidate alternator's output curve or manufacturer data at the relevant shaft speed and temperature.

Pulley ratio converts engine speed to alternator speed. Record crank-pulley and alternator-pulley diameters, belt type, groove count, alignment, and tensioning arrangement. A higher nameplate rating does not solve an idle-output shortage if the alternator is under-driven, and an unsuitable pulley can overspeed the alternator at governed engine speed. Use the applicable speed limit and output curve rather than a universal ratio.

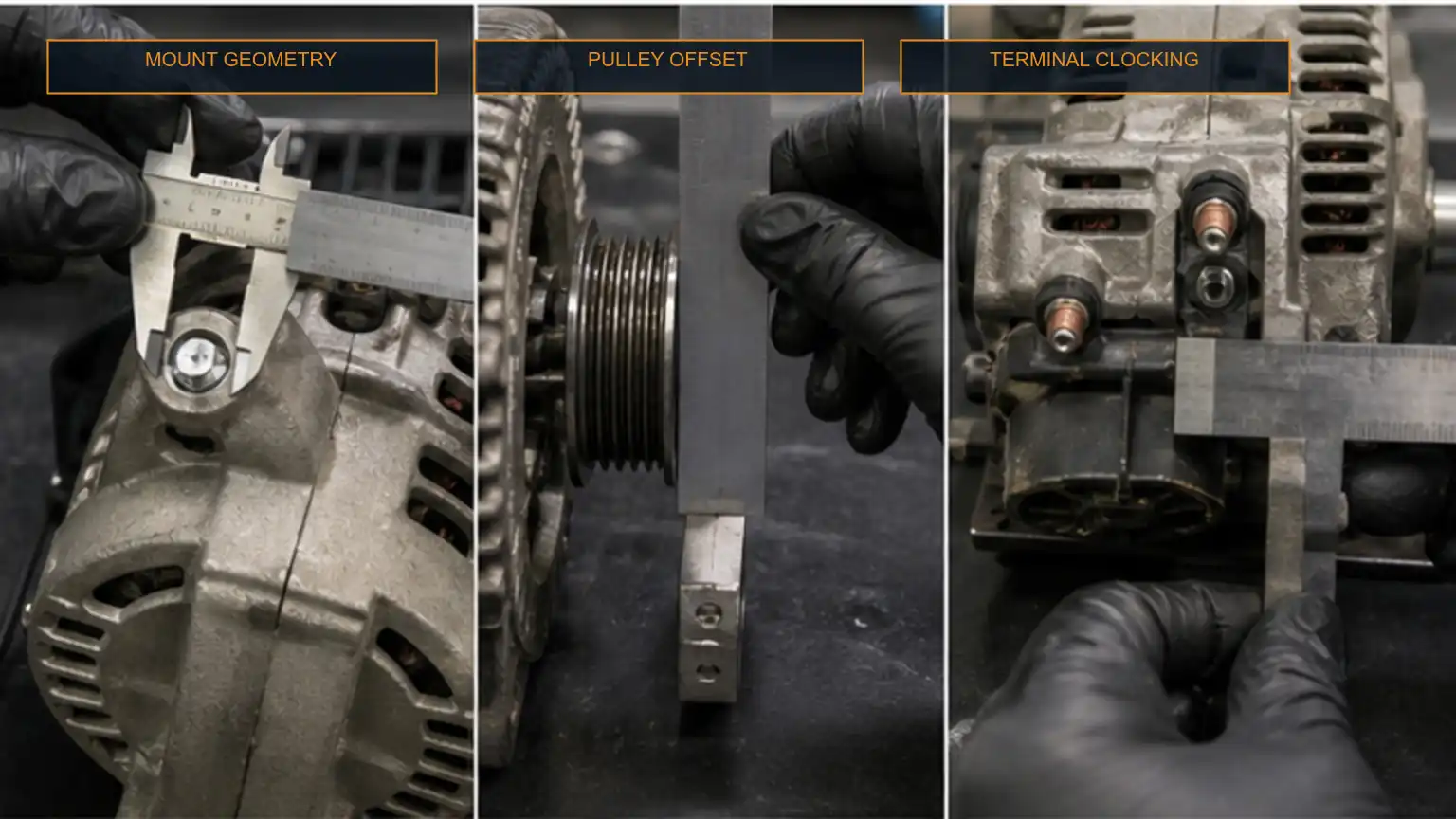

An alternator must satisfy mechanical alignment, electrical connection, and operating-output requirements together.

Regulator and terminal compatibility are functional requirements

Compare B+ terminal size and position, ground arrangement, ignition or excite terminal, sense circuit, lamp or signal terminal, communication interface, and polarity. Remote-sense and vehicle-control features must be handled as designed; an unused or miswired terminal can change charge behavior even when the alternator produces voltage on a bench. Photograph the original connector and cable routing, and request the candidate's terminal diagram before approving a substitute.

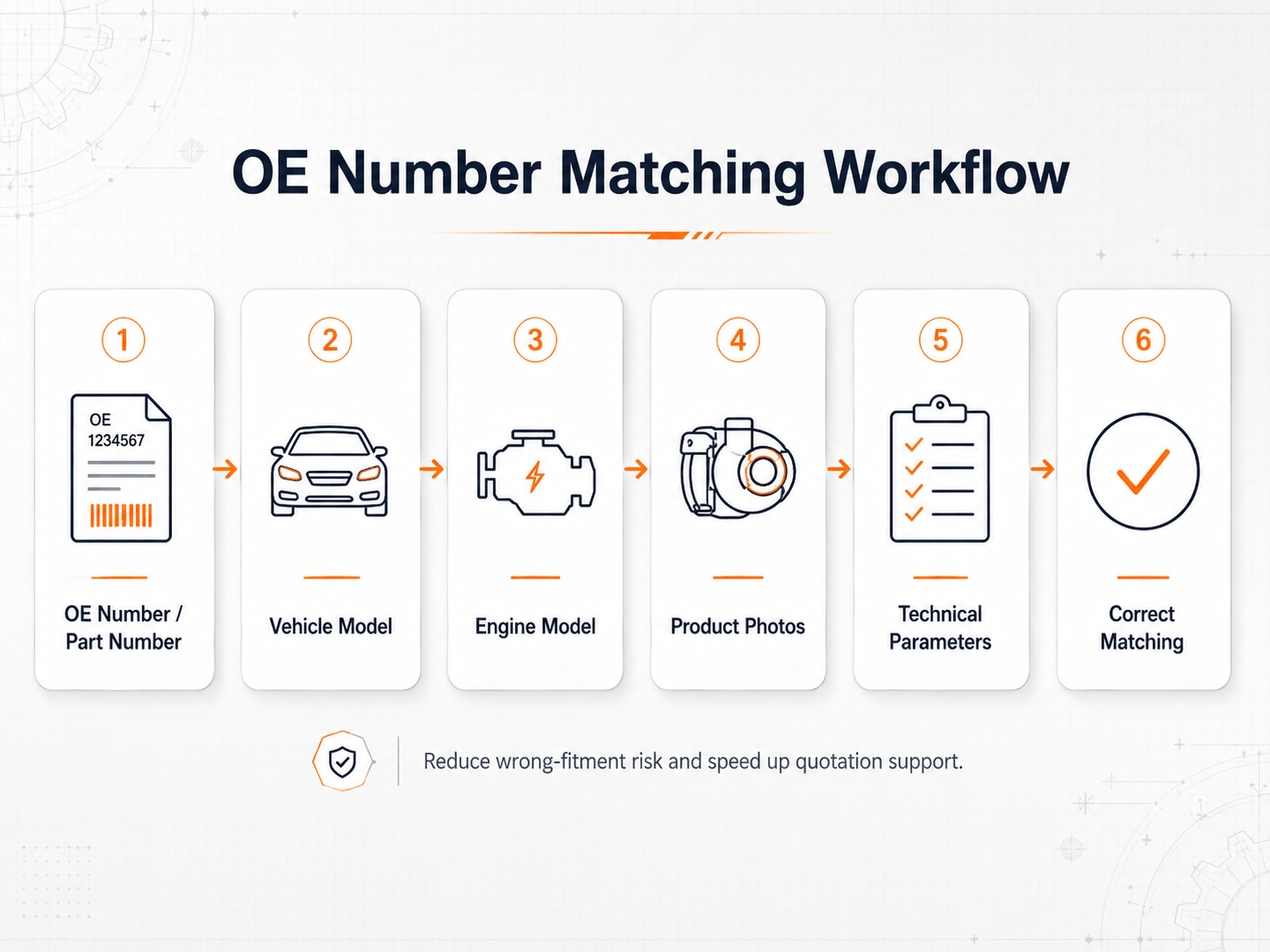

Use cross-references as leads, not final proof

A manufacturer or distributor cross-reference can narrow the search, but it should preserve the source number, candidate number, product type, and relevant specifications. Delco Remy product records, for example, expose voltage, mount, output, terminal, polarity, rotation, and pinion fields rather than presenting one unqualified replacement result. When a source number returns several candidates, compare every configuration field and the application context.

Supersession also needs an audit trail. Record the obsolete or installed number, the superseding number, publication source, date checked, and any adapter, pulley, wiring, or mounting change stated by the source. A seller-created table with no issuer, date, or configuration detail is a search aid—not enough evidence to release a purchase order. If the installed label conflicts with the application catalog, stop and resolve the conflict before choosing whichever result is more convenient.

Separate identification, fitment, and performance evidence

These three conclusions need different proof. A readable label supports identity. Measurements and connector comparison support physical and electrical fitment. Cranking or charging tests support performance under the conditions actually tested. One type of evidence cannot silently stand in for the others. A starter that operates on a no-load bench may still have the wrong pinion engagement; an alternator that reaches regulated voltage without a representative load may still be inadequate at vehicle idle.

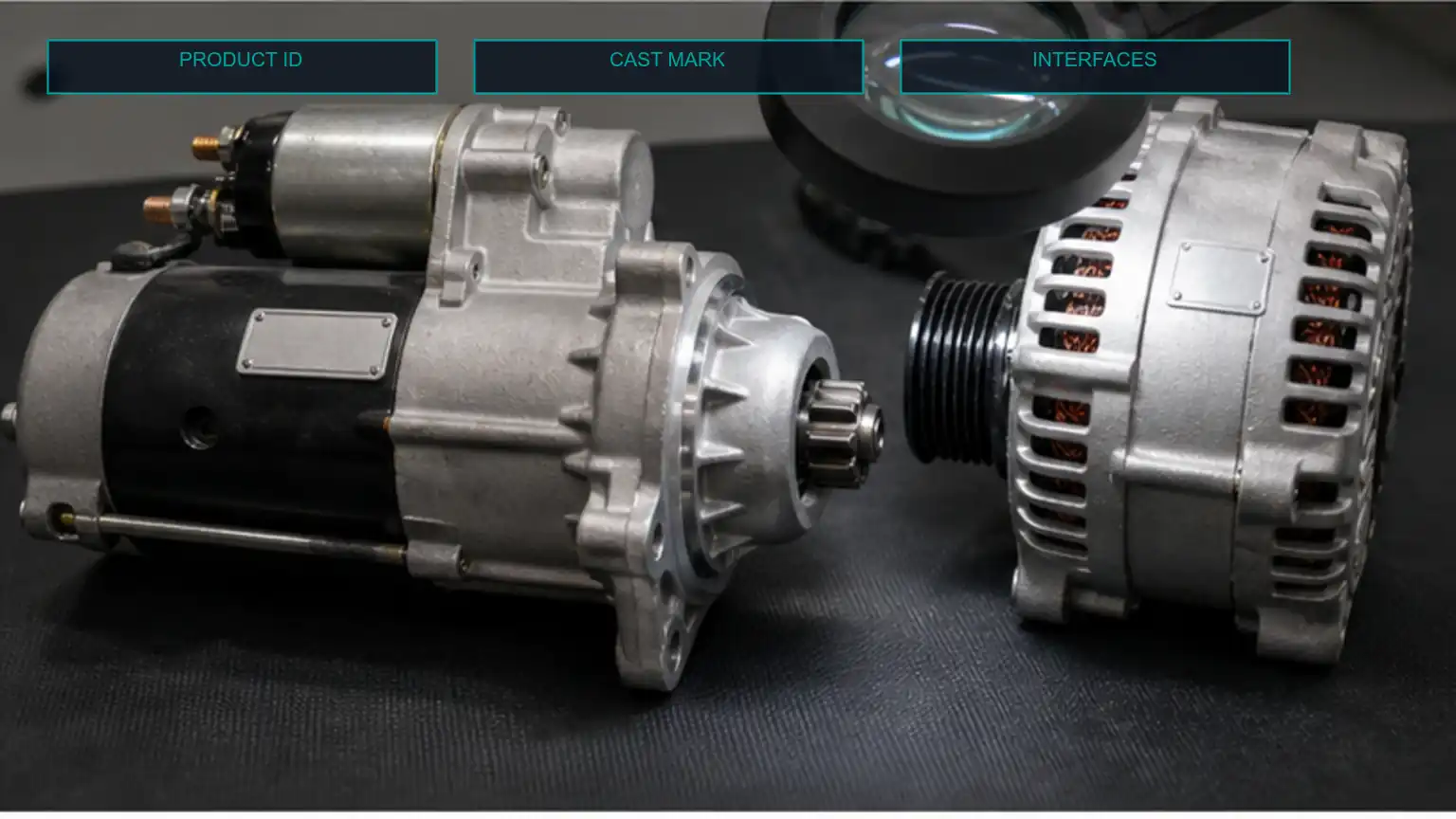

Labels lead identification, while castings, interfaces, and tests provide separate supporting evidence.

What bench testing can and cannot establish

For a starter, define voltage, current, speed, torque or load condition, and the applicable acceptance limit. For an alternator, define shaft speed, temperature condition, regulated voltage, load, and measurement points. A pass under a documented procedure can support the tested function. It cannot by itself prove vehicle fitment, durability, correct pulley ratio, or ring-gear engagement. Generic test labels without unit traceability and measured results are not evidence for the specific part received.

Approve samples against a controlled comparison sheet

Create one comparison sheet per approved application or installed reference. Place the original and candidate numbers at the top, followed by the features that control interchange. Add photographs with named reference points, measurements with tolerances, electrical diagrams where needed, and the accepted test method. Do not use “same as sample” without preserving which sample, its identity, and the characteristics actually compared.

Starter sample-release fields

• Voltage, rotation convention, power or application class, and protection features.

• Mount type, flange dimensions, register, bolt pattern, and nose length.

• Pinion tooth count, pitch or module, rest position, and engagement relationship.

• Solenoid clocking, terminal details, overall envelope, and clearance photographs.

• Traceable functional-test result and the limits used to judge it.

Alternator sample-release fields

• Voltage, rated output, output at relevant shaft or engine idle speed, and temperature basis.

• Mount style and dimensions, adjustment method, pulley diameter, grooves, belt, and alignment.

• B+ and ground arrangement, sense/excite/signal terminals, connector, regulator, and polarity.

• Maximum speed, rotation limits where specified, cooling arrangement, and installation envelope.

• Traceable output-test result, test speed, load, regulated voltage, and measurement uncertainty where required.

Diagnose the vehicle before blaming the removed unit

A no-crank complaint can come from batteries, voltage drop, cables, controls, relay, ground path, engine mechanical load, or ring-gear damage. A charging complaint can come from batteries, belt slip, cable resistance, ground faults, excessive vehicle load, sense wiring, or control-system behavior. Record the diagnostic evidence before ordering; otherwise the buyer may repeat the same symptom with a correctly matched replacement.

For starter-side troubleshooting, Elecdura's starter relay guide, starter solenoid test guide, and heavy-duty starter symptom guide help separate circuit evidence from motor replacement. These resources do not override the service information for the exact vehicle.

When this recommendation does not apply

This framework does not authorize modifications to safety-critical wiring, control modules, mounting structures, ring gears, or belt drives. It also does not replace manufacturer procedures for high-voltage, hybrid, marine ignition-protected, or other regulated applications. If the system voltage is uncertain, the installed unit has no recoverable identity, or an engine or chassis conversion has altered the original interfaces, treat the job as an engineering review rather than a routine cross-reference.

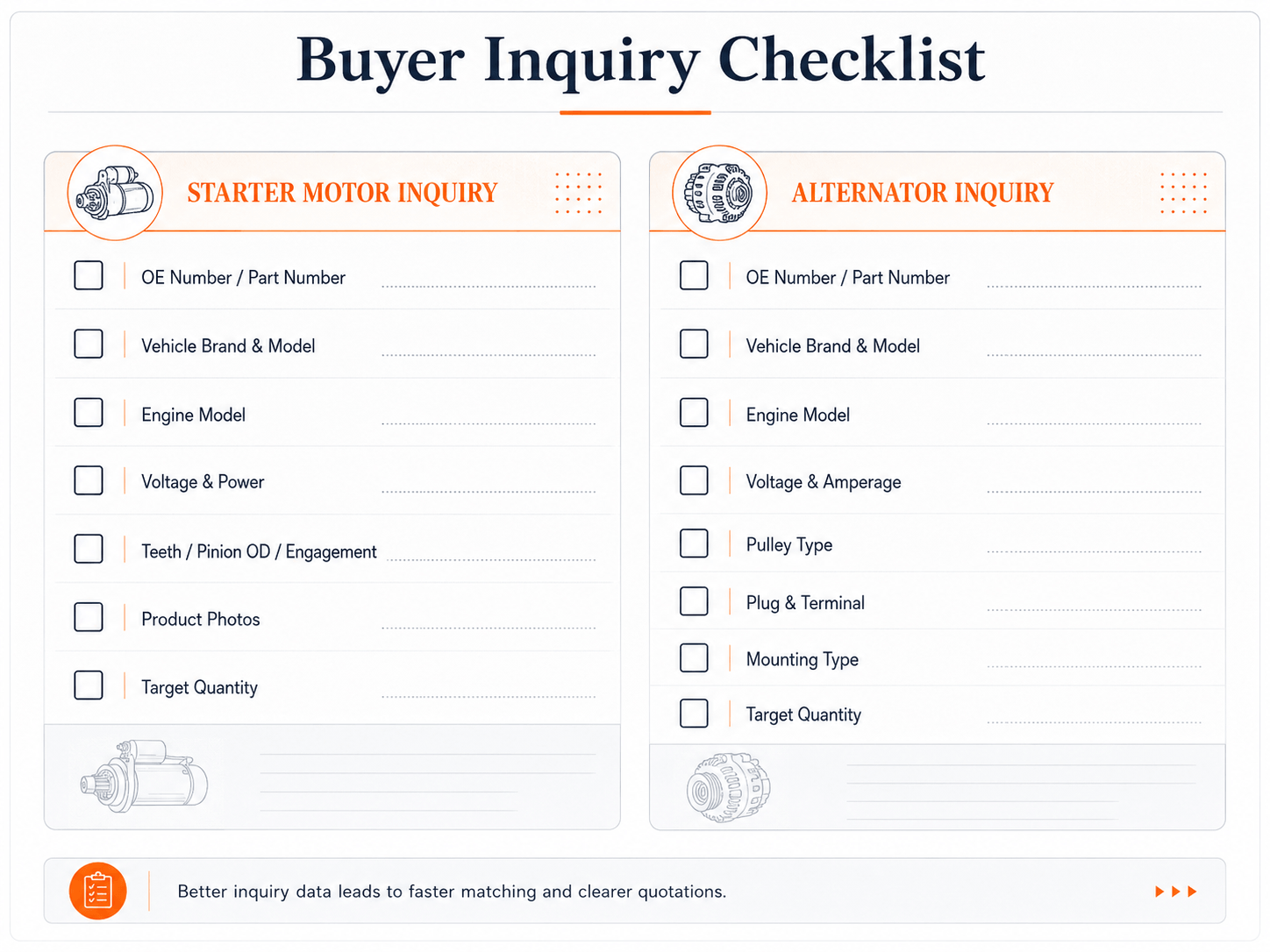

Build an RFQ that produces a verifiable answer

For each unit, submit the installed number and label, vehicle or equipment identity, engine model and serial, clear interface photographs, measured features, symptom and diagnosis, required quantity, destination, and documentation expectations. Identify whether the order is for a new, remanufactured, or other clearly defined product condition. Ask the supplier to return its candidate number, cross-reference basis, complete specification, exclusions, and any application information still required.

Send the evidence through the Elecdura matching and RFQ form. Keep starter and alternator requests on separate lines even when they belong to the same fleet, because each needs its own approval fields and receiving record.

Starter and alternator matching FAQs

Can a higher-amperage alternator replace a lower-rated unit?

Possibly, but the nameplate number alone does not approve the change. Confirm voltage, mount, pulley alignment and ratio, belt capacity, terminal and regulator arrangement, wiring capacity, maximum speed, thermal environment, and the vehicle manufacturer's allowance for the configuration. Then compare output at the vehicle's relevant idle condition, not only maximum rating. A higher-rated unit may offer useful reserve, yet an incompatible sense circuit, pulley, cable, or control strategy can create a charging fault or overload an existing connection.

Does the same starter bolt pattern guarantee correct fitment?

No. The register, nose length, pinion tooth count and pitch, rest position, engagement depth, rotation, solenoid clocking, and terminal clearance can differ behind the same apparent bolt pattern. Compare the installed number and ring-gear application first, then use measurements as confirmation. If the candidate mounts but produces abnormal engagement noise or limited tooth contact, do not continue trial cranking; inspect the specified engagement relationship and quarantine the part until identity is resolved.

What should a buyer do when the original label is unreadable?

Do not invent a number from a casting. Collect the engine and vehicle or machine data, electrical-system voltage, full photographs, connector and terminal layout, mount measurements, and application-specific starter or alternator fields. Check maintenance records and authoritative application catalogs. A housing casting may narrow a family but can appear on several finished configurations. If the evidence still returns more than one candidate, obtain the ring-gear or load information needed to distinguish them instead of approving by appearance.

Can a bench-test certificate replace incoming inspection?

No. A traceable certificate supports only the test conditions and measured limits it states. Receiving inspection still has to confirm supplier number, quantity, condition, label, mount, pulley or pinion, terminals, connector, protective packaging, and required documentation against the approved sample. The certificate must identify the tested unit or batch. If its number, date, method, or limits do not correspond to the shipment, quarantine the item and ask the supplier to resolve the traceability gap.

How should a distributor control an approved supersession?

Record the installed or former number, replacement number, issuing source, revision date, affected applications, and every stated configuration change. Update the comparison sheet and receiving criteria before releasing the new number. If pulley, terminal, mount, solenoid, software, or adapter requirements change, run the affected fitment and functional checks again. A successful delivery of the previous number does not approve a later supersession, and a catalog statement should not be extended beyond the applications it explicitly covers.

References used for the matching method

• Delco Remy, Starter and Alternator Literature and Application Guides.

• Delco Remy, Spec It Right Starter and Alternator Guide.

• Delco Remy, 39MT New Starter Product Record.
