Grinding, milling, chipped teeth, delayed release, and intermittent no-crank complaints often develop at the interface between the starter pinion and flywheel ring gear. A replacement starter can repeat the damage when the mount, pilot, pinion, rotation, tooth count, engagement depth, solenoid travel, or ring gear is wrong.
Inspection must cover more than the accessible teeth. Ring gears often stop in recurring crank positions, so a small damaged sector can create an intermittent pattern while most of the circumference looks serviceable. Buyers can use the Elecdurauto starter category to organize reference and application research; final selection still depends on the measured application record.
This workflow preserves tooth-contact evidence, measures the starter and housing geometry, rotates the engine through the full ring gear, and validates engagement dynamically under a controlled crank request.
Tooth contact should be interpreted with the direction of rotation and the chamfer design. Polished flanks, battered tips, asymmetric marks, and metal transfer indicate different engagement conditions. Photographs must identify the exact ring-gear sector and pinion orientation so later reviewers can connect the mark to the measured geometry.
A starter pilot release should include multiple engagements after a heat soak, because solenoid travel, return force, lubricant drag, battery voltage, and engine stopping position can change after repeated cycles. One cold start cannot represent the full interface risk.
When the ring gear is damaged, the record should identify whether repair means replacement, approved dressing, alignment correction, or another manufacturer procedure. A new starter must not be installed against an unresolved tooth or housing defect. The final acceptance record should name the exact repair and the person who approved it.
Record noise, engagement delay, kickback, release, temperature, engine position, recent replacement history, starter reference, and photographs before cleaning the parts. Before testing, the warranty analyst ties symptom timing to a named vehicle, engine, or bench configuration. That record establishes a measurable starting point for the investigation and prevents a convenient no-load observation from defining the entire starter motor case.
Establish symptom timing first, then compare service history while the original complaint is reproduced. Use starter identity to challenge the first interpretation and retain damage photographs as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why symptom timing represents the starting state and how service history changes when the suspected failure appears. If evidence from starter identity points elsewhere, the diagnosis stays open. Damage photographs become the reference used to compare the removed unit, approved sample, and later production lot.
Symptom timing: Capture the initial value and the exact operating condition.
Service history: Compare the response before and during the complaint.
Starter identity: Use an independent observation to test the first theory.
Damage photographs: Preserve the reference with date, instrument, and reviewer.
The original pattern helps separate chronic misalignment from a single foreign-object event. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded starter behavior describe the same event.
Document symptom timing against the complaint, starter identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Disable starting safely, rotate the engine by the approved method, inspect every sector for chamfer loss, burrs, chips, cracks, runout, contamination, and uneven contact. This stage converts the initial observation into a controlled test route. The fleet electrician prepares full-circumference record, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure tooth condition at the first defined point, then recheck runout after the starter reaches the second condition. Recurring stop sectors should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
The starter motor controlled-test sheet should let a second technician reproduce the procedure described in this section. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
Full-circumference record: Define the pre-test state and preparation method.
Tooth condition: Log the first controlled response with its unit and tolerance.
Runout: Repeat at the second condition without changing unrelated variables.
Recurring stop sectors: Note the deciding observation and any remaining ambiguity.
A partial inspection can miss the section that receives most starts. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close the controlled starter motor test only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

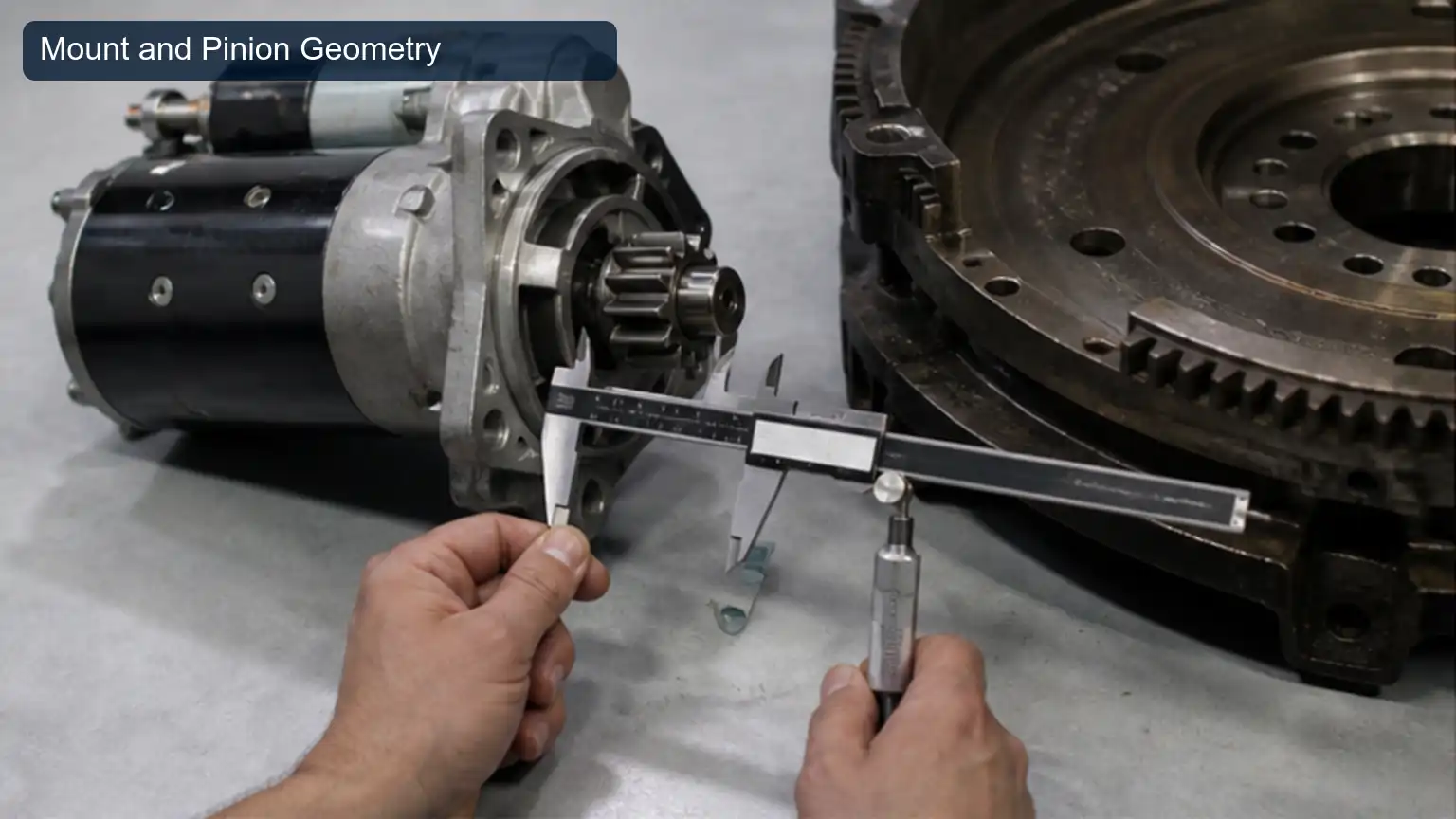

Mount and Pinion Geometry documents the article's opening system context with a realistic component or workshop reference.
Compare flange, pilot, bolt pattern, nose length, pinion tooth count and diameter, rest position, rotation, clocking, and clearance with the approved drawing and removed unit. The purpose here is pattern recognition rather than collection of isolated numbers. The bench technician aligns mount dimensions, pilot fit, pinion geometry, and rotation and clocking on one timeline so the sequence of the starter response remains visible.
Interpret mount dimensions together with pilot fit; either item alone can support several causes. Compare their timing with pinion geometry, then use rotation and clocking to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong starter motor report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
Mount dimensions: Retain the unedited trace, image, or measured sequence.
Pilot fit: Mark the feature that changes with the complaint.
Pinion geometry: Compare the same feature under a control condition.
Rotation and clocking: State which cause the combined pattern supports or excludes.
A starter may bolt on while placing the pinion at the wrong center distance or depth. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the starter behavior changed.
Release this pattern-analysis stage when the saved pattern and control condition support one interpretation of the starter motor evidence. Contradictory traces remain attached as open evidence.
Inspect plunger, shift lever, return spring, overrunning clutch, shaft splines, pinion travel, contact timing, and evidence of sticking or incomplete release. This module examines how the starter behaves after time, heat, load, or contamination has had an opportunity to act. The receiving inspector defines the exposure interval and tracks plunger travel before, during, and after that interval.
Correlate lever condition with drive movement rather than treating either value as a universal limit. Add return action to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The starter motor stress-test worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
Plunger travel: Establish the pre-exposure reference.
Lever condition: Capture the peak or worst-case behavior.
Drive movement: Compare the response at a fixed elapsed time.
Return action: Document recovery and any permanent change.
Correct geometry still fails when the drive cannot reach or leave its designed position. A result outside the limit requires the surrounding system to be checked before the starter is condemned. Approval waits until the stress route and recovery evidence agree.
Approve the starter motor stress test after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference in the starter motor investigation, the starter product example can help a buyer compare visible interfaces and application clues. Product photography supports this diagnostic stage, but it cannot replace the controlled readings and documented limits required by this section.

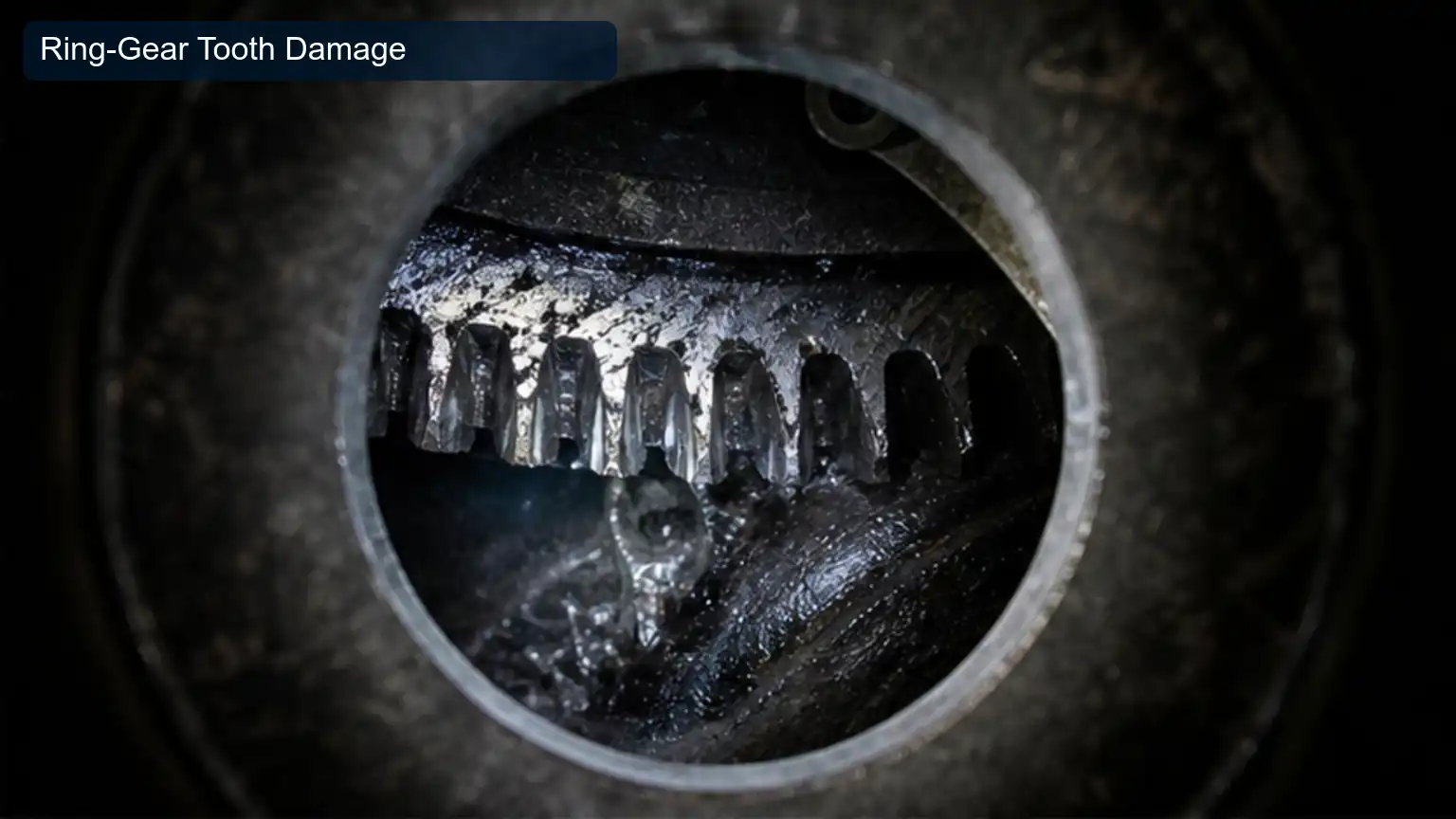

Ring-Gear Tooth Damage documents the article's first diagnostic or inspection module with a realistic component or workshop reference.
Use the manufacturer-approved gauge or marking method to confirm tooth clearance, overlap, center distance, shims where specified, bellhousing alignment, and mounting-face condition. Bench inspection now tests the internal or component-level theory developed on the machine. The technical buyer preserves the removed condition, cleans only what the method requires, and records backlash or clearance before disassembly can erase useful evidence.
Quantify engagement depth with equipment suited to its expected range, verify shim requirement through a second method where practical, and photograph mounting-face alignment beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact starter motor case under review.
Backlash or clearance: Preserve the as-removed condition and reference marks.
Engagement depth: Record calibrated measurement and environmental correction.
Shim requirement: Confirm the suspected mechanism with a second observation.
Mounting-face alignment: Connect visible condition with the measured failure path.
Too tight and too shallow engagement produce different damage and require different corrections. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept the starter motor bench inspection when the as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
Check battery voltage, crank speed, ignition or injection timing, control delay, engine kickback, anti-restart logic, and overrunning-clutch release. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The warranty analyst compares the evidence for crank voltage with the evidence for timing behavior under the same demand before changing any component.
Use kickback evidence to test the alternative explanation, then inspect release speed for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original starter failure.
A cause map for the starter motor decision lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
Crank voltage: Define what this result would mean for the primary theory.
Timing behavior: Compare the alternative component or system response.
Kickback evidence: Run the discriminating check that separates both paths.
Release speed: Inspect the interface where one fault could imitate another.
Electrical and combustion events can damage correctly matched gears. Replace the affected component only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass the starter motor cause-separation stage after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

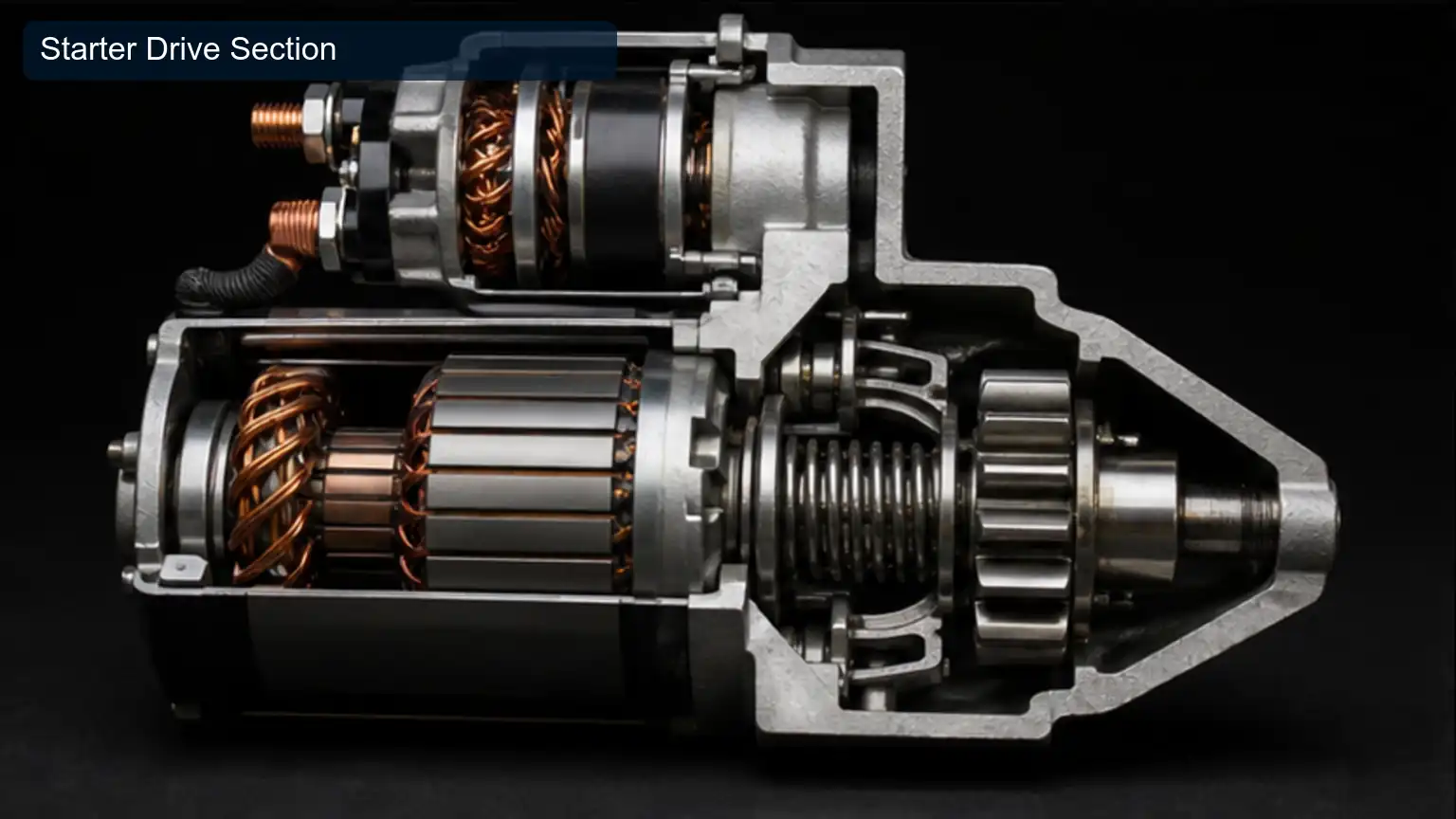

Starter Drive Section documents the article's mid-article evidence module with a realistic component or workshop reference.
After correction, perform controlled starts at multiple ring-gear positions, record current, voltage, sound, engagement and release time, and inspect fresh contact marks. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The fleet electrician defines how the approved sample and production units will be compared using positioned start tests and current and voltage.
Add sound record to expose changes that a label or catalogue cross-reference cannot show. Use contact-mark review to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty operating cycle rather than an unspecified generic test.
The starter motor acceptance sheet identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
Positioned start tests: Define the release value and sampling method.
Current and voltage: Compare sample evidence with the incoming lot.
Sound record: Retain the technical record that exposes configuration drift.
Contact-mark review: Trace approval, deviation, and claim decisions to one identity.
Repeated position testing proves the interface rather than one convenient start. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory starter acceptance field.
Authorize starter motor production release through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.

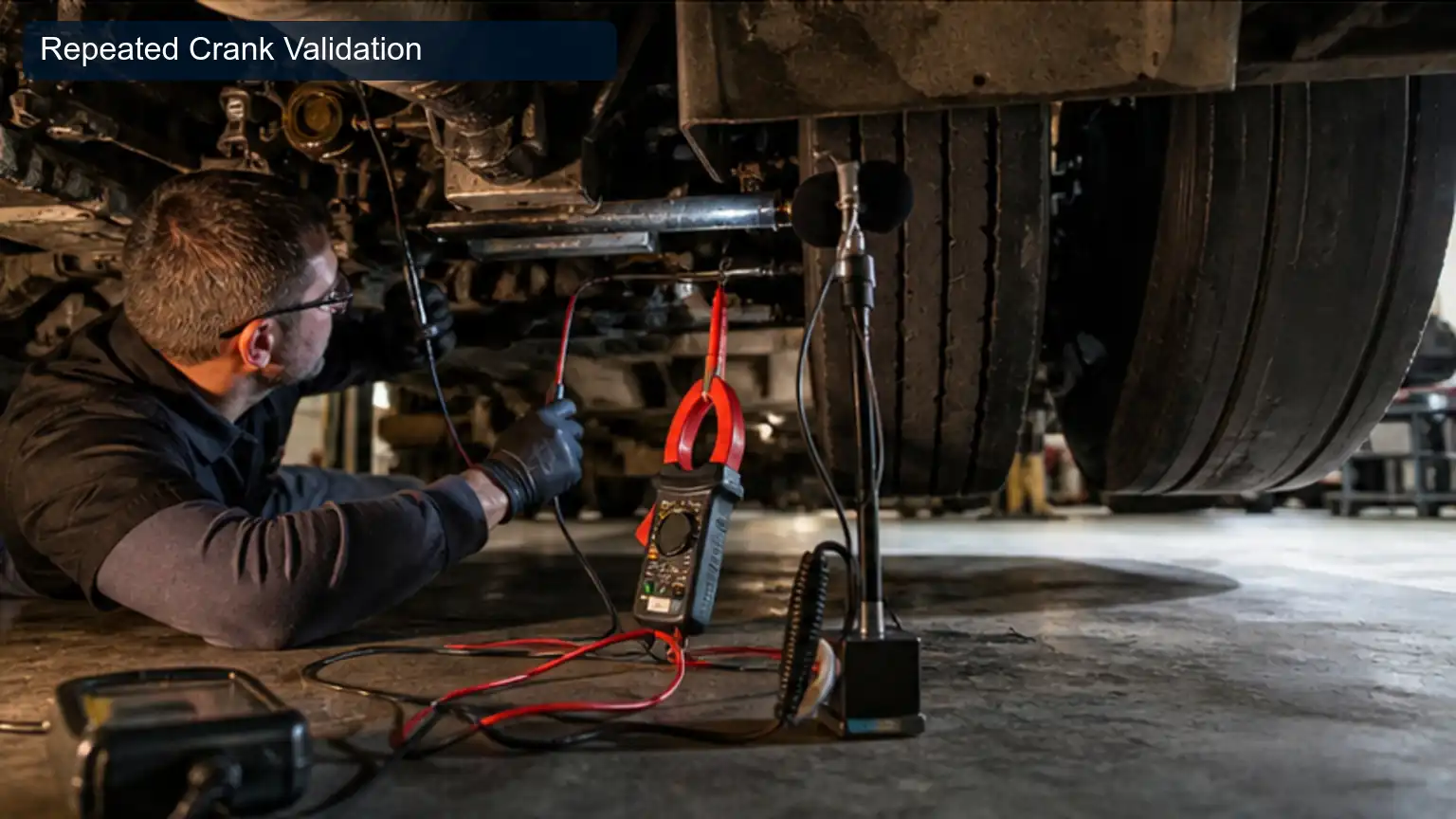

Repeated Crank Validation documents the article's final validation or release module with a realistic component or workshop reference.
State whether the requested starter for the starter motor application is new aftermarket, remanufactured, or another declared condition.
List the mandatory interfaces relevant to this starter motor case and identify the evidence for each one.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
Retain the approved starter sample or a complete photo and measurement record for the starter motor release.
Trace each incoming starter engagement lot to its supplier declaration, approved sample, and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Return each starter engagement field failure to the same measurements and acceptance route used for initial approval.
This starter motor workflow works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
Preserve the full ring-gear inspection, starter mount dimensions, pinion geometry, solenoid travel, backlash or engagement-depth result, kickback checks, and repeated positioned-start evidence. The record must show that both the starter and ring gear meet the approved interface before release.
