Direct answer: A heavy-duty radiator fan is matched as part of the installed cooling module, not by diameter and blade count alone. Define the viewing side for shaft rotation, identify intended airflow through the radiator package, compare blade pitch and sweep, and measure diameter, pilot, bolt circle, hub depth, offset, tip clearance, and axial shroud overlap. Confirm fan-drive, radiator, charge-air-cooler, sealing, and shroud condition before blaming the fan. If an unmarked candidate lacks traceable performance or application evidence, use a guarded sample; a bolt-on trial cannot prove adequate airflow or durability.
This guide is for fleets, cooling-system suppliers, equipment workshops, and importers. Elecdura's heavy-duty cooling-fan category is a starting point after the installed module has been measured.
State whether rotation is viewed from the drive side or radiator side. Mark the engine-side and radiator-side faces of the removed fan and show the shaft direction from the service information. Separately document intended airflow through the radiator and charge-air-cooler stack. Rotation and airflow are related through blade geometry; neither can be inferred safely from the other without a defined viewpoint.

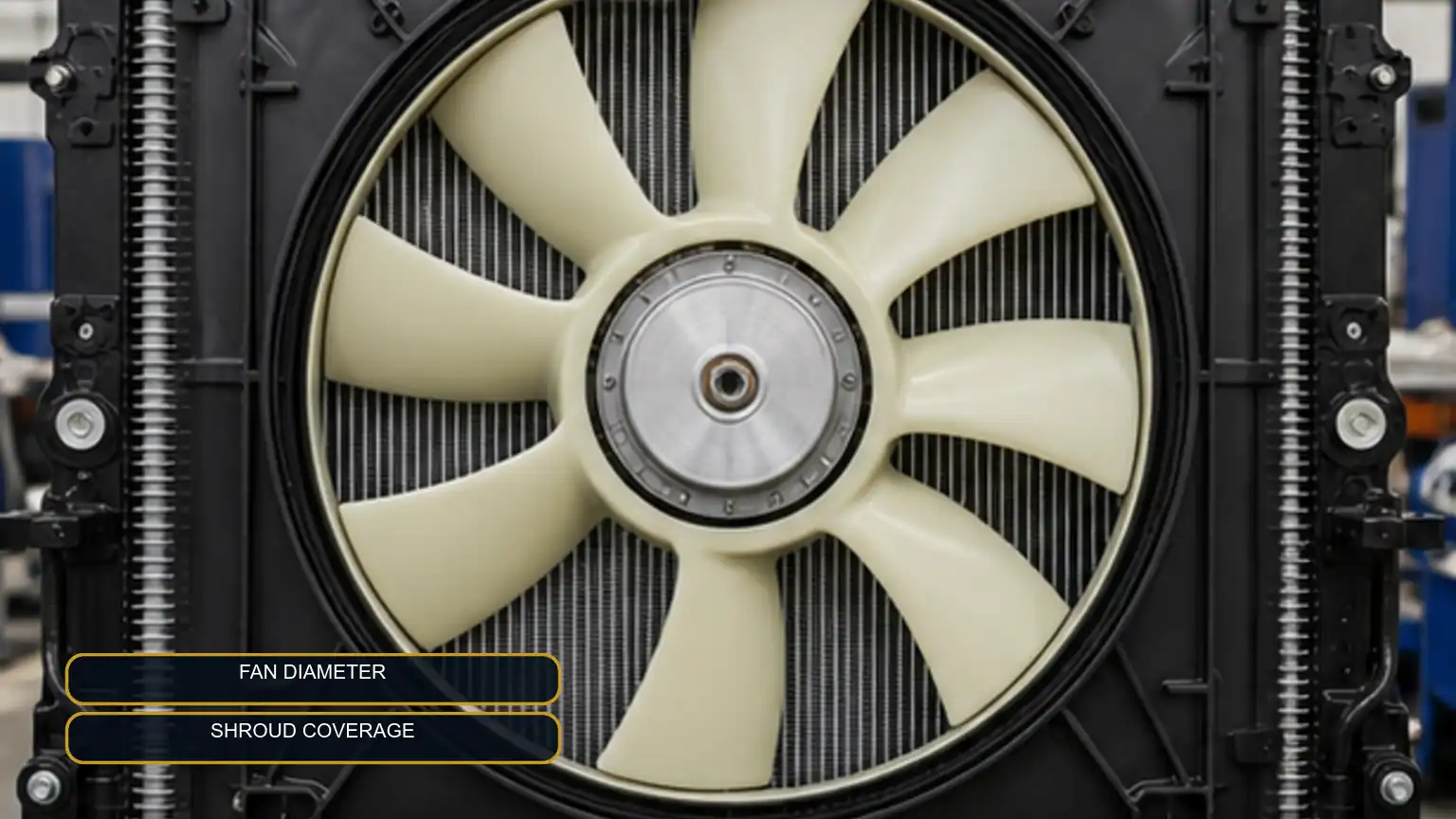

Complete heavy-duty radiator, shroud, hub, and multi-blade cooling fan viewed from the engine side.
Before removal, photograph fan orientation, drive type, shroud, radiator package, hoses, guards, and nearby structure. Look for a reversed prior installation, missing shroud sections, damaged seals, recirculation paths, or a fan running off center.
Measurement | Reference | Risk if wrong |
|---|---|---|
Fan diameter and tip clearance | Hub center and full shroud circumference | Contact or air bypass |
Pilot and bolt circle | Finished mounting faces | Eccentricity or unsafe fastening |
Hub depth and offset | Drive mounting plane | Incorrect axial position |
Axial shroud overlap | Shroud throat and fan plane | Reduced shroud effectiveness |
Record the gauge and datum in each photograph. Inspect the full circumference because damaged mounts or an offset engine can create unequal clearance even when one side appears acceptable.
Place the removed and candidate fans in the same orientation. Compare blade pitch, chord, sweep, leading and trailing edges, ring or tip features, hub transition, material, and any molded identity. Do not force a candidate into equivalence merely because it has the same diameter and number of blades.

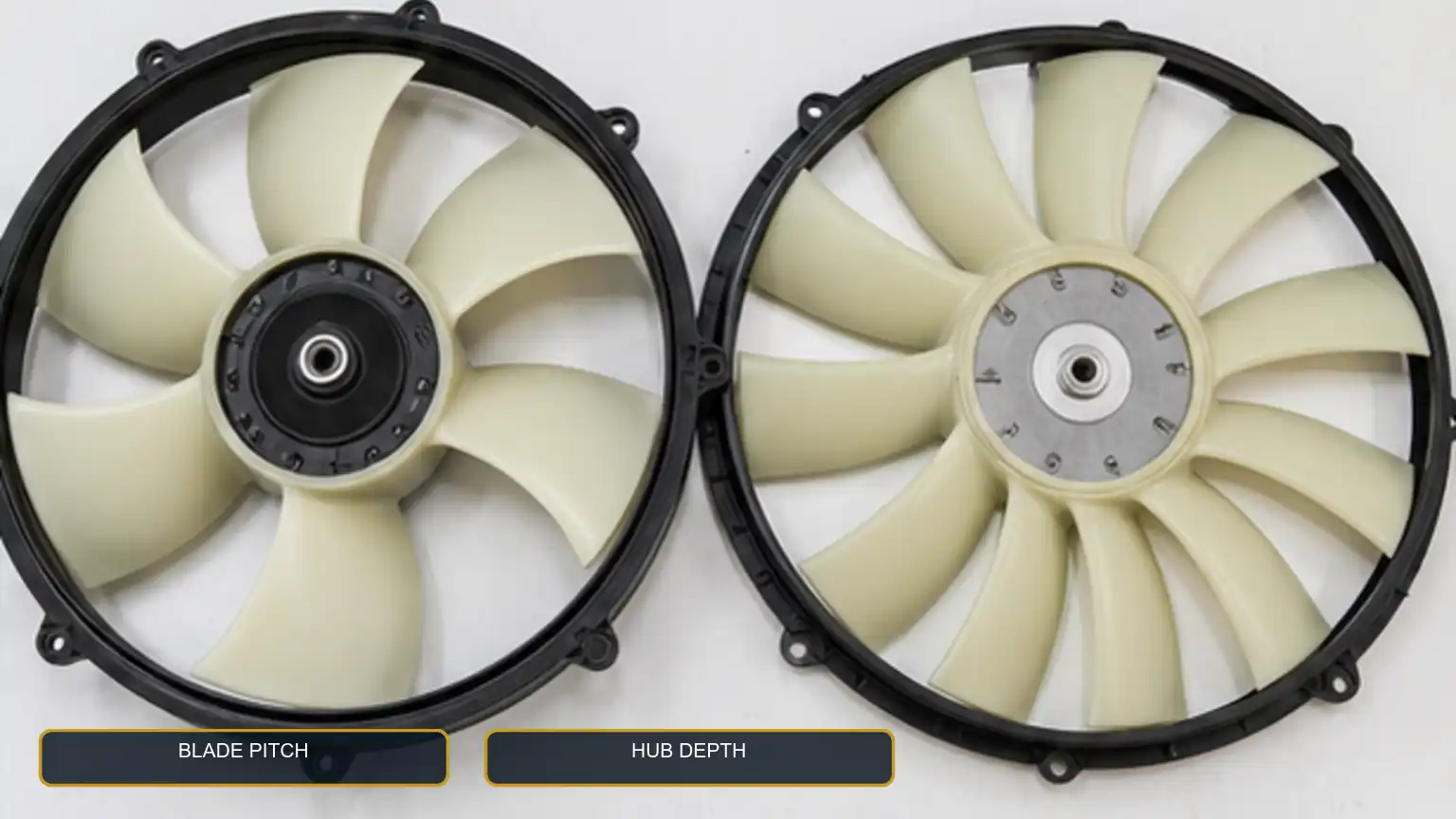

Two heavy-duty molded cooling fans compared from above for blade count, pitch, rotation, and hub depth.
A geometry change can affect airflow, power demand, noise, stress, and interaction with the shroud. Where performance data or an approved application path is unavailable, label the uncertainty and limit the candidate to a controlled sample under the authorized vehicle test.
After safe installation and clearance checks, use guarded procedures to confirm the drive state, fan rotation, and local airflow direction. Then evaluate the cooling system using the vehicle's specified operating observations or instruments. Record temperatures, load, fan command or speed, module cleanliness, sealing, and environmental conditions.

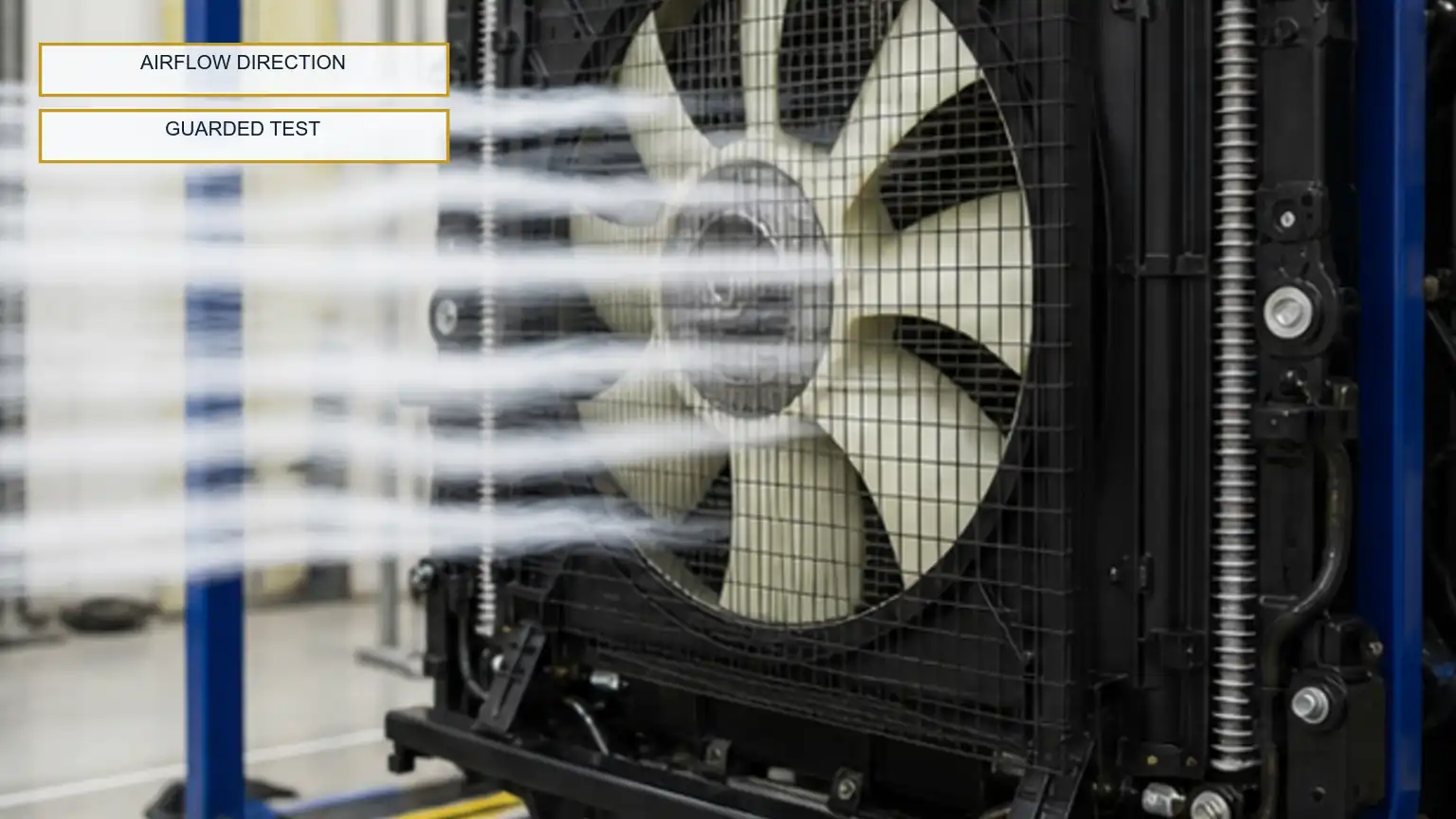

Heavy-duty radiator and fan assembly operating inside a guarded airflow test rig with visible flow streamers.
AMCA's testing and fan-curve resources illustrate why airflow performance belongs to a defined system and test condition. A streamer or paper check is useful for direction only; it cannot establish a certified airflow value or a complete heat-rejection result.
Use the exact vehicle, engine, or fan-drive manufacturer's controlled fan specification when it is available. This guide does not authorize changing diameter, pitch, blade count, material, speed, spacer arrangement, fan-drive strategy, or guard configuration. Those changes can alter loads and safety margins beyond a fitment decision.
Vehicle, engine, cooling module, and fan-drive identity
Named-view rotation and intended airflow direction
Removed fan number and both-face photographs
Diameter, pilot, bolt circle, hub depth, offset, and blade geometry
Tip clearance, axial overlap, core and sealing condition
Required quantity, destination, packaging, and sample test owner
Send the completed record through the Elecdura cooling-fan RFQ. Ask the supplier to answer each directional and dimensional field rather than returning a generic application name.
Not unless the viewpoint is defined. Clockwise from the drive side can be counterclockwise from the opposite side, and rotation alone does not state the blade pitch or resulting airflow. Photograph the installed fan from a named viewpoint, mark engine-side and radiator-side faces, record shaft rotation under the service information, and document intended airflow through the cooling module. Compare blade geometry and hub offset with the approved fan; never reverse an unsuitable fan and assume it will perform correctly.
Blade count describes only one visible feature. Fans with the same number of blades can differ in diameter, chord, pitch, sweep, ring or tip design, material, hub depth, pilot, bolt pattern, balance, speed capability, airflow, noise, and power demand. Use blade count to help identify a unit, not to approve it. The service application, finished fan number, complete geometry, shroud relationship, and controlled operating evidence are required before a bulk replacement is released.
Use a fixed hub or mounting datum and measure fan depth, shroud depth, axial overlap, radial tip clearance, and clearance to the radiator, charge-air cooler, hoses, engine, and guards. Photograph the complete circumference where possible, because an offset engine or damaged shroud can produce uneven clearance. Compare with the vehicle or cooling-system specification. A fan centered in a photograph may still sit too far forward or rearward to use the shroud effectively.
These methods can indicate local direction during a guarded test, but they do not measure total airflow, pressure, heat rejection, efficiency, or performance at road load. A streamer can also be influenced by recirculation and local turbulence. Use it only as a direction check, then follow the approved operational or instrumented test. Record fan-drive state, speed, temperatures, module condition, and test safeguards. Do not extend a stationary observation into a claim about every duty cycle.
Ask for traceable supplier identity, declared fan number and condition, drive-side and radiator-side photographs, diameter, pilot, bolt circle, hole size, hub depth and offset, blade count and geometry, intended rotation viewpoint, intended airflow direction, material or construction information available from the source, and packaging protection. Compare those fields with the installed module. If identity and speed or application suitability cannot be supported, limit the candidate to a controlled sample rather than treating visual resemblance as production approval.
