A rebuilt starter can pass a brief no-load spin and still lose diesel cranking torque when its brushes do not share current evenly. Weak springs, tight brush pockets, tilted holders, contaminated copper, damaged flexible leads, poor insulation, or mixed brush grades can create heat and voltage loss under load.
The brush system is also a batch-control issue. If one rebuilding station accepts short brushes by appearance while another measures force and holder alignment, wholesalers receive inconsistent products that are difficult to defend during a warranty claim. Buyers can use the Elecdurauto starter motor category to organize reference and application research while the workshop keeps measured evidence in control of the final decision.
This guide turns brush and holder inspection into a measurable heavy-duty release process covering identity, wear pattern, spring force, holder condition, insulation, assembled voltage loss, loaded performance, and repeat-order evidence.
Record starter model, voltage, power, application, brush-holder design, polarity arrangement, complaint, core condition, and previous repair marks before cleaning. Before testing, the bench technician ties starter reference to a named vehicle, engine, or bench configuration. That baseline gives brush wear pattern, spring-force consistency, holder geometry, insulation integrity, current sharing, and rebuild quality gates a measurable starting point and prevents a convenient no-load observation from defining the entire starter motor case.
Establish starter reference first, then compare brush-set reference while the original complaint is reproduced. Use polarity layout to challenge the first interpretation and retain core history as the condition that another workshop or supplier can repeat. Temperature, speed, load, connection point, and instrument identity belong beside every value.
The opening record must explain why starter reference represents the starting state and how brush-set reference changes when the suspected failure appears. If polarity layout points elsewhere, the diagnosis stays open. core history becomes the reference used to compare the removed unit, approved sample, and later production lot.
starter reference: capture the initial value and the exact operating condition.
brush-set reference: compare the response before and during the complaint.
polarity layout: use an independent observation to test the first theory.
core history: preserve the reference with date, instrument, and reviewer.
The accepted brush grade, lead length, spring, and holder geometry must remain tied to the exact starter family. A missing baseline cannot be recreated from memory after replacement, so unresolved fields remain marked pending. The first gate closes only when the complaint and the recorded starter motor behavior describe the same event.
Sign the preserve starter and brush-system identity baseline against the complaint, starter motor identity, operating state, and named reviewer. This first decision authorizes controlled testing while leaving fitment and purchasing approval open.
Compare brush length, face angle, contact width, glazing, chipping, discoloration, flexible-lead condition, and differences between positive and grounded brushes. This stage converts the initial observation into a controlled test route. The receiving inspector prepares remaining brush length, verifies the connection or mechanical setup, and records the ambient and starting condition before applying a load, command, or movement.
Measure contact-face pattern at the first defined point, then recheck thermal discoloration after the starter motor reaches the second condition. lead fatigue should reveal whether the change follows the component, the host system, or the test setup. A changed cable, adapter, fixture, or speed invalidates the comparison unless it is documented.
For read the brush wear pattern before replacement, the test sheet should let a second technician rebuild the same arrangement. It identifies the fixture, probe locations, timing, units, applied demand, and the reason each reading matters to the suspected failure.
remaining brush length: define the pre-test state and preparation method.
contact-face pattern: log the first controlled response with its unit and tolerance.
thermal discoloration: repeat at the second condition without changing unrelated variables.
lead fatigue: note the deciding observation and any remaining ambiguity.
Uneven wear can reveal holder misalignment, commutator runout, weak spring force, contamination, or unequal current paths that new brushes alone will not correct. If the two controlled points do not support one explanation, return to the setup instead of forcing a conclusion. Release requires a repeatable route, not a single favorable reading.
Close read the brush wear pattern before replacement only after the setup can be rebuilt from the recorded fixture, connection, load, timing, and instrument details. The result advances diagnosis but does not waive later batch controls.

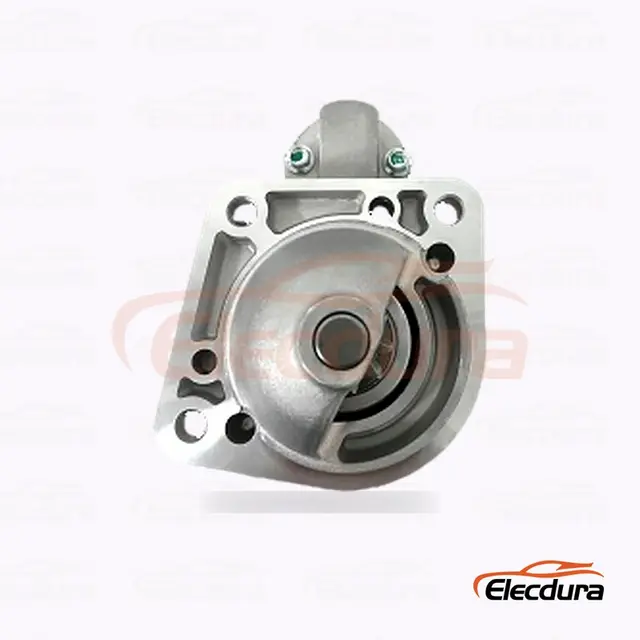

M002T88371 Jeep Cherokee KJ 2.5 CRD Starter Motor, 12V 2.2kW 10 Teeth, Complete Side View provides a physical reference for the opening application discussion.
Use the specified force method at the defined brush position, compare every spring, inspect travel and seating, and reject corrosion, heat damage, or permanent set. The purpose here is pattern recognition rather than collection of isolated numbers. The technical buyer aligns force at test position, spring travel, set and corrosion, and set-to-set spread on one time line so the sequence of the starter motor response remains visible.
Interpret force at test position together with spring travel; either item alone can support several causes. Compare their timing with set and corrosion, then use set-to-set spread to decide whether the pattern follows electrical demand, pressure, airflow, rotation, temperature, or another case-specific driver.
A strong measure spring pressure and travel consistently report saves raw traces or photographs before adding conclusions. The analyst labels normal features, suspected anomalies, and the point where the pattern changes, allowing a supplier to compare claim evidence with the approved sample.
force at test position: retain the unedited trace, image, or measured sequence.
spring travel: mark the feature that changes with the complaint.
set and corrosion: compare the same feature under a control condition.
set-to-set spread: state which cause the combined pattern supports or excludes.
Spring pressure should be judged against family limits and consistency, not by whether the brush merely touches the commutator. When the pattern is incomplete, collect the missing operating interval instead of repeating the interpretation. The decision gate closes when the evidence sequence explains why the starter motor changed.
Release measure spring pressure and travel consistently when the saved pattern and control condition support one interpretation of the starter motor behavior. Contradictory traces remain attached as open evidence.
Inspect pocket dimensions, burrs, distortion, mounting security, lead routing, insulating plates, terminal isolation, and brush movement through the full working range. This module examines how the starter motor behaves after time, heat, load, or contamination has had an opportunity to act. The warranty analyst defines the exposure interval and tracks brush-pocket clearance before, during, and after that interval.
Correlate holder alignment with insulation resistance rather than treating either value as a universal limit. Add lead routing to show whether cooling, lubrication, sealing, supply, or surrounding hardware changed the result. The exposure must be long enough to reveal the complaint without exceeding the declared duty.
The check holder alignment, freedom, and insulation worksheet should include ambient condition, starting temperature, applied duty, elapsed time, peak observation, stabilization point, and recovery behavior. These details distinguish a genuine stress-related defect from a test that simply overheated the assembly.
brush-pocket clearance: establish the pre-exposure reference.
holder alignment: capture the peak or worst-case behavior.
insulation resistance: compare the response at a fixed elapsed time.
lead routing: document recovery and any permanent change.
A brush that sticks only when warm or tilted can create intermittent no-crank complaints that disappear on a cold bench. A result outside the limit requires the surrounding system to be checked before the starter motor is condemned. Approval waits until the stress route and recovery evidence agree.
Approve check holder alignment, freedom, and insulation after exposure, peak response, stabilization, and recovery form one defensible sequence. The signature covers this stress route rather than unrelated endurance claims.
For a physical reference, the starter motor product example can help a buyer compare visible interfaces and application clues. Product photography supports check holder alignment, freedom, and insulation, but it cannot replace the controlled readings and documented limits required by this section.

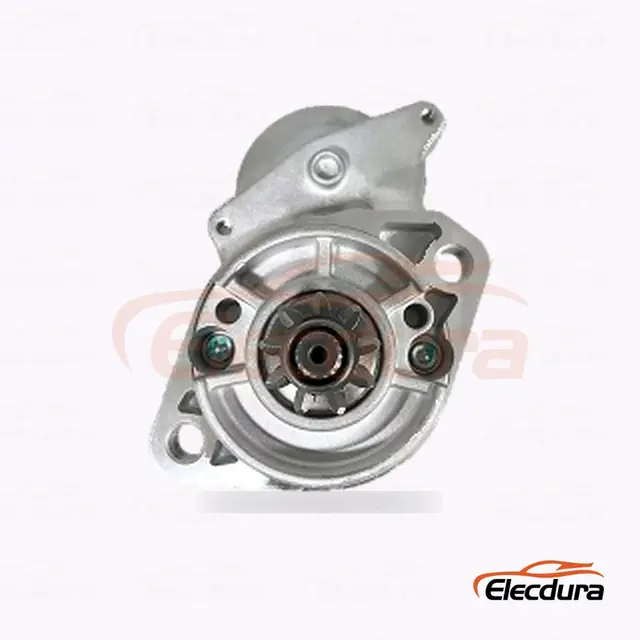

115755 Kawasaki Starter Motor, 12V 1.2kW 9 Teeth, Complete Side View supports the first technical inspection module.
Verify commutator diameter, runout, surface finish, mica condition, cleanliness, bar security, and compatibility with the specified brush material before bedding. Bench inspection now tests the internal or component-level theory developed on the machine. The fleet electrician preserves the removed condition, cleans only what the method requires, and records commutator runout before disassembly can erase useful evidence.
Quantify surface finish with equipment suited to its expected range, verify mica depth through a second method where practical, and photograph brush material beside the part identity. Compensation, temperature, fixture pressure, and zeroing matter when small differences drive the conclusion.
The bench record separates observation from interpretation. It states what was measured directly, what was inferred from the pattern, what limit was used, and whether that limit belongs to the exact starter motor family under review.
commutator runout: preserve the as-removed condition and reference marks.
surface finish: record calibrated measurement and environmental correction.
mica depth: confirm the suspected mechanism with a second observation.
brush material: connect visible condition with the measured failure path.
A new brush set cannot compensate for eccentric, rough, contaminated, or mechanically unstable commutator bars. If cleaning, dismantling, or fixture force could have changed the result, the report states that limitation. A batch decision must not rely on a bench value whose method cannot be reproduced.
Accept prepare the commutator for the new contact set when as-removed condition, calibrated values, compensations, and component photographs identify the same mechanism. Any destructive inspection limitation stays visible.
After assembly, measure voltage across brush paths where the procedure permits, observe current distribution, arcing, temperature, speed, and sound during controlled no-load and loaded tests. Competing causes must now be separated so that the replacement addresses the failed section rather than the most visible symptom. The bench technician compares brush-path voltage drop and current sharing under the same demand before changing any component.
Use arcing pattern to test the alternative explanation, then inspect temperature rise for evidence that the host system created or amplified the complaint. Each branch needs a pass/fail reason; swapping parts until the symptom disappears does not identify the original starter motor failure.
A cause map for confirm current sharing and brush voltage loss lists the evidence expected if each candidate fault were true. The actual readings are then placed against those expectations, including contradictory observations that prevent premature closure.
brush-path voltage drop: define what this result would mean for the primary theory.
current sharing: compare the alternative component or system response.
arcing pattern: run the discriminating check that separates both paths.
temperature rise: inspect the interface where one fault could imitate another.
The important result is balanced current transfer under diesel cranking load, not simply rotation at low bench torque. Replace the starter motor only after the selected cause explains the complaint and the rejected cause fails its own evidence test. This gate protects the fleet from repeat failure and protects the supplier from an unsupported claim.
Pass confirm current sharing and brush voltage loss after the chosen cause explains the complaint and the competing cause fails its defined check. The signature prevents parts substitution from masquerading as diagnosis.

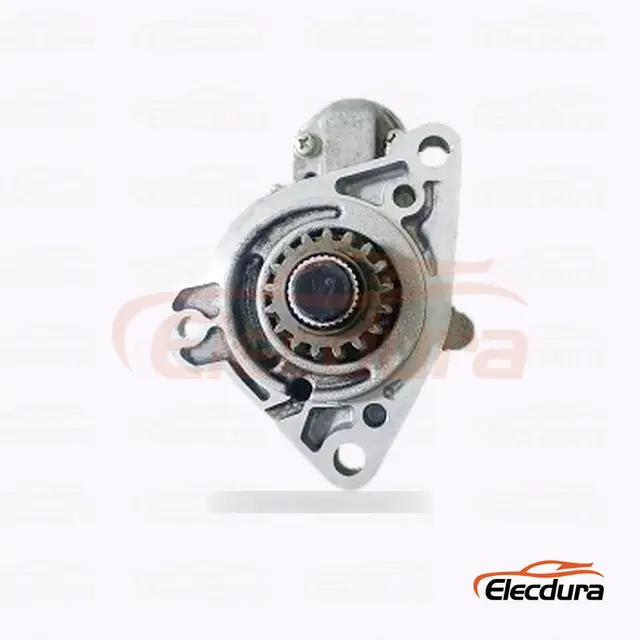

95526427 Opel Starter Motor, 12V 1.4kW 17 Teeth, Complete Side View illustrates a mid-article fitment or test-control point.
Tie brush brand and batch, spring measurements, holder inspection, commutator results, loaded output, starter label, packaging, and sample approval to the repeat-order reference. The final module converts technical findings into an acceptance standard that purchasing, receiving, and warranty teams can apply consistently. The receiving inspector defines how component batch and inspection worksheet will be compared between the approved sample and production units.
Add loaded torque to expose changes that a label or catalogue cross-reference cannot show. Use repeat-order trace to connect each result with the supplier lot, purchase order, and reviewer. Tolerances should reflect the actual heavy-duty duty cycle rather than an unspecified generic test.
The acceptance sheet for build a wholesale rebuild release record identifies mandatory evidence, sampling frequency, instruments, pass limits, quarantine action, and escalation owner. It also states which changes require a new sample or field trial.
component batch: define the release value and sampling method.
inspection worksheet: compare sample evidence with the incoming lot.
loaded torque: retain the technical record that exposes configuration drift.
repeat-order trace: trace approval, deviation, and claim decisions to one identity.
A distributor should be able to compare later claims with the same measurable brush-system and complete-starter acceptance standard. A production lot advances only when its evidence follows the approved route. Price, urgency, or stock shortage cannot silently waive a mandatory starter motor acceptance field.
Authorize build a wholesale rebuild release record through a sampling plan, stated limits, traceable lot, quarantine rule, and deviation owner. Production release follows evidence rather than schedule pressure.
Technical diagnosis becomes commercially useful when an RFQ carries the same identity and limits. A starter motor inquiry should include the original reference, engine or vehicle, photographs, measured interfaces, operating symptoms, tested conditions, required quantity, destination, and expected reorder frequency. This prevents a broad catalogue match from replacing the evidence developed above.
State whether the requested starter motor is new aftermarket, remanufactured, or another declared condition.
List mandatory electrical, hydraulic, air-path, or mechanical interfaces relevant to this starter motor case.
Define sample evidence, receiving checks, packaging, labels, and change notification.
Keep price, MOQ, and lead time separate from unresolved technical fitment.
228000-7800 Rover and Land Rover Starter Motor, 12V 2.0kW 9 Teeth, Complete Side View supports the sourcing evidence and comparison discussion.
The approved starter motor sample is useful only when its measurable configuration follows the purchase order into later shipments. Receiving should compare markings, connectors, mounting, visible construction, packaging, selected functional readings, and any promised documents. A changed configuration returns to technical review instead of entering fleet stock by habit.
Retain the approved starter motor sample or a complete photo and measurement record.
Trace each incoming lot to the supplier declaration and purchase-order revision.
Quarantine a changed interface, label, internal reference, or test result.
Feed field failures back into the same evidence route used for initial approval.
FYD147-M 4M50 Sany DH820-6 Equipment Starter Motor, 24V 5.0kW 11 Teeth, Complete Side View provides a late-stage receiving or repeat-order reference.
A defensible starter motor case file links the complaint, operating duty, removed-part markings, test setup, raw readings, photographs, interpretation, and unresolved questions. For this diagnostic workflow, that record should also identify which evidence came from the vehicle, the bench, the supplier, and the receiving team so later decisions do not mix unlike sources.
Identify the starter motor, host vehicle or machine, duty cycle, and original complaint.
Attach measurements that support the investigation described above without rewriting raw results.
Name the person who accepted each starter motor limit and the person who owns each open question.
Connect the approved sample, purchase order, supplier lot, and incoming inspection record.
Starter Motor Brush Spring Pressure and Holder Inspection works when every reading belongs to a defined condition and every decision belongs to a named owner. The result is a clearer root cause, a more precise aftermarket specification, and a receiving standard that can expose a change before it reaches a heavy-duty fleet.
