A starter motor relay is a small component with a large effect on truck uptime. It allows a low-current control circuit to command the higher-current solenoid path, helping protect the ignition switch and organize the vehicle's starting logic. When a relay fails, the symptom can look exactly like a weak battery, failed starter solenoid, damaged cable, or immobilizer fault. That is why a technician should test the relay as part of the starting system rather than treating it as an afterthought.
For fleet workshops, distributors, and B2B buyers, relay diagnosis is valuable because it can prevent an unnecessary heavy-duty starter motor replacement. The aim is to confirm the command, the relay's switching action, the output to the solenoid, and the condition of the related wiring. If a starter assembly is eventually needed, use application data and the coverage in Elecdurauto's heavy-duty starter motor category instead of choosing a part solely by shape or a partial number.
The relay sits between other parts of the starting system. Depending on the vehicle, the circuit may include battery power, a fuse, ignition or start switch, neutral or clutch safety device, engine-control authorization, relay coil, relay contacts, solenoid trigger terminal, and starter motor. Some trucks use multiple relays or an integrated power-distribution module. A wiring diagram for the exact vehicle or equipment is the safest starting point.
Most starter relays have a coil side and a switched-contact side. The coil receives the low-current command. The contacts then connect a separate power feed to the solenoid trigger circuit. A click from the relay can confirm coil movement, but it does not confirm that the contacts are clean enough to pass reliable voltage. A relay can sound normal while its output collapses under even a modest load.
Ask whether the no-crank condition is cold-only, hot-only, intermittent after vibration, present after rain, or linked to a particular gear-selector position. A relay with heat-damaged contacts may fail after long operation. A corroded connector may fail after water exposure. A safety-circuit issue may appear only when the vehicle moves or when a clutch-pedal switch is at its travel limit.
Before removing a relay, inspect the fuse, relay socket, terminal tension, power-distribution box, harness routing, and ground points. Look for water entry, heat discoloration, melted plastic, loose locking tabs, prior repair splices, and pin corrosion. A new relay installed into a burnt or loose socket can create the same intermittent complaint immediately.
The first electrical question is whether the relay receives a correct command. Use an approved wiring diagram to identify coil power and coil ground or control terminals. Keep the vehicle secured against movement and follow the manufacturer's start-system safety procedure. Commercial vehicles may have electronic interlocks that must not be bypassed.
Measure the relay's intended supply with the ignition state specified by the circuit design. If the feed is absent, trace upstream through the fuse, ignition circuit, battery disconnect, or power-distribution module. A missing feed is not a relay failure. Document the test point and voltage, because this information helps future technicians and reduces unnecessary component returns.
During a start request, test whether the relay coil receives the expected signal. Depending on the system, the control may be switched power, switched ground, or a module-controlled output. If the command never arrives, inspect the ignition switch, start button, park/neutral or clutch circuit, immobilizer, ECU permissions, and related connectors. A relay cannot close when the vehicle has correctly withheld authorization to start.
An audible click is only one data point. Confirm coil resistance or coil operation according to the component specification, then test the output side under a real start request. Relay contact wear can increase resistance without preventing the coil from clicking. That high-resistance output can cause the solenoid to chatter or fail to pull in fully.

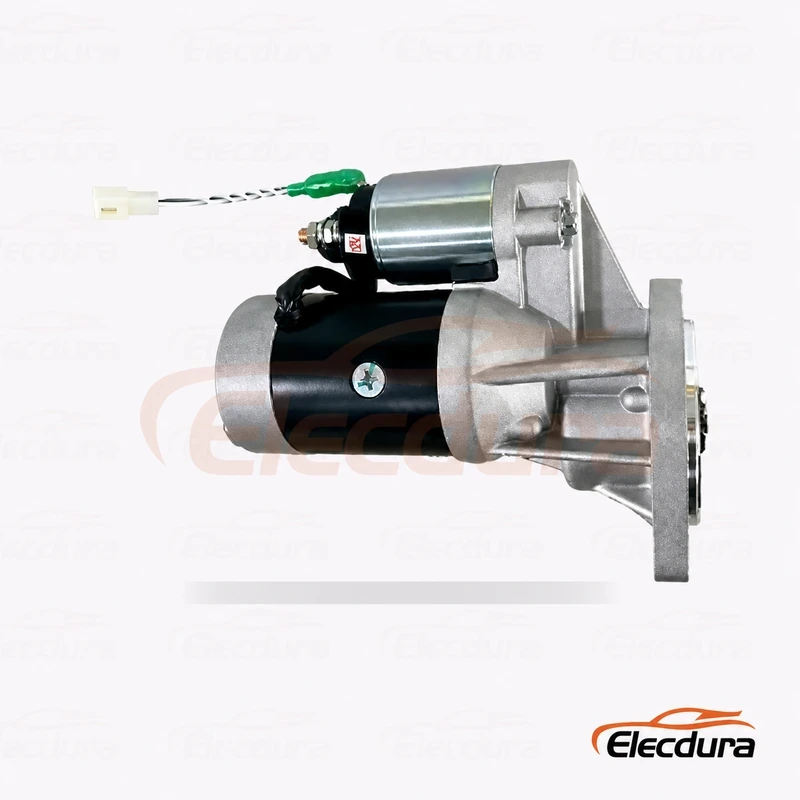

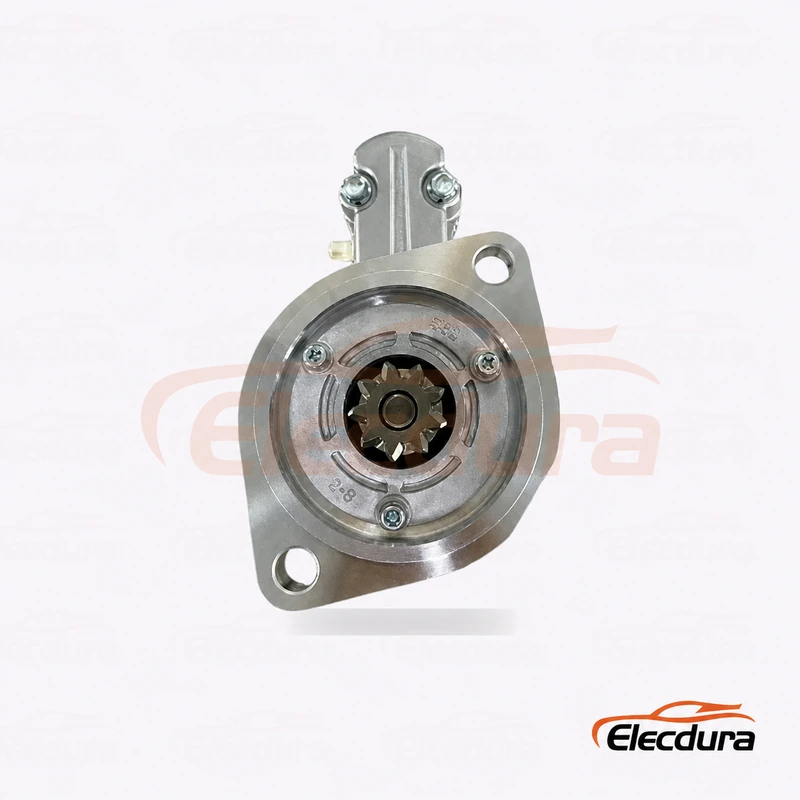

Where the control circuit is proven good but the starter motor still does not engage, review the solenoid terminal and starter application before ordering an assembly. A unit such as the S14-211 aftermarket starter motor must be matched by OE/reference number, voltage, drive, terminal layout, mounting, and engine application; the relay test only confirms one stage of the wider starting circuit.
The key relay test is not whether continuity exists with the relay removed from the circuit. The key test is whether the relay can deliver a stable output to the solenoid when the truck requests a start. A meter, test light, and circuit diagram are often sufficient when used carefully. The equipment and procedure should match the vehicle's system voltage and electronic architecture.
With the relay energized, compare voltage at the contact input and contact output. A large difference across closed contacts indicates resistance within the relay or socket. Confirm the result at the actual solenoid trigger terminal as well. The problem may be the relay output, but it may also be the harness section between relay and solenoid.
A relay can test correctly on a bench and still lose contact in a weak socket. With the relay removed and power safely isolated as required, inspect whether socket terminals are spread, recessed, oxidized, or heat damaged. A loose female terminal can create vibration-sensitive no-starts that are difficult to reproduce in a stationary workshop.
Test the command path in segments: battery or ignition feed to relay input, relay contacts, output harness, solenoid trigger terminal, and control-side ground or module output where relevant. This turns a vague intermittent no-crank complaint into a circuit map. It also makes the repair decision defensible when a fleet asks why a relay, harness repair, or starter was selected.
A relay output problem usually presents as a missing or weak command at the solenoid trigger. A solenoid problem may present as a correct trigger signal with no engagement or poor main-contact operation. A starter motor problem may present as correct command and supply voltage with abnormal current draw, internal drag, or a failure to turn. Treating these as separate stages avoids replacing the most expensive component first.
The relay becomes the main suspect when coil command is correct, power feed is present, output is absent or unstable, and the socket and downstream wiring are checked. Heat marks, intermittent contact behavior, or excessive drop across the closed contacts strengthen the conclusion. Replace the relay with the correct specification and confirm terminal layout, current rating, suppression type, and environmental protection.
If stable voltage reaches the solenoid trigger and the main battery path is healthy, inspect solenoid action, main contacts, internal motor condition, and mechanical engagement. A single solenoid click with adequate trigger voltage may still be caused by high resistance in the main cables, weak batteries, or internal starter failure. Continue the diagnosis rather than treating the relay as a universal cure.
A whirring starter, grinding noise, or intermittent engagement can indicate drive, flywheel ring-gear, mounting, or engine-resistance problems. The relay cannot cause a damaged pinion to mesh with a worn ring gear. Check the mechanical interface when the electrical command is correct but the engine does not rotate.

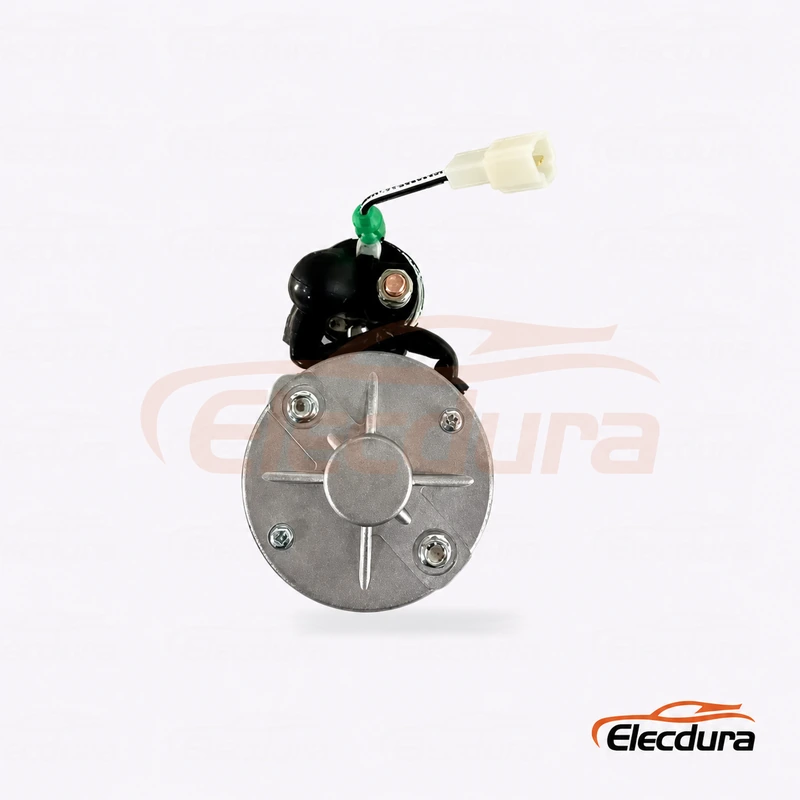

When a full replacement is required, use a complete fitment record. The 228000-7380 Cummins application starter motor should be verified against engine platform, system voltage, kW rating, drive teeth, flange, and terminal arrangement. This is especially important for B2B repeat orders because a close-but-incorrect starter can create the same no-start symptom after installation.
A good relay repair includes more than swapping a cube-shaped part. Correct the root cause around the relay, protect the connector, secure the harness, and recheck the entire start sequence. If a relay failed from water intrusion, solve the enclosure or harness-sealing issue. If it failed from heat, identify excessive current or a poor terminal connection. If it failed intermittently, verify the repair during vibration and temperature conditions where possible.
Record the vehicle or equipment application, relay reference, symptom, input voltage, coil command, output voltage, drop across contacts, socket condition, solenoid trigger result, and final repair. A simple form allows a maintenance manager to compare failures across a fleet. It also gives a distributor useful technical information if a repeat-parts issue must be reviewed.
Fleets with similar truck platforms may hold a limited number of verified relays, connectors, cable repair materials, and application-matched starter assemblies. The stock policy should be based on common application data, not generic universal parts. Keep labels and packaging consistent, and separate relay stock from starter-motor stock so technicians do not treat a control-circuit repair as a complete starter replacement.
For aftermarket sourcing, state whether the part is an aftermarket relay, aftermarket starter assembly, or OE-number-matched replacement. Do not describe an unverified item as genuine or original. Accurate wording supports clear catalog work, customer communication, and warranty expectations while keeping focus on electrical specification and application compatibility.
After the relay, socket, wiring, or starter repair, perform repeated controlled start requests and monitor the trigger circuit, battery behavior, and cranking response. Test after reconnecting all covers and routing the harness correctly. Where an intermittent fault was heat- or vibration-related, use the vehicle safely in the conditions that previously created the problem before returning it to service.
A starter motor relay fault is small enough to be overlooked and important enough to strand a heavy-duty vehicle. By mapping the circuit, proving command and output, checking socket condition, and separating relay, solenoid, starter, and mechanical faults, a workshop can reduce unnecessary part changes. For aftermarket starter matching after a complete diagnosis, submit the OE number, engine details, and photos through the Elecdurauto contact page.
Starter relay faults often reveal themselves as patterns before they become a complete no-start. A truck that starts after tapping a power-distribution box, after the cab warms, or after the selector is moved repeatedly may be showing a developing control-circuit issue. Capture these observations early. They can guide a targeted inspection during planned maintenance instead of creating an unplanned roadside repair.
Heat-related faults may appear after a long route or near high-current distribution points. Vibration-related faults may appear on rough roads or with certain engine speeds. Moisture-related faults may follow washing, rain, or seasonal humidity. Comparing the timing with the relay and harness location makes diagnosis more efficient than replacing parts one by one.
For high-uptime fleets, include relay socket inspection, terminal security, harness support, battery connection condition, and start-command verification in planned electrical checks. The time required is small compared with the cost of an unplanned no-start. A preventive procedure also gives fleet managers a consistent record to review when evaluating vehicle-platform reliability.
The relay is a control component, but it should be maintained with the same discipline as the high-current starting hardware. Clear tests, correct application data, and a final repeated-start check prevent a small failure from becoming a larger operational interruption.
That discipline also gives buyers a sound technical basis for any relay, harness, solenoid, or starter-motor sourcing decision.
It also improves repeatability across different technicians, shifts, locations, and vehicle platforms.
