A hydraulic A/C compressor purchase starts with a different question from an ordinary truck-compressor replacement: what hydraulic power is available where the compressor must operate? An assembly can have the right refrigeration connections and still be unsuitable because its hydraulic motor needs a flow and pressure combination the machine cannot supply during work. Equally, a larger motor or a higher advertised cooling capacity may solve a different operating problem from the one the buyer actually has.
For US off-highway projects, Red Dot R-9976 assemblies and Visionaire hydraulic compressor assemblies provide two real product routes worth investigating. This is a configuration comparison, not a ranking of the companies or a claim that either can replace the other without engineering review. The relevant choices are exact motor, control and port configurations. They must be judged against the host machine and the refrigeration system together.
The useful result is a smaller, defensible shortlist: an assembly retained for a documented duty point, an option rejected for a known mismatch, or a configuration held for manufacturer clarification. A list of familiar compressor brands cannot provide that result. Nor can a seller's photograph establish what happens when the machine's principal hydraulic functions and cab cooling are required at the same time.
Hydraulic drive becomes worth considering when a practical engine-belt path is unavailable, when the compressor location would otherwise create difficult refrigerant hose runs, or when the cab and engine arrangement makes a conventional drive inconvenient. Visionaire identifies these packaging problems in its compressor range, including equipment with a swivelling cab. These are application reasons to investigate hydraulic drive, not reasons to convert every machine that already has satisfactory belt-driven cooling. Visionaire compressor products
There are also identifiable US commercial routes. Red Dot's current corporate site separates OEM and custom HVAC work from its aftermarket dealer and distributor channel. Visionaire provides a Texas contact route for its compressor assemblies. TruckAC's US hydraulic-unit category offers specific Red Dot references. Together, those sources support a practical US sourcing comparison; they do not establish nationwide stock, a market-share ranking, or that every distributor carries every configuration. Red Dot, TruckAC hydraulic units
Consider two different buyers. A machine builder deciding where to locate a compressor needs an application discussion before the hydraulic circuit and mounting arrangement are frozen. A service business replacing an identified hydraulic assembly needs its exact revision and interfaces preserved. Both may search for a hydraulic A/C compressor, but a suitable response to the first inquiry can be an engineered configuration, while the second may require a controlled replacement reference. Comparing their quotations without separating those purposes obscures the real choice.
A US address should therefore be used to establish a contact and support route, not a product-origin claim. The assembly supplier, hydraulic-motor manufacturer, refrigerant-compressor manufacturer and seller may be different organizations. Ask the party quoting the unit which configuration it is responsible for and which application questions require referral. That distinction matters more than giving a distributor an artificial position in a manufacturer league table.
Keep the initial comparison at complete hydraulic-drive assembly level. In this context, the relevant package combines a hydraulic motor with a refrigerant compressor and the mechanical components that connect them. The selected offer also needs a clear statement about its hydraulic controls and fittings. A bare replacement refrigerant compressor is a different purchase, even if a seller lists it against the same R-9976 family.
For example, RD-5-13662-0P appears in a specialist seller's catalog as a replacement compressor for Red Dot hydraulic direct-drive units. That is useful for identifying the component-versus-assembly boundary, but it is not another complete hydraulic platform to rank against an R-9976 or Visionaire assembly. Its inclusion in a search result should lead to an identity check, not an assumption that the lower-priced item contains the motor and controls. VMACS component listing
Keep complete cab HVAC systems outside the comparison as well. An assembly cannot, by itself, establish the performance of the condenser, evaporator, air distribution and other parts of the installed system. This article does not repeat the refrigerant-cycle explanation in the existing heavy-duty A/C system diagram guide. Its narrower task is deciding which hydraulic drive configuration deserves engineering consideration.
That boundary also prevents a misleading voltage comparison. A hydraulic assembly with a twelve-volt or twenty-four-volt control does not thereby become an electrically driven, engine-off air conditioner. The electrical connection can operate a valve while hydraulic power supplies the drive. Whether hydraulic power remains available with the engine stopped depends on the actual machine. Do not combine this selection with a battery-powered compressor comparison merely because both catalogs contain low-voltage numbers.

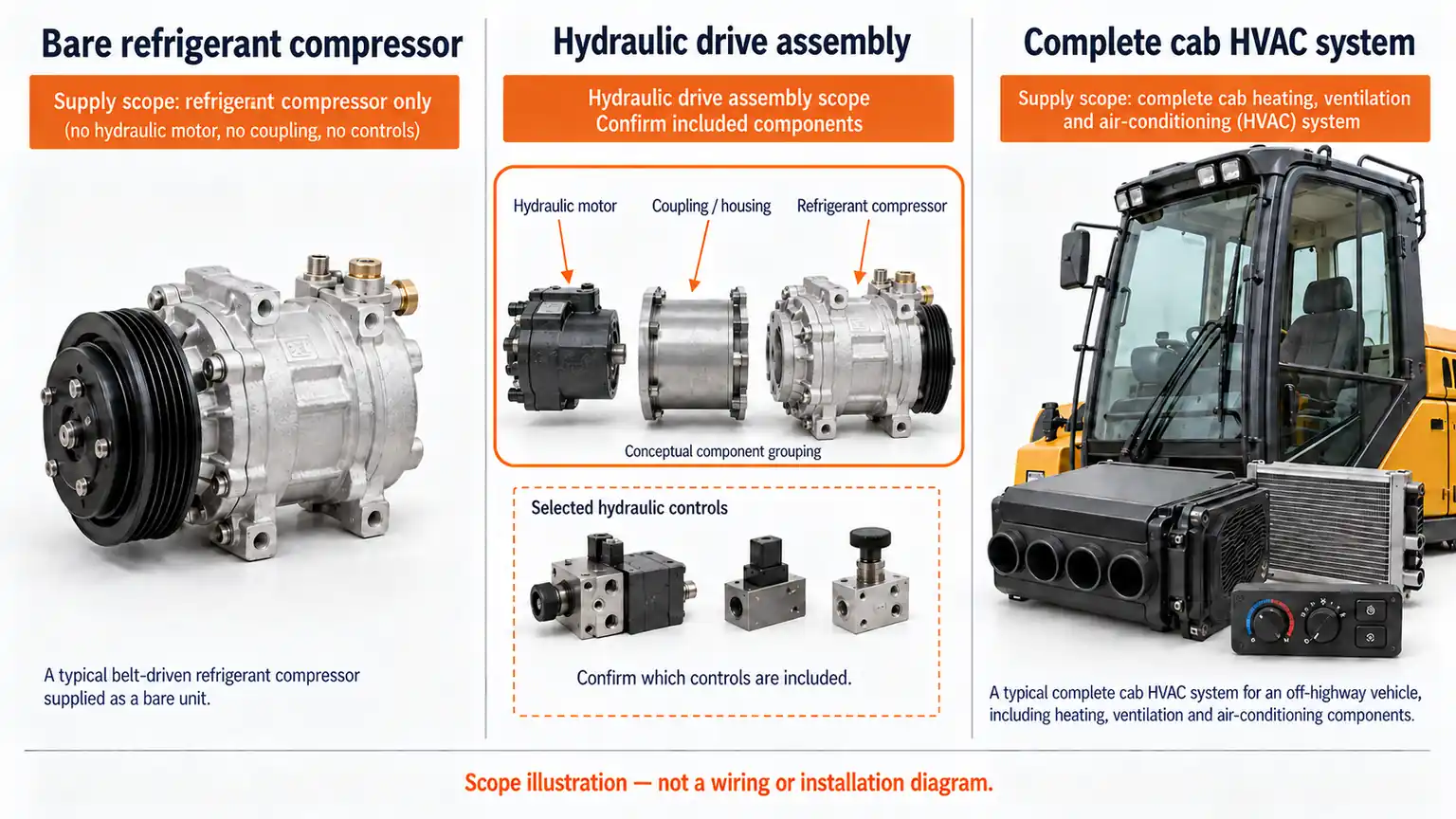

Figure — Compare the same supply level before comparing assembly configurations.
Flow and pressure should be considered together at the compressor branch during its intended operating duty. A pump's maximum flow and the machine's maximum pressure may come from different conditions. Copying both maxima onto an inquiry does not demonstrate that the compressor can receive them simultaneously, continuously, or while the machine is doing its principal work.
The first useful record therefore describes an operating situation rather than a pair of impressive numbers. Is the machine working at its normal governed speed, idling while the operator waits, or using another hydraulic function? Is the requested flow a measured branch condition, an engineered allocation, or simply a figure copied from the pump nameplate? A supplier needs that distinction before using a product curve to select a motor.
This changes how an option should be rejected. If available branch flow is not established, the conclusion is not that the larger motor is safer. If pressure is available only when another function reaches a particular state, the conclusion is not that cab cooling will always receive it. The unresolved item is the machine's ability to supply the chosen assembly through the required duty, which belongs with the hydraulic-system designer or qualified application engineer.
Public catalog limits are useful screening information. They are not substitutes for the manufacturer's flow-pressure curves and application approval. Red Dot specifically directs selection by available hydraulic pressure and flow. Visionaire's product pages give particular requirements or configurations. A fair comparison preserves those different forms of data instead of turning every catalog entry into an apparently identical operating rectangle. Red Dot current linked catalog, Visionaire hydraulic range
A procurement chart should consequently distinguish a published range, a stated operating pair and an unprovided value. An empty cell must remain empty until clarified. Otherwise, the formatting can create a false technical claim: readers may believe two products have been tested over the same conditions simply because their specifications occupy adjacent columns.

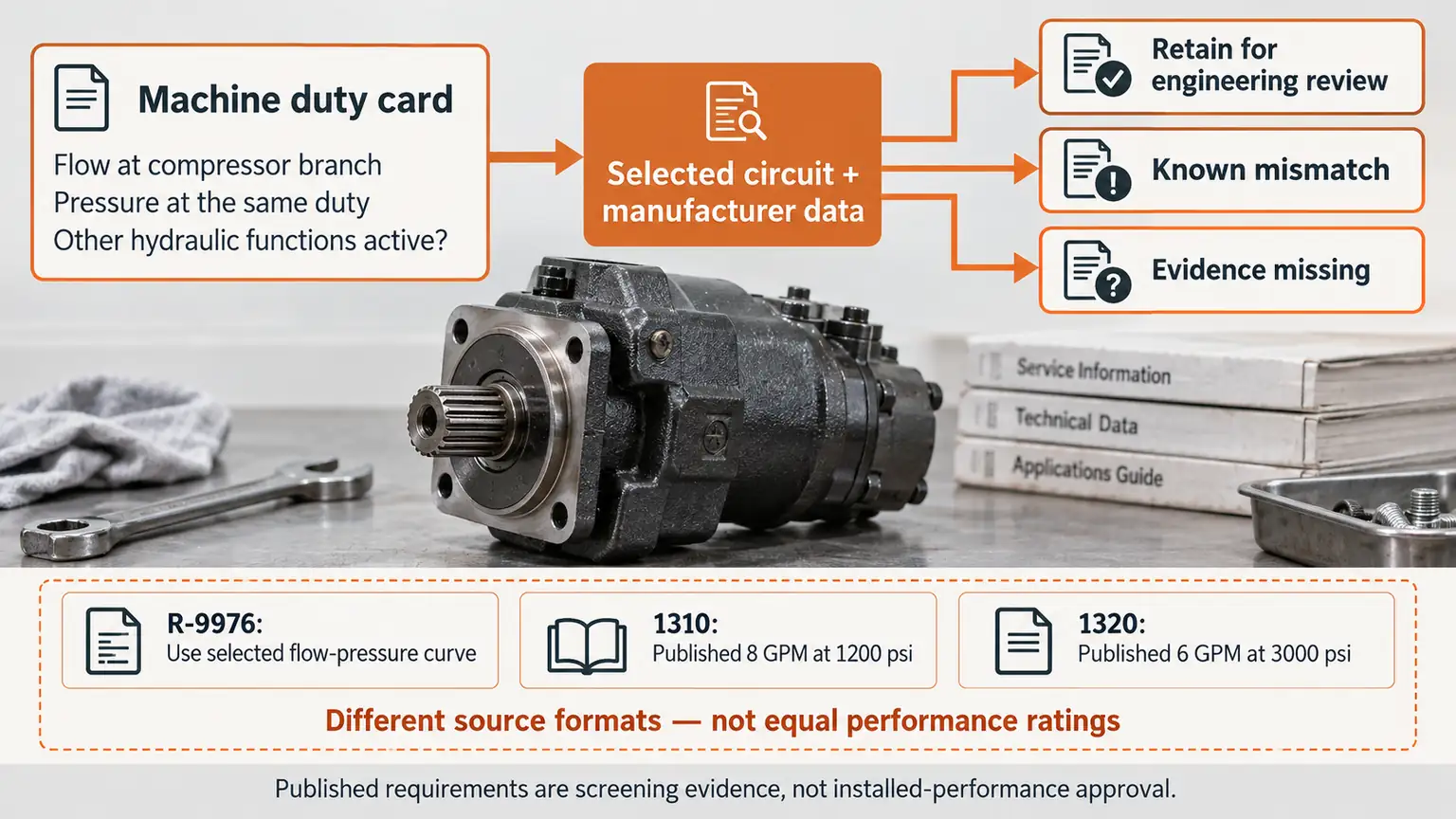

Figure — A usable comparison keeps operating conditions together and leaves missing evidence visible.
The current Red Dot-linked catalog identifies R-9976-5P, -6P and -7P with hydraulic motor displacements of eight, fourteen and twenty-three cubic centimetres per revolution respectively. Those numbers describe the hydraulic motors. They should not be presented as refrigerant-compressor displacement or converted into a ranking of cab-cooling capacity.
The same catalog identifies integrated on/off and bypass functions and describes a three-line hydraulic connection arrangement for the updated design. It also states that the mounting plate remains the same as earlier installations although the overall footprint is larger. These details are valuable when an existing machine contains an older assembly: a familiar mounting plate is not proof that the surrounding package or former control arrangement remains unchanged. Red Dot R-9976 catalog
The distinction between a retained plate and a changed envelope deserves a physical review. A mounting pattern can line up while a hose, cover or nearby structure occupies the additional space. The purchasing decision should therefore preserve both identities: the old assembly actually installed and the new assembly being proposed. A statement about historical design compatibility should not erase differences visible on the selected drawing.
The -7P has its own specific aftermarket listing, including a dimensional illustration and product details. That can help a service buyer locate a quotation route and identify the package being offered. It does not remove the need to compare the manufacturer's current application information with the installed machine. Seller text describing design advantages is not a machine-specific engineering acceptance. Partdeal R-9976-7P
A suffix also matters when searching older stock. TruckAC's visible category contains -3P as well as -5P, -6P and -7P entries. The presence of all four in one shop category does not prove that the older reference shares every feature described for the updated range. An inquiry for an existing -3P should retain that reference until the proposed replacement and any associated control changes have been explicitly resolved. TruckAC hydraulic-driven units
For a new integration, the productive comparison is between the actual hydraulic duties the motor options can serve. For an existing installation, it is between the complete old and proposed configurations. Neither decision is improved by calling the largest motor the premium option. A larger displacement has to be considered with the required shaft operation and available hydraulic supply, not treated as a simple quality upgrade.
Visionaire's current hydraulic range separates a belt-drive model from direct-drive models. Keep the belt-drive 1200 outside a direct-drive shortlist unless changing the drive architecture is itself part of the project. The 1300, 1310 and 1320 should likewise be treated as distinct configuration routes rather than successive quality grades. Visionaire hydraulic-drive compressors
The 1300 product page describes a direct-drive assembly for fixed-displacement hydraulic systems, with stated hydraulic alternatives of four gallons per minute at 2,400 psi or eight gallons per minute at 1,200 psi, and nominal two-ton capacity. Its URL contains legacy belt-drive wording, while the visible product description identifies direct drive. Read the actual selected product information; do not classify the model from the URL alone. Visionaire 1300
The two hydraulic alternatives should not be blended into a promise that any combination between four and eight gallons per minute and between 1,200 and 2,400 psi will work. The inquiry needs the exact assembly configuration and the manufacturer's applicable requirements. Where a range overview and a product page describe control arrangements differently, ask which valve arrangement belongs to the quoted version.
The 1310 page provides a more specific starting point: eight gallons per minute at 1,200 psi, twelve- or twenty-four-volt controls, and built-in relief and solenoid functions. It also links a parts drawing. The published nominal two-ton figure is useful for identifying the product's stated class, but it is not a measured guarantee for a particular cab or an equivalence certificate against Red Dot. Visionaire 1310
Port orientation produces four identifiable 1310 assemblies in that drawing: 41-1310-1140 and 41-1310-2140 are the twelve- and twenty-four-volt top-port versions; 41-1310-1240 and 41-1310-2240 are the corresponding rear-port versions. The drawing separately identifies pressure, return and case-drain fittings, as well as the coupling, housing and optional isolators. Treat it as configuration evidence, not a quotation proving every illustrated item is included. Visionaire 1310 parts drawing
The 1320 page states six gallons per minute at 3,000 psi, nominal three-ton capacity and optional hydraulic controls. That is a different hydraulic requirement and control-supply question from the 1310. A buyer cannot substitute the 1320 merely because three tons sounds preferable to two. Equally, an optional control arrangement must not be written as though it were the same standard integrated package described for another model. Visionaire 1320
These differences make Visionaire useful to investigate when packaging, control configuration or a stated operating requirement determines the shortlist. They do not establish that every model supports every hydraulic circuit. The manufacturer invites consultation for different circuit types; the result of that consultation, not the model-family heading, should determine the suitable configuration.

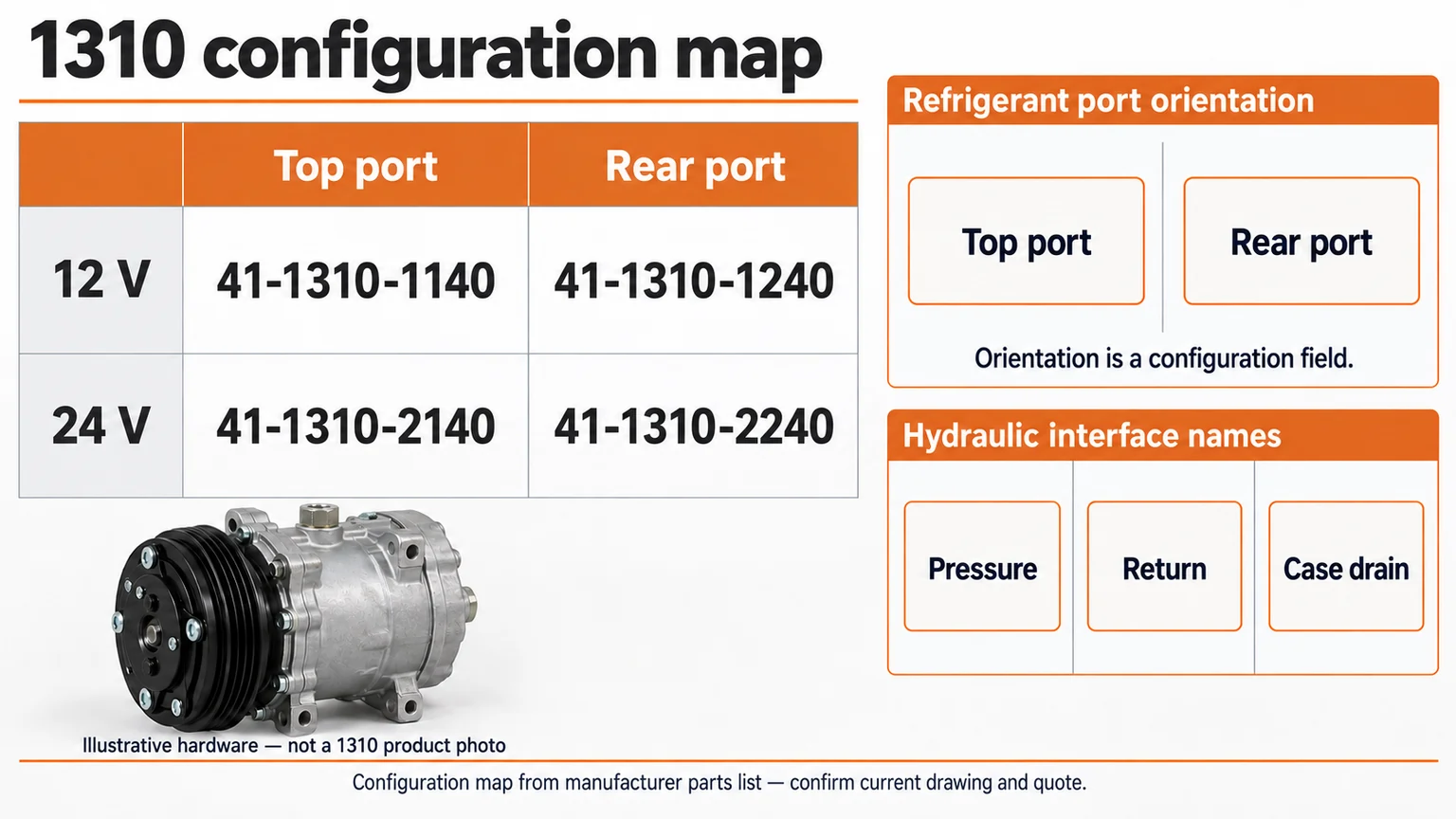

Figure — Four assembly references distinguish control voltage and refrigerant port orientation.
Two products can show promising flow and pressure information and still require different integration work. The next comparison concerns the host circuit, the assembly's control arrangement and the boundaries between them. A phrase such as integrated valve answers only part of that question. It does not describe the complete machine circuit or establish how the assembly interacts with other functions.
Visionaire explicitly invites application discussion for open-center, constant-pressure and load-sense systems. For a buyer, this is a reason to identify the circuit before ordering, not permission to regard those circuit types as interchangeable. If the machine documentation does not establish the circuit type, label it unknown and involve the appropriate technical owner. Choosing a model first and trying to justify the circuit afterward reverses the decision.
For each retained candidate, establish where the supplier's specified controls end and the machine designer's responsibilities begin. Does the quoted configuration contain the stated on/off, relief or bypass components? Are there separate optional controls? Which application drawing explains the proposed configuration? The answers need to refer to the offered assembly, because a statement about one model cannot automatically be transferred to another member of the range.
Pressure, return and case-drain connections also need distinct treatment. The 1310 drawing identifies them separately. That is enough to reject an inquiry that describes only two anonymous hydraulic hoses, but it does not authorize a generic connection diagram. Allowable pressures, routing and the selected machine interface must come from the applicable manufacturer information. A graphic in a buying guide should help collect that evidence, not instruct a technician to connect an unfamiliar circuit.
The commercial consequence is straightforward. An apparently complete assembly with an unresolved control interface is not directly comparable in scope to a configuration with a defined, approved interface. This is not a reason to call one brand incomplete. It is a reason to identify what each quotation actually supplies and what further engineering, parts or validation the project still requires.
There is a separate electrical boundary. Control voltage, connector and command responsibility must match the selected arrangement. The comparison should say whether a coil or harness is supplied and which control functions remain with the host machine. It should not offer jumper-wire instructions, suggest defeating protective controls, or imply that a twelve-volt label settles the installation.
The packaging benefit of hydraulic drive should be demonstrated in the proposed machine rather than assumed. Moving a compressor can improve one constraint while creating another. The chosen position may reduce a difficult engine-belt arrangement, yet require different hydraulic connections, support structure or access for service. The buyer needs to understand the complete proposed position before accepting the attractive part of the concept.
For a swivelling cab application, identify which components move together and which interfaces cross between structures. This is a design-description task for the machine and HVAC engineers, not an invitation to improvise hose routes from a photograph. The supplier should know whether the assembly is intended to remain with the engine structure, with the cab structure or in another specified location. Without that information, a general claim that hydraulic drive suits swivelling cabs remains too broad to select a part.
The 1310 top- and rear-port variants illustrate why the exact location matters. The same control voltage and nominal product class can produce a different connection arrangement. Select the port version against the designed connection space and service access, not against a catalog image that happens to face the camera conveniently. A different port orientation can be a legitimate option, but it is not evidence that existing hoses may be forced into place.
Support and access deserve the same configuration-level treatment. The 1310 parts drawing includes optional isolators. Their appearance in a drawing does not establish whether a specific offer contains them, whether they are appropriate for the proposed mounting structure, or what mounting arrangement the designer has approved. Keep those decisions attached to the assembly drawing so purchasing does not turn an optional illustration into a presumed installation specification.
For an R-9976 replacement, the retained mounting-plate statement and larger-envelope statement should be considered together. The practical question is not merely whether the unit can be bolted down. It is whether the selected configuration occupies the approved space and leaves its connections and service points accessible in the finished machine.
The nominal capacity labels on the Visionaire pages are not a common test report for all candidates. Red Dot's hydraulic-motor displacement values are not refrigeration capacity labels at all. Placing these unlike numbers in one column headed cooling power would create a comparison the sources do not support.
A useful technical response distinguishes the hydraulic input requirement, compressor operating condition and resulting refrigeration performance. Ask the responsible supplier or system engineer which conditions support the capacity claim for the selected assembly and which conditions describe the actual cab requirement. If those conditions differ, the difference needs analysis; it cannot be removed by choosing the larger advertised number.
This matters particularly when comparing two designs with different stated hydraulic duties. An assembly that appears promising at one operating condition may not answer a requirement at another. The correct conclusion may be that neither published page contains enough information for final selection. Keeping both candidates under engineering review is more accurate than declaring a winner from incomplete catalog data.
The article's comparison stops before prescribing refrigerant charge, lubricant quantity or service procedures. Those are application-specific matters already addressed at a broader level in the existing compressor RFQ evidence guide. Here, the relevant question is whether the proposed hydraulic assembly and the selected refrigeration system have a documented compatibility basis, with a named party responsible for the installed performance review.
The following cases are hypothetical screening examples, not field tests, recommendations for an actual machine or claims of cross-brand interchangeability.
In the first case, a project has documented an eight-gallon-per-minute branch condition at 1,200 psi during the intended cooling duty. The Visionaire 1310's published requirement gives the engineering team a specific reason to investigate that model. It does not yet prove installed cooling capacity or complete circuit compatibility. The team still needs to establish the selected control arrangement, ports and performance conditions.
A Red Dot option should not be rejected or approved in that case solely because a catalog maximum looks larger. Its applicable curve and selected motor configuration need review against the same documented branch condition. The comparison remains fair only if both candidates answer the same operating scenario. If one supplier responds with an application-specific assessment and the other only repeats a range endpoint, the latter response remains incomplete rather than automatically inferior.
In the second case, a project is investigating a six-gallon-per-minute condition at 3,000 psi and has a separately defined cab-cooling requirement. The 1320's stated hydraulic requirement makes it a specific candidate for discussion. Its optional controls become part of the scope question immediately. The nominal three-ton description should not be used to approve the cab requirement without the relevant performance basis.
The useful distinction between this case and the first is not that the second machine deserves a stronger brand. It is that its hydraulic condition and proposed control package differ. Moving the first case's selected model into the second inquiry without reconsideration would discard the very information that justified the original shortlist. A product that is retained in one case can correctly remain unresolved in another.
In the third case, a repair business already has an identified R-9976 assembly and believes only its refrigerant compressor needs replacement. A complete hydraulic-drive assembly and a bare compressor are now alternative repair scopes, not rival hydraulic architectures. The failed component and retained assembly must be identified before comparing price. An exact component listing can be relevant, but it does not establish the condition of the retained motor, coupling or controls.
That repair inquiry should stay tied to the existing assembly and applicable service information. It should not grow into a conversion to another manufacturer's complete platform simply because an online category shows both names. Conversely, if investigation demonstrates that a complete assembly is required, a bare-compressor quotation must not remain in the cost comparison as though it supplies the same work.
For an OEM or custom integration, start with the organization responsible for the assembly application. Red Dot's current site provides an OEM-oriented route alongside its aftermarket channel. Visionaire's product pages invite discussion of hydraulic system requirements. Those are relevant paths when the open questions concern configuration and integration rather than locating a known replacement number.
For an identified aftermarket assembly, a US seller's exact listing can support reference-level sourcing. However, a category page's introduction may describe a broader assortment than its visible product rows. TruckAC mentions both Red Dot and Visionaire in its hydraulic category, while the inspected order rows are Red Dot references. Do not convert that introductory text into a promise of current Visionaire stock.
An application answer and an availability answer also have different owners. A seller may be able to quote an exact unit but need manufacturer support for a modified hydraulic circuit. A manufacturer may identify a suitable configuration while directing purchasing through another channel. Neither situation is inherently a weakness. The important point is to know who has accepted which part of the question.
Commercial comparison becomes useful after this technical scope is stable. Compare the same approved assembly reference and explicitly identified associated parts, with each seller's current written terms. Do not infer lead time from a generic fast-shipping message, component origin from a corporate address, or authorization from a familiar logo. Those claims require their own current evidence and should not determine a technical ranking in this guide.
For a new hydraulic-drive project, retain the configuration whose documented hydraulic duty, circuit interface and physical arrangement can meet the application under a responsible engineering review. Red Dot's exact motor options and Visionaire's distinct assembly and port configurations provide concrete starting points. They are not a substitute for the machine-specific decision.
For a replacement project, preserve the installed assembly's identity first. Determine whether the job concerns a bare refrigerant compressor, an identified complete assembly or an engineered change. That choice determines which offers belong in the comparison and prevents an apparently attractive purchase from leaving essential work outside the order.
The strongest US shortlist may contain two configurations, one configuration or no approved configuration yet. Its value comes from explaining that result. A known mismatch should remove an option; missing evidence should keep it on hold; a documented application answer should move it forward. That is a useful meaning of Top for this technical comparison: the relevant options for a defined purchase, not an unsupported declaration that one company wins every off-highway cooling project.
For component-level replacement sourcing, use the Elecdura heavy-duty A/C compressor category as an identification starting point, then email the assembly reference and compressor label with the supplier-approved replacement scope. A product-family listing does not establish a hydraulic assembly match. Availability and suitability require confirmation for the exact enquiry; this guide does not imply that Elecdura is an authorized Red Dot or Visionaire channel or supplies their complete hydraulic systems.
