Top R744 Heat-Pump Compressor Programs for Electric-Bus Projects in Germany

Choosing an R744 compressor for an electric bus is a thermal-system decision, not simply a refrigerant choice. For German projects, BITZER CO2LITE and Danfoss BOCK StarCO2mpressor HR40 and HR60 provide documented programs worth evaluating. Their useful differences concern the operating envelope, low-load control, installed dimensions and mobile lubrication requirements. Compare them at matched heating, cooling and minimum-load conditions, with the same boundary between compressor performance and complete HVAC performance. None becomes the best choice merely because its brochure shows the largest heating figure or highest permissible pressure.

Germany is a relevant application market, not an invented destination label. Daimler Truck's April 2024 announcement of SWO Mobil's order for nineteen eCitaro buses in Osnabrück explicitly describes R744 air conditioning with a CO2 heat pump. That establishes a real German fleet use case. It does not identify the compressor inside those buses or prove that any compressor discussed here is an approved replacement. Daimler Truck: SWO Mobil eCitaro order.

This is a conditional shortlist for vehicle thermal-management teams, HVAC integrators and technically responsible parts buyers. “Top” means relevant, documented programs to examine, not a market-share ranking. The comparison addresses purpose-designed R744 systems. It does not describe converting an existing R134a circuit, selecting refrigerant charge, setting pressure controls or performing high-voltage or refrigerant service.

Define the thermal job before comparing compressor programs

Our separate electric-bus compressor platform guide addresses broader platform and supply-boundary questions. The distinctive task here is the R744 heat-pump architecture: transcritical operating conditions, minimum useful output, standstill pressure boundaries and mobile packaging. A project that has not selected an R744 system should resolve that wider architecture before using this shortlist.

An electric bus can need cabin cooling, cabin heating and battery temperature control during the same working day. Those demands are not interchangeable. Passenger comfort is influenced by occupancy, ventilation and door openings. Battery conditioning belongs to the battery manufacturer's operating requirements. A useful compressor comparison therefore starts with the destinations and sources of heat, not a single headline capacity.

For example, a project may propose that one refrigerant circuit supports a passenger air handler and a liquid circuit serving other vehicle loads. Another design may keep those functions separate. Both can be sensible architectures, but the compressor carries a different combined task in each. Comparing them solely by passenger cooling capacity conceals the allocation of thermal capacity to other consumers and the consequences when those consumers need help together.

The decision owner should distinguish simultaneous requirements from requirements that occur at different times. A maximum cabin cooling figure and a maximum battery cooling figure should not automatically be added, nor should they automatically be treated as mutually exclusive. The vehicle's intended control strategy has to justify either assumption. This is a system-design question that cannot be answered from compressor displacement alone.

Write the most demanding operating situations in ordinary language before translating them into selection inputs: a parked bus preparing for service, an occupied bus with repeated door openings, a cold vehicle beginning a route, or a warm battery requiring cooling while the cabin needs less. These are proposed design scenarios, not claims about the Osnabrück fleet. Their purpose is to prevent a program from passing one attractive condition while failing the actual vehicle task.

It also matters where supplemental heat sits in the architecture. A compressor need not deliver every possible winter demand without assistance to be useful, but an assistance requirement changes electrical demand and operating strategy. Conversely, a brochure statement about heat-pump performance cannot by itself justify deleting an existing heater. Treat the balance between heat pump, recovered heat and supplemental heating as a documented vehicle decision.

The real shortlist contains two manufacturers and different program shapes

BITZER presents CO2LITE as a compact semi-hermetic reciprocating compressor for transcritical CO2 mobile applications. Its current product information identifies one housing size, a displacement of 6.64 cubic metres per hour at 50 Hz, a 25–70 Hz range, a 257 mm height and a 534 mm overall length. These are screening facts, not the dimensions of a complete roof unit. BITZER CO2LITE product information.

Danfoss BOCK offers the radial StarCO2mpressor program in HR40 and HR60 forms. Its mobile brochure distinguishes the four-cylinder HR40 from the six-cylinder HR60. The products are members of one manufacturer's program, not two independent suppliers. The difference in displacement provides an additional selection axis, but does not establish which member is better for a particular bus. Danfoss BOCK CO2 mobile brochure.

There is an important information-quality issue: the current Danfoss overview describes both models as four-cylinder, whereas the mobile brochure distinguishes four and six. Other published capacity ranges are not identical across those materials. A buyer should not silently merge those entries into a supposedly definitive comparison table. Obtain the current, exact model selection and drawing, and retain its revision with the project decision.

The table deliberately omits a winner column. A buyer with a fixed approved vehicle design may have only one legitimate replacement route. An integrator developing a new system may be able to evaluate both manufacturers. The existence of alternatives at program level does not mean that a workshop can exchange them within an installed circuit.

Nor should a completed HVAC unit be counted as a third bare-compressor brand. Spheros, for example, documents REVO-E HP R744 as an integrated rooftop HVAC solution. That can be a relevant system-purchasing route, but it is a different scope of supply. The distinction becomes important when one offer appears to cost more because it contains integration work and components absent from another offer.

In a transcritical comparison, temperature alone does not define the high side

R744 changes the meaning of the operating-point description. Above the critical region, the high-side heat exchanger operates as a gas cooler rather than a conventional condenser with a single saturation temperature. BITZER's gas-cooler guidance identifies the critical point at approximately 31.1°C and 73.8 bar absolute, and treats gas-cooler outlet temperature and pressure as separate inputs. This explains why a single “condensing temperature” field can be an inadequate basis for a transcritical comparison. BITZER gas-cooler tool guidance.

The practical consequence is not that buyers should choose their own pressure settings. It is that the engineering selection must identify a complete operating point. Two offers may both say they cover a warm summer day while assuming different refrigerant conditions inside the circuit. Their capacity and electrical demand are not comparable until those assumptions are aligned by the responsible system designer.

Ambient air temperature and refrigerant outlet temperature are also different quantities. A roof-mounted heat exchanger has to transfer heat to the surrounding air; its performance depends on the installed heat exchanger and airflow arrangement. A compressor publication cannot establish the final approach between those temperatures for an unspecified vehicle. The useful question is which installed-system assumption produced the offered selection, rather than which catalogue has the more impressive ambient limit.

The same discipline applies on the cold side. Outdoor air temperature is not the evaporating temperature. A heat pump operating on a cold day draws heat through an exchanger, and the compressor selection uses refrigerant conditions resulting from that process. A claim that a program addresses low outdoor temperatures is relevant evidence of intended application, but it does not supply the complete heating capacity available to the passenger compartment.

Keeping those boundaries explicit prevents a common comparison error: accepting a low-temperature application statement from one supplier as though it were a capacity rating, then comparing it with a fully specified heating point from another. One statement defines a potential operating region; the other describes performance at a particular condition. Neither replaces the other.

For procurement, a missing input should remain missing. Filling it with a typical value merely makes the comparison look complete. A blank pressure condition or unexplained gas-cooler temperature is a reason for a technical clarification before selection, not a reason to interpolate a guarantee from a marketing graph.

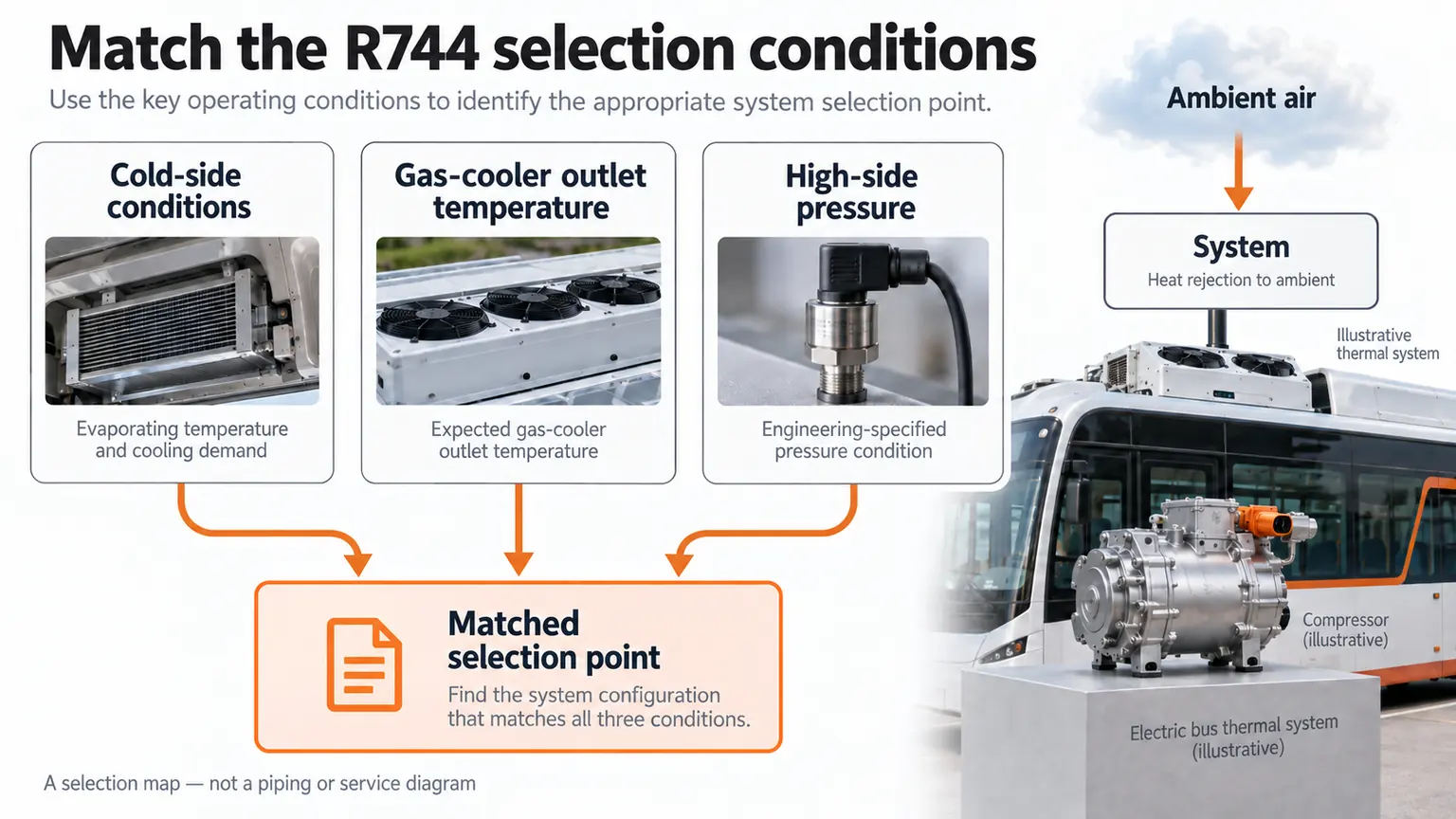

Figure — A transcritical comparison requires separate cold-side conditions, gas-cooler outlet temperature and high-side pressure; this is a selection map, not a piping or service diagram. Arrows denote selection inputs, not refrigerant or heat-flow direction.

Capacity headlines are evidence only when their conditions travel with them

BITZER's Busworld 2025 release gives a CO2LITE cooling example of 32 kW at an evaporating temperature of +5°C, gas-cooler outlet of +35°C and 70 Hz. It also gives a 25 kW heating example at a different stated condition. Those are useful manufacturer examples, but neither is a universal rating for every speed, ambient condition or installed system. BITZER Busworld 2025 release.

The Danfoss StarCO2mpressor overview attaches different conditions to its published cooling and heating ranges. Consequently, putting the largest number from each page into a descending list would produce a ranking of unlike test points. It would not show which compressor meets the same bus duty with the least electrical demand, suitable control margin or acceptable installed package.

Consider a purely hypothetical project needing a specified heating output at its own cold-start condition. An offer that exceeds that output at a milder catalogue condition has not yet passed. Another offer with a smaller promotional maximum could still meet the actual point. The next action is to obtain selections at the project condition, not to award preference to the larger published maximum.

A useful comparison also separates delivered thermal capacity from compressor electrical input and from total HVAC electrical demand. The last boundary can include fans, pumps, controls and supplemental devices. If one supplier's efficiency figure includes those loads and another's does not, the figures describe different products. This accounting distinction matters even when both use the same refrigerant and serve the same nominal bus size.

Heating and cooling figures should be kept in separate columns because the product is performing different thermal duties. A strong summer selection cannot stand in for a winter selection. Similarly, a winter heating point does not answer whether cabin cooling and battery cooling can be sustained together in the proposed architecture. A decision table should expose these separate questions instead of collapsing them into one average score.

There is no need to demand an enormous set of arbitrary operating points. Start with the few conditions that can change the program decision: a capacity-limiting cold condition, a demanding cooling condition and a meaningful low-load condition. Add another only when the vehicle architecture introduces a separate constraint. This keeps the comparison focused without pretending that one favourable point characterises a complete duty cycle.

The minimum usable output can matter as much as the maximum

The Danfoss overview publishes a broad speed range beginning at 12.5 Hz, with model-dependent upper limits, while BITZER publishes a different CO2LITE range. That is a real program difference. It is not sufficient evidence that one system will always be more efficient at partial load, because frequency alone does not define refrigerant mass flow, thermal output or total system power. Danfoss StarCO2mpressor overview.

A larger compressor running slowly and a smaller compressor running faster can occupy overlapping parts of a system's demand range. Whether either is preferable depends on the selected operating point and the usable envelope, not a simple ratio between their minimum frequencies. This is why an HR60 selection should not be assumed to dominate HR40 merely because its displacement is greater.

Low-load operation becomes a separate design question when the cabin needs little heating or cooling but another thermal consumer still needs support. The system may need to sustain a modest useful output rather than repeatedly move between substantial output and no output. A programme with suitable nominal capacity still requires examination at that lower demand, particularly when the architecture couples several consumers.

The evaluation should distinguish a published hardware range from the range approved for the chosen operating conditions. A minimum frequency written on a general product page is not permission to command that frequency everywhere on the application map. The matched motor, inverter, lubrication requirements and system controls remain part of the selection. The shortlist should record the usable region supplied for the exact combination.

For an illustrative comparison, suppose two programmes both cover the project's peak cooling duty. Programme A also produces an acceptable low-load selection within its approved continuous range; programme B needs a different system strategy at that point. That finding may matter more than a small advantage in peak output. It does not automatically disqualify programme B, but its additional strategy has to be understood and included in the system comparison.

Do not turn a speed-range ratio into a seasonal efficiency claim

Operating hours at each condition influence the importance of a given efficiency difference. A point that dominates an annual energy calculation on one route may rarely occur on another. Without the duty distribution and an agreed system boundary, a promise of additional vehicle range is premature. Manufacturer range or energy-saving statements can guide questions, but should not be repeated as a German fleet result.

The useful commercial outcome is an explanation of where the selected program has margin and where another component or operating strategy becomes important. That gives an integrator something to design around. A generic “up to” efficiency percentage does not show whether the proposed vehicle spends meaningful time in the conditions behind it.

Permissible pressure belongs to the protection envelope, not the performance ranking

Both programmes publish high-side and low-side pressure information. BITZER specifically relates its low-side housing rating to standstill at elevated ambient temperature. Danfoss publishes maximum permissible overpressure for the HR programme. These statements describe equipment boundaries; they must not be treated as normal targets, interchangeable gauge and absolute values, or instructions for setting protection devices.

A bus that is switched off remains a physical refrigerant system. Its components can experience conditions different from those during active cooling or heating. Consequently, a selection review that only considers the running compressor can miss an important part of the approved system envelope. The responsible designer must address standstill and restart within the complete circuit and its documented protection concept.

A higher published maximum does not establish a safer bus. The relevant system includes more than a compressor housing, and the compatible limits and protective functions must be resolved across it. Choosing the largest number in the catalogue is not a substitute for understanding which boundary applies to which component and under what condition.

For a purchasing team, this means keeping the manufacturer's terminology intact. If a document says permissible overpressure, retain that wording with the selection rather than shortening it to “pressure.” If another document reports absolute pressure at an operating point, do not put both entries under one unlabeled heading. The apparent simplicity of the resulting table would hide a material distinction.

None of this article's illustrative conditions is a commissioning instruction. It supplies no charging quantity, relief setting, test pressure, isolation sequence or refrigerant-handling procedure. Those tasks require the exact equipment documentation and suitably qualified personnel. The procurement value lies in recognising that pressure capability and operating performance answer different questions, before a purchase is treated as technically settled.

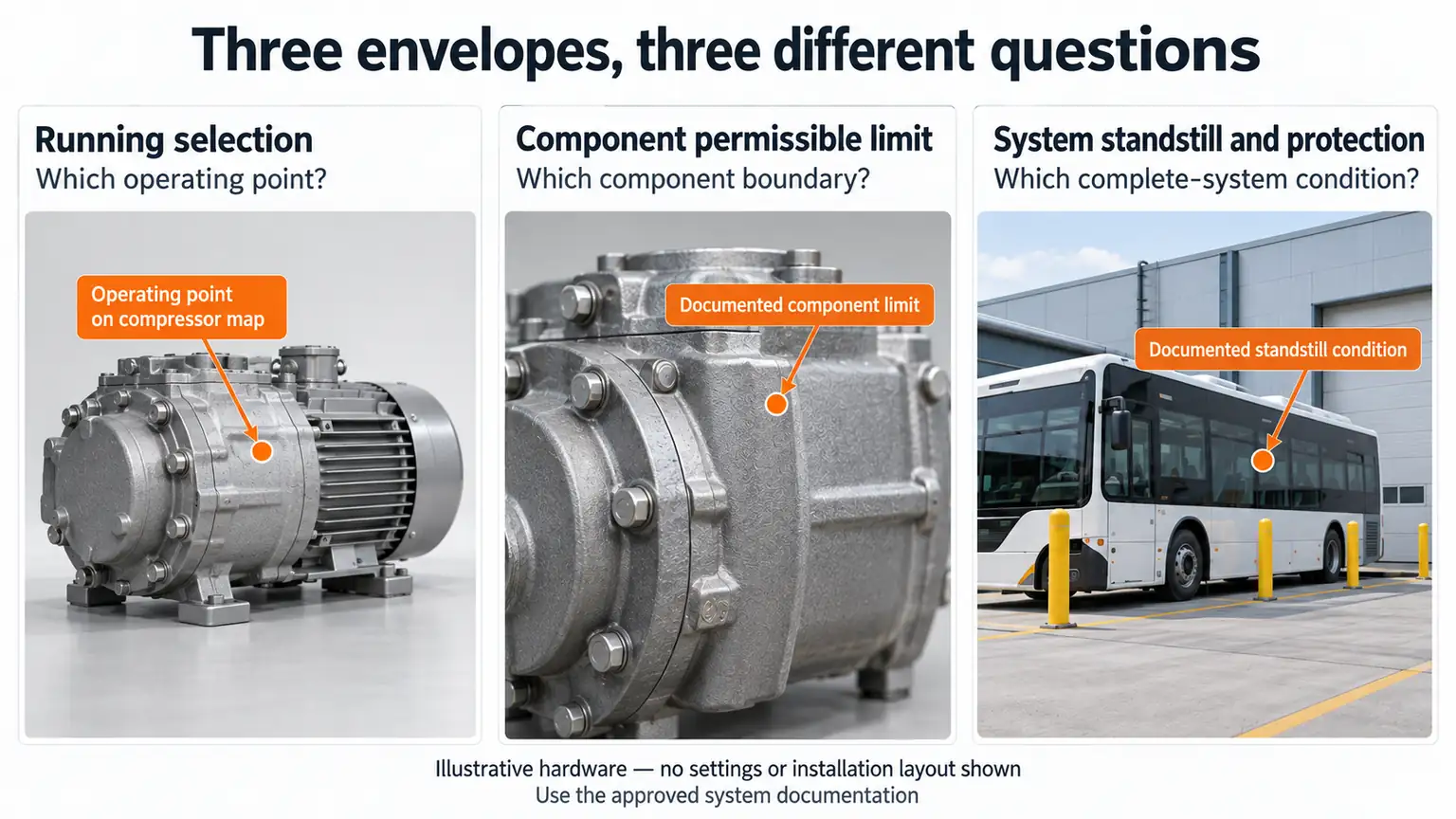

Figure — Keep three envelopes distinct: running selection conditions, component permissible limits and the complete system's standstill/protection design.

Roof packaging is a three-dimensional system constraint

The programme drawings make height an obvious comparison point, but the lowest bare compressor does not automatically create the lowest installed HVAC package. A layout includes mounts, interfaces, associated hardware and the space needed to support the approved arrangement. A buyer who substitutes a bare-component height for installed assembly height can approve a design that does not fit the vehicle envelope.

Length and the distribution of space are important alongside height. One package may suit a broad, shallow roof arrangement; another may fit a different layout more naturally. These are geometry questions to resolve with the actual drawing. A photograph from a trade-show display cannot establish connector clearance, access or compatibility with the vehicle's roof structure.

Mass also needs a consistent boundary. Compressor mass is relevant, but a completed system comparison must account for the components that differ between the proposed architectures. An apparently lighter compressor could require a different surrounding package. The appropriate conclusion is not that weight figures are unhelpful, but that bare-unit and complete-system mass should not be mixed.

Mounting orientation and permitted vehicle inclination are separate subjects. A compressor advertised for mobile applications is not thereby approved for any mounting attitude. The documented installed orientation must be respected, and the relevant inclination condition must be understood for that orientation. Do not transfer a short-term inclination allowance into a continuous-operation allowance.

The BOCK mobile material distinguishes continuous and short-term inclination, and both manufacturers discuss mobile lubrication. Those facts justify treating lubrication and vehicle attitude as design inputs. They do not justify improvising a mounting solution or assuming that a general angle covers every slope, braking event and combination of vehicle movement.

A useful early layout review therefore asks whether the proposed location, orientation and system arrangement are supported, not merely whether the compressor can be drawn inside an empty rectangle. If a programme fails that basic packaging screen, further work on fine efficiency differences is unlikely to change the outcome. If both pass, the more detailed performance comparison becomes worthwhile.

A complete HVAC route changes what the buyer is actually comparing

Spheros' REVO-E HP R744 data sheet describes an integrated compressor and inverter, electronic expansion valves and control units, with liquid-circuit connections for additional thermal functions. It therefore illustrates a system-level route rather than an extra bare-compressor candidate. The publication does not identify CO2LITE or HR40/HR60 as the installed compressor, and this article makes no such association. Spheros REVO-E HP R744 data sheet.

For a vehicle project purchasing an integrated unit, the system supplier may own decisions that remain open in a component-level comparison. That can include matching the compressor, heat exchangers and controls within the supplied package. For a project buying a bare compressor, those integration responsibilities do not disappear; they sit elsewhere in the engineering organisation.

This changes the useful commercial comparison. A component quotation should not be criticised for failing to include a complete rooftop system, and a system quotation should not be judged only against the component price. The project must first choose which scope it needs. Only then can the alternatives be evaluated on a reasonably consistent basis.

The distinction also affects performance claims. A complete unit's stated capacity belongs to that unit at its published conditions. A compressor's selection belongs to the compressor at refrigerant conditions. Those two forms of evidence are related, but they are not duplicates. Replacing one with the other can hide heat-exchanger limitations or auxiliary electrical demand that the system-level offer has already included.

Consider a project with an established thermal-system integrator, supported controls and an existing package design. A component programme comparison may be appropriate. Contrast that with a vehicle team seeking a qualified complete roof system. Starting the second project with a bare-compressor price contest can move engineering work outside the quoted scope without anyone explicitly accepting it.

For German buyers, the relevant local questions concern the actual vehicle project, responsible technical contact and supported supply scope. A manufacturer's headquarters or a German-language brochure alone does not prove that a particular configuration is available for the project. Equally, the Osnabrück order establishes genuine R744 bus use but does not serve as a cross-reference list for replacement compressors.

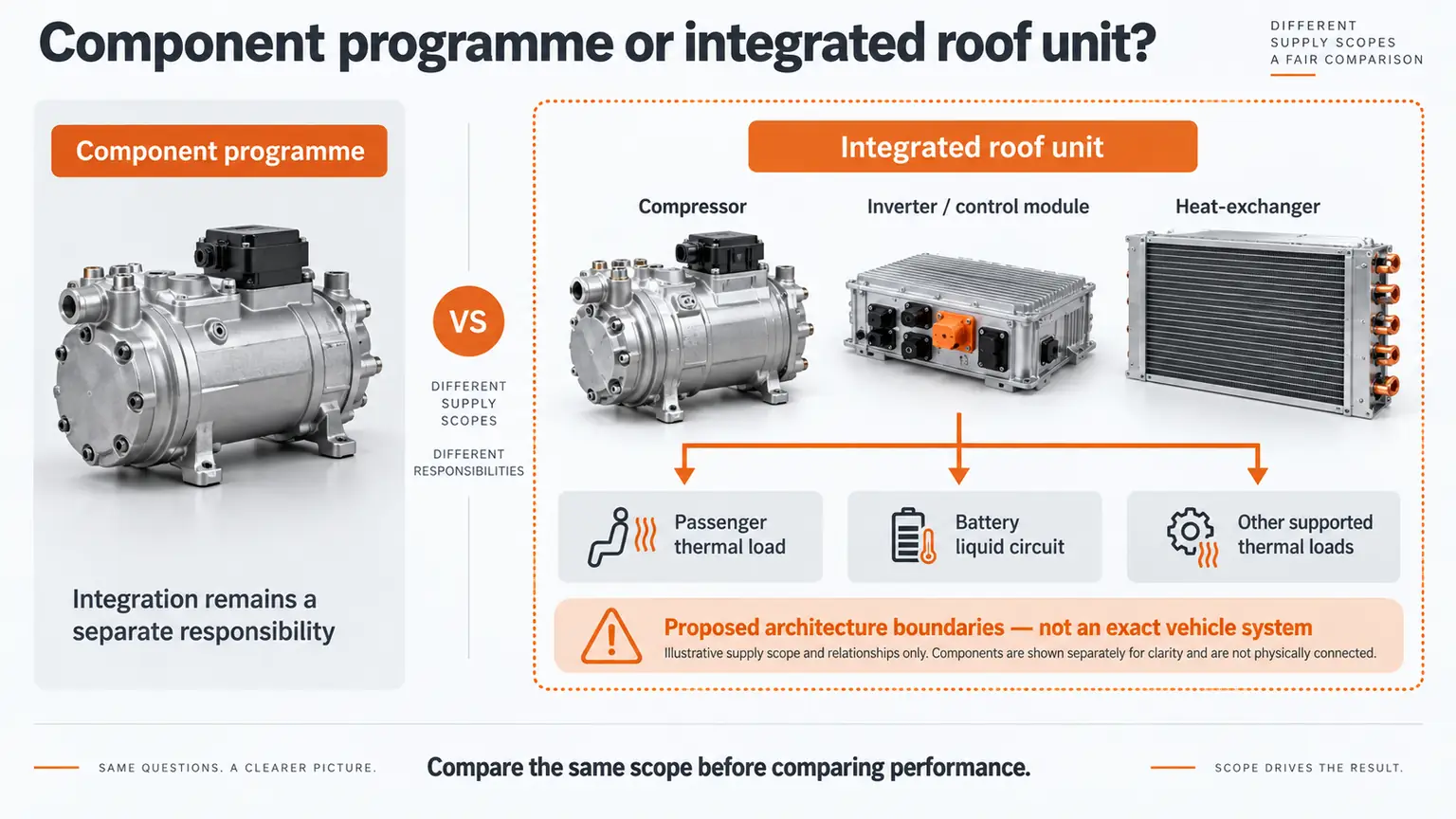

Figure — Separate the bare compressor decision from the integrated roof-unit decision and show where passenger, battery and auxiliary thermal paths enter the system scope.

Keep the replacement route separate from a new-platform decision

When a fleet needs a replacement for an approved installed system, the starting evidence is the vehicle and HVAC assembly identity, followed by the applicable compressor configuration. A programme-level comparison can explain the technology, but it cannot grant interchangeability. Changes to refrigerant architecture, mechanical arrangement or control behaviour belong to a separately authorised engineering process.

A new-platform project has more freedom, but also more responsibility. It can investigate competing programmes before freezing the layout and controls. Once those choices have shaped the design, changing compressor families may reopen assumptions throughout the thermal system. Early flexibility should not be confused with inexpensive substitution later in the product life.

It is useful to label a comparison decision as either selecting a programme for integration or obtaining the supported replacement for a defined assembly. The two decisions may involve the same manufacturer names, yet require different evidence. Combining them in one undifferentiated shortlist encourages a buyer to interpret development alternatives as interchangeable service parts.

R744 is also not a universal answer to every electric-bus heating problem. Daimler's eCitaro fuel-cell material describes a different refrigerant heat-pump approach connected with the vehicle's available waste heat. That is a reminder that the heat sources and overall drivetrain architecture affect the choice. It is not evidence against R744 in a battery-electric bus, nor approval to change an installed system. Daimler Truck eCitaro fuel-cell thermal-system context.

Make the shortlist decision at the conditions that can change it

A disciplined decision can finish with different answers for different projects without becoming indecisive. If the decisive constraint is installed package geometry, eliminate unsupported layouts first. If both programmes fit but the project has a demanding low-load requirement, examine that part of the approved map. If winter capacity is limiting, compare the same cold operating point and the same supplemental-heating assumptions.

What matters is the reasoning connecting the chosen programme to the actual constraint. “Larger displacement” is not a complete reason. “Supports the required point within the agreed envelope while the alternative needs an unsupported operating strategy” is a meaningful reason, provided it comes from the project selection rather than an invented example.

Preserve unresolved differences instead of disguising them with a numerical score. A current drawing can settle a packaging question. A matched selection can settle a performance question. A clear scope statement can settle whether an offer includes a complete roof unit. None of those is improved by averaging it with a price or a manufacturer reputation score while the underlying evidence remains missing.

The result should be a short, defensible programme decision: what thermal architecture is being supplied, which operating conditions govern the selection, why the installed package is supported, and which exact model information remains necessary before release. This is more useful than a broad catalogue of unrelated compressors because each part of the conclusion explains a real design or purchasing consequence.

For R744 electric-bus projects in Germany, CO2LITE and the BOCK HR programme merit that structured comparison. The best-supported choice is the one that meets the named vehicle's thermal job within a supported system, not the one occupying first place in a generic ranking. Where that evidence is not yet available, retaining a conditional shortlist is the technically honest outcome.
