Direct answer: Match a CAT 3406E turbocharger through an evidence chain, not the engine model alone. Start with the complete engine serial number and its prefix, retrieve the current arrangement-specific parts path, and record the complete number on the removed turbocharger. Then compare turbine inlet and outlet, compressor inlet and outlet, housing clocking, oil feed and drain, any coolant or actuator interfaces, and installed clearance. If the catalog result conflicts with the removed assembly or a field conversion is visible, stop before ordering in volume and validate one controlled sample against the present engine configuration.
This method is intended for rebuilders, fleet workshops, distributors, and importers who need a defensible match for an older engine family with many service histories. Elecdura's heavy-duty turbocharger category can be used to review candidate product families, but the evidence below must close the specific application.
Evidence | What it narrows | What remains open |
|---|---|---|
Full engine serial and prefix | Production and service-information path | Field changes and the installed turbo |
Engine arrangement | Configuration-specific service parts | Whether the current engine still follows that arrangement |
Complete turbo label | Finished assembly identity | Condition and installed-system faults |
Measured interfaces | Physical compatibility | Internal specification and duty suitability |

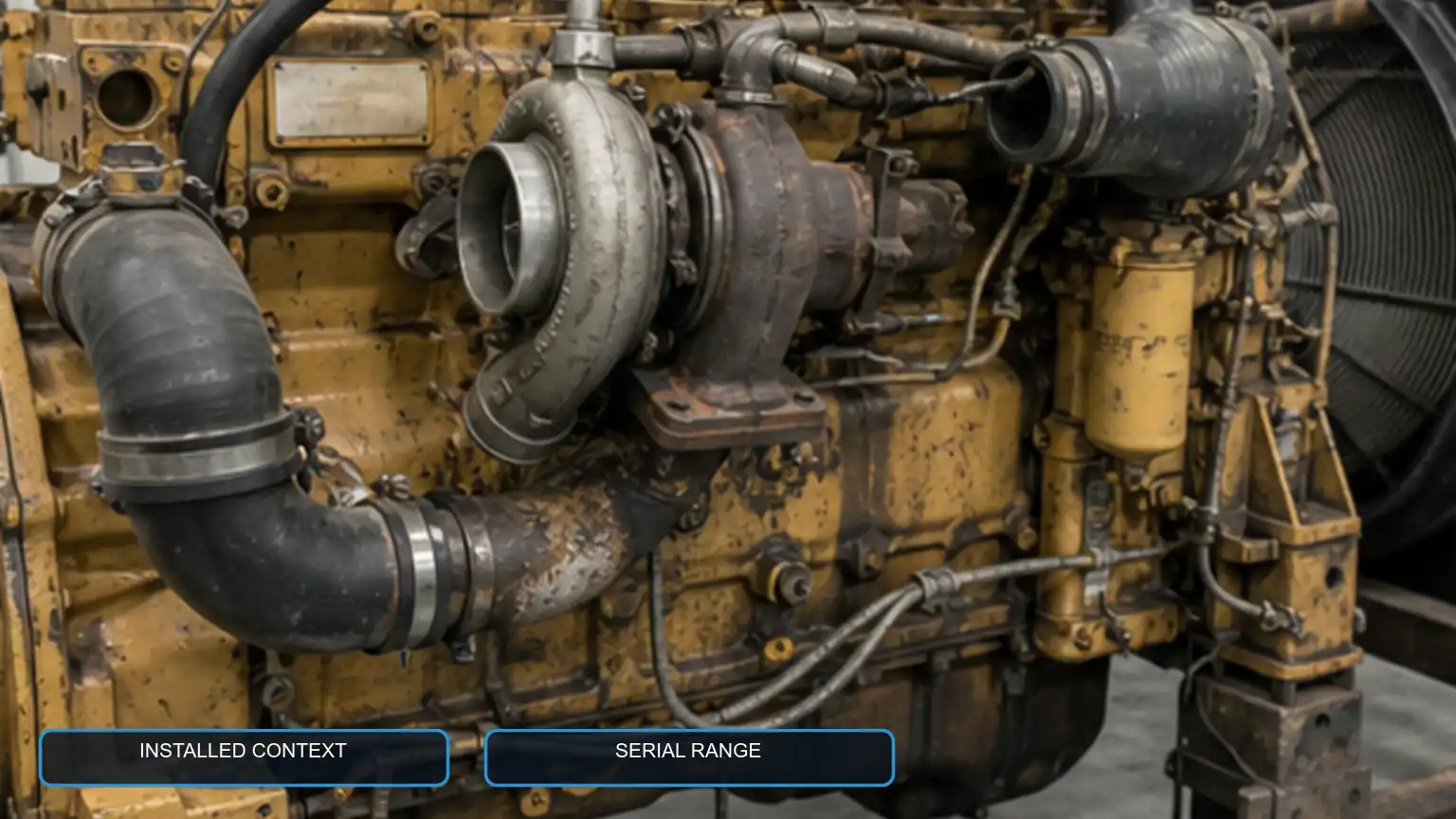

CAT 3406E-style heavy-duty diesel engine with the installed turbocharger, piping, oil lines, and mounting context visible.
Record the engine data plate exactly, including the complete serial number, prefix, arrangement number when present, and application context. Use current Caterpillar parts and service information for that identity. Do not assume that two yellow engines or two 3406E labels share the same turbocharger, because production range, rating, industrial or truck configuration, and service history can change the service assembly.
If the plate is missing or contradictory, collect block stamps, machine or vehicle records, overhaul documents, and wide photographs. Mark each source as directly observed, copied from a record, or still unverified. That distinction prevents a historical VIN or invoice from silently overruling the engine actually in the chassis.
Look for altered brackets, fabricated charge-air pipes, nonstandard oil lines, relocated air cleaners, changed exhaust routing, or evidence of a repower. Those observations do not prove the current turbo is wrong; they prove that the original catalog path may no longer describe the whole installation. Preserve the evidence before disturbing it.

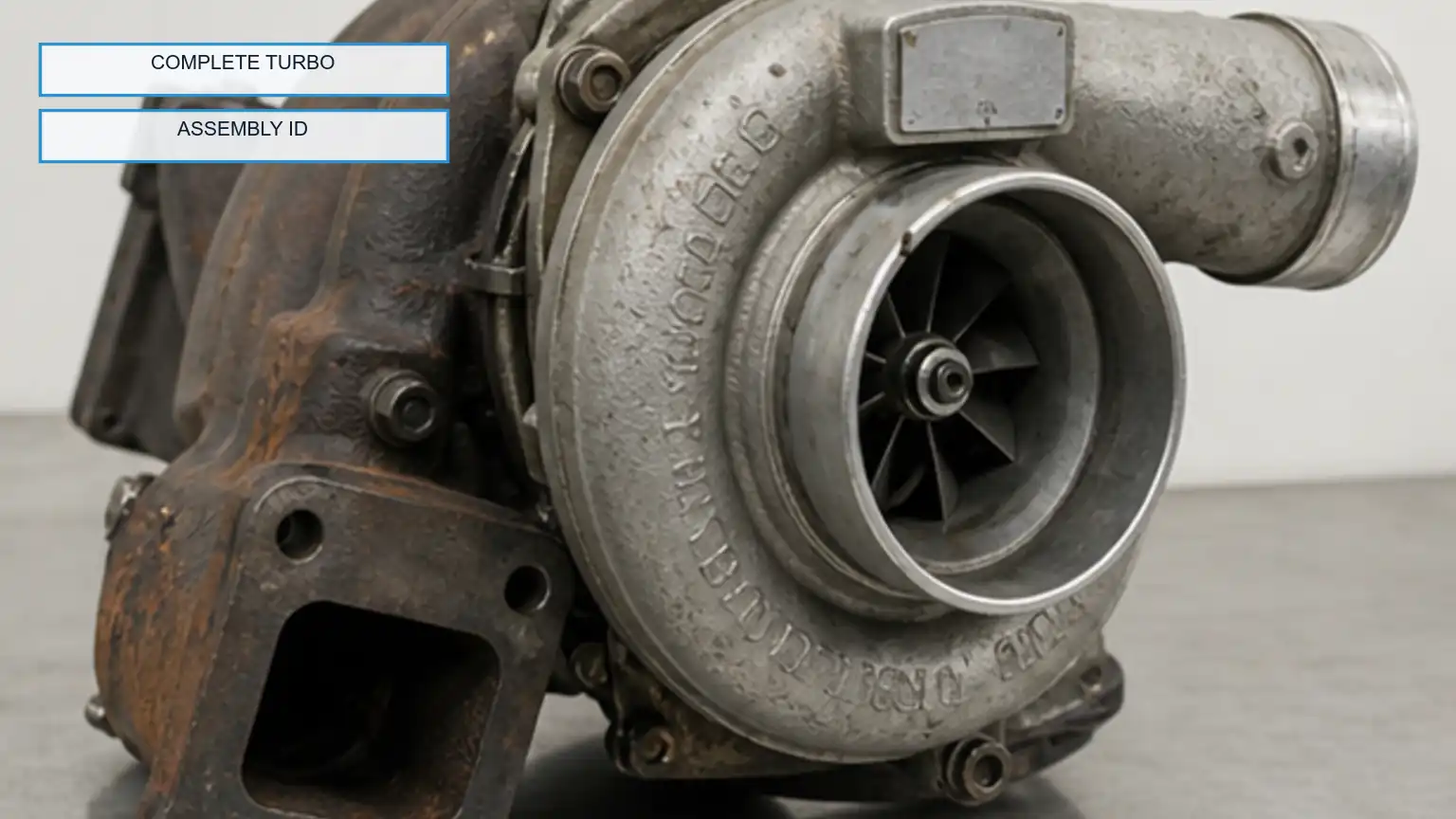

Removed heavy-duty turbocharger photographed as a complete assembly with compressor housing, turbine housing, and identification area visible.
Photograph the complete turbo and its label area under several lighting angles. Record the full service or assembly number exactly as seen, including suffixes. BorgWarner's identification guidance illustrates why the finished unit can carry an OEM number, a unique serial number, and a manufacturer number; each has a different role. A casting on one housing is supporting evidence, not a substitute for the complete assembly.
Use straight-on photographs and reproducible datums to record the turbine inlet flange, turbine outlet style, compressor inlet and outlet, oil-feed thread or fitting, oil-drain flange and angle, coolant ports if present, and wastegate or actuator arrangement. Measure bolt patterns, pilot diameters, port dimensions, and housing orientation only where the applicable service information permits. Keep the removed unit intact until the candidate is approved.

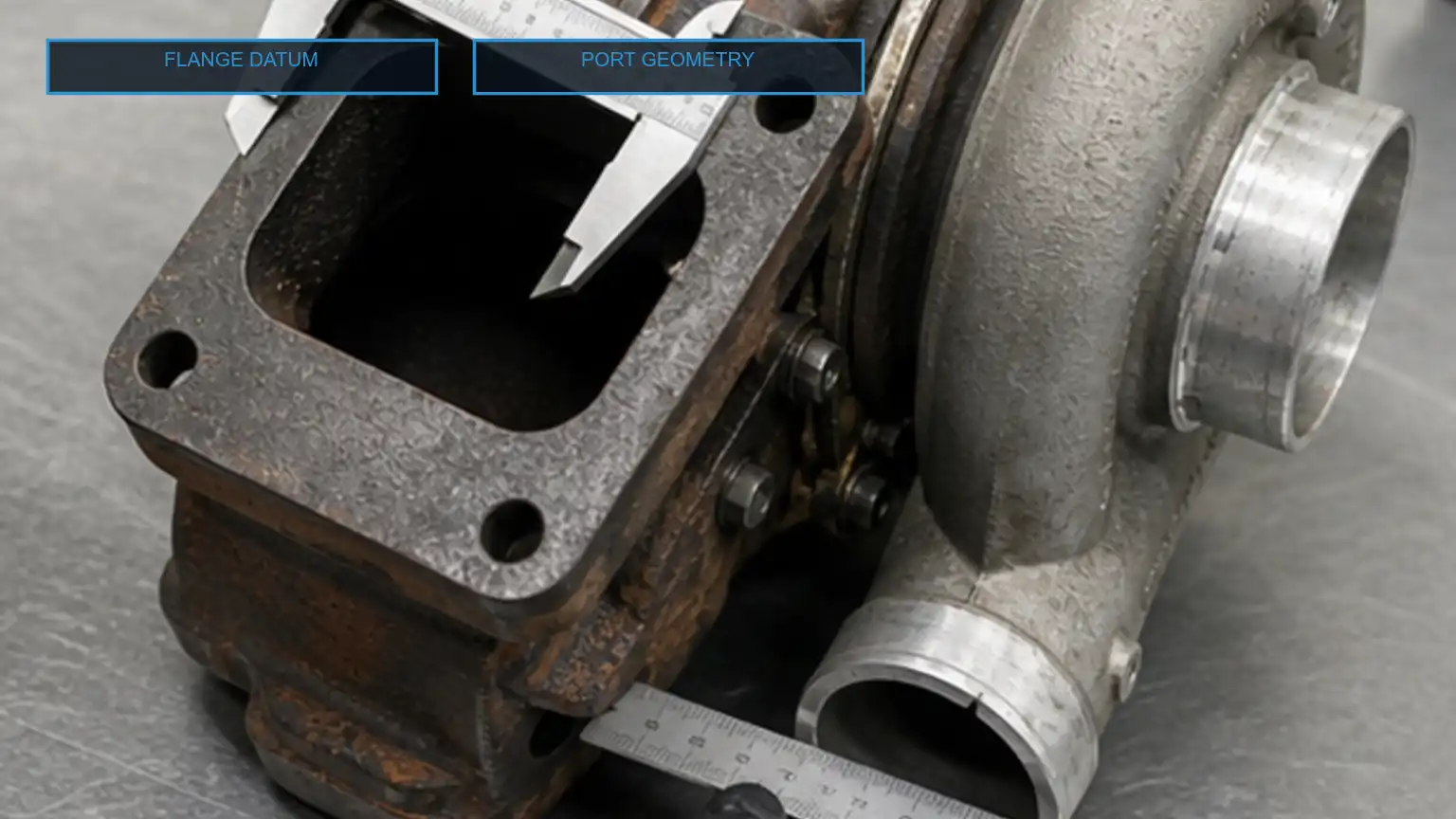

Heavy-duty turbocharger turbine flange and compressor outlet measured with calipers and a steel rule on a metrology bench.
Place the arrangement-based result, removed-turbo identity, installed interfaces, and supplier candidate in one comparison table. A conflict must be named by field: for example, different oil-drain angle, compressor outlet clocking, turbine outlet, actuator type, or part-number suffix. Do not settle a conflict by choosing the most common number on a marketplace page.
Ask the supplier to return the proposed complete assembly number, declared condition, relevant cross-reference path, interface photographs or drawing, and an explicit answer to each open field. If a housing must be rotated or a line must be bent to make the candidate fit, treat that as an unapproved system modification until the engine or turbo service information says otherwise.

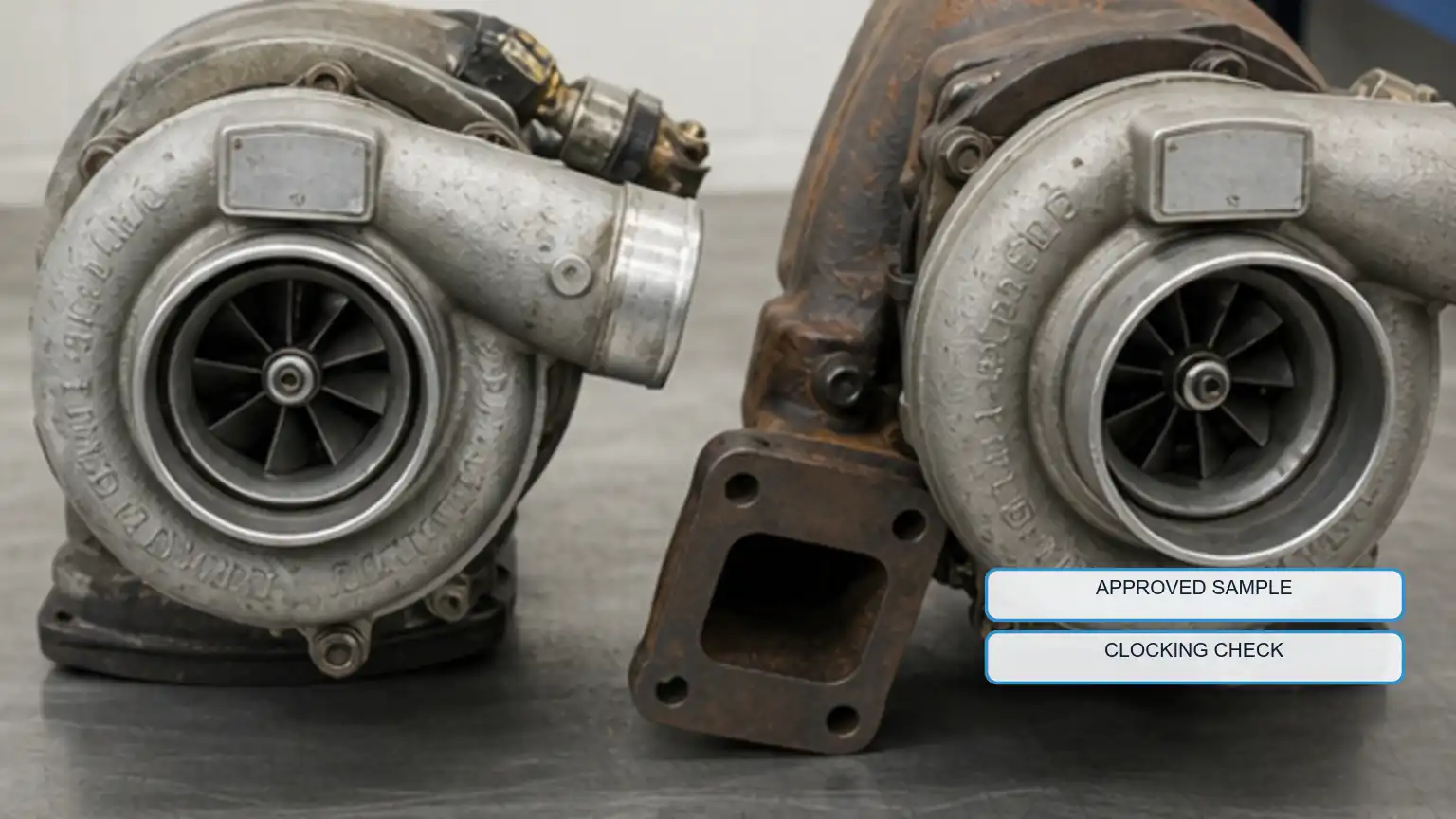

Two complete heavy-duty turbochargers compared side by side for housing clocking, flange, and outlet orientation.
Inspect the sample before installation for identity, ports, shipping caps, wheel damage, housing contact, and interface geometry. Perform installation and operating checks only under the applicable service procedure. A clean fit and stable test under stated conditions support the match; they do not prove every duty cycle, calibration, or service-life outcome.
Store the approved number, supplier reference, photographs, measurements, installation result, engine identity, and any deviation from the historical arrangement together. Repeat orders should reference this controlled packet rather than an old invoice line.
When the complete engine serial and current Caterpillar service information unambiguously identify the installed configuration, follow that controlled parts path. This guide does not authorize changing turbo size, wheel specification, housing A/R, actuator calibration, engine fueling, or exhaust layout. Performance modification and failure analysis require separate engineering and service decisions.
Complete engine serial, prefix, arrangement, rating, and application
Wide installed photographs before removal
Removed turbo label and all interface photographs
Flange, port, clocking, oil-line, coolant, and actuator fields
Reason for replacement and observed system symptoms
Quantity, destination, packaging, and sample-approval owner
Submit the identity chain, installed photographs, removed-unit evidence, open conflicts, quantity, and destination through the Elecdura fitment RFQ. A useful response should state which evidence supports the candidate instead of returning an unexplained interchange list.
The prefix is valuable because it routes the search into a narrower engine-production range, but it is not a stand-alone purchase approval. Confirm the full engine serial and arrangement information in the current Caterpillar parts source, then compare the complete turbo assembly number and every installed interface. A prefix-only result can miss arrangement changes, field conversions, remanufactured assemblies, or an older incorrect installation. If the catalog result and removed unit disagree, record the conflict and hold the order until the present configuration is explained.
A raised casting mark usually identifies a housing or raw component family, not necessarily the complete service turbocharger. The same casting can be machined, clocked, or assembled with different compressor wheels, center sections, wastegate arrangements, flanges, or service numbers. Use the casting to narrow a search, then verify the complete-unit label, engine arrangement, inlet and outlet geometry, oil ports, housing orientation, and control hardware. Do not convert a housing mark into a finished assembly number unless the current manufacturer documentation makes that relationship explicit.
Capture a wide engine view, readable engine identity, the turbo from both compressor and turbine sides, exhaust-manifold connection, turbine outlet, compressor inlet and outlet, oil feed and drain, any coolant lines, actuator or wastegate linkage, and the nearby pipes and brackets. Include straight-on interface photographs and a scale where dimensions will matter. These images preserve installed clocking and clearance that disappear after removal, helping the supplier distinguish a true mismatch from a pipe or bracket that was moved during disassembly.
No. A matching turbine inlet flange proves only one interface. The outlet, compressor connections, housing clocking, oil-drain angle, feed fitting, actuator configuration, wheel and housing specification, installed clearance, and engine arrangement can still differ. Check every connection without forcing pipes or rotating housings outside an approved service procedure. A successful flange trial also cannot prove airflow capacity or durability; those questions require the correct service assembly and application information rather than a visual bolt pattern.
Use a sample when serial or arrangement data are incomplete, the removed turbo label is unreadable, the installation shows nonstandard piping, or credible sources return conflicting assemblies. Define the sample acceptance sheet before ordering: identity, flanges, ports, housing orientation, control hardware, clean protection, installation result, and the operating checks permitted by the service information. A sample is useful only if its result is documented and tied to the exact supplier reference; an undocumented trial does not create a reliable repeat-order standard.
