Diesel Fuel Analysis Before an Injector Claim: What a Sample Can Prove

A diesel fuel analysis report describes the submitted sample under the tests performed. It can identify a fuel-quality concern, but it does not automatically prove why an injector failed, when contamination arrived, or who supplied it. Before using the report to support an injector claim or replacement order, check the sample location and timing, the test methods and units, and the fuel specification applicable to the engine. Then connect the findings to the affected component and its service history. The useful outcome is a justified next decision: clarify the analysis, investigate the fuel source, test the injector, or define a supported repair scope.

Start With the Report You Actually Have

Three documents can arrive in a maintenance inbox with the words diesel, fuel and analysis in their descriptions. They answer different questions. A fuel laboratory report examines a sample taken from a fuel container or system. An injector bench report measures a particular injector under specified test conditions. An engine oil report may identify fuel dilution in lubricant. Before discussing a result, identify the material or component tested. Otherwise a finding about fuel in engine oil can be misread as a finding about the quality of diesel delivered to the tank.

This distinction changes the next request. If the question is whether a removed injector delivers correctly, use the component-specific evidence discussed in the diesel injector test report interpretation guide. If the question is whether the submitted diesel has a water, particle or fuel-property concern, stay with the fuel laboratory. Neither report replaces the other. A fuel sample has no cylinder identity unless someone has separately documented a meaningful connection, while a failed injector test does not describe every property of the fuel that previously passed through it.

Caterpillar's Fluid Analysis 101 separates oil, coolant and diesel fuel analysis. Its fuel service considers quality, contamination, microbial growth and suitability for use. That separation is useful when organizing an investigation: keep the fuel findings with the fuel sample, the lubricant findings with the oil sample, and the injector findings with the identified component. Bring them together during interpretation without relabeling one as another.

Also distinguish the laboratory's measurements from information supplied on the submission form. An engine number, delivery date or description of a breakdown may have been entered by the customer. Their presence on a laboratory report does not mean the laboratory independently witnessed the event. Ask which statements were measured, which were supplied, and which are the analyst's interpretation. This avoids turning a professionally formatted report into stronger evidence than it actually contains.

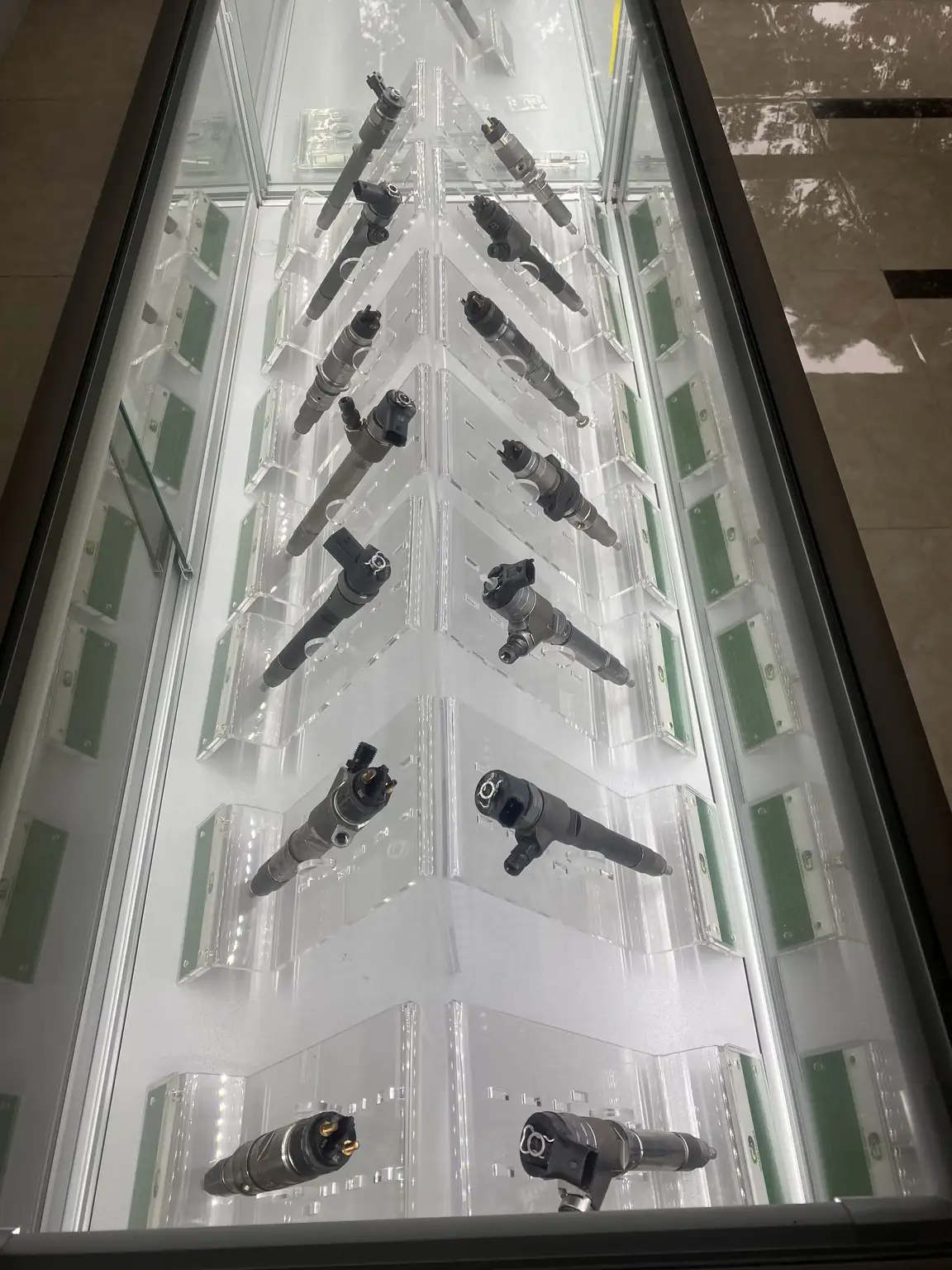

Figure 1. This display photograph shows an injector component, not a fuel sample. It is not an injector test report or evidence of a failure.

Establish What the Sample Represents Before Reading the Numbers

A result needs an address. That address includes the equipment or storage vessel, the exact sampling point, the collection date and the condition of the system at collection. A sample described only as truck diesel cannot distinguish fuel from the vehicle tank, a separator drain, a storage tank or a supplier's retained container. Those sources may all be relevant, but they are not interchangeable. Ask the collector to describe the actual point instead of retrospectively replacing an uncertain description with a more convenient one.

The public scope of ASTM D4057-22 explicitly recognizes sampling limitations: a spot sample represents its particular location, and an all-level or running sample represents the column from which it was obtained. The practice addresses equipment, container selection and handling. This is why the laboratory and the responsible technician should select the sampling approach for the question being investigated. A container labeled representative does not establish that the contents actually represent an entire tank or delivery.

For a parts buyer, the practical concern is the gap between sample scope and claim scope. A sample from one vehicle cannot by itself characterize every vehicle supplied from the same depot. A sample collected after a tank has been refilled cannot, without additional evidence, describe the earlier delivery. A sample intentionally drawn from a suspect accumulation may help investigate that accumulation, but it should not quietly be described as the average condition of all fuel available to the engine.

Where the sampling description is incomplete, keep both the useful result and the limitation. The correct record might say that water was measured in the submitted sample but the collection point was not documented. That is more informative than discarding the test entirely or declaring the whole tank contaminated. The next action is to ask the laboratory whether an appropriately identified follow-up sample can answer the unresolved question. It is not to invent a location so the paperwork looks complete.

Do not use this article as a sampling procedure. Fuel handling, access to equipment and transport of samples require suitable safety arrangements and the applicable laboratory instructions. In particular, an injector investigation does not justify loosening a pressurized fuel connection to obtain a sample. The collection plan belongs with personnel qualified for the equipment and the fuel-handling conditions.

Put Collection, Failure and Intervention on the Same Timeline

Write a short chronology before interpreting causation. Include the reported symptom, the point when the machine stopped or was inspected, the sample collection, and any changes to the fuel or components between those events. Refueling, draining, filter replacement, tank work and additive use matter because a sample collected afterward describes a different stage of the investigation. Record what actually happened, including an unknown time, rather than assuming every entry refers to the condition at failure.

The purpose is not to create an elaborate administrative file. It is to answer a concrete question: was this sample collected from the fuel exposure being discussed? If a sample was taken before any intervention, say so only when the collection record supports it. If the first retained sample was taken after corrective work, label it as a post-intervention sample. Its result may help evaluate the current fuel condition, but it cannot recreate a missing earlier sample.

Consider a hypothetical vehicle that stops after refueling. The tank is subsequently drained and refilled, and the new fuel is submitted for testing. A satisfactory report on that sample does not establish that the previous fuel was satisfactory. Equally, an abnormal report does not automatically identify the preceding delivery as the source. This example illustrates a timing limitation; it is not a report of an actual fleet incident or a statement that refueling caused the stop.

Keep the dates on supporting items equally precise. A delivery certificate, a filter photograph and an injector test may have been produced on different days for different objects. Connect them only where the identifiers and sequence support the connection. If the technician cannot establish whether a photographed filter was removed before or after the fuel change, the photograph can still show that filter's condition, but its role in the earlier event remains uncertain.

Choose the Analysis Around a Question, Not the Length of the Test Menu

Before authorizing laboratory work, describe the decision that the result should inform. Asking whether a water finding requires further investigation is different from asking whether delivered fuel meets a specified grade. Investigating a repeated storage problem is different from determining what is present in an unidentified residue. The laboratory can then explain which tests address the question, what material it needs, and which conclusions would remain outside the proposed analysis.

SGS's diesel fuel testing service lists distinct capabilities including sediment and water, lubricity, microbial contamination, biodiesel content, density and cold-flow characteristics. These are different measurements, not alternate names for one complete fuel-quality result. A basic contamination panel may therefore be useful without answering a separate question about fuel composition or a specified lubricity requirement. Confirm the agreed panel in writing rather than assuming the package name includes every relevant property.

Where a test is omitted, mark it not tested. Do not put a tick beside a property because another related measurement was acceptable. Similarly, if insufficient sample prevented an analysis, the missing result is not a pass or a failure. Clarify whether the laboratory can perform additional work on retained material or needs another collection. That conversation is more useful than ordering a second package without telling the laboratory what the first report left unanswered.

Read a Water Result With Its Method and Reporting Basis

A water finding can be important without being self-explanatory. Ask for the method designation, the reported unit and any qualification attached to the value. A photograph of a visible layer, a visual observation and a quantitative laboratory result are different forms of evidence. Do not substitute one for the other in the comparison column of an acceptance sheet. Retain the laboratory's wording so that another reviewer can see exactly what was measured.

ASTM D6304-25 describes coulometric Karl Fischer water determination in petroleum products. Its public scope distinguishes procedures and notes potential chemical interferences. That does not make the method unsuitable for the investigation; it means a report should identify the method used and the laboratory should address relevant limitations. The buyer's role is to ask for clarification, not to choose a different procedure from a short online description.

Pay particular attention to the basis of a unit. A mass-based concentration and a volume-based concentration should not be treated as the same entry just because both have a small number beside them. Preserve any percentage basis, method suffix and result qualifier. If the acceptance requirement uses a different basis, ask the laboratory to explain the valid comparison. Do not make an informal conversion that hides assumptions about the sample or the method.

The follow-up also depends on where the sample came from. A result from material deliberately collected at a drain has a different investigative purpose from a result intended to characterize delivered fuel. Ask whether the chosen sample answers the intended question before comparing the figures. For separator observations and routine water-control context, the heavy-duty fuel water separator guide addresses that separate maintenance topic. A laboratory report should add analytical evidence to the observation, not erase the observation's original location or timing.

A Particle Count Is Not a Diagnosis of the Particle's Origin

A particle result is easy to overinterpret because the number looks precise. Precision about a count does not establish the identity of every counted object. Before someone calls the finding injector metal, ask which analysis actually established metallic composition and which component comparison supports the proposed origin. If the report only provides counts by size, the description should remain counts by size until additional evidence supports a more specific statement.

The scope of ASTM D7619-22 makes this distinction concrete. Its automatic counting method includes dispersed dirt, water droplets and other particles in the stated fuel types. It also explains that agglomerates can be counted as larger individual particles and emphasizes representative sampling and preparation. Consequently, the test name must accompany the result; an automatic count is not, by itself, a material-composition analysis or a map of damage inside a particular injector.

Ask the laboratory whether a second analytical approach would change the decision. For example, if the disputed issue is whether the material is metallic, simply repeating the same count may leave the central question unanswered. If the issue is whether a previously concerning count persists in an appropriately collected follow-up sample, repeating a comparable method may be informative. The useful choice depends on the unresolved question, not on a general preference for more testing.

Keep filter debris separate from the fuel sample unless a specialist has established how the materials should be compared. A filter photograph may show visible matter but not its composition. A fuel report may characterize submitted liquid but not everything retained by the filter. Ask the investigating technician and laboratory how each item contributes to the case. Do not merge them into a single statement that particles found anywhere must have originated in the component being claimed.

A purchasing consequence follows: an elevated count can justify investigating a contamination concern, but it cannot select an injector part number. Nor does it identify a supplier capable of tolerating that contamination. Avoid replacing a measured fuel issue with an unsupported promise that a different injector brand or a more expensive unit will solve it.

Keep Microbial Findings and Fuel Properties in Their Own Categories

Microbial analysis answers a different question from a particle count or a water measurement. SGS's fuel microbiology guidance describes the importance of identifying contamination and its location, and discusses analysis of fuel, fuel-water mixtures and associated water samples. Its diesel discussion connects water with conditions that support microbial growth. This supports asking for an appropriate microbial investigation; it does not justify identifying an organism from the color of a deposit.

If a report contains a microbial result, ask what material was examined, what the result classification means and what question the laboratory considers resolved. If it contains no microbial test, do not infer a negative result from another property being acceptable. Where the laboratory recommends further investigation, establish the purpose and suitable sample first. A parts quotation should not turn a limited finding into a self-selected treatment, dose or declaration that the fuel system has been cleared.

Fuel-property results require the same discipline. A viscosity value, a lubricity result and a cold-flow result are not interchangeable judgments about whether an injector is healthy. Ask which property was measured and why it matters to the fuel requirement under review. Do not use a satisfactory viscosity result as a substitute for a lubricity test that was never performed. Do not use a cold-weather operating concern to claim that a specific internal injector surface has already suffered damage.

The point is not that every investigation needs the broadest available panel. It is that the report's conclusion should match its coverage. A limited panel can be exactly right for a limited question. When the question expands, tell the laboratory what changed: perhaps an identified delivery is now under review, or a component examination raised a different concern. Extend the analysis deliberately, with an explanation of what the extra result would help decide.

Separate a Test Method From the Acceptance Requirement

A method explains how a property is measured. An acceptance requirement says what is acceptable for the relevant use. Writing a method number beside a result does not automatically provide the applicable limit, fuel grade or engine approval. Ask the reviewer to identify the criterion used, including the document and revision. If the report is being used for an equipment decision, the equipment's applicable fuel requirements must remain part of that review.

The Caterpillar Understanding Your Results guide distinguishes diesel fuel interpretation against appropriate fluid recommendations from the oil-sample trend approach described elsewhere in the same document. It is an older guide, carrying a 2012 copyright, still linked by the current official analysis page. It is useful for understanding report categories, but its tables and examples should not be presented as current universal limits for every engine, fuel blend or application.

For a mixed fleet, identify the equipment concerned before resolving an apparent disagreement. Two reviewers may be comparing the same measured sample with different requirements. First establish the engine and intended fuel, then identify which requirement each reviewer used. A general statement that the fuel passed a national or commercial grade should not be expanded into a claim that every additional equipment-specific condition has been evaluated. Equally, a requirement belonging to another application should not be imposed without explanation.

If the report does not state a pass or fail, avoid adding your own based on a remembered internet value. Request the laboratory's interpretation against the supplied requirement. If it does state a pass or fail, preserve any stated decision rule or qualification, especially where the reviewer says the comparison is uncertain. A borderline or qualified result needs a clarified decision, not an edited spreadsheet cell that removes the qualification.

Keep the original result beside the interpretation. A supplier-facing summary can be concise while still naming the sample, method, applicable requirement and unresolved issue. That allows a technically informed reply. Forwarding only a red status box or a cropped abnormal value removes the context needed to determine whether the same criterion is being discussed.

Connect Fuel Findings to Injector Damage Without Skipping a Step

There are several distinct statements in a failure investigation: the sample contained an abnormality; the affected engine encountered that fuel; the identified injector has a particular defect; and that defect is consistent with the proposed exposure and chronology. Evidence for the first statement does not automatically establish the remaining statements. Treat them separately so the laboratory, technician and parts supplier can address the part of the question they are qualified to assess.

Delphi's common-rail injector guidance identifies particles, water, deposits and installation problems as different possible contributors to injector failure. This provides a direct reason not to conclude that every injector complaint following an abnormal fuel test has the same cause. It also does not mean that an acceptable sample clears a component: the component's condition still requires an appropriate diagnosis.

Ask the technician for the observed failure mode, not only the symptom. A reported misfire or loss of power describes what happened to the machine. The component investigation should explain what was found on the identified injector and under what examination or test. If the only available evidence is an operating complaint and a fuel report, say that component causation remains unresolved. Do not fill the gap with a stock photograph of a damaged nozzle or an unrelated test certificate.

The same caution applies in the opposite direction. A satisfactory report on a properly identified current sample can be useful, but it does not retrospectively measure all earlier fuel exposure. An abnormal sample from a poorly documented container can raise a concern without proving exposure by the claimed injector. The degree of confidence comes from the connection between the records, not from choosing whichever single document favors a particular party.

Keep technical findings separate from the commercial claim decision. The parties can use the technical investigation when reviewing the applicable supply and warranty terms, but this article does not determine entitlement, liability or responsibility. A clear technical statement identifies what is supported and what remains untested. It does not replace that statement with either an automatic rejection of the claim or an automatic admission based on one abnormal laboratory line.

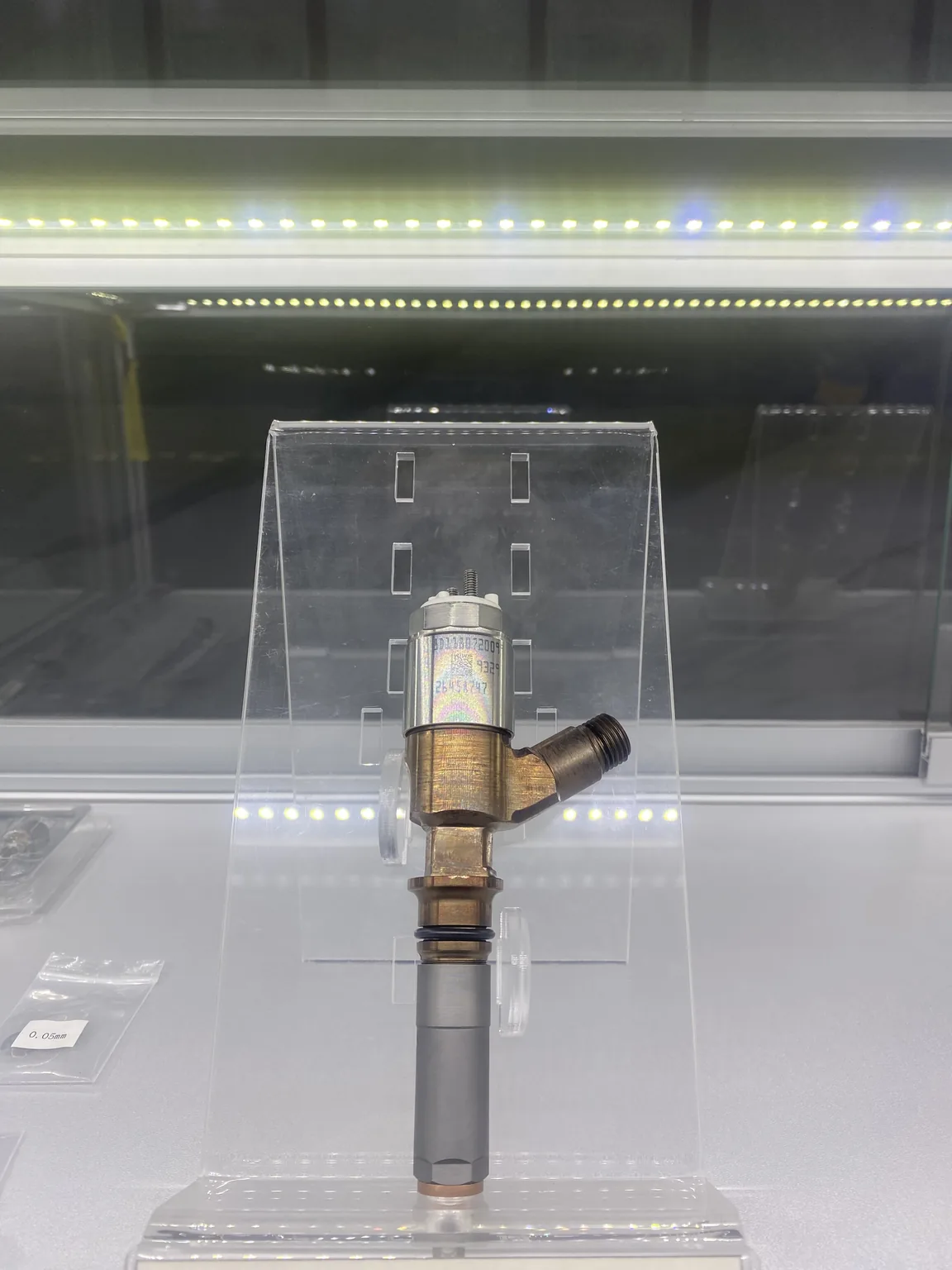

Figure 2. The photograph shows visible exterior features of a display sample. Its finish and appearance do not establish internal damage, fuel contamination, service condition or the cause of an injector complaint.

Resolve Conflicting Reports Before Ordering Another Test

When two reports disagree, begin with sample identity. Were they produced from the same collected material, different points in the same system, or samples taken on different days? A second report is not a direct repeat if the equipment was refueled or serviced between collections. Write that distinction into the comparison. Both reports may accurately describe their own submitted samples without establishing that either laboratory made an error.

Next compare the measured property, method and unit. Similar names on two laboratory packages do not guarantee identical coverage. One report may contain a screening classification and another a quantitative result. One may include a qualification that was omitted from the forwarded summary. Ask the laboratories to interpret the difference with the complete reports available. Do not average unlike results or delete the less convenient one to produce a clean conclusion.

If the same retained sample is available, ask whether reanalysis can answer the disputed question and whether its condition remains suitable for the intended test. If a fresh sample is necessary, recognize that it addresses the newly collected condition. A new collection can strengthen the current investigation, but it does not become a duplicate of an earlier missing or unidentified sample. Record what the additional work is intended to establish before authorizing it.

A useful retest request is specific: clarify a unit, resolve a sample-identification discrepancy, investigate a suspected interference, or assess whether a concerning property persists after a documented intervention. A vague instruction to test until acceptable creates a record that is difficult to interpret. Decide with the laboratory what would count as an informative result, including an outcome that leaves the cause unresolved.

Turn the Findings Into a Defined Parts Decision

Use the unresolved question to choose the next route. If the sample identity is uncertain, clarify it with the collector and laboratory. If a fuel property is abnormal against the applicable requirement, ask the responsible technical team to investigate the fuel concern. If injector condition remains unknown, request an appropriate component assessment. If the injector defect and system findings are established, review the repair scope. These routes can proceed together where justified, but one should not silently substitute for another.

Do not let a fuel report determine replacement quantity by itself. The separate one injector versus full-set replacement guide addresses that decision. The fuel report contributes a defined finding to that review. It does not inspect the remaining injectors, establish their condition or identify the components that must be included in a particular engine repair. Those decisions need the applicable service information and the actual investigation.

Once a replacement is justified, the order still needs exact injector identification. State the engine and original injector references, the required unit condition and any application-specific coding or documentation requirement confirmed by the responsible technician. Attach a fuel report only with a short explanation of why it is relevant. A parts supplier should be able to distinguish an application-matching request from a request for help interpreting a laboratory concern; neither should be disguised as a universal request for a better injector.

End the technical review with a short, bounded conclusion. Identify the sample and measured finding, state the applicable comparison, explain the established connection to the component, and name the remaining action. If cause is not established, say so. A decision to proceed with a documented repair can coexist with an unresolved cause investigation. Keeping those decisions distinct is more useful than delaying every purchase until a certainty that the available evidence cannot provide.

For a replacement sourcing discussion, use the Elecdura diesel fuel injector catalogue as a starting point. Provide the confirmed engine and injector references, the requested unit condition and the relevant diagnosis. State separately whether a fuel investigation remains open. A catalogue entry is not a laboratory service, a failure assessment or confirmation that a particular replacement is suitable for the application.

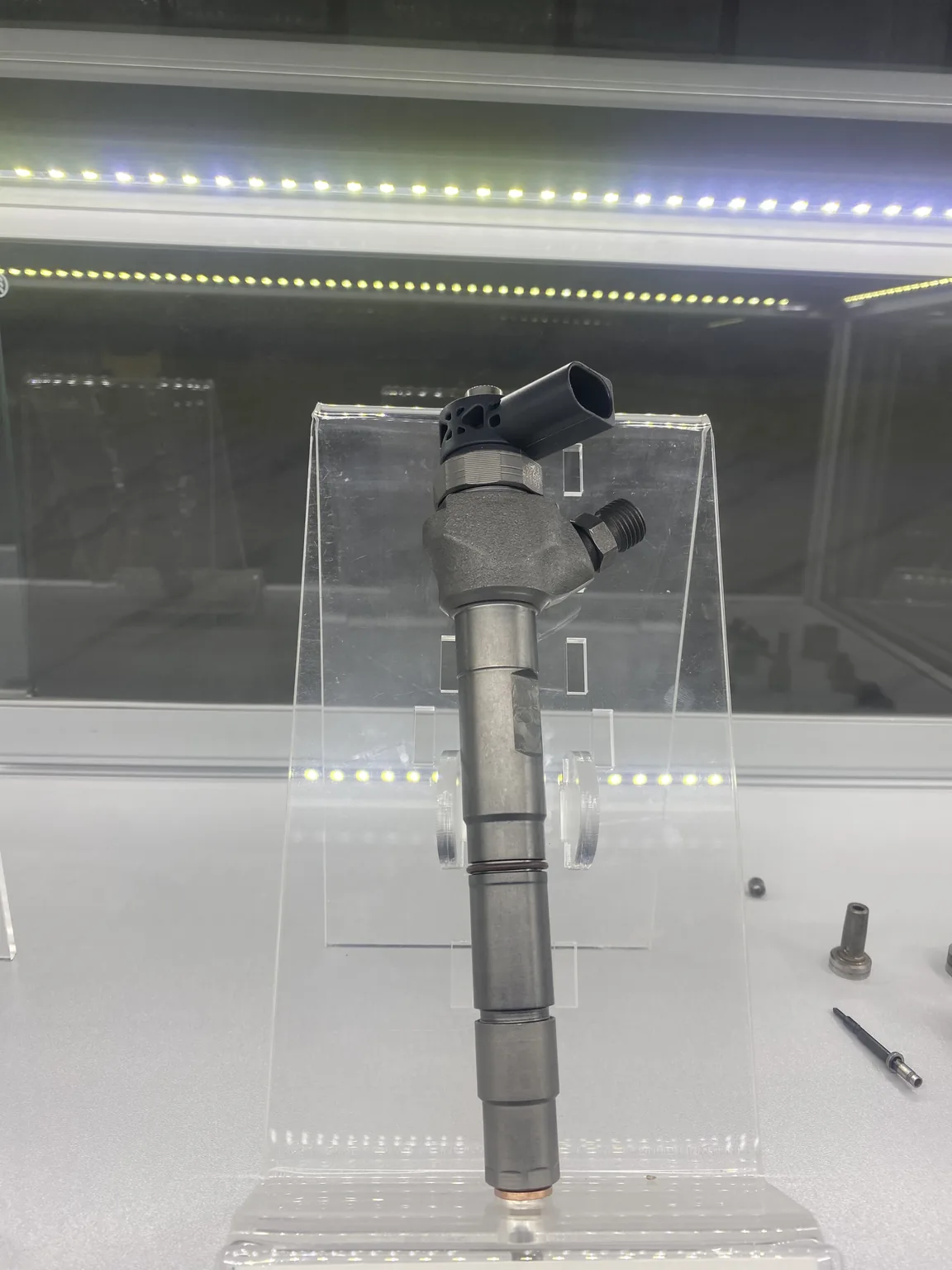

Figure 3. A display range does not select the correct replacement for an engine. Confirm the exact engine and injector references separately; this photograph does not verify the display-card applications, stock availability or interchangeability.

Frequently Asked Questions

Can a diesel fuel analysis kit replace laboratory analysis?

Only for the question the particular kit is designed to answer and within its instructions. Check whether it is a collection kit for laboratory submission, an on-site screening product or a specific analytical test. These are different purchases. Before relying on the result, establish the measured property, interpretation and limitations with the provider. A screening result may help decide whether to seek laboratory work, but it should not be represented as a complete fuel specification assessment or an injector failure determination.

Does a clear-looking sample prove that fuel quality is acceptable?

No. Appearance is an observation, not evidence that every relevant laboratory property was assessed. Record the appearance without replacing an unperformed water, particle, microbial or fuel-property test with an assumed pass. Choose additional analysis around the actual question and the applicable requirements. A photograph remains useful for documenting the submitted container's visible condition, provided its identity and timing are retained; it is not a laboratory report.

Should a buyer send the injector supplier only the abnormal results?

Send the relevant complete report and explain the concern. Keep sample identity, method, units, laboratory comments and any limitations visible. Where unrelated confidential information must be withheld, make that clear rather than presenting a crop as the entire document. The supplier needs enough context to understand whether the report concerns delivered fuel, fuel from the affected machine or material collected after repairs. Include the component diagnosis separately so that fuel measurements are not mistaken for injector test results.

Can a post-repair fuel sample close an earlier injector claim?

It can contribute evidence about the sampled condition after the documented work. It cannot recreate fuel that was discarded before sampling. Review the earlier claim using the available chronology, retained evidence and component findings, while identifying the post-repair sample correctly. Whether the commercial claim can be closed depends on the parties' applicable process and terms, not simply on the newer sample receiving an acceptable laboratory classification.

What if the report is technically useful but the cause remains unknown?

Keep the supported finding and the unresolved cause separate. Ask which additional evidence could realistically change the decision, rather than ordering tests without a defined purpose. The remaining action may be a targeted fuel investigation, injector examination or clarification of records. If the missing pre-failure evidence cannot be recovered, state that limitation. It is better to make a bounded repair decision with an honest uncertainty than to turn a plausible explanation into a claimed fact.
