M93R3056SE Shangchai 4H Starter Motor Wholesale

M93R3056SE Starter Motor Wholesale Fitment for Shangchai 4H-series diesel-engine

Shangchai engine distributors, equipment repairers and heavy-duty starter wholesalers use M93R3056SE to keep Shangchai 4H-series diesel-engine demand tied to one 24V, 6.0kW, 10T CW configuration. The practical distinction is the 24V 6.0kW 10T catalog configuration for the Shangchai 4H engine record, which should be checked before a similar heavy-duty housing is accepted.

Build the M93R3056SE RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

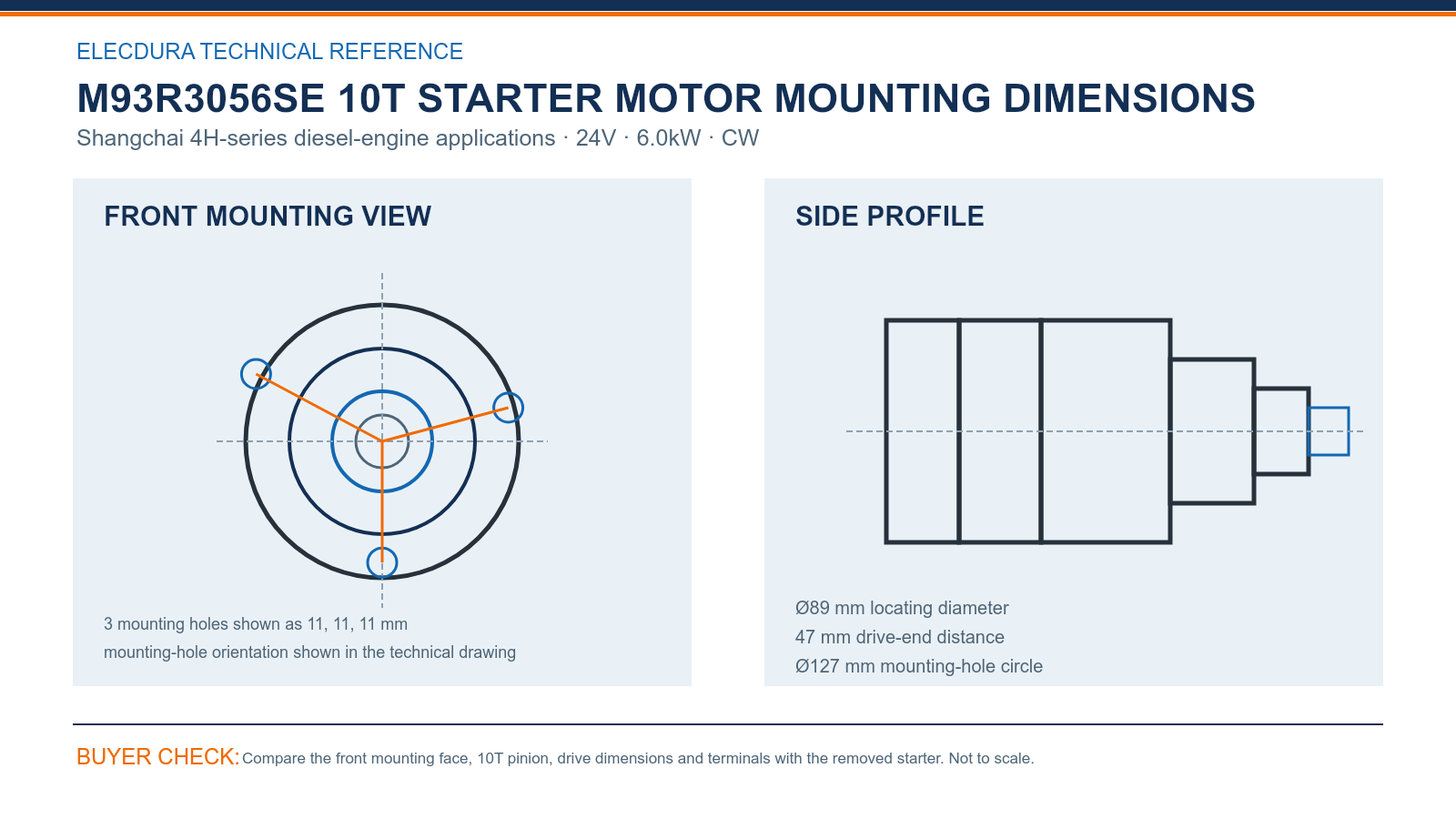

M93R3056SE Starter Motor Specifications and Drawing for Wholesale Buyers

Compare M93R3056SE at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 47 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

For M93R3056SE, count the 10T pinion and confirm CW rotation, 24V and 6.0kW. The terminal side and solenoid clearance must also agree with the installation. A different pinion or cable position should be quoted separately, even when major cross-references overlap.

M93R3056SE Starter Motor OE Cross-References for Distributor Enquiries

1. Search group: M93R3056SE, S00005887+01 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 6.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

M93R3056SE Starter Motor Wholesale Supply and Export Planning

Elecdura supports distributor orders from 20 pieces, normally with a 7–15 day lead time after order confirmation and an 18-month warranty under agreed sales terms. Availability, export packing and delivery timing are confirmed against the requested M93R3056SE quantity, destination and required arrival date.

Retain engine-build and old-unit photographs because no broader application category is assumed. Buyers should also state whether the order supports a single workshop, several branches or a fleet contract, allowing samples, safety stock, carton labels and staged dispatch to be planned around the actual service requirement.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of M93R3056SE remains tied to the stated Shangchai 4H-series diesel-engine application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

M93R3056SE Starter Motor Questions from Commercial Buyers

How can branches reduce emergency transfers of M93R3056SE stock in a Shangchai 4H fleet program?

Retain engine-build and old-unit photographs because no broader application category is assumed. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

How should a mixed-reference enquiry for M93R3056SE be prepared in a Shangchai 4H fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the M93R3056SE electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Can M93R3056SE be selected from the application name alone during fleet sourcing?

Confirm M93R3056SE with the complete OE number, Shangchai 4H-series diesel-engine record and clear front, side and terminal photographs. Check 10T, 3 mounting holes shown as 11, 11, 11 mm and 47 mm drive-end distance so visually related starters stay on separate order lines.

Why should voltage-drop results accompany an enquiry for M93R3056SE in a Shangchai 4H fleet workshop?

Measure cranking voltage and voltage loss across the positive and negative paths, not only open-circuit battery voltage. Review the solenoid command, cable terminals, engine ground and ring gear. The results provide a useful baseline for M93R3056SE installation and for any later service discussion with the supplier.

Which dimensions in the M93R3056SE drawing should receiving teams sample during a Shangchai 4H fleet inspection?

For M93R3056SE, check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 47 mm drive-end distance. Count the 10T pinion and photograph the terminal side. Record these checks against the approved sample without dismantling the unit.

What receiving records are useful for a shipment of M93R3056SE during a Shangchai 4H fleet receiving check?

Receiving should verify the M93R3056SE label, quantity and packaging before opening sampled cartons. Compare the 10T drive, Ø89 mm locating diameter, mounting holes and terminal side with the approved record. Any damage, missing protection or physical mismatch should be quarantined with photographs and lot details for prompt review.

How should a buyer request samples and bulk pricing for M93R3056SE in a Shangchai 4H fleet sourcing program?

Provide the full reference and application, not only a broad brand name. Attach front, side and terminal views of the removed starter and state quantity, destination, required date and packaging needs. For M93R3056SE, Elecdura will respond with the matching specification, MOQ, availability, commercial terms and freight choices.

How should a workshop document a service issue involving M93R3056SE in a Shangchai 4H fleet review?

Submit the purchase reference, lot number, installation date and hours in service, then describe the symptom and operating conditions. Photographs and cranking-circuit measurements should accompany the report. This structured record gives Elecdura enough context to evaluate M93R3056SE without assuming that every no-crank complaint originates inside the starter.

M93R3056SE Request Starter Motor Wholesale Pricing

Send the complete M93R3056SE reference, Shangchai 4H-series diesel-engine details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 6.0kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
