Adding Pneumatic Accessories? Review Truck Air-Compressor Duty Cycle Before Upgrading

Adding a pneumatic accessory can change a truck's air demand even when the original compressor still builds pressure. For a body builder or vocational fleet, the right question is whether the approved air-supply and drying system can support the changed duty—not simply whether a larger compressor will fit. Define the added equipment, its operating pattern and the vehicle's existing condition before requesting an upgrade. This guide outlines the information needed for an engineering review. It does not authorize changing a brake-air circuit, adjusting pressure settings or approving a vehicle for service.

Establish whether the vehicle needs a repair, a capacity review or both

If the vehicle has abnormal pressure cycling, air loss or another defect, establish that condition through the applicable service process. The unloader-versus-governor diagnostic guide addresses fault isolation. It is not a capacity approval for newly added equipment.

A VADEN manufacturer overview also discusses selecting output in relation to vehicle demand and operating conditions. Its broad diagnostic ranges are not used here as acceptance criteria. A low observed loaded percentage, for example, is not proof that the vehicle has no leak.

Keep the final recommendation explicit: retain the existing approved arrangement; repair an identified fault; or assess a proposed configuration change through the appropriate engineering process. Several actions may be needed, but a repair report and a retrofit approval should not be merged into an unexplained “upgraded” status.

Describe the added demand before selecting a compressor

Write down what has changed: the accessory, its manufacturer's air requirements, when it operates and whether several consumers can operate together. Include the vehicle's working pattern, such as stationary body operation or repeated low-speed work. A component list without an operating description can miss the condition that creates the greatest demand.

Bendix's technical discussion of compressor air quality links system demand to the vehicle and its accessories, and explains that extended loaded operation can increase heat and oil carryover. The implication for a retrofit inquiry is to review air quantity and air treatment together. The article's example operating percentages are not universal approval limits for every compressor.

Separate intended accessory consumption from unplanned loss. A capacity proposal should not quietly assume that an unresolved leak is part of the normal design demand.

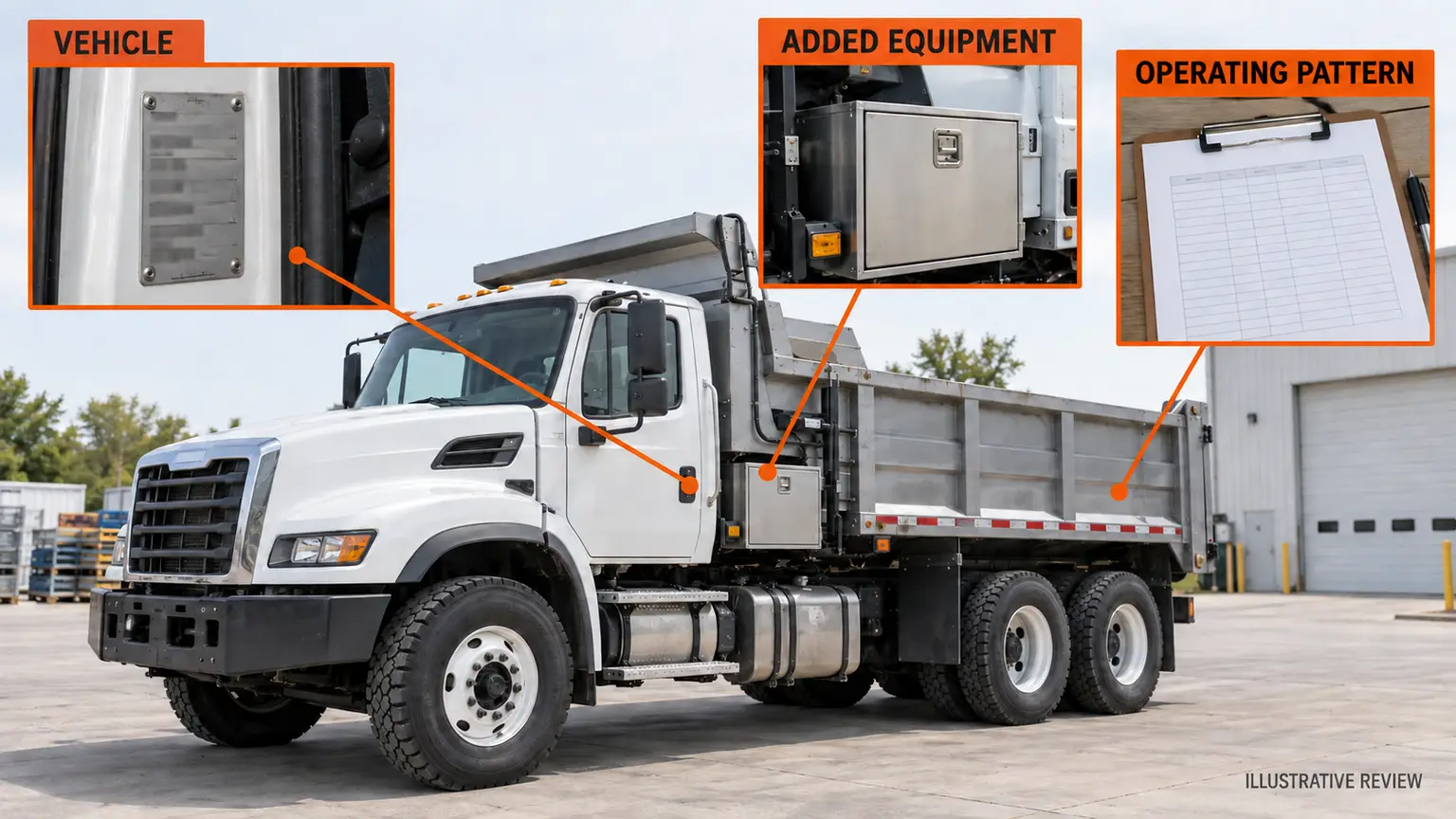

Illustrative planning scene only. It does not show an approved accessory installation, a measured air demand or a modified brake circuit.

Measure loaded operation during the proposed working pattern

The compressor may be mechanically driven while the system alternates between charging and unloading. Therefore, an engine-hour total or the sound of a rotating compressor is not by itself a record of time spent supplying air. Have qualified personnel identify the appropriate observations for the installed configuration and relevant vehicle duty.

Use comparable records when reviewing the proposed change. Identify the vehicle condition, work performed, accessory use and observation period. A short workshop observation with the new accessory switched off cannot represent a working shift in which it operates repeatedly. Conversely, an unusual event should not be presented as normal daily operation without explanation.

Keep the distinction visible: engine running, compressor loaded and accessory operating are different observations. The engineering review needs to know which one a reported percentage describes.

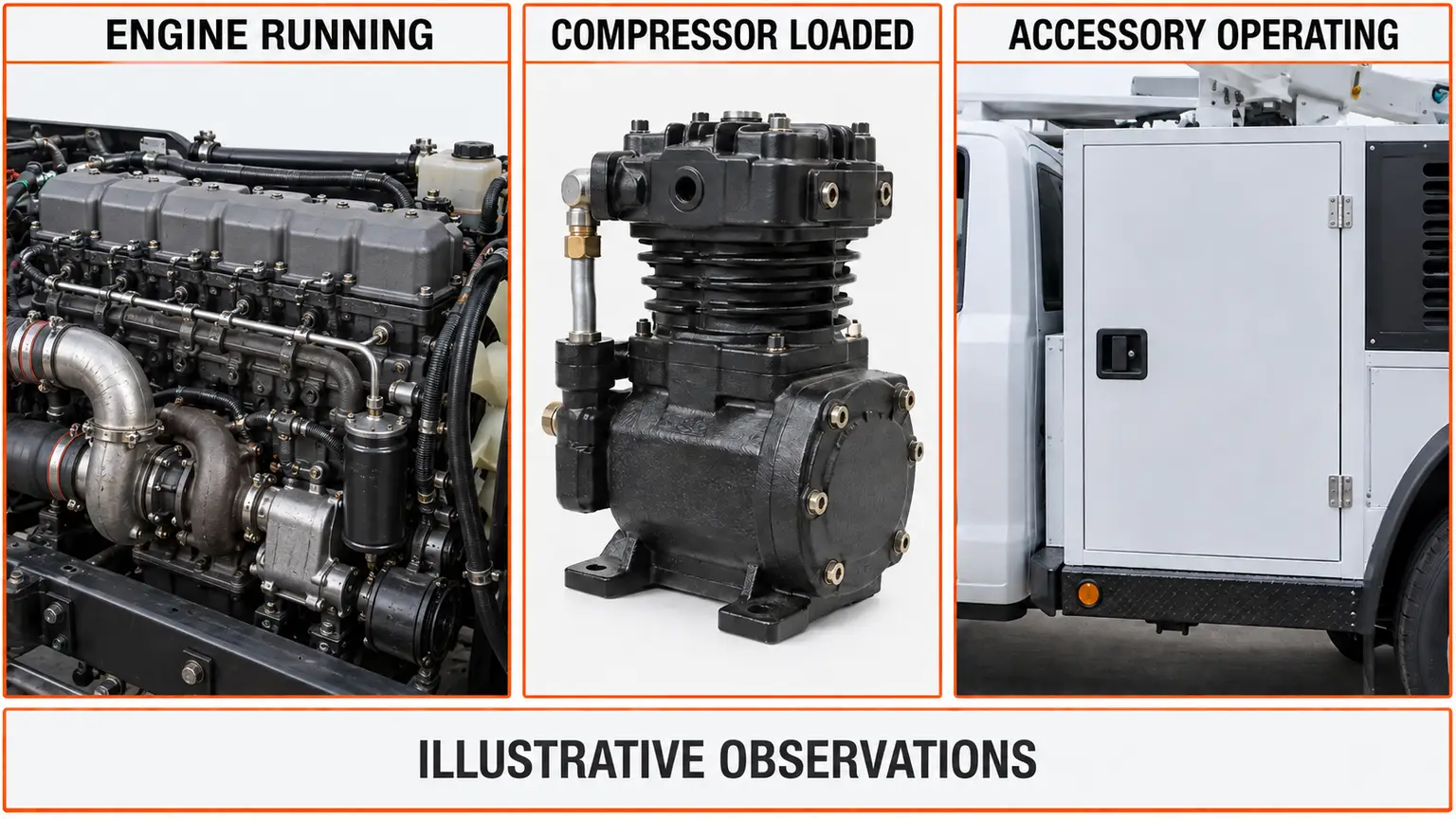

Illustrative observation categories, not measured vehicle data. A percentage must identify which operating state was observed.

No universal duty-cycle threshold is supplied here. The applicable compressor, air dryer and vehicle documentation must define the limits and measurement conditions. Values taken from a service sheet for one model should not be transferred to another simply because both vehicles use air brakes.

Check the scope beyond the compressor

The Bendix Tu-Flo 550 service data hosted by NHTSA treats demand, compressor operation, discharge conditions and the air-treatment system as connected matters. Its model-specific instructions and limits must remain model-specific. For a proposed change, use this as a reason to involve the responsible system specialist, not as a substitute approval for another vehicle.

Preserve the system boundary in the quotation. A compressor, discharge arrangement and air dryer should not become three independent substitutions with nobody responsible for their combined suitability.

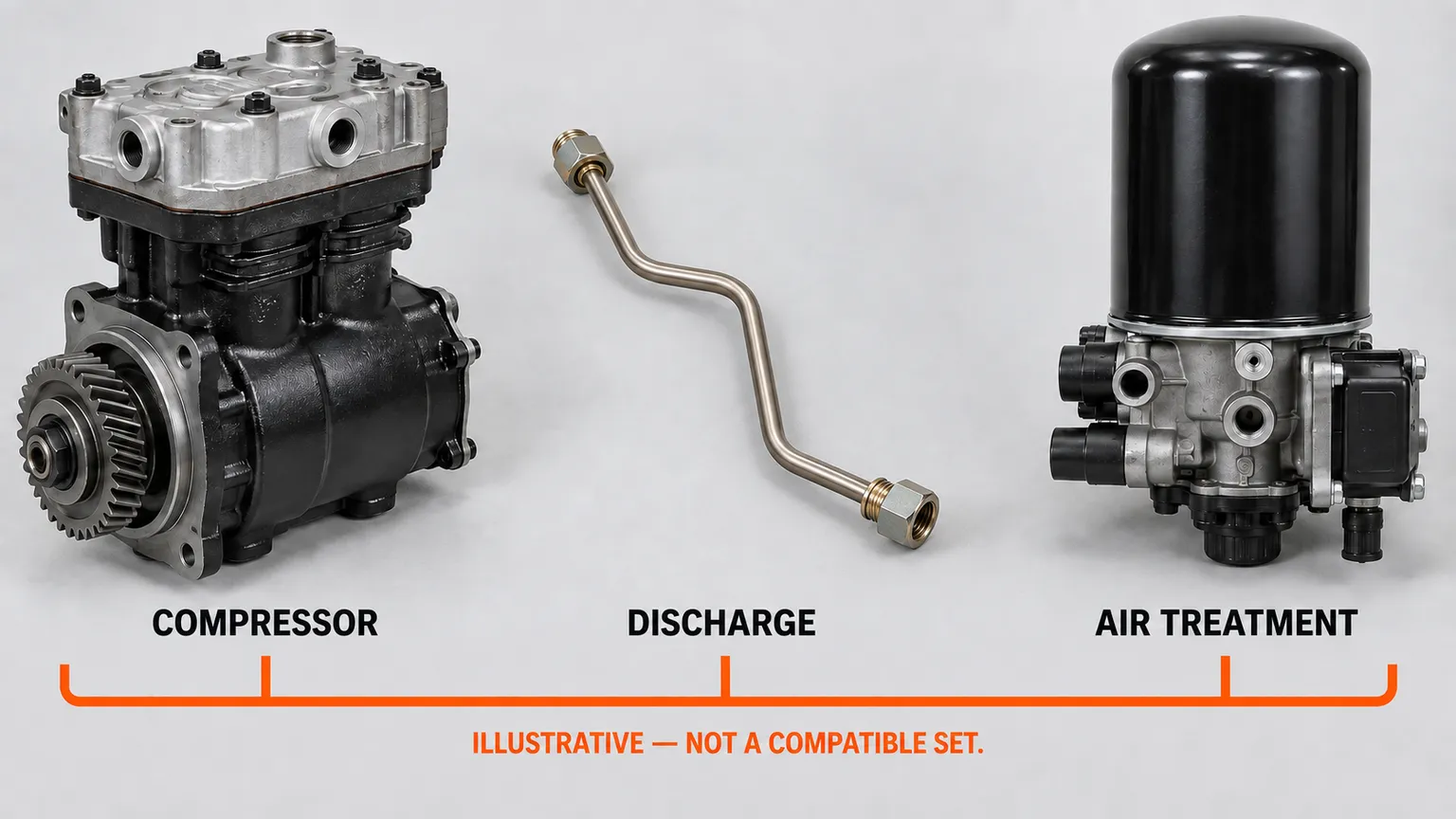

Illustrative generic components, not a compatible set or installation layout. Combined suitability requires the relevant vehicle and system approval.

Make the inquiry reviewable before requesting a price

Provide the vehicle and engine identity, installed compressor and dryer references, accessory documentation and the intended work pattern. Include relevant observations in their original context and state whether unresolved defects remain. Ask which additional measurements, documents and approvals are needed before a candidate configuration can be accepted.

For an Elecdura replacement-part inquiry, use the installed reference and the heavy-duty truck compressor guide to frame the identification request. State clearly if the order is part of a proposed system change. A matched replacement reference is not approval for increased accessory demand, and this article makes no claim that Elecdura engineers or certifies vehicle brake-system modifications.

Do not bypass protective devices, alter governor settings or reconnect circuits to test an assumption from this article. Have qualified personnel follow the applicable vehicle and component procedures; a vehicle with an unresolved safety-related defect must be handled under those procedures.

Questions commonly confused with a capacity decision

Does normal pressure buildup prove enough capacity for a new accessory?

Not by itself. It describes the conditions of that observation. The added equipment may operate differently from the workshop test, or alongside other consumers. Review the documented demand and relevant operating observations with the responsible engineer. Keep pressure buildup, loaded operation and air-treatment suitability as related but distinct parts of the assessment.

Is the highest-output compressor the safest choice?

Not automatically. A proposed unit still needs an approved relationship to the engine drive, cooling, discharge arrangement, air treatment and vehicle requirements. More catalog output is not a fitment or system-approval statement. Request the supported configuration and acceptance process for the identified vehicle and duty before treating a larger unit as an upgrade.

Can extra reservoir volume replace the capacity review?

It should not be treated as an automatic remedy. Adding or altering storage is itself a system change requiring the appropriate assessment. Do not infer that a larger reservoir resolves sustained demand, leakage or dryer suitability. Give the proposed arrangement to the responsible vehicle or system engineer rather than choosing storage by appearance.

Should a dryer be replaced whenever an accessory is added?

There is no blanket replacement rule established here. Identify the existing dryer and have its suitability reviewed for the changed conditions under the applicable documentation. It may remain suitable, require service or need a separately approved configuration change. The decision should follow evidence, not a fixed bundle attached to every compressor quotation.
