Direct answer: Repair only the A/C clutch coil or pulley bearing when the exact compressor is identified, the model permits that service, the hub and pulley geometry can be restored, the bearing seat and front housing are undamaged, and the compressor turns and operates without evidence of internal seizure or contamination. Diagnose command voltage, connector and ground, coil condition, air gap, pulley runout, bearing roughness, belt load, heat path, and front-seal area first. If heat or mechanical damage reaches the nose, shaft, housing, clutch surfaces, or compressor internals, a component-only repair is no longer a defensible boundary.
This decision is for heavy-duty A/C workshops, fleets, rebuilders, and parts buyers. Elecdura's heavy-duty A/C compressor category helps compare complete units once the installed compressor identity is known.
Record the complete manufacturer and model number, voltage, clutch diameter, belt type and groove count, connector, mounting, head and ports, and installed application. Photograph the compressor in place and all sides after removal. Similar clutch faces can hide different shaft, nose, coil, bearing, shim, pulley, or retention designs.

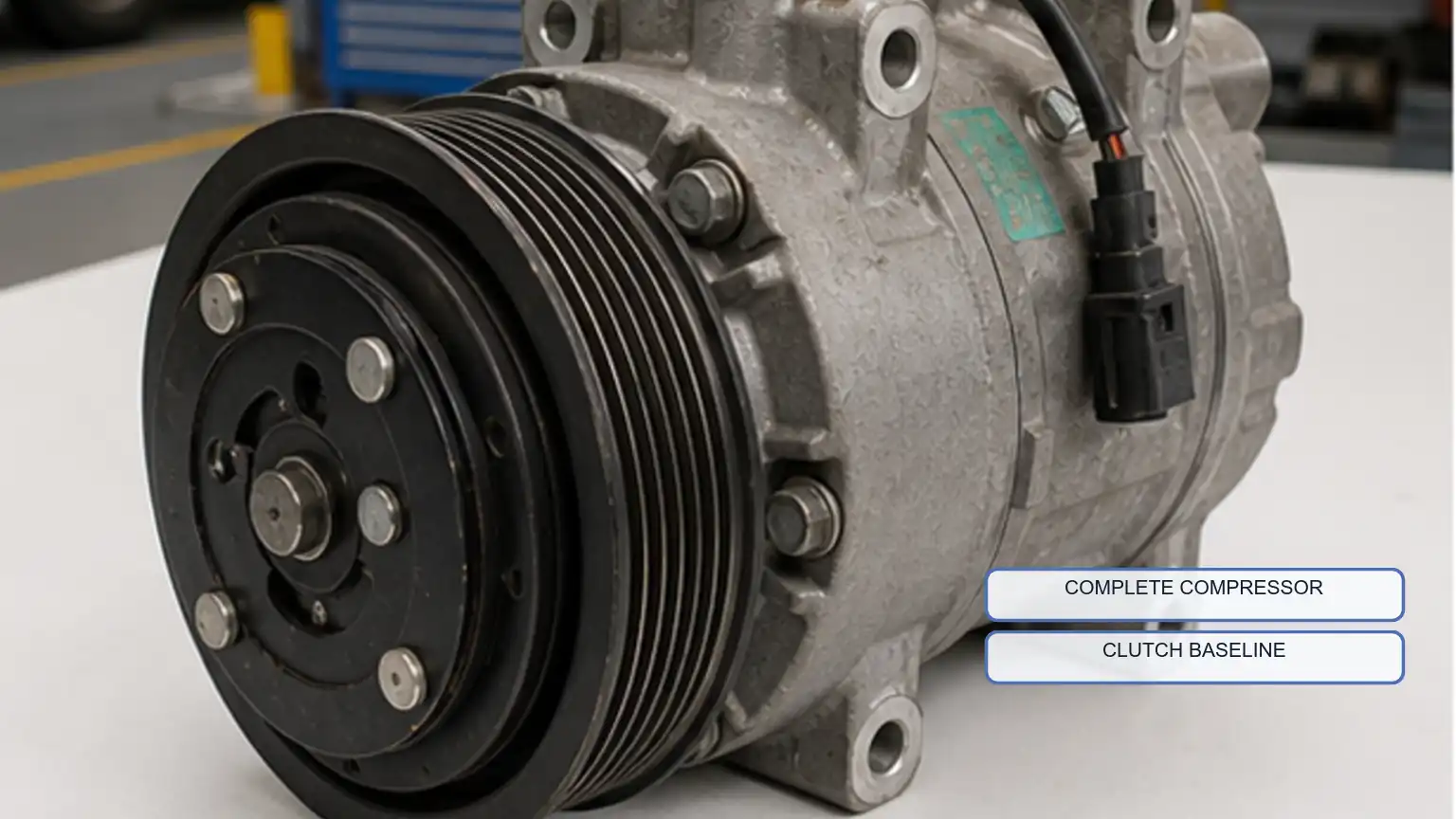

Complete belt-driven heavy-duty A/C compressor photographed with the clutch, pulley, connector, and mounting ears visible.
Check whether the manufacturer supports clutch service for that exact model and whether special tools and procedures are required. A cataloged bearing or coil dimension does not by itself authorize disassembly of every compressor that appears to share it.
Observation | Evidence to gather | Do not conclude yet |
|---|---|---|
No engagement | Command, loaded voltage, ground, coil test, gap | That the coil alone failed |
Noise with clutch released | Pulley bearing, runout, belt and adjacent drives | That the compressor internals failed |
Slip or heat when engaged | Gap, faces, voltage, compressor torque and system condition | That gap adjustment will cure all damage |
Leak or contamination | Seal area, oil, refrigerant circuit and debris | That a clutch kit addresses the system |

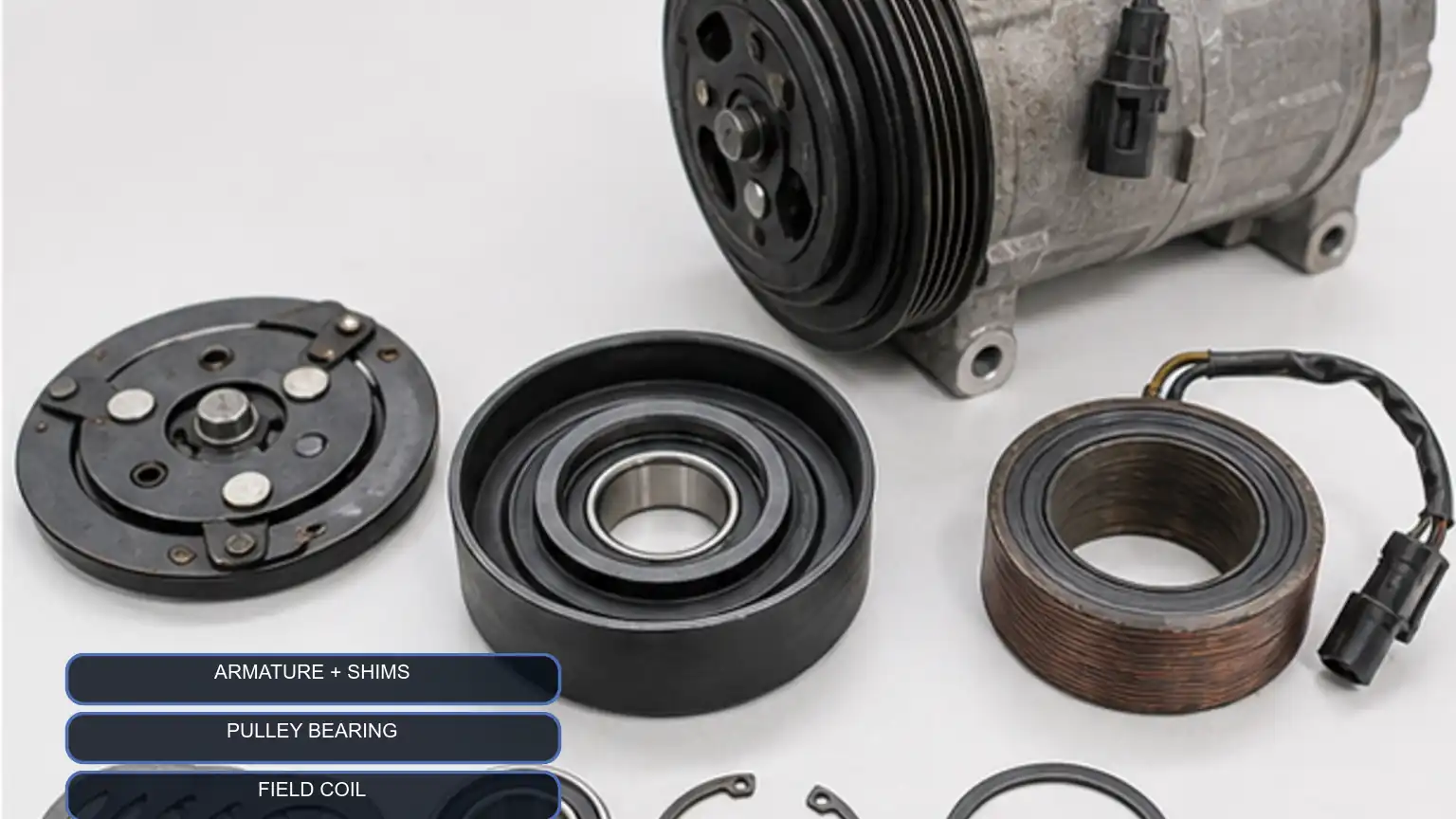

A/C compressor clutch plate, shims, pulley-bearing assembly, retaining rings, and field coil arranged beside the compressor.
Use the model-specific procedure to check air gap at the required positions, pulley runout, bearing play or roughness, clutch-face condition, and electrical characteristics at a recorded temperature. Photograph the gauge position and retain the original shim order. Rotate only as permitted and stop if seizure or contact is evident.

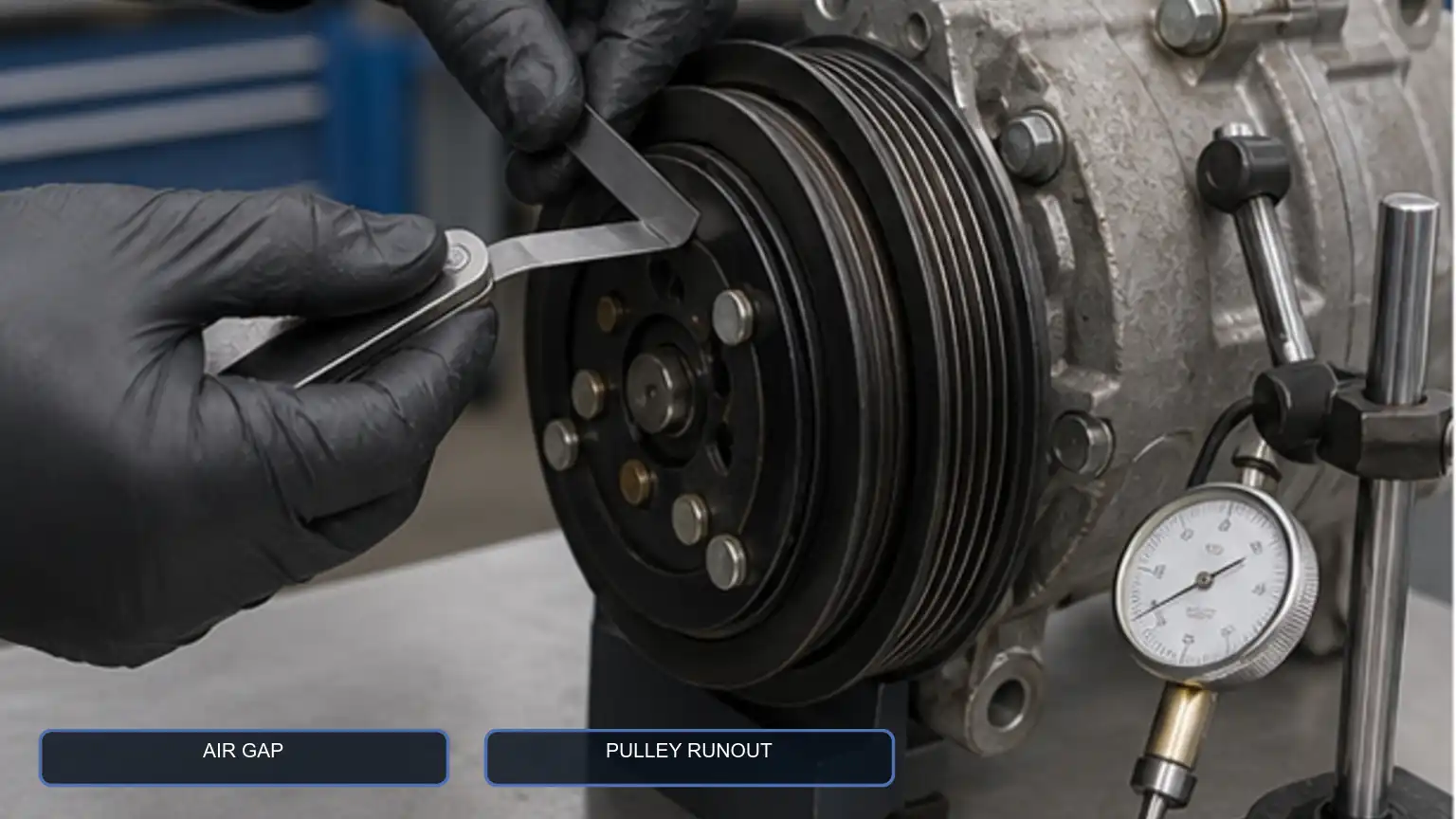

Technician checking A/C compressor clutch air gap with a feeler gauge and pulley runout with a dial indicator.
An uneven gap can point to runout, a distorted hub, wear, poor assembly, or bearing and housing damage. Reducing the gap with fewer shims may produce temporary engagement while hiding the geometry that caused the complaint.
Inspect the connector, coil insulation, pulley, bearing, clutch faces, compressor nose, snap-ring groove, front housing, shaft or seal area, and belt. Document discoloration, melted material, transferred metal, looseness, and debris without converting color alone into a temperature claim.

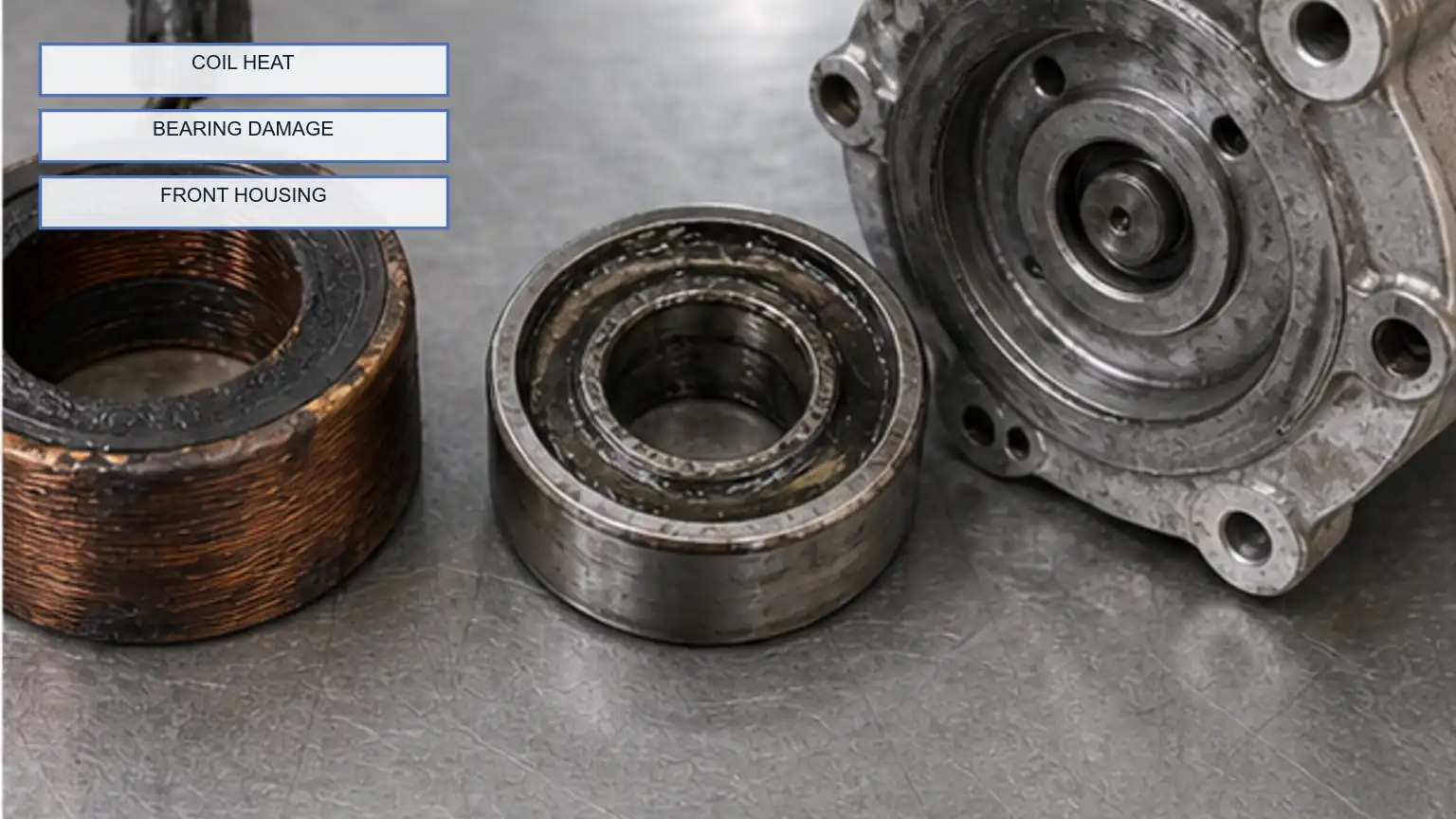

Heat-discolored A/C clutch coil, worn pulley bearing, and compressor front housing inspected together on a metal bench.
Electrical repair: the circuit cause is closed, geometry is sound, and the exact service coil is supported.
Pulley or clutch service: the model permits it and all supporting, retention, alignment, and compressor checks pass.
Complete compressor or wider system action: damage reaches the housing, shaft, seal, internal mechanism, or contaminated refrigerant circuit.
Record why the rejected options failed. That explanation is what prevents a later buyer from ordering the cheapest visible part against a broader failure.
Follow the compressor manufacturer's exact service manual and refrigerant-handling rules. This article does not authorize venting refrigerant, bypassing controls, grinding clutch faces, changing pulley ratio, pressing against unsupported parts, or reusing heat-damaged retention hardware. If the compressor is not serviceable at component level, do not force a clutch repair.
Send complete compressor identity, electrical findings, air-gap and runout measurements, bearing and housing evidence, clutch dimensions, belt information, system contamination findings, quantity, and destination through the Elecdura A/C RFQ. State whether you need a verified service kit, a complete compressor, or both options with their evidence requirements.
Not from that observation alone. Verify the exact compressor and circuit, supply voltage at the defined condition, ground or return path, command, connector state, coil resistance or continuity by the manufacturer method, air gap, and whether the hub and pulley move freely. Low voltage, excessive air gap, a control fault, connector heat, or a seized front end can prevent engagement. Electrical measurements must be interpreted at the recorded temperature and against the exact coil specification, not a universal resistance value.
The gap affects the magnetic force needed to pull the hub into contact, while incorrect assembly, shims, runout, or worn contact faces can make the gap uneven. Measure it at the specified positions with the correct procedure, record the range, and inspect engagement and release. A gap adjusted to one point does not correct pulley wobble or a distorted hub. If the required geometry cannot be achieved without improvised machining or parts, the proposed repair is outside a controlled component replacement.
Not necessarily, because the pulley bearing can rotate whenever the belt runs, even when the compressor is not engaged. However, bearing heat, looseness, seizure, or debris can damage the pulley, coil, hub, front housing, seal area, or belt system. Remove and inspect only under the model-specific service procedure. If the bearing seat, snap-ring groove, shaft, nose, clutch surfaces, or housing is damaged, a bearing-only repair may not restore alignment or retention.
Heat color is a warning, not a complete diagnosis. Determine where the heat originated and how far it travelled. Inspect coil insulation and connector, bearing, pulley bore, hub contact faces, compressor nose, seal area, oil or refrigerant evidence, and belt condition. Check runout and fit against the service limits. If heat has distorted parts, loosened the bearing seat, damaged the front housing, or accompanied internal seizure or contamination, replacing only the clutch component leaves the causal damage in service.
Provide the complete compressor manufacturer and model number, not only the vehicle application; system voltage; clutch diameter and groove profile; hub, pulley, coil, connector, snap-ring, and shim configuration; measured air gap and runout; bearing and housing condition; electrical test evidence; and photographs of heat or wear. Confirm that the manufacturer supports servicing those components on that model and what the kit contains. If the compressor identity or front-housing condition is unresolved, request a complete-unit comparison rather than guessing a clutch kit.
