A Sanden SD7H15 clutch is not matched by diameter and groove count alone. Confirm the exact compressor and clutch references, what the quoted assembly includes, the belt-groove profile, the drawing's alignment dimension, the shaft and hub connection, and the electrical interface. Record whether a stated diameter is an outside diameter or an effective belt diameter. Similar catalogue wording can describe parts that should not be treated as interchangeable.
This guide is for truck, bus, agricultural and off-highway A/C parts buyers comparing a removed assembly with replacement offers. It addresses fitment evidence, not clutch air-gap adjustment, coil diagnosis, bearing repair or refrigerant service. Those jobs require the applicable service procedure and qualified personnel.
The word clutch may refer to a complete front-end assembly or be used loosely for one of its components. Before comparing prices, ask whether the offer includes the rotor or pulley, armature or hub, field coil and any specified installation hardware. Record the seller's exact scope rather than inferring it from one photograph.
Sanden's compressor-family guide distinguishes the clutch assembly, shaft, rotor, coil and armature in its component illustrations. Its SD7H15 family description also lists multiple clutch and mounting options. That supports treating the model name as a family identifier rather than a complete specification for every front-end component. Sanden A/C Compressor Guide and Practical Tips.
A complete compressor offer answers a different question from a replacement-clutch offer. The former must match the entire installed assembly, including its fluid and mounting interfaces. The latter additionally requires confirmation that the proposed front-end components belong on the compressor being retained. A seller's ability to supply one does not establish the compatibility of the other.
For example, two quotations may use the same broad compressor family and similar front photographs, while one includes the coil and the other does not. The difference is not necessarily a technical mismatch; it may be a scope mismatch. Resolve it before asking the workshop to determine whether the lower price represents equivalent work.
Do not remove a clutch simply to obtain a photograph for an unconfirmed quotation. First use the available references and manufacturer information to establish whether the needed evidence can be obtained without dismantling. If removal is necessary, it belongs to an authorized service operation with the correct procedure, tools and handling controls.
Preserve every readable compressor and clutch identification field, including suffixes or additional reference lines. Photograph the whole label and the complete unit so the numbers can be assigned to the correct component. A partial transcription that keeps SD7H15 but loses the assembly reference removes precisely the detail needed to separate similar options.
Ask whether a supplier's number identifies a complete compressor, a clutch assembly or an internal stock item. Those references can coexist on a quote, but their relationship should be stated. A cross-reference line without a defined assembly level may be accurate for a complete unit and insufficient for a clutch-only repair.
Keep original manufacturer identity separate from the seller's declared product condition and origin. “Sanden,” “Sanden-style,” “aftermarket” and “genuine” are not interchangeable commercial descriptions. A product that is transparently offered as an aftermarket alternative should be evaluated on that declared basis; a family-like name should not silently become a genuine-origin claim.
Hy-Capacity's heavy-equipment listings illustrate this separation by displaying compressor model, groove count, clutch diameter, voltage, mount and declared quality as distinct fields. The structure is useful even when an individual listing is not your application: fitment attributes and origin claims answer different questions. No catalogue example here is an interchange approval for the reader's machine. Example of separate supplier specification fields.
If the old unit may be an earlier incorrect replacement, say so. It remains useful physical evidence, but it should not automatically become the design target. The application record and the observed assembly need to be reconciled before a new clutch is selected to reproduce an existing mismatch.

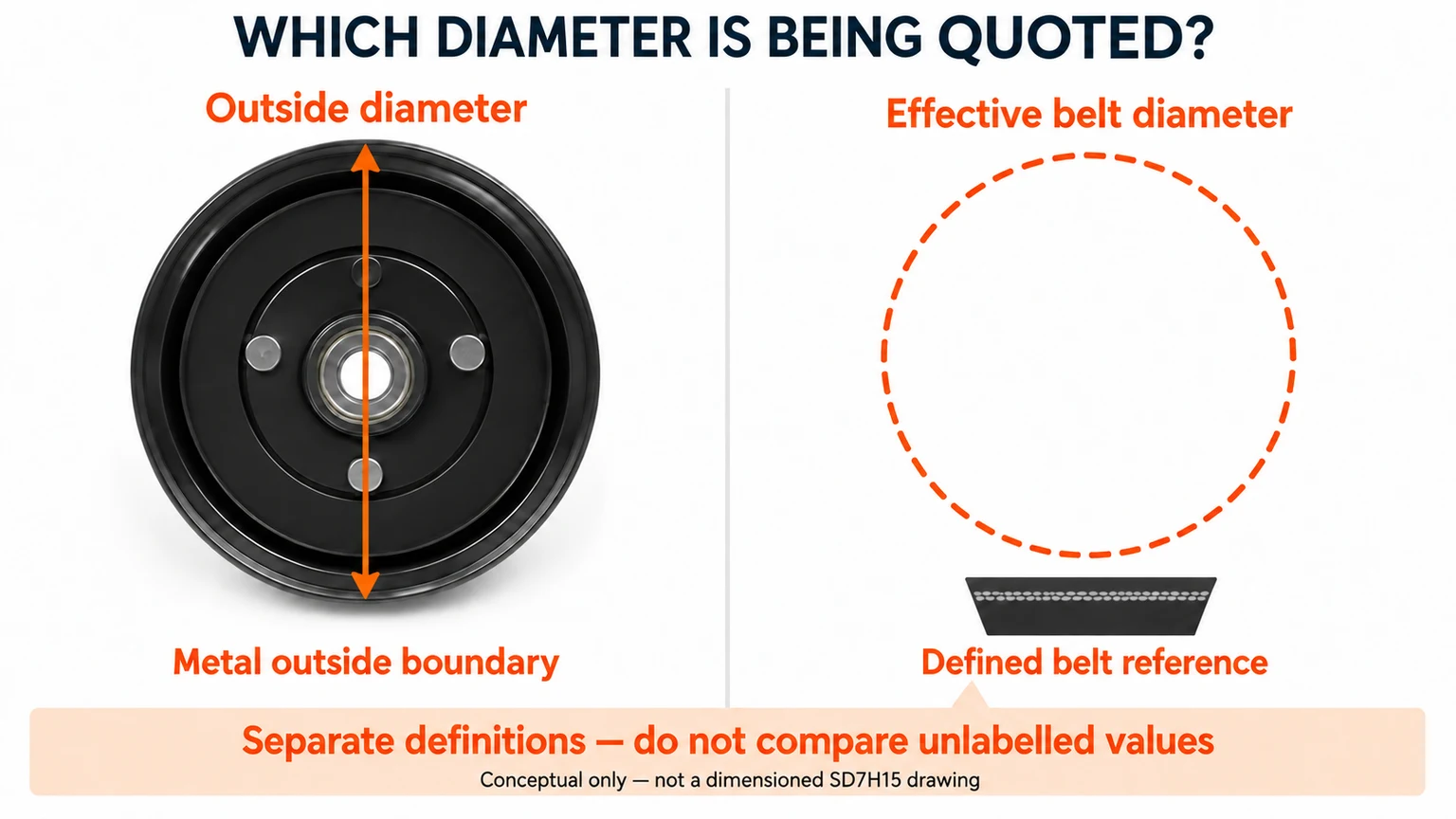

Figure — Outside-metal diameter and effective belt diameter answer different questions. The separate illustrations are not to scale and do not establish which value is larger on a particular clutch; this is not a dimensioned SD7H15 drawing.
A diameter written without a definition is an incomplete measurement. Ask whether it describes the outer metal diameter, another clutch feature, or the effective diameter used for the belt. Comparing unlike diameter definitions can create an apparent discrepancy even when two people measured their selected features accurately.
Sanden's rotor-groove sheet makes a specific point about its described half-inch V-belt rotor: the design is truncated at the effective belt center, which can make the belt appear to ride high. This is a bounded explanation for that design, not a rule for every V-belt or every compressor pulley. Sanden Rotor Groove Type & Dimensions.
The practical lesson is not to approve a belt because it looks high or low. It is to ask which groove and belt section are specified and which diameter the comparison actually uses. A visual impression can identify a question that needs checking; it cannot replace the documented geometry.
For an outside-diameter observation, record the feature contacted by the measuring tool and whether a guard, lip or adjacent face could be mistaken for the intended surface. Use the supplier's drawing to confirm what its published diameter means. A photograph of a caliper can support the method, but the measurement should also be written with its unit and feature definition.
Do not infer an effective diameter by subtracting an arbitrary amount from the outside diameter. The relationship depends on the specified groove and belt geometry. If that information is not available, label the effective diameter unknown and request the correct drawing. Inventing a conversion can make an incompatible offer appear to match.
A numerical match is meaningful only after this definition step. Two equal values measured from different features are not evidence of equivalence. Two unequal values may require clarification rather than immediate rejection. The buyer's first task is to make the comparison refer to the same physical quantity.
Heavy-equipment catalogues may describe clutch diameter in inches or millimetres. The unit difference can be resolved arithmetically, but that does not establish that both entries describe the same feature. Confirm the diameter definition first, then convert the value. Otherwise, an accurate conversion simply preserves an inaccurate comparison.
The unit relationship is exactly 25.4 millimetres per inch. As a unit example only, five inches equals 127 millimetres; this is not a specification for an SD7H15 clutch. Label any calculation as a conversion of a particular source value, with its original unit retained. Do not replace the original catalogue entry with a rounded number that hides where it came from.
A nominal catalogue dimension and an actual measured dimension also have different roles. A catalogue may provide a size description, while a drawing provides the controlled feature and tolerance used for acceptance. Ask the supplier which kind of information it has supplied. A two-decimal display does not by itself make a value a controlled engineering tolerance.
If two entries disagree slightly, do not create your own “close enough” allowance. The difference might involve rounding, a different feature, a changed product or an actual mismatch. The correct follow-up is to identify the source and definition of each value, then obtain the relevant drawing or manufacturer confirmation.
The same rule applies to a workshop measurement taken from a worn or damaged part. Tool resolution, contact position and component condition can affect the observation. Record those limitations and avoid treating the last displayed digit as proof that a new component must reproduce damage or wear. The approved design reference should resolve the intended requirement.
For a remote quote, send the original value, the unit, the feature name and any calculated conversion together. This lets the seller identify whether the disagreement is a measurement issue or a part-selection issue. It is faster and more reliable than exchanging several isolated numbers without their definitions.
Do not combine a diameter from one supplier listing with an alignment value from another and call the result a complete specification. Even when the units match, the records may describe different assemblies. The final dimensional set must belong to the single reference being proposed, with any approximation or unresolved tolerance explicitly identified.
Groove count tells you how many grooves are present; it does not describe the section of those grooves. Keep the profile or belt-section designation in a separate field. Sanden's groove sheet distinguishes groove width, depth and angle, as well as the Poly-V or K terminology. A number such as “eight grooves” does not carry all that information by itself. Sanden groove-profile reference.
Use a view that actually shows the grooves being counted. A front-face photo can be clear enough to show the hub while hiding the full belt-contact section. A side view can show the section but obscure the reference label. These views answer different questions and should not be substituted for each other.
Do not count only the grooves occupied by a belt if the installed arrangement leaves part of the pulley out of view. Record what is visible, what is obscured and which belt or application information supports the interpretation. A photograph may reveal an installation concern without establishing the intended configuration.
Separate wear or damage from the nominal profile. A worn belt or damaged groove should not be used to invent the original design dimensions. If condition makes the removed part unreliable for measurement, use the exact reference and applicable drawing to recover the intended geometry rather than measuring deterioration as though it were a specification.
Ask a supplier to expand ambiguous catalogue abbreviations. A short groove code may be perfectly meaningful within one catalogue, but it should not be carried into another supplier's system without its definition. Preserve the original wording and obtain the corresponding belt section or drawing reference. Do not assume that every seller uses the same shorthand.
If the proposed replacement changes groove profile or count, treat that as a new configuration question rather than a minor visual difference. An approved alternative may exist, but its application basis must be established before purchase. The workshop should not be left to discover an unexplained change during installation.

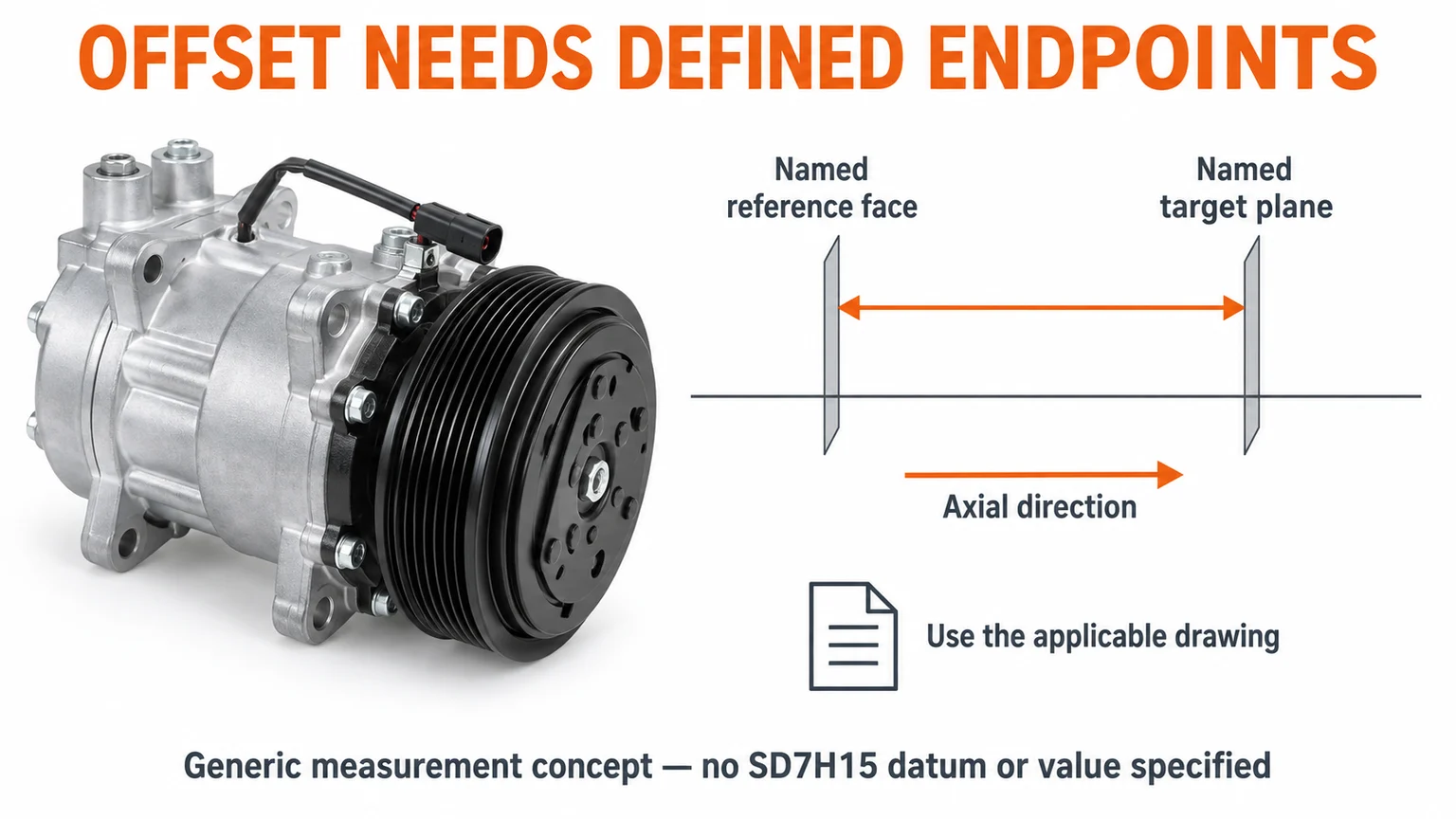

Figure — An axial measurement needs defined endpoints and direction from the applicable drawing. The two generic planes are deliberately separate from the compressor illustration and do not specify SD7H15 datum locations or an offset value.
Diameter and profile do not establish where the belt runs relative to the compressor mount. The relevant alignment or gauge dimension must be defined on the correct drawing. Do not accept a value called “offset” until its start point, end point and direction are clear.
A lettered dimension such as A–B is meaningful only with the drawing that defines A and B. The same letters in two catalogues may not refer to the same surfaces. If the drawing is missing or illegible, do not reconstruct the endpoints from a product photograph. Request a readable dimensioned view for the exact offered reference.
For a comparison, ask the supplier and workshop to use the same datum definition. If one measures from a mounting face and the other from an external housing edge, their values cannot be ranked as close or far apart until the relationship between those references is established. The problem is not solved by adding more decimal places.
Installed context matters here. A loose compressor on a bench cannot by itself show the position created by the vehicle bracket and any approved mounting hardware. Preserve whether spacers, bushes or other relevant pieces were present during the observation. Do not assume that an improvised piece found on the machine belongs in the approved arrangement.
Keep orientation consistent in the photographs. A view from the clutch end and a view from the rear can reverse the reader's apparent direction. Mark the view and the mount reference instead of relying on “left” or “right” in an email. This small clarification is especially useful when the buyer, workshop and supplier review the same unit remotely.
Do not authorize a shim, bracket alteration or pulley move merely to close an unexplained alignment difference. Such a proposal needs the relevant application and service authority. A mismatch that can be made to disappear physically is not necessarily an approved fitment.
The hidden connection between the compressor shaft and clutch hub is a separate interface from the outer pulley. A familiar face shape does not establish that connection. Preserve the exact clutch reference and obtain the applicable manufacturer information before assuming that a replacement assembly will mount correctly.
Sanden's heavy-duty section illustrates a keyed shaft and armature among its design details. This is useful evidence that shaft and hub construction matters; it is not a declaration that every SD7H15 variant uses that exact arrangement. Do not transfer one family illustration to every compressor with similar lettering. Sanden heavy-duty compressor construction.
Historical commercial-vehicle clutch catalogues also separate shaft type from diameter and groove count. Where a catalogue uses keyed or splined descriptions, ask for the exact part row and current applicability. Those words should narrow the comparison; they should not become an informal conversion instruction or permission to modify a shaft.
If the connection is concealed on the installed unit, request a documentation-based confirmation first. A supplier may have a reliable route from the complete compressor reference to the approved clutch assembly. If it does not, state the missing evidence. “Cannot see the shaft” is an unresolved field, not a reason to guess from the front face.
If a qualified technician removes the assembly under the proper procedure, keep any resulting photographs tied to the original compressor identity. An image of a loose hub without its reference can be misassigned when several similar compressors are on the bench. The image must establish which part it depicts before it can settle the purchasing question.
Do not merge fitment and damage assessment. A compatible hub connection does not prove that the retained shaft or front housing is serviceable. Conversely, an unserviceable retained component does not establish that the quoted clutch is the wrong reference. Those questions may lead to different replacement scopes and should be reported separately.
For a clutch assembly that includes a coil, confirm the specified electrical version and the mating connection. A connector that appears to fit is only one observation. The exact application must support the connection's function, terminal arrangement and relevant protection or wiring requirements.
Record whether the quote includes the original connector form, a pigtail, an adapter or no connector. A picture can hide this distinction if the lead is folded behind the pulley. Ask for a separate view of the lead and mating face, then retain the seller's written scope. Avoid a purchase order that says only “same plug.”
Clock-position descriptions need a viewing reference. If a supplier describes a coil lead at a particular clock position, ask from which end and relative to which mount orientation. The observation concerns installed routing and clearance; it is not meaningful if each party imagines the unit in a different position.
Do not assume that a change in wire count is cosmetic or that an adapter resolves every electrical difference. Obtain the applicable circuit and approved connection basis. Procurement should not instruct the workshop to cut off a connector or bypass a protection feature merely because the available assembly has the desired diameter.
If the issue is whether the old coil operates correctly, that is a diagnostic question. Use the applicable procedure and the existing air-gap and coil-testing guide within its proper scope. The present comparison only determines whether the offered electrical interface is the one required for the identified assembly.
Duty labels need their publisher's definition. A manufacturer model designation, a catalogue grouping and a seller's marketing description can look similar while referring to different scopes. Preserve the exact term and its source rather than treating HD, SHD, Sealed HD and Super HD as interchangeable abbreviations.
The older Sanden SD Service Guide includes variant distinctions in its application information. Historical MEI clutch tables also contain specific standard-versus-Super-HD non-interchangeability warnings. Those sources show why a buyer should not discard variant wording. They do not establish a universal mapping between every manufacturer's and distributor's labels. Sanden SD Service Guide; MEI's historical clutch catalogue.
Ask what exact compressor and clutch references the label qualifies. If the seller cannot connect a duty description to a specific product, it is not enough to approve a substitution. “Heavy duty” may sound reassuring, but it cannot resolve an unknown shaft connection, belt plane or coil interface.
Do not copy a historical speed table into a new fitment decision without verifying that it applies to the actual assembly and operating conditions. A variant's documented limits matter, but broad family wording is not a substitute for the current application information. This guide supplies no universal rotational-speed or belt-tension approval.
When an alternative is offered as an upgrade, ask which requirement it satisfies and which interfaces remain unchanged. An upgrade claim should be supported with the exact application basis. A more impressive duty label does not give the workshop permission to change the belt drive or combine unrelated clutch components.

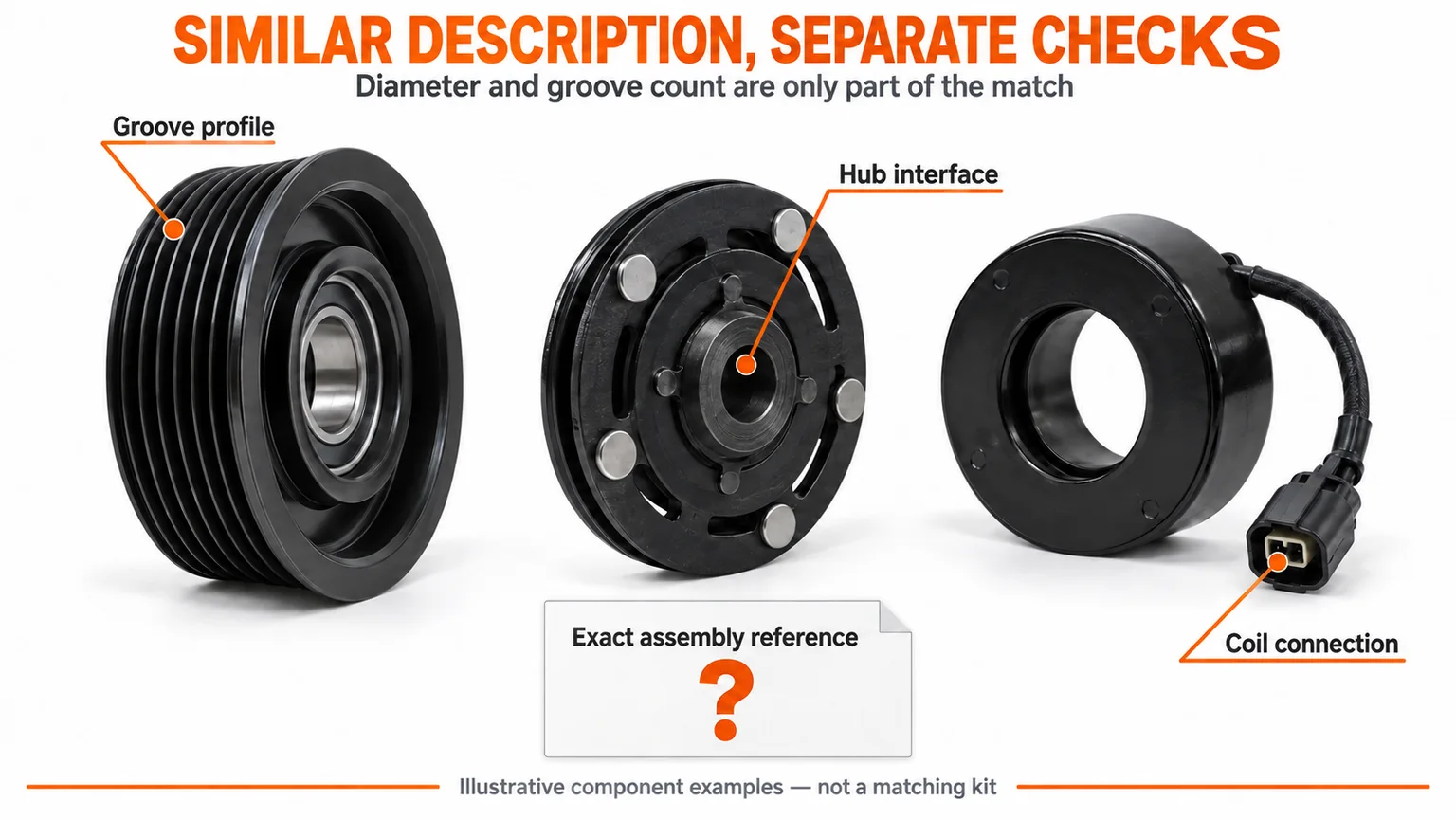

Figure — Groove profile, the hub interface, coil connection and exact assembly reference remain separate checks beyond advertised diameter and groove count. These generic components are not a matching kit; no specific shaft geometry, connector applicability or interchange is asserted.
A compact comparison is useful when several offers share the same advertised diameter and groove count. Put the buyer's requirement next to each supplier's confirmed value or description, and distinguish a match from an unanswered field. Do not replace a blank with an assumption based on the neighbouring row.
Apparent agreement | Still unresolved | Useful next evidence |
|---|---|---|
Same diameter and groove count | Diameter definition and groove profile | Correct reference drawing and belt-section description |
Same front-face appearance | Shaft and hub connection | Exact clutch-to-compressor applicability |
Same stated voltage | Connector, terminal arrangement and routing | Approved electrical interface and lead view |
Same family and duty wording | Actual variant and assembly scope | Complete references and supplier's applicability statement |
Use the comparison to identify the smallest decision-changing question. If all other fields are confirmed but the alignment datum is missing, request the correct drawing rather than restarting the enquiry. If the shaft connection is incompatible, a better price on the same offer cannot resolve that physical conflict.
At the end, return to the complete assembly. A set of individually plausible attributes can still be assembled from different catalogue rows. Ask the supplier to confirm that all stated attributes belong to the single reference being quoted, not to several variants grouped on a family page.
A clutch may be correctly identified while the retained compressor cannot support the proposed repair. The technician must establish the serviceability and approved repair scope of the actual unit. A purchasing comparison should not override damage findings, contamination concerns or a manufacturer restriction on the repair.
The existing coil-versus-bearing repair decision guide addresses that boundary. Keep its question separate from this one: first establish whether a clutch-only repair is appropriate, then match the required assembly. Finding a cheap, apparently compatible pulley is not a reason to change the technician's repair scope.
If the decision changes to a complete compressor, reopen the whole-compressor interfaces. Rear-head ports, mount, electrical controls, refrigerant and oil requirements are not automatically approved because the clutch comparison was satisfactory. The rear-head and connector matching guide covers another part of that review.
Do not treat a pulley change as a convenient way to adapt an unrelated compressor. Any proposed modification needs a documented application and service basis. If that basis is unavailable, request the correct complete configuration instead of transferring the unresolved engineering decision to the installer.
The final quote should identify one compressor or clutch reference, the supplied scope and the evidence resolving the critical interfaces. Keep the drawing revision or catalogue basis with it. A broad family description is useful for searching warehouse stock but insufficient as the only acceptance description.
At receiving, compare the actual label, rotor profile, connector and supplied hardware with the approved response. Use the agreed measurement definitions for any dimensions selected for inspection. A supplier substitution needs an explanation before installation, even if the carton retains the same family wording.
Preserve protection and cleanliness while inspecting. Receiving should not become an uncontrolled trial repair. If checking a hidden interface requires disassembly, refer the work to the authorized procedure and responsible technician instead of improvising at the warehouse counter.
For the broader quotation file, use the A/C compressor RFQ packet guide. The distinctive additions for this SD7H15 enquiry are the diameter definition, groove profile, alignment datum and exact shaft/hub applicability. Those are the fields most likely to disappear when a detailed match is shortened to a simple stock description.
A useful measurement image should make it possible for another person to repeat the same observation. For the clutch comparison, a front view shows the face but usually cannot define the belt plane relative to the compressor mount. A side or sectional view can show that relationship. Request the view that exposes both endpoints of the specific dimension, rather than accumulating more photographs of the same visible face.
Distinguish a diameter callout from an axial distance in the drawing. A diameter spans a circular feature; an axial alignment distance follows the shaft direction between stated references. They may appear close together on a compact drawing but answer different questions. A purchaser should not enter an axial distance into a diameter field simply because both values are described informally as clutch size.
A drawing can also identify a reference feature that is difficult to touch directly with a measuring tool. In that case, the technician needs the appropriate method for the specified feature. Do not substitute the nearest accessible lip and retain the original dimension name. Record any accessible proxy as a different observation until its relationship to the required feature is established.
For a remote comparison, annotate a copy of the relevant drawing with the agreed feature names, viewing direction and units, while preserving the original document. Keep measurement results in a separate record tied to the actual inspected assembly. This separates the intended geometry from the observed part and makes disagreements easier to resolve without modifying the source specification.
A conceptual illustration is enough to teach these distinctions without publishing an unverified SD7H15 dimension. It should label the type of feature and show that an actual reference drawing is required. It must not attach invented endpoints to a realistic product image and present the resulting line as a manufacturer-controlled alignment dimension.
Provide the compressor and clutch references, complete photographs, required assembly scope, diameter definition, groove profile, alignment drawing and electrical evidence. Mark any hidden shaft or variant question as unresolved. Use the heavy-duty A/C compressor range for sourcing context and email Elecdura for a reference-based quotation. This guide does not certify any particular clutch interchange.
