To test a heavy-duty starter motor, first prove the battery bank, positive supply cable, return cable and start command under the conditions that produce the fault. Record cranking voltage, current and engine speed together; none is a stand-alone pass or fail. Check mechanical resistance before condemning a slow starter, and check engagement separately when the motor spins without turning the engine. A no-load spin does not establish that a unit can crank the installed engine. This guide helps fleet workshops and parts buyers turn those findings into a repair or replacement record, using the applicable vehicle and starter procedures.
The buyer needs a diagnosis tied to the installed electrical system, not a generic assertion that a starter is weak. Confirm the vehicle, engine and removed-unit reference before comparing Elecdura's heavy-duty starter motor range. Long cables, cold oil, accessory loads and battery configuration can alter cranking behavior; their relevance must be established on the actual vehicle. The existing product photographs below illustrate identification views only. They are not photographs of the test vehicle, a wiring diagram or evidence that any unit passed a test.
A reliable diagnosis begins with the condition reported by the driver or technician. "No start" is too broad to guide a parts decision. Record whether the starter produces a single click, repeated clicking, a free-spinning sound, a slow crank, intermittent cranking, or no sound at all. Also note engine temperature, outside temperature, battery warning history, and whether the vehicle recently had cable, battery, alternator, or engine work.
A single click often means the solenoid has received a command but the motor circuit cannot deliver enough current. Repeated clicking can indicate a weak battery, corroded connection, or control voltage that falls away during engagement. A high-pitched free-spin can point to a drive or ring-gear engagement issue. A slow, heavy crank may be electrical resistance, a tired starter, or a mechanical engine-load problem. These patterns are clues, not final answers.
For a fleet, attach the symptom code to the work order. A technician should be able to see whether the fault occurred after a long run, after overnight parking, during a cold start, or after the vehicle was washed. That context protects the buyer from treating an intermittent electrical issue as a product-quality claim. It also helps a distributor compare returned units against the stated failure mode.
Before any meter lead is connected, confirm whether the truck uses a 12V or 24V starting system and whether batteries are arranged in parallel, series, or a mixed configuration. A healthy 24V system is not evaluated with 12V assumptions. Document battery count, battery rating, cable routing, and the starter OE or reference number. This information becomes the foundation for fitment matching if a replacement is required.
A starter motor cannot compensate for a battery bank that collapses under load. Static voltage is useful, but it is only the first screen. A battery can show acceptable voltage after resting and still fail during a high-current crank. Test the battery system before condemning the starter, especially on vehicles with long service intervals, mixed-age batteries, refrigeration loads, or frequent idle periods.
Secure the vehicle against movement and unintended starting, follow the OEM start-disable and battery-isolation procedures, and keep hands and test leads clear of belts, fans and the drive. Stop if a battery is swollen, leaking or damaged. Inspect hold-downs, terminal heat marks, insulation and cable connections; do not manipulate exposed high-current connections while energized. Follow the specified crank duration and cooling intervals rather than holding the starter on to obtain a convenient reading. This work requires trained personnel and correctly rated equipment.
Assess individual batteries using the OEM and test-equipment procedures, including any required isolation from parallel connections. A voltage reading across batteries that remain connected in parallel cannot by itself establish each battery's capacity or identify a failed unit. Evaluate the complete bank's voltage during the specified cranking test separately. Interpret the results against the applicable system voltage, battery chemistry, temperature and manufacturer limits rather than one universal threshold.
If the approved individual-battery assessment establishes a fault, correct it and retest the bank before replacing the starter. If bank performance is acceptable but the starter receives inadequate voltage under the specified load, investigate the supply and return paths. Keep individual-battery findings separate from whole-bank readings in the work order.
Voltage-drop testing is one of the most useful ways to test a starter motor circuit because it measures what happens under the actual cranking load. A continuity test may pass when the circuit carries almost no current, while the same cable or connection loses too much voltage when the starter demands hundreds of amps. Test the positive and negative sides separately and keep the vehicle secured so an accidental start cannot create a safety risk.
Measure between the battery-bank positive post and the starter B+ terminal during the specified loaded test, then isolate individual cable and connection sections if loss is excessive. Record the load and probe locations with the reading. A solenoid-contact test is a separate step: its contacts must be in the required operating state before their voltage difference can be interpreted. A large reading across open contacts is not itself proof of defective contacts.
Identify the starter's intended current-return connection before positioning the probes. Use the designated negative or ground terminal where provided; use the case or engine ground only when the installed system is designed to return current that way. Measure back to the battery-bank negative post under the same approved load. Frame straps and engine bonds belong in the diagnosis only where the wiring diagram shows them in the return path. Paint or corrosion on an unrelated case surface must not become a false cable-failure diagnosis.
A cable can show almost no voltage drop when almost no current is flowing. Record whether the test actually loaded the circuit; a no-crank reading alone cannot clear it. Keep controlled load-test results separate from actual cranking measurements, and do not borrow the limit from one procedure for the other. Delco Remy's voltage-drop guidance illustrates a specified load-test method with separate 12 V and 24 V limits. Use the current procedure for the installed system, not one universal number.
Only after the battery bank and cable paths are proven should the starter itself become the main suspect. That protects the warranty process and gives procurement teams stronger evidence when they request a replacement unit. For reference-led sourcing, a product such as the S14-211 aftermarket starter motor should be matched by OE number, voltage, power, mounting, drive teeth, connector arrangement, and engine application.
The starter motor may be healthy but never receive a valid start command. The control side can include an ignition switch, start relay, neutral or clutch safety circuit, body-control signal, engine-control permission, and the solenoid trigger wire. On late-model trucks, a scan tool or wiring diagram may be required before any conclusion is made.
Identify whether the installed starter uses a conventional solenoid, an integrated magnetic switch or a protected control module. Check the specified input and return during the crank request against that system's diagram and diagnostic instructions. A present but inadequate signal is not the same as a valid command; a missing command does not establish motor failure. Do not bridge terminals or bypass interlocks to force a result. Delco Remy's Smart IMS diagnostic guidance is specific to that control arrangement, not a universal trigger-voltage rule for all starters.
A solenoid click only proves that part of the engagement circuit moved. It does not prove that the solenoid contacts can carry current or that the starter motor can turn under load. If the control signal is correct and battery plus voltage-drop results are good, inspect whether the solenoid contacts close and whether current reaches the motor. Use manufacturer procedures and insulated tools because this part of the test involves the highest current in the system.
When a fleet needs a like-for-like replacement, the purchasing record should distinguish a complete starter assembly from a solenoid-only repair. The 228000-7380 Cummins application starter motor is an example of why reference number matching and terminal layout matter: visually similar units can still differ in housing clocking, drive specification, or electrical connection.
Measure starter current with a correctly rated DC current clamp and follow its zeroing, direction and conductor-placement instructions. Do not insert an ordinary handheld meter's current input into the starter power circuit. Capture supply voltage and cranking speed alongside current so a changing battery condition is not mistaken for a changing starter load. The Delco Remy diagnostic procedures manual distinguishes clamp-on measurements from low-current in-line instruments. A no-crank result with little current and a slow-crank result with high current require different investigations; neither alone identifies the failed part.
Compare readings against the vehicle or starter manufacturer's specification whenever available. Engine size, oil viscosity, ambient temperature, compression ratio, and accessory load can change normal current substantially. A cold diesel engine will not look like a warm medium-duty gasoline engine. Record the test temperature and whether any external load, such as a hydraulic pump or air-conditioning compressor, may be affecting crank effort.
If electrical readings point to a high load, confirm that the engine can be turned using the approved manual procedure. Check for seized accessories, incorrect oil grade, fluid contamination, or recent engine work. A replacement starter will not solve a mechanically restricted engine. This distinction is particularly important for heavy-duty workshops because incorrect diagnosis can turn a short repair into an avoidable repeat visit.
A starter should be replaced when the supply circuit, control command, grounds, battery condition, and mechanical engine condition have been checked and the unit still fails the appropriate load or engagement tests. For fleets, the best outcome is a test record that states why the starter was condemned, what measurements were taken, and which fitment data were used to select the replacement.
Keep two linked records. The diagnostic record needs the observed complaint, test temperature, battery results, load method, positive and return losses, command measurement, current, speed, applicable limits and the technician's conclusion. The sourcing record needs the complete old-unit number, vehicle and engine identity, voltage, power, rotation, mounting, drive geometry and terminal arrangement, supported by photographs. Also state the required quantity, destination and timing. A test sheet explains why replacement is needed; the matching record identifies what to order.
Look for overheated terminals, oil intrusion, cracked mounting ears, damaged ring-gear teeth, abnormal pinion wear, or loose cables. These clues can explain why the old starter failed and prevent the new unit from being installed into the same damaging condition. Burned terminals call for investigation of connections, cables and the operating conditions, followed by repair of the demonstrated fault; a buyer who sees damaged drive teeth should inspect ring-gear engagement before ordering another assembly.
For B2B sourcing, describe a replacement as an aftermarket starter motor, OE-number-matched replacement, or application-matched unit unless its genuine or original status has been independently verified. This wording is more accurate for catalog work, customs documentation, customer communication, and warranty expectations. It also makes it easier to compare packaging, labels, and batch consistency during repeat procurement.
Elecdura supports heavy-duty replacement sourcing with application-led starter coverage and technical matching information. When the evidence points to a failed unit, send the test record, OE number, engine details, and clear photos through the enquiry form on this page so the team can help confirm a suitable aftermarket option without guessing from a photo.
Use the sequence as a set of gates, not as permission to keep cranking: identify and safely reproduce the complaint; verify batteries and the actual supply/return circuit; identify the installed start-control system; interpret current, voltage and speed together; then resolve mechanical load or drive engagement before making a purchasing decision. If a gate cannot be tested safely, record it as unresolved and send the vehicle or unit for the appropriate workshop test. Do not turn an incomplete record into a confirmed starter failure.
After repairing the identified cause, repeat the relevant checks under comparable conditions and record the result. For intermittent complaints, document which conditions were reproduced and which were not. A warm restart cannot close an unresolved cold-soak complaint. Keep any removed unit and identification evidence traceable to the work order so a later supplier inspection can be compared with the actual vehicle findings.
This workflow does not apply unchanged to air starters, hydraulic starters, high-voltage starter-generators or systems whose OEM procedures require specialized isolation and diagnostic equipment. Use the appropriate service information. Within a conventional electric starting system, the outcome should be a supported action—repair supply or control faults, investigate mechanical resistance, inspect engagement, or replace a specifically identified unit—not simply a label saying “bad starter.”
No. First establish that the specified current was flowing. If an open control or motor circuit prevented a load, a small voltage difference may tell you very little about the cable's ability to carry cranking current. Record the load method and result before clearing that part of the circuit.
Not on that observation alone. A no-load spin is a different condition from driving the installed engine. Ask the testing workshop what its test established, which specification it used and whether the complaint involved load, engagement or intermittent operation. Retain the vehicle findings alongside the bench report.
No. Trace the correct start-enable circuit and its required operating conditions before deciding. Relay, interlock and control-module investigations are different from proving a motor fault. The starter-relay testing guide covers the relay branch; use it with the actual wiring diagram rather than jumping the circuit.

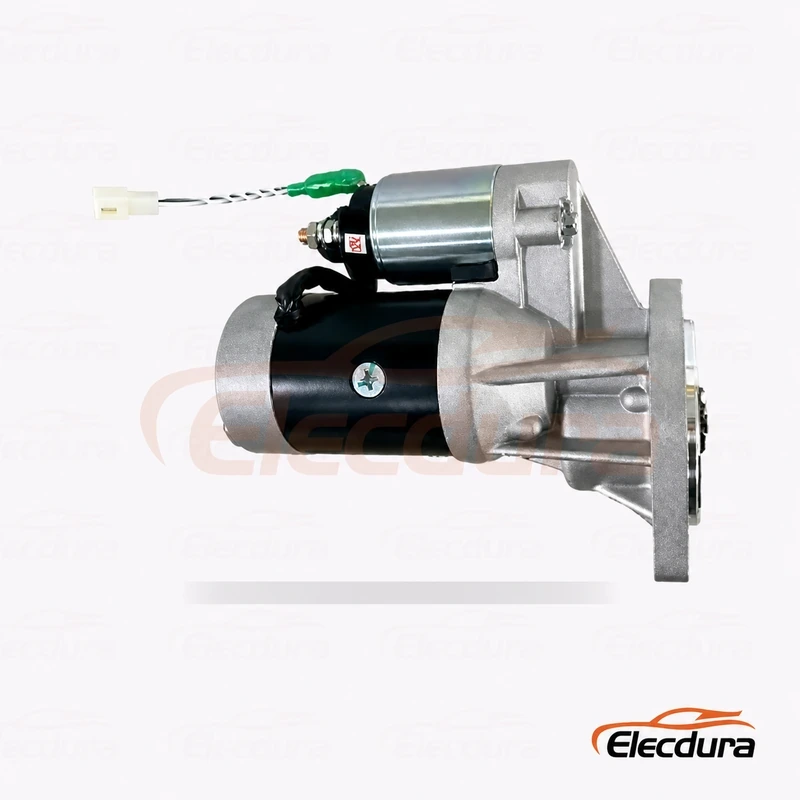

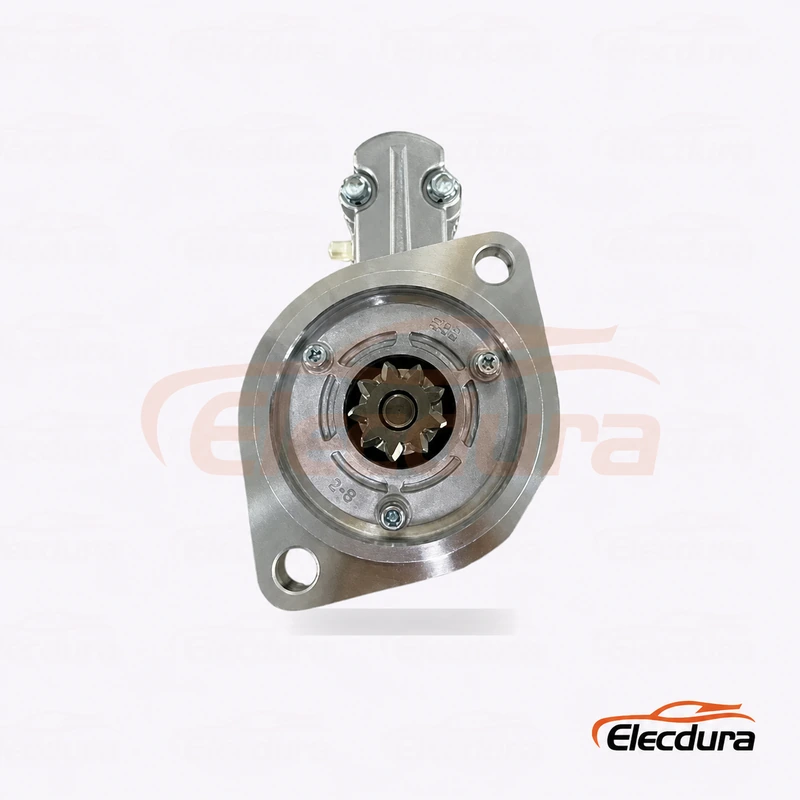

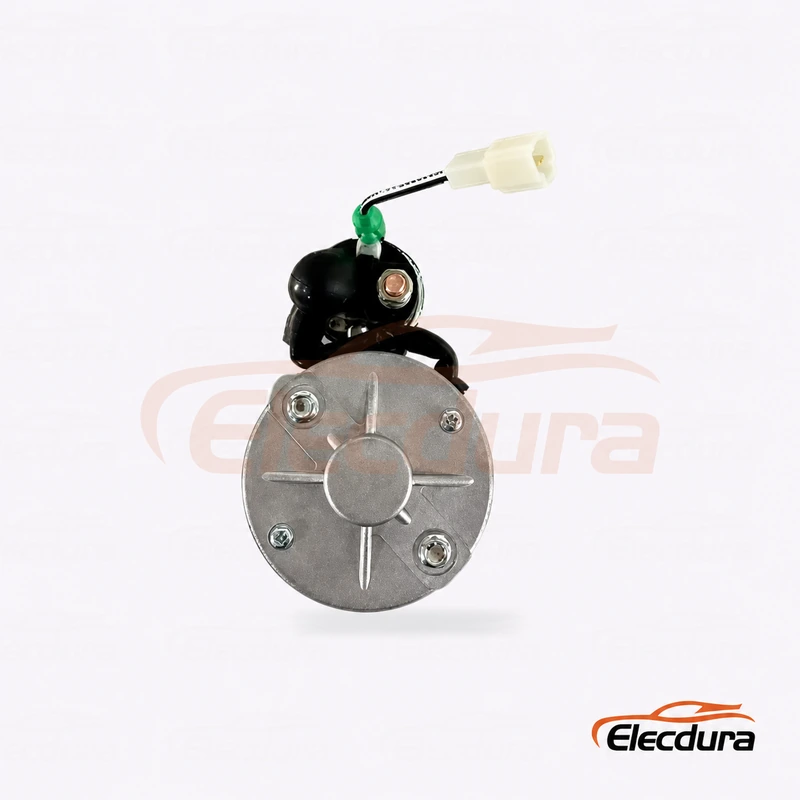

No. The illustrations are identification examples, not a wiring reference for an unknown starter. Read the installed unit's markings and applicable diagram, including its return connection and control arrangement. If either remains uncertain, stop before making a powered connection or selecting a replacement solely from appearance.
