Views: 0 Author: Elecdura Publish Time: 2026-09-10 Origin: Site
A proposed MS7-to-M128R replacement can change the scope of a dual-starter order: the buyer may need approval for a matched pair and its interconnecting harness, not just a replacement for the failed unit. A Berman-published bulletin illustrates why a single-starter cross-reference is insufficient. Its 2023 instructions are evidence to discuss with the responsible equipment supplier, not a current approval for every engine. Before purchasing, identify both installed starters and obtain a written decision covering the retained unit, the proposed replacement combination, and the application-specific connection arrangement. Do not release an order while those three answers conflict.
Consider a purchase request that contains a photograph of one failed MS7 starter and asks for its newer equivalent. That request can be perfectly adequate for finding a candidate part number, yet incomplete for approving a dual-starter installation. The second starter may still be serviceable, already be a different revision, or have been replaced during an earlier repair. The purchasing decision therefore concerns the resulting system, including the unit that will remain on the engine.
This is different from checking flange dimensions or pinion details. Those checks remain necessary, but they cannot answer whether two proposed starters are an approved combination. Start with the existing starter cross-reference and fitment guide if the basic application has not been established. This article addresses the next problem: deciding whether a replacement offer is complete for a dual installation.

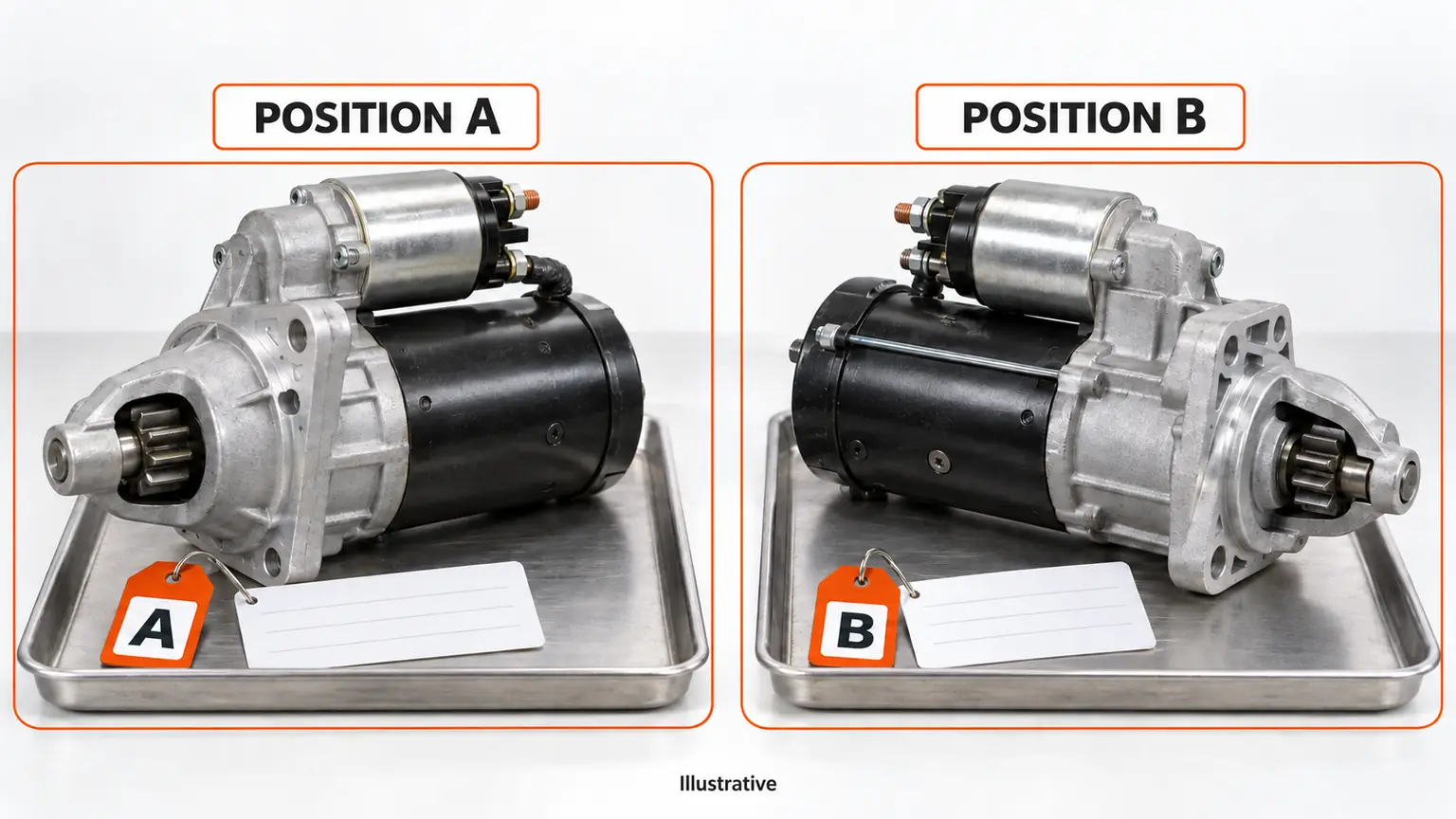

Illustrative receiving layout: identify each installed starter separately. Position A and B are tracking labels, not an approved pairing or manufacturer mounting convention.
Berman Technical Service Bulletin TSB4084, revision 2, dated June 20, 2023, separates single-diesel, single-natural-gas, and dual-starter applications. Its dual section prohibits mixing MS7 and M128R types and identifies an application-specific starter-to-starter harness. The document itself warns readers not to assume that its information applies to their equipment.
One useful example is MS7-501A: the bulletin lists M128R3837SE under single-diesel replacements but M128R3824SER under dual applications. The distinction is the lesson; neither reference is a universal purchase recommendation. The document also identifies different harness references for MTU, CAT, and Cummins applications. Ask the responsible supplier to confirm the current reference, revision, and required length rather than selecting a harness from the engine-brand name alone.
The dated publication illustrates the purchasing risk; it does not grant application approval. Obtain the current instructions and written confirmation for the actual machine from the responsible equipment supplier or service organization.
The repair coordinator should state which physical starter will remain and why the proposed combination is acceptable. “The other one still works” is an operating observation, not approval of the replacement pairing. Equally, a bulletin example is not a reason to discard two serviceable units without checking the actual application and present service guidance.
Proposed order | Unresolved purchasing question | What must be settled before release |
|---|---|---|
One replacement; the other installed starter stays | Does the resulting pair remain approved? | Identify both units and obtain application-specific confirmation of the retained/new combination. |
Two replacements offered as a package | Does the package include the required connection arrangement? | Confirm both starter references, harness scope, and responsibility for installation approval. |
One unit was previously changed, but its identity is unclear | Is the current pair itself known? | Resolve the missing identity before comparing offers; do not assume both positions still contain the original type. |
The quoted reference is supported only by a single-starter application | Is the evidence relevant to this dual installation? | Request the dual-application approval. Dimensional similarity does not close the gap. |
Keep the two positions distinguishable in photographs and correspondence. A simple designation such as position A and position B avoids attaching an approval to the wrong unit. Record the designation on the purchase request and the installer’s work order. It is a tracking aid, not a manufacturer-defined mounting convention.
When two sellers quote different totals, check whether they have priced the same approved outcome. One may have included two starters but no harness; another may have included an application-specific connection package. A third may have assumed that an existing harness is reusable. Comparing those totals as though they were interchangeable obscures the main cost risk: parts can arrive while the machine still cannot be released.
Request separate lines for the starters, the required harness or connection components, and any explicitly excluded installation work. The seller should name the document or written application confirmation behind the proposed combination. If a relay position or nose-housing arrangement needs attention, ask the qualified installer and supplier to settle that requirement before dispatch. This article does not provide reclocking or rewiring instructions.
An acceptable quotation should make omissions visible. For example, “harness excluded; reuse not yet approved” is more useful than an unqualified “complete replacement.” Treat an unresolved exclusion as pending work, not as a saving. Freight urgency should not turn an incomplete configuration into an accepted one.

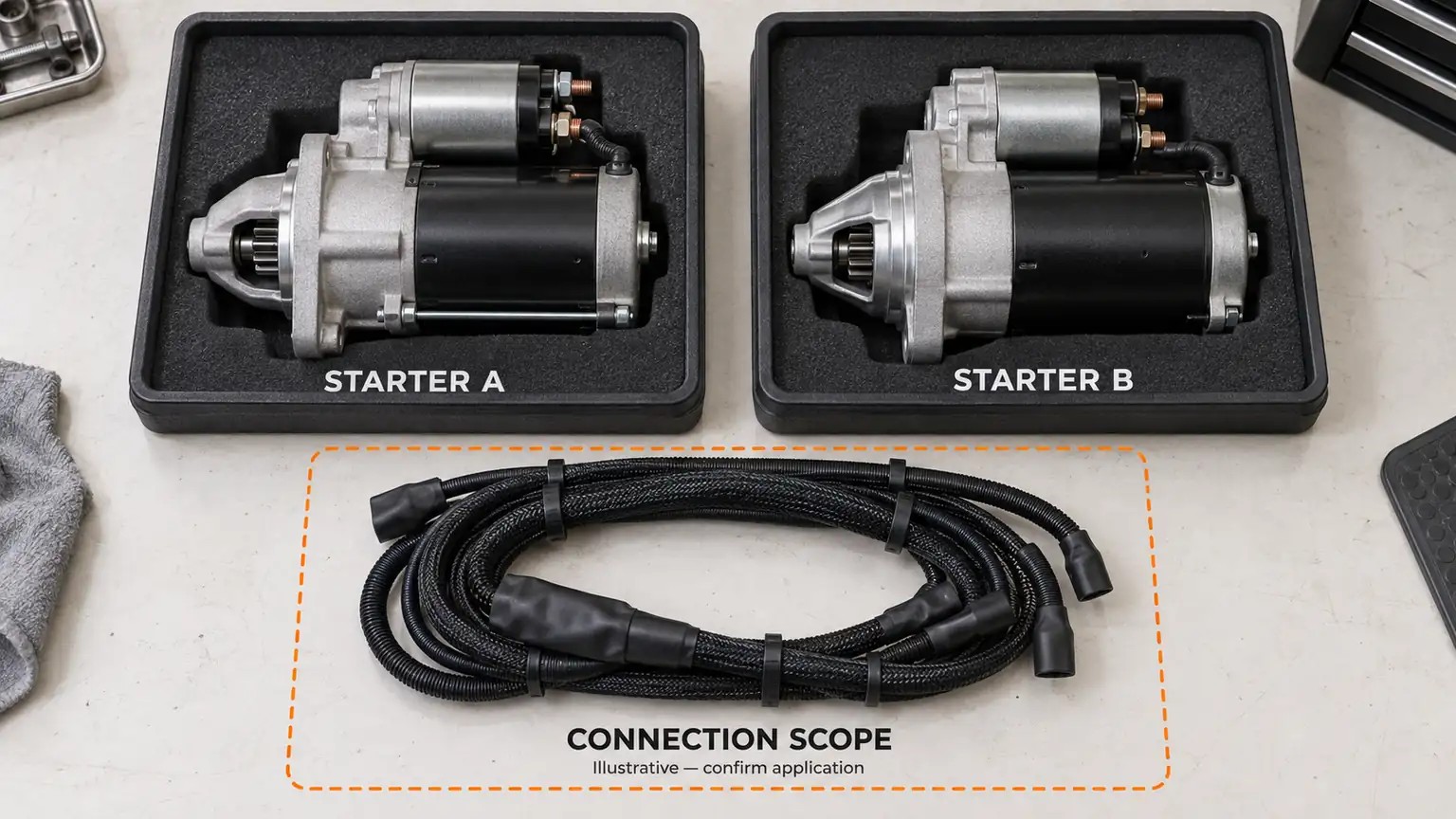

Illustrative package-scope check: the starters and connection components must be identified separately in the quotation. A pictured harness does not establish application suitability.
The final record can be concise. It should identify the engine or equipment, both installed references, the final proposed pair, the approved connection components, and the person or organization confirming the application. Include the date and the exact supporting document revision. If the decision depends on retaining an existing component, name that component explicitly.
Do not accept “replaces MS7” as the entire approval. Ask whether the statement applies to a single or dual installation and to the actual engine fuel type. A broad catalogue family match leaves precisely the distinction that matters here unanswered. Written clarification also gives receiving staff a clear basis for checking the delivered package before it enters workshop stock.

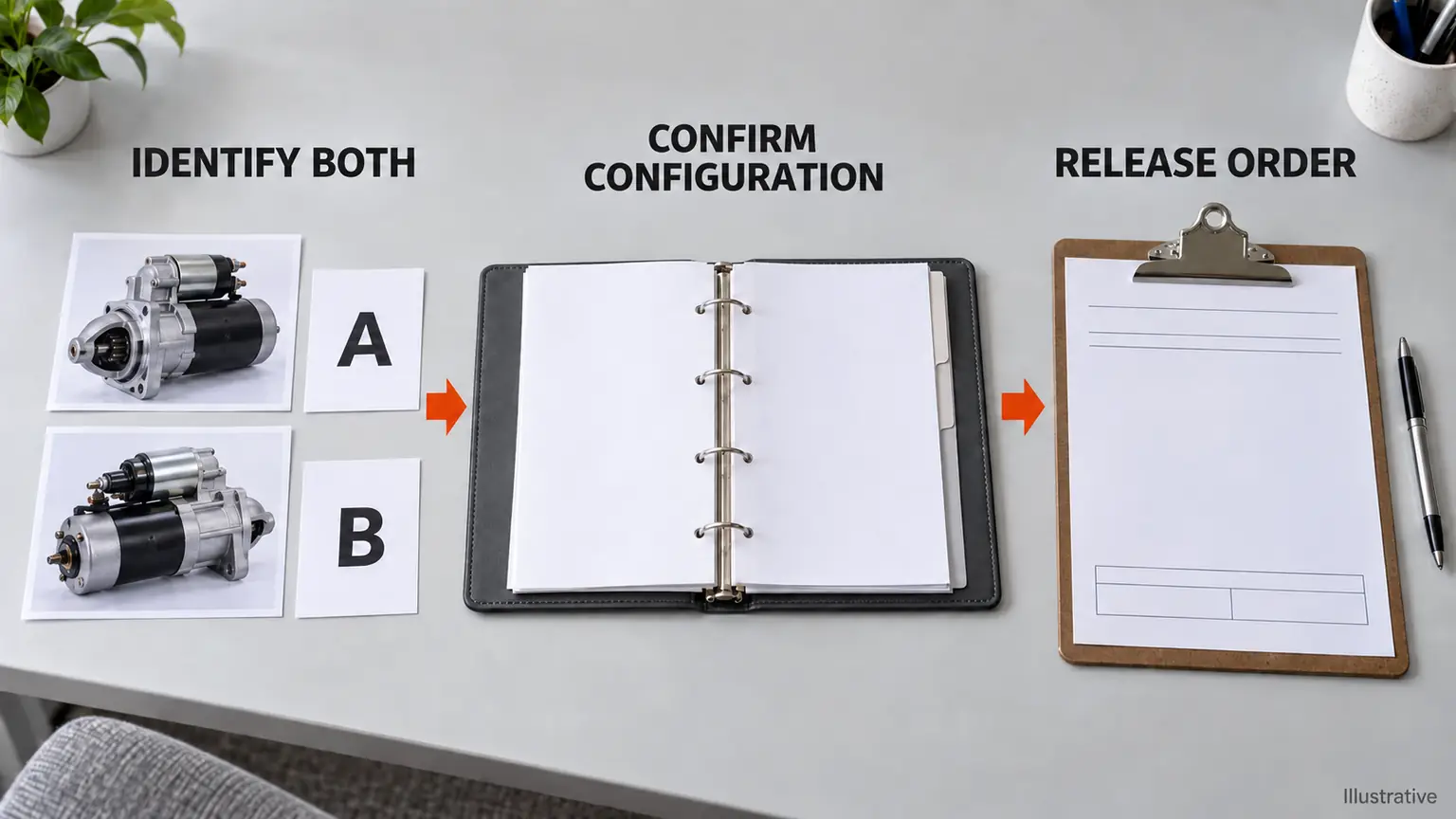

Illustrative approval workflow: connect both installed identities to the confirmed final configuration before releasing the order; the image is not an approval document.
For repeat orders, retain the approved combination as one controlled purchasing configuration. A later substitute starter, harness revision, or change in installed equipment should reopen the relevant approval rather than silently inherit the old one. The fleet starter replacement-planning guide covers stocking and replacement priorities; it does not authorize a new pair configuration.
No universal replacement rule is established here. The decision depends on the actual installed pair and the approved replacement combination. The cited bulletin places a specific restriction on mixing MS7 and M128R types. Do not extend that restriction to every manufacturer or dual-starter design, and do not infer that a same-family replacement is approved without checking its exact variant.
It can be a separate commercial line, but its identity and availability should be resolved before approving the complete job. Otherwise the delivery date of the starters can be mistaken for the date the machine can return to service. If the harness is excluded, record who will supply it and whether the installer has accepted the proposed arrangement.
No. A cross-reference may identify a useful candidate, while photographs may help confirm visible features. Neither necessarily establishes the approved interaction of the pair. Ask for evidence tied to the dual application and the retained unit. If that evidence is unavailable, the offer remains a candidate rather than a released substitution.
It can expose a restriction that the purchase request overlooked. It cannot, by itself, establish the latest service approval for an unidentified machine. Send the bulletin reference with the equipment details to the responsible supplier or service organization and ask for current confirmation. Keep any superseding response with the order so the decision is traceable.
For an Elecdura heavy-duty starter parts enquiry, provide the two installed starter identities and the written configuration that the equipment supplier or installer has approved. State whether the enquiry is for one unit, a matched pair, or a package including connection components. This lets the quotation address the actual purchasing scope without implying that catalogue availability grants an engineering approval.
