A wastegate turbocharger controls maximum boost by diverting exhaust flow around the turbine. A variable-geometry turbocharger changes the effective turbine nozzle area. Neither design is universally better: the correct choice is the architecture released for the engine, emissions strategy and duty cycle. For a replacement, do not convert between them unless the engine or equipment manufacturer provides a complete approved conversion, including control, calibration, air, exhaust, oil and mounting changes.
This guide is for fleet engineers, turbo rebuilders and buyers who must decide whether a quoted turbo belongs to an existing wastegate or variable-geometry control system. The decision affects more than the turbine housing. It changes the actuator, feedback, engine-control logic, emissions response and service procedure, so a visual housing match cannot release an order.
A wastegate opens a bypass around part of the turbine flow when its control threshold is reached. The actuator may be pneumatic, vacuum operated or electronic, and its lever geometry and setting belong to the released turbo assembly. A VGT changes the turbine inlet geometry through movable vanes or another variable nozzle mechanism; its usable range depends on the actuator, linkage, position feedback and engine calibration working together.
Neither architecture describes capacity, durability or application by itself. A small wastegate unit and a large VGT can serve entirely different engines, while two visually similar VGT assemblies may use incompatible actuators or learned positions. The only safe selection baseline is the complete released reference and the engine-control context behind it.
Complete turbo and engine labels, part numbers and suffixes
Wastegate actuator type or VGT actuator and position-sensor details
Flange, housing orientation, oil and coolant interfaces
Control connector, hose routing and calibration requirements
Vehicle or equipment serial range and emissions configuration
Preserve the installed turbo identity and its relationship to the vehicle before cleaning, dismantling or adjustment. Record the operating condition, instrument, datum and procedure behind each observation. That makes the supplier comparison repeatable and prevents an isolated number or photograph from being treated as universal approval.

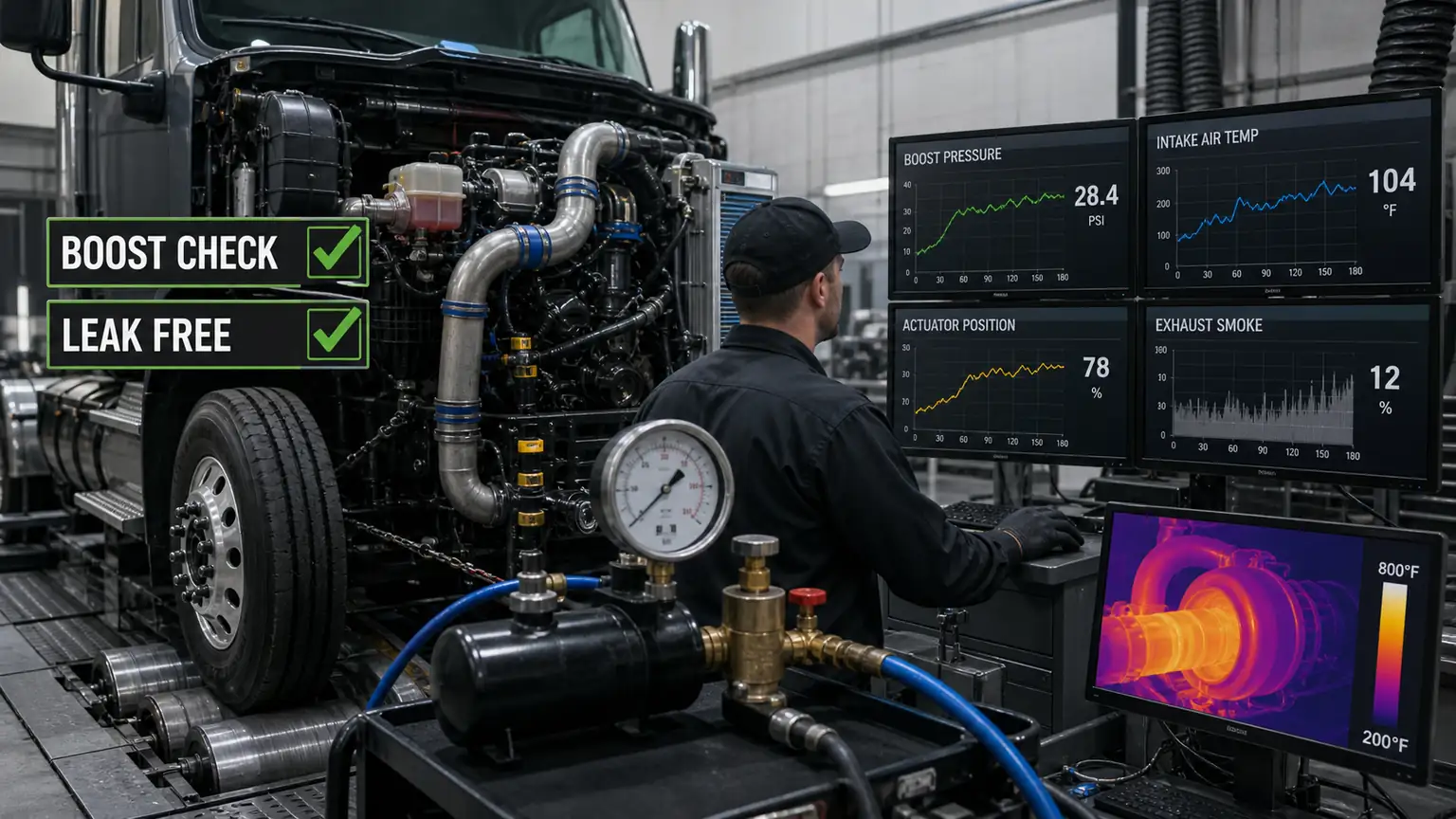

Record the complete installed-unit and system evidence before choosing a turbo replacement. The staged image supplies context, not application-specific limits.
Observed evidence | Possible interpretation | Decision-changing check |
|---|---|---|
Boost control | Pneumatic or electronic wastegate actuator | Movable vane mechanism plus actuator and position control |
Low-speed response | Depends on turbine sizing and calibration | Can vary effective turbine area when commanded |

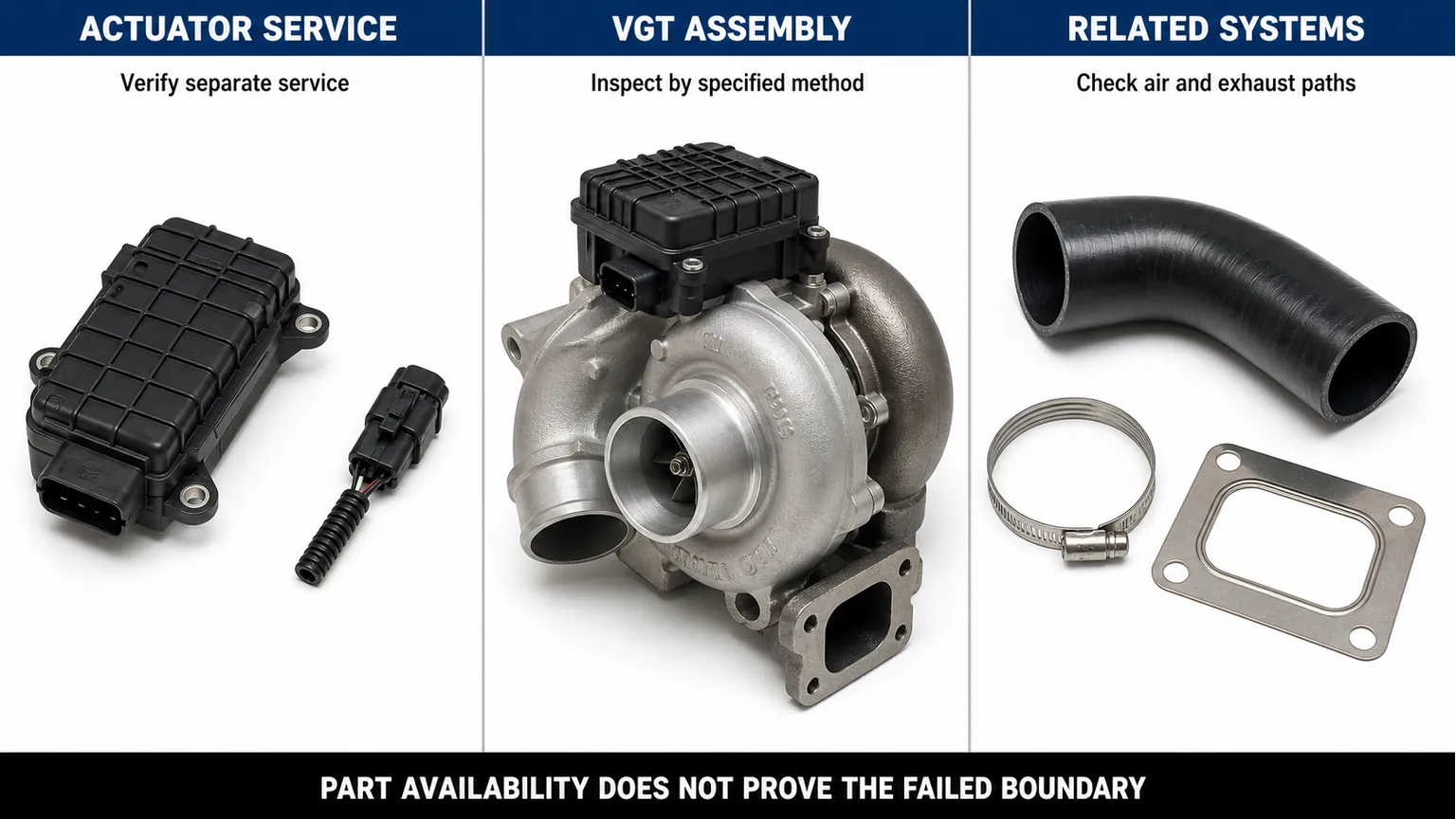

Service boundary | Valve, lever, actuator, hoses and control path | Actuator, linkage, vane mechanism, sensors and learned calibration |
Interchange risk | Wrong crack pressure, clocking or control | Wrong actuator, vane range, calibration or housing relationship |
When the vehicle reports underboost, first compare commanded boost, measured boost and actuator response under the specified operating condition. Charge-air leakage, exhaust leakage before the turbine, restricted air flow, damaged hoses, incorrect sensor data and poor engine output can all reduce boost while the turbo itself remains serviceable. Replacing the architecture does not repair those causes.

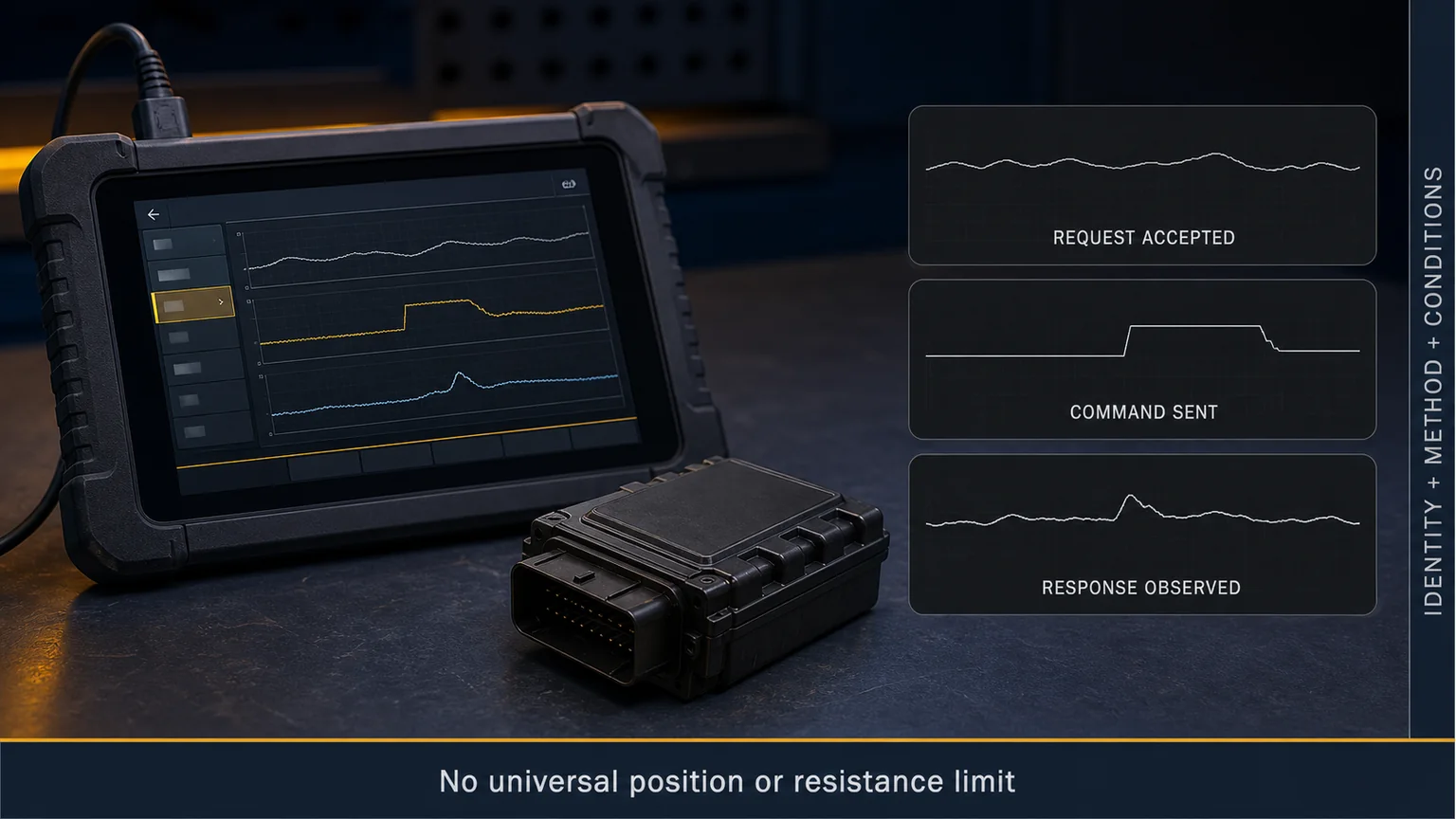

For a wastegate system, record control pressure or command, rod movement and the approved actuator setting without adjusting it as a diagnostic shortcut. For a VGT system, compare commanded and actual position, movement through the service routine and evidence of sticking or feedback loss. Those observations route diagnosis; they do not authorize changing factory calibration.
Confirm the engine was released with the proposed architecture; do not infer from displacement alone.
Compare complete part numbers and supersessions before comparing housing appearance.
Verify commanded and actual control evidence when the complaint is underboost or overboost.
Inspect charge-air, exhaust, oil and crankcase paths so a system fault is not transferred to the replacement.
Require a sample-release record tied to the exact turbocharger and actuator.
Use the approved procedure and record the actual condition; appearance by itself is not a pass or fail result for wastegate vs VGT turbocharger.
A supplier should state whether the actuator is included, pre-set, calibrated, learned on the unit or expected to be transferred. Also compare compressor and turbine housing orientation, flange, oil drain, oil feed, coolant ports where fitted, sensor ports and nearby heat shields. A complete turbo reference can change while one housing number remains familiar.
If a supersession introduces a different actuator or connector, request the manufacturer bulletin or application record that explains the change. A cross-reference without a control note is incomplete. Hold the order when the seller cannot identify the actuator maker, electronic part number, calibration state or installation routine for the proposed unit.
Send the same revision-controlled packet to every supplier. Require a complete maker reference, condition, application basis, included hardware, specific wastegate vs VGT turbocharger evidence, traceability, packaging, lead time, warranty and return route. Ask the seller to mark fields it could not verify instead of filling them with a generic direct-replacement claim.
RFQ field | Evidence that can be audited | Reason to hold |
|---|---|---|
Identity | Maker, complete reference, label and proposed condition | Truncated, relabeled or mixed identity |
Application | Vehicle or equipment record plus interface comparison | Visual similarity or unsourced cross-reference |
Functional basis | Named procedure, conditions, actual results and limits | Tested or calibrated without a record |
Commercial scope | Included parts, packaging, warranty and return terms | Condition, core or fulfilment route unclear |
This recommendation does not cover a manufacturer-approved wastegate-to-VGT conversion kit or a complete engine/emissions retrofit. Those projects require their own released hardware list, wiring, sensors, software, exhaust and air-path validation. It also does not set universal boost, actuator pressure or vane-position limits; those values must come from current information for the exact engine and turbo.
Approve one identified sample revision before scaling the order. At receipt, reconcile the package, label, turbo, report and included parts; inspect protection, contamination, corrosion, impact and mixed-lot risk. Quarantine any mismatch. Installation release must correct the confirmed root cause and reproduce the original operating condition under the applicable service procedure.
Connect the exact sample or production lot to the approved application packet and post-install result.
Use the related Elecdura technical guide and Elecdura product category to organize the evidence before contacting Elecdura. For repeat orders, compare the production lot with the approved sample and require notice before a change to maker, reference, interface, test method, label, packaging or supplied hardware.
Not as a parts-only substitution. It requires an approved control and calibration conversion. Record the applicable identity, procedure and result before changing the purchase or repair decision; the observation alone cannot prove every related interface or system is acceptable.
No. Identify the complete turbo and internal control mechanism from approved documentation. Record the applicable identity, procedure and result before changing the purchase or repair decision; the observation alone cannot prove every related interface or system is acceptable.
No. A fault code starts diagnosis; it does not approve an architecture or replacement. Record the applicable identity, procedure and result before changing the purchase or repair decision; the observation alone cannot prove every related interface or system is acceptable.
Only when the turbo or engine manufacturer permits transfer for the exact references and provides the setting or calibration procedure. Record the old and new actuator identities and the completed procedure. Successful connector fit alone cannot prove the actuator range, lever geometry or learned position is correct.
Request the complete turbo and actuator labels, application basis, actuator calibration or position record, interface photographs and the defined functional test result. This evidence supports sample comparison and receiving inspection, but it does not prove the vehicle calibration or upstream air and exhaust systems are healthy.
Choose between wastegate and VGT by preserving the released engine architecture, not by selecting the design that sounds more advanced. A controlled command-response check, full interface comparison and traceable actuator record turn the replacement into an auditable decision and keep a system fault from being transferred to a new turbo.
