0071510201 Mercedes OM541 Starter Motor Distributor

0071510201 Mercedes Starter Motor Distributor Value for OM541

OM541.980 enquiries often arrive through a vehicle record, an engine workshop or a cross-reference list. Combining the chassis, engine plate and 0071510201 marking on one request gives purchasing and technical teams a shared product identity before quantities and delivery dates are discussed.

The M9T20171 family contains familiar heavy-starter shapes, but visual similarity does not confirm fitment. The 6.5kW rating, twelve-tooth module-3 pinion, Ø146 three-hole face and cable side must agree with the starter removed from the supported Mercedes installation.

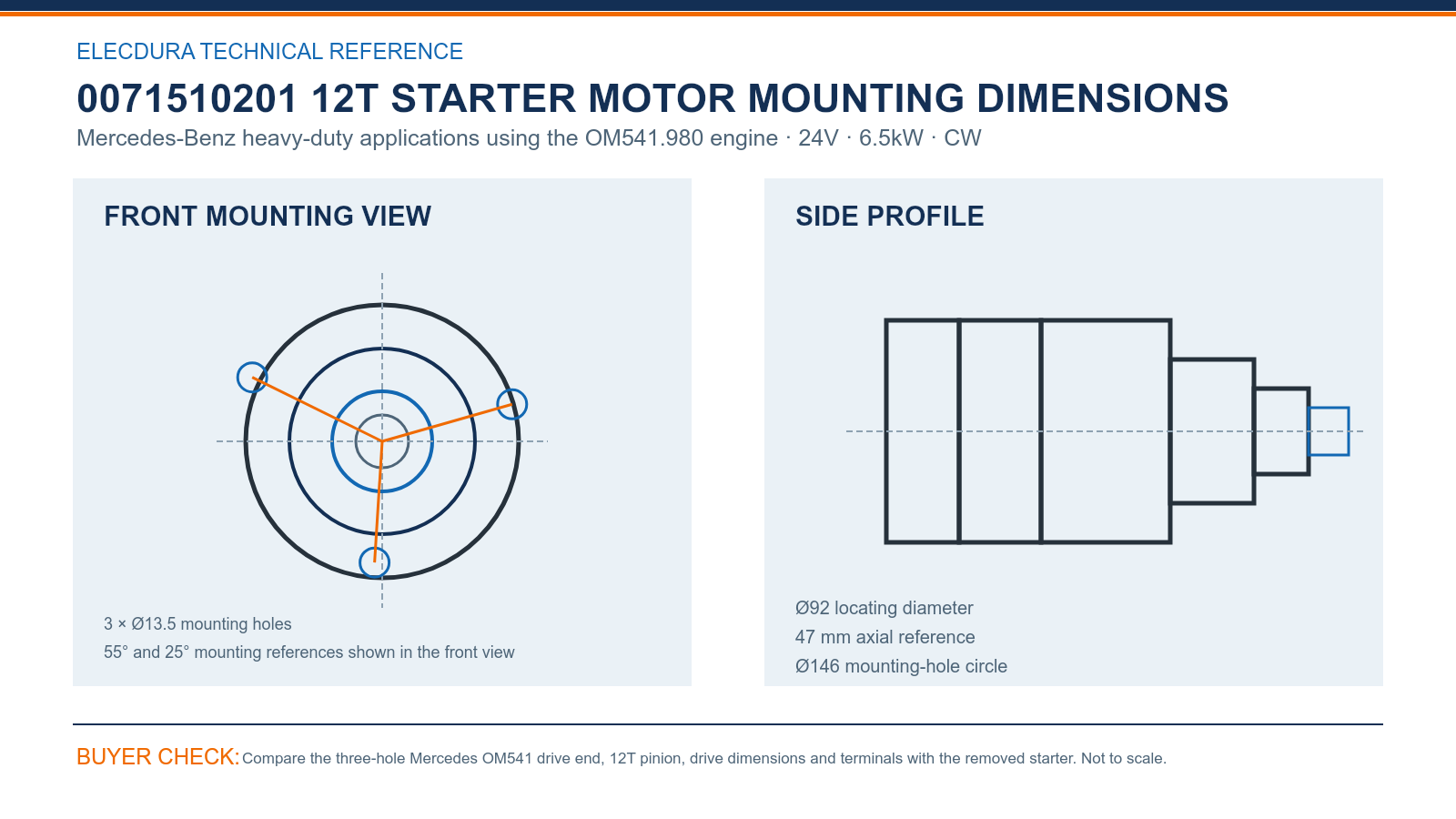

0071510201 Starter Motor Drawing for B2B Drive-End Verification

Use 24V, 6.5kW, 12T, module 3 and clockwise rotation as one unchanged specification set. Keeping output and drive information together helps prevent a nearby M9T unit with another power rating or pinion arrangement from entering the purchasing record.

The drive end uses three Ø13.5 holes on an Ø146 circle, an Ø92 locating diameter and a 47 mm axial reference. Compare the 55° and 25° mounting references from a square front view, then verify solenoid and terminal placement from the side.

0071510201 Starter Motor Reference Checks for Mercedes Buyers

0071510201, 0071513501, 0071516401, 4571510201, 4571510301, M009T20171, M009T20172, M9T20171 and related numbers support procurement searches. The OM541.980 engine and confirmed 6.5kW configuration should remain attached to the selected reference group.

A distributor can assign the accepted unit to supported chassis groups while keeping depot quantities and delivery urgency separate. This preserves the origin of the match and reduces the chance that a later order is shortened to a general Mercedes 24V starter description.

0071510201 Starter Motor Stock Planning for Truck Distributors

Inspect the first shipment for twelve pinion teeth, three intact ears, Ø92 locating surface, terminal insulation and correct 6.5kW identification. For heavy export cartons, protect the flange and solenoid with rigid supports and label the confirmed OM541 product group clearly.

Elecdura's production video introduces starter assembly and electrical testing for B2B orders. Mercedes distributors can use it when reviewing inspection options and repeat-supply capability, while the 0071510201 match remains based on the engine record, specification and mounting face.

0071510201 Starter Motor FAQs for Mercedes Distributors

How should an OM541.980 application be identified before ordering?

Record the Mercedes chassis or truck model, a readable OM541.980 engine plate, all old-starter markings and the vehicle's current service status. Pair those records with front, pinion and terminal photographs. This keeps 0071510201 tied to a real installation and lets later fleet reorders follow the same accepted evidence instead of a shortened Mercedes starter description.

Can M9T20171 confirm 0071510201 without a physical comparison?

No. M9T20171, M009T20171 and related Mercedes numbers narrow the search, but they do not confirm output, pinion or terminal placement by themselves. Compare the 24V 6.5kW 12T module-3 specification, three-hole Ø146 face and OM541.980 application with the removed unit before treating the reference group as a confirmed interchange.

Why must the 6.5kW rating remain on the Mercedes order?

The 6.5kW value identifies the required cranking-output version inside a wider heavy-starter family. If it disappears from the purchase order, a nearby M9T product can look acceptable despite another rating. Keep 6.5kW beside 24V, 12T, module 3 and CW on the quotation, carton label and first-lot inspection sheet.

How do the 55° and 25° references help compare the flange?

The 55° and 25° references describe the orientation of the three mounting positions around the Ø146 face. Compare them from a straight drive-end image, along with the Ø92 locating diameter and 47 mm axial reference. The combined values help reject a starter whose housing looks similar but whose flange would sit differently on the bellhousing.

Which installed view helps exclude a rotated terminal arrangement?

Use an installed cable-side photograph that shows both electrical studs, the solenoid, main battery lead, start-signal wire and surrounding brackets or pipes. Add the same side after removal. A rotated terminal arrangement can share the flange yet create interference, so this view protects the Mercedes workshop from forced cables and installation delay.

What should appear on a Mercedes fleet-stock bin label?

Identify the bin with 0071510201, Mercedes OM541.980, 24V 6.5kW, 12T module 3 and the supported chassis group. Add the depot or fleet allocation rather than using only Mercedes or M9T. This fuller label helps night-shift warehouse staff distinguish the confirmed starter when several heavy units share a similar exterior.

What should receiving inspect on the first 0071510201 shipment?

Sample the first shipment for twelve pinion teeth, three undamaged ears, Ø92 locating surface, correct 6.5kW identification and intact terminal insulation. Compare one square front view with the accepted drawing and check that the body has not moved inside the carton. Record the inspected lot before units are split among depots.

Which records help Elecdura prepare distributor terms?

Provide the Mercedes chassis, OM541.980 engine details, all 0071510201-related markings, clear drive-end and terminal images, quantity, forecast, desired delivery date, packing needs and destination. Note whether the order is a trial, routine replenishment or urgent fleet support. Elecdura can then prepare pricing, production timing and shipment terms around the actual requirement.

Request 0071510201 Starter Motor Distributor Pricing

Send the Mercedes chassis and OM541.980 engine details, complete 0071510201 or M9T markings, straight drive-end and terminal photographs, required quantity, annual forecast, packing preference and destination to info@elecdurauto.com. Elecdura will confirm the product and provide distributor pricing with delivery terms.
