36100-45500 Hyundai HD65 D4DD Starter Motor Wholesale

36100-45500 Hyundai HD65 Starter Wholesale for Truck Fleets

HD65 trucks often work in local delivery cycles where a no-start event disrupts an entire route. The buyer should state the D4DD engine, vehicle details, old-unit markings, fleet location and service deadline before choosing urgent replacement or reserve quantity.

The drive end combines two Ø14 through holes with two M10 × 1.25 threaded holes. That four-point layout, the 9T module-3 pinion and Ø145 circle must stay together because a simple two-hole visual check is incomplete.

36100-45500 9T Starter Mounting Details for B2B Buyers

Identify 36100-45500 as 24V, 5.0kW, 9T, module 3 and CW. Adding Hyundai HD65 and D4DD to the commercial description keeps the compact reference set useful for sales, purchasing and receiving teams.

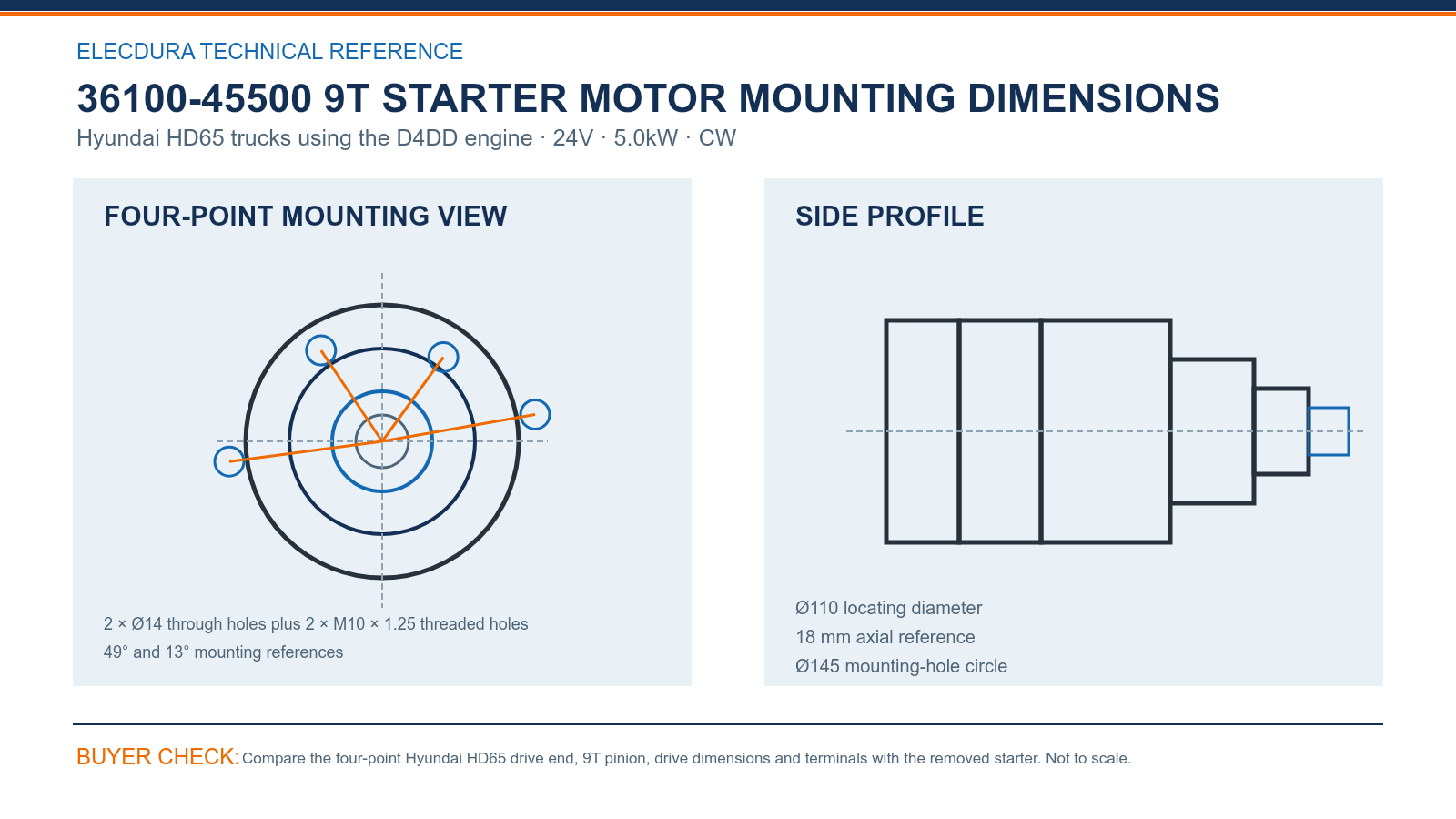

Compare the Ø145 mounting circle, Ø110 locating diameter, two Ø14 holes, two M10 × 1.25 threaded points, 49° and 13° orientations, and 18 mm axial reference. A straight face photograph should show all four positions clearly.

36100-45500 D4DD Fitment Support for Hyundai Distributors

S0001250238, 600250 and 602037 support searches through Mando and Valeo routes. The small reference group is helpful, but the D4DD engine and unusual combination of through and threaded holes remain the stronger fitment evidence.

A Hyundai distributor serving several HD-series trucks should begin with the confirmed HD65 D4DD fitment. Other vehicles can be added only after their removed starter matches the 9T drive, four-point flange and terminal arrangement.

36100-45500 HD65 Starter Receiving and Fleet Stock

Count nine teeth and inspect both through holes, both threaded holes, locating surface, relay connections and protective packing. For delivery fleets, label reserve units with the accepted HD65 face image so workshops can confirm them before route-critical installation.

Elecdura's video introduces starter assembly and electrical testing for B2B supply. Hyundai buyers can use it while agreeing on sampled electrical results, threaded-hole protection, carton labeling, forecast quantities and delivery timing for fleet workshops.

36100-45500 Starter FAQs for Hyundai HD65 Parts Buyers

Which specification defines the 36100-45500 pinion?

Use 24V, 5.0kW, 9T, module 3 and CW as the product definition for this Hyundai HD65 D4DD starter. Keep the nine-tooth count beside 36100-45500 on quotations and labels. It must also agree with the unusual four-point mounting face before volume supply; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

Why does the HD65 mounting face require four checks?

The flange has two Ø14 through holes and two M10 × 1.25 threaded holes, not four identical openings. All four positions, the Ø145 circle and 49° and 13° orientations must agree. A square face photograph is the clearest way to show the complete arrangement; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

How should buyers examine the M10 threaded holes?

Inspect both M10 × 1.25 threads for damage, contamination and full usable depth. Compare their positions with the removed unit and protect them during transport. Do not treat them as ordinary clearance holes, because their condition affects installation and distinguishes this HD65 drive end; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

Can S0001250238 or 600250 replace the Hyundai vehicle details?

No. Those references help locate Mando or Valeo supply, but the request should still identify the Hyundai HD65, D4DD engine and four-point flange. Pair the number with the 9T pinion, Ø145 circle and terminal arrangement before deciding that a replacement is suitable; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

How much reserve stock suits a delivery-truck fleet?

Base reserve quantity on the active HD65 population, daily route dependence and normal replenishment time. A fleet with remote delivery areas may keep more branch stock than a central workshop. Label every spare with the accepted D4DD and four-point face images; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

What should receiving staff inspect on this HD65 starter?

Count nine teeth, inspect two Ø14 holes and both threaded M10 positions, then examine the Ø110 locating surface, relay connections and labels. Check that packing protects threads and terminals. Record a straight face photograph before the units enter fleet stock; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

What D4DD electrical checks help avoid a mistaken replacement?

Test battery capacity, cable voltage drop, grounds, starter relay and whether the D4DD engine turns freely. A weak connection or relay can imitate starter failure. Record the readings before removal so the replacement and any later return are supported by the truck's actual condition; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

Which details support a fast 36100-45500 wholesale offer?

Send the HD65 vehicle details, D4DD engine plate, 36100-45500 or related references, a square face image, terminal photographs, quantity, destination and required date. Elecdura can then assess the 9T four-point version and provide a wholesale offer with delivery timing; keep this point with future 36100-45500 orders for Hyundai HD65 trucks using the D4DD engine.

Request 36100-45500 Hyundai Starter Motor Wholesale Pricing

Send the Hyundai HD65 and D4DD details, 36100-45500 or related numbers, a square mounting-face photograph, terminal views, quantity and destination to info@elecdurauto.com. Elecdura will review the four-point version and provide wholesale pricing and lead time.
