6392502 Foton Cummins ISF 10T Starter Motor Wholesale

6392502 10T Starter Motor Wholesale for Foton Cummins ISF

The short reference 6392502 appears on two distinct supplier products, making tooth count essential at the first enquiry. A buyer should state Foton, Cummins ISF and 10T before price comparison so a quotation does not silently merge this starter with the eleven-tooth version.

Both versions share 24V, 5.0kW, module 3, clockwise rotation and similar square mounting geometry. The ten-tooth pinion is therefore the primary separating feature, supported by a direct gear photograph and the exact old-unit or engine information.

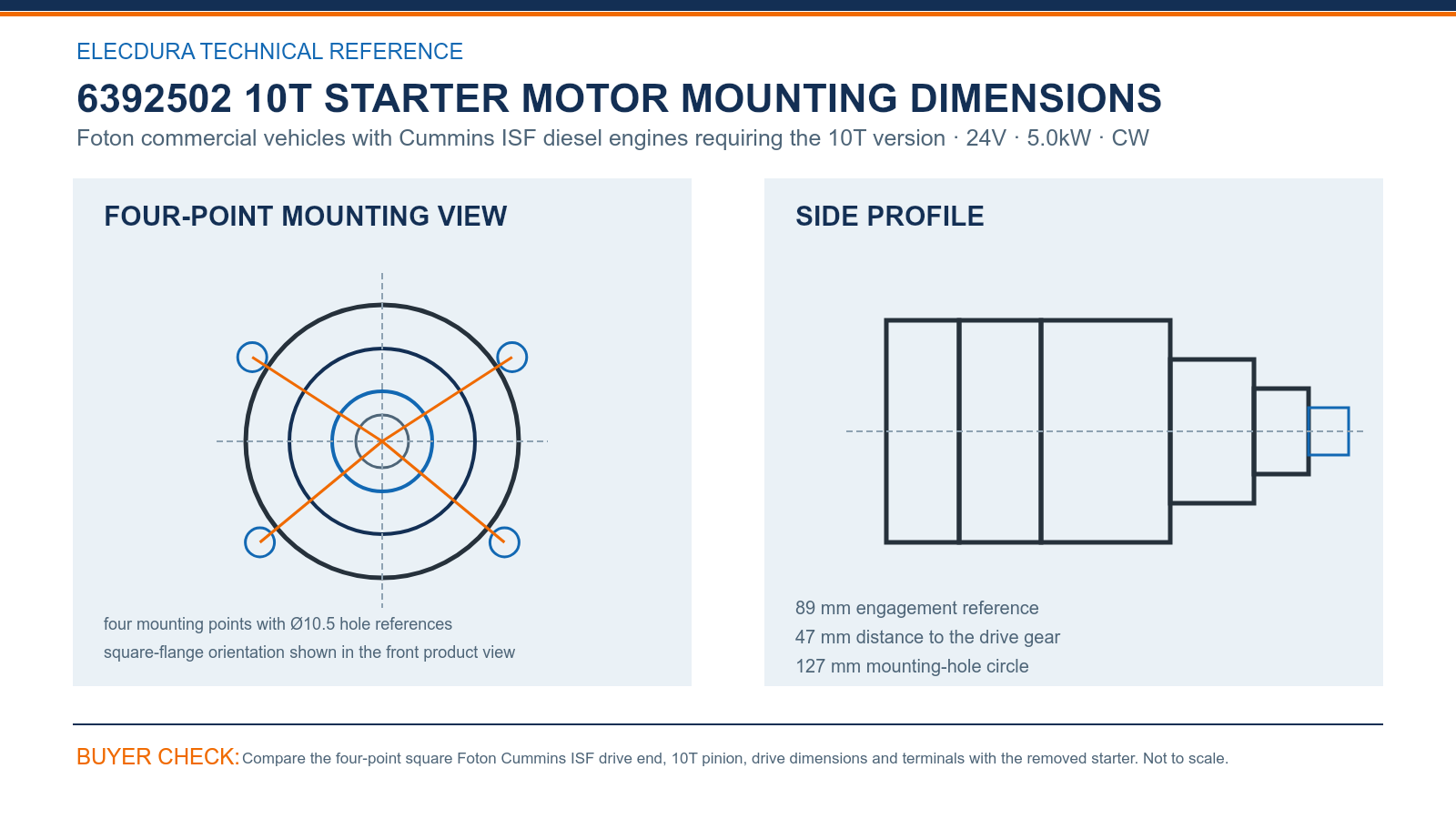

6392502 10T Starter Motor Drawing for Precise Gear Matching

This product line is defined as 24V, 5.0kW, 10T, module 3 and clockwise rotation. The ten-tooth value should appear in H1, purchase order, carton label and warehouse description because 6392502 alone does not distinguish the two available versions.

The four-point square face uses Ø10.5 hole references on a 127 mm circle, with an 89 mm engagement and 47 mm drive distance. Those measurements verify the shared housing family, while the pinion side view confirms that the ordered unit is specifically 10T.

6392502 10T Starter Motor Identification for Foton Distributors

6392502 and C6392502 are the available reference routes for this item. Because the same numbers also accompany an 11T product, the reference must always travel with 10T, the ISF engine details and a readable pinion photograph.

A Foton distributor should assign separate item codes, shelf positions and sales descriptions to the 10T and 11T units. Customer history can then retain the accepted tooth count and engine details, reducing repeat-order drift even when both cartons display 6392502.

6392502 10T Starter Motor Inventory Separation for Importers

Receiving staff should count the pinion teeth before put-away, then compare the four mounting points, output label and terminals. A colored 10T label on inner and master cartons provides a quick warehouse signal without replacing the physical inspection on sampled units.

The video below shows Elecdura starter production and electrical testing for wholesale supply. Foton buyers can review capacity, packing and sampled test support while the 6392502 10T line remains physically and administratively separate from the neighboring 11T product.

6392502 10T Starter Motor FAQs for Foton Wholesale Buyers

How can purchasing prove that a 6392502 request is the 10T version?

Write “6392502, 24V 5.0kW, 10T, module 3, CW” on the enquiry and purchase order, then attach a close photograph showing all ten pinion teeth. Add the Foton model, Cummins ISF engine details and a square flange view. The tooth count must be explicit because the same short OE reference also appears with eleven teeth.

Why does the same 6392502 reference appear on two products?

The reference 6392502 is associated with both ten-tooth and eleven-tooth configurations in this product range. The OE number therefore cannot identify the pinion by itself. Elecdura keeps the versions as separate products, and buyers should specify 10T or 11T in the product name, quotation, carton label and warehouse item code.

What does 10T module 3 tell a Cummins ISF buyer?

Ten teeth describe the pinion count; module 3 describes the size and spacing of those teeth. Together they define the gear interface for the Cummins ISF application. A buyer should confirm both values against the removed starter, because a 10T pinion with another module may not mesh correctly even if the flange and housing look familiar.

Which square-flange dimensions should be photographed and measured?

Photograph the flange square to the camera and measure the 127 mm mounting-hole circle, four Ø10.5 mounting references and 89 mm engagement reference. The side view should also show the 47 mm distance to the drive gear. Keep the pinion visible in the same image set so the square face is not separated from the required 10T drive.

How should warehouses label the 6392502 10T cartons?

Use a warehouse description that reads “6392502 10T 24V 5.0kW Starter Motor” and print 10T in a prominent text field, not only as a color code. Add module 3 and the Foton Cummins ISF application where space permits. The bin, carton and system record should all carry the same wording to protect repeat orders.

What should counter staff ask before issuing a 10T unit?

Ask for the Foton vehicle and Cummins ISF engine details, the removed starter number and a clear pinion photograph. Counter staff should count the teeth rather than infer them from 6392502. Confirm 24V, 5.0kW, module 3, clockwise rotation and the four-point mounting face before issuing the ten-tooth unit from stock.

Which sample checks prevent a 10T and 11T receiving mix?

Select cartons from different pallet positions and count the pinion teeth on every sampled unit. Compare rating labels, the 127 mm four-point flange, terminal position and housing details with the confirmed 10T product photographs. Record the sample results against the shipment so an 11T unit cannot enter the 6392502 ten-tooth stock line unnoticed.

What evidence should accompany a 6392502 10T wholesale request?

Send the Foton model, Cummins ISF engine information, old-starter references and photographs showing the ten-tooth pinion, flange and terminals. State quantity, annual demand, packing preference and destination. The enquiry should name the item as 6392502 10T, allowing Elecdura to quote this version separately from the eleven-tooth product.

Request 6392502 10T Starter Motor Wholesale Pricing

Send the Foton model, Cummins ISF engine details, complete 6392502 marking, a direct pinion photograph showing ten teeth, square flange and terminal views, quantity and destination to info@elecdurauto.com. Elecdura will compare the 10T version and return wholesale pricing, lead time, packing and shipping terms.
