M009T64371 Mercedes OM936 Starter Motor Wholesale

M009T64371 Mercedes OM936 Starter Wholesale for Fleet Buyers

A Mercedes commercial fleet may operate trucks and buses from several depots, so the engine and chassis must stay visible on every request. Pairing OM936.912 with M009T64371 gives procurement a stronger starting point for planned stock than a general Mercedes starter description.

Thirteen teeth are a decisive feature for this unit. Another Mitsubishi heavy-duty starter can share the 24V 5.5kW rating and Ø127 outline, yet an 11T or 12T drive would create a different product even before terminal and mounting positions are compared.

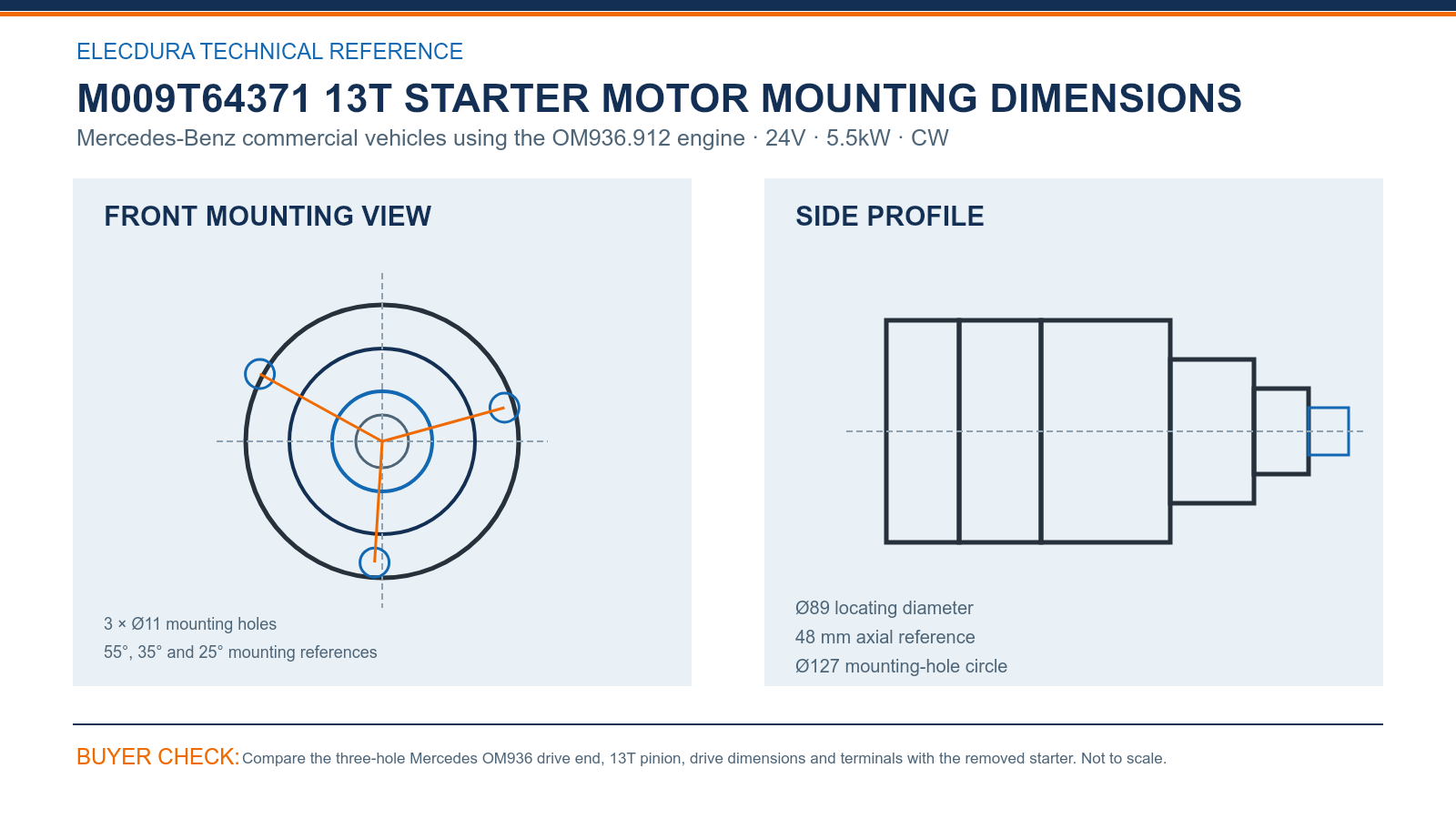

M009T64371 13T Starter Dimensions for B2B Matching

The commercial specification is 24V, 5.5kW, 13T, module 3 and clockwise rotation. Keep that combination on the quotation, purchase order and carton label so a depot does not substitute a similar Mercedes starter while moving stock between workshops.

Verify three Ø11 holes on the Ø127 circle, the Ø89 locating diameter, the 48 mm drive position and the 55°, 35° and 25° orientation references. Front, pinion and terminal photographs should come from the removed OM936.912 unit rather than a generic reference image.

M009T64371 Mercedes OE Cross References for Distributors

Mercedes numbers 0061514801, 0061516801 and 0071510801, including their A-prefixed forms, connect the Mitsubishi references to recognised purchasing records. Buyers should enter the complete number and retain OM936.912 with the 13T construction on the same line.

Truck and bus depots can share supply only after each supported vehicle group has a confirmed OM936.912 record and matching drive end. Preserve separate chassis notes for each fleet so a common reference does not silently expand to an unverified commercial vehicle.

M009T64371 Truck Bus Starter Receiving and Supply Planning

Receiving staff should count thirteen teeth, inspect the three Ø11 holes and Ø89 locating surface, compare cable and terminal positions, and record sampled electrical performance. Rigid packing is important when units are distributed to depots on different service schedules.

The production video shows Elecdura starter assembly and electrical testing for wholesale programs. Mercedes buyers can use it while agreeing on sample size, batch labels, terminal protection, neutral or branded packaging and staggered deliveries for truck or bus maintenance.

M009T64371 Starter FAQs for Mercedes Truck and Bus Buyers

How should buyers connect M009T64371 to an OM936.912 vehicle?

Record the Mercedes chassis or vehicle model, OM936.912 engine details and complete old-starter markings. Add straight images of the flange, thirteen-tooth pinion and terminals. This evidence links M009T64371 to a specific commercial vehicle instead of relying on a general Mercedes application claim. Preserve the confirmed Mercedes-Benz commercial vehicles using the OM936.912 engine mounting comparison in the customer's M009T64371 reorder notes.

Why is the 13T drive a decisive purchasing detail?

The 13T pinion separates this unit from common 11T and 12T heavy-duty starters that may share voltage, output or housing style. Confirm thirteen teeth with module 3 and the Ø127 face. All three details should remain visible on the quotation and carton label. Carry the OM936.912 identity, 13T module-3 pinion and Ø127 three-hole face through packing and branch transfers for M009T64371.

Do A-prefixed Mercedes numbers replace the Mitsubishi reference?

No. A0061514801 and related A-prefixed numbers are valuable Mercedes purchasing references, but they do not replace M009T64371 or the physical comparison. Keep the complete OE, OM936.912 engine, 13T drive and three-hole mounting evidence together when evaluating alternative supply. Retain the OM936.912 identity, 13T module-3 pinion and Ø127 three-hole face with the M009T64371 delivery lot for after-sales review.

What should a Mercedes drive-end photograph show?

Take a square front image showing three Ø11 holes, the Ø127 mounting circle and Ø89 locating surface. Add a side view for the 48 mm drive position, a close pinion photograph and the terminal side. These angles allow purchasing and receiving to compare the same features.

Can bus and truck depots share one M009T64371 stock line?

Yes, after each supported truck or bus group has a confirmed OM936.912 record and matching old starter. Keep separate chassis notes and accepted photographs for every fleet. Shared stock is useful only when it does not turn M009T64371 into an unrestricted Mercedes application. Store the confirmed OM936.912 chassis and 13T drive comparison with every M009T64371 order.

Which checks support a split delivery to several depots?

Give each depot the same product label, accepted flange image and 24V 5.5kW 13T specification. Receiving should count teeth, inspect all three holes, compare terminals and record the lot. Transfers must preserve the vehicle group and product evidence used by the central warehouse. Attach the Mercedes-Benz commercial vehicles using the OM936.912 engine comparison to the M009T64371 quotation so receiving can review the same version.

What vehicle tests should precede a Mercedes starter return?

Test battery capacity, ground and positive cable voltage drop, relay operation and engine rotation before returning the starter. Intermittent wiring or weak batteries can create similar symptoms. Retain the readings with the Mercedes chassis, engine and removed-unit photographs for after-sales decisions. Keep the matched images and the OM936.912 identity, 13T module-3 pinion and Ø127 three-hole face beside the M009T64371 stock record.

What details produce a useful M009T64371 wholesale offer?

Include the Mercedes chassis, OM936.912 engine, exact OE and Mitsubishi references, face, pinion and terminal photographs, order quantity, packing preference, destination and need-by date. Elecdura can use these details to review M009T64371 and provide wholesale pricing with an appropriate delivery plan. Use the OM936.912 identity, 13T module-3 pinion and Ø127 three-hole face on the purchase order for M009T64371.

Request M009T64371 Mercedes Starter Motor Wholesale Pricing

Email the Mercedes chassis and vehicle details, OM936.912 engine information, complete OE or Mitsubishi numbers, straight flange and terminal photographs, quantity and depot destination to info@elecdurauto.com. Elecdura will assess M009T64371 and return wholesale pricing, packing options and lead time.
