M9T.9162 GAZ 3308 4.4 Starter Motor Wholesale

M9T.9162 GAZ 3308 Starter Motor Wholesale Supply

GAZ parts buyers should state M9T.9162 together with the 3308 model, 4.4 application and current unit photographs. This concise order identity helps an exporter distinguish the required 5.5kW version before discussing samples, annual demand or delivery to a regional warehouse.

AZF4365 can broaden a reference search, although M9T.9162 listings are not consistent across every market. The purchasing line should therefore preserve 24V 5.5kW, ten teeth, clockwise rotation, the two Ø13 holes and the Ø82.5 engagement reference.

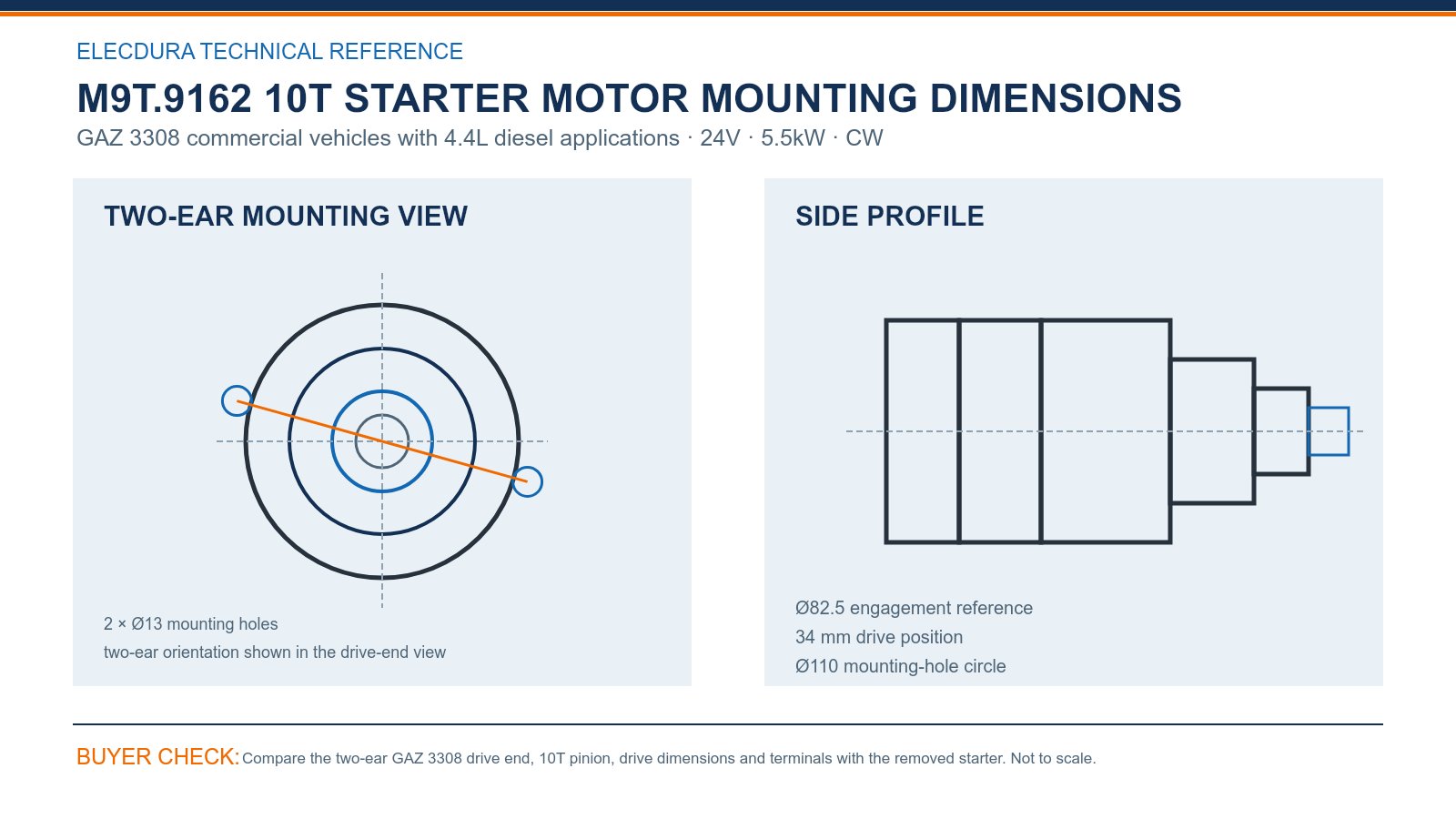

M9T.9162 Starter Motor Dimensions for B2B Comparison

This Elecdura product uses a 24V system, 5.5kW rated output, ten-tooth pinion and clockwise rotation. No pinion-module value is stated, so buyers should compare the removed gear directly instead of inferring tooth form from another M9T.9162 listing.

Compare the two Ø13 holes on the Ø110 circle, the Ø82.5 locating area and the 34 mm drive position. A straight drive-end view and a side image of the pinion give purchasing teams a clearer basis than an angled product photograph.

M9T.9162 Starter Motor Reference Matching for GAZ Buyers

M9T.9162, AZF4365, IS1232 and MS255 are the main cross-search terms for this line. Keep the GAZ 3308 4.4 identity and 5.5kW rating visible beside them so a broader commercial-vehicle reference group does not weaken the required product definition.

Importers serving several Russian commercial-vehicle families should assign this stock only after the GAZ 3308 and removed-unit details agree. Separate shelf labeling for output and tooth count is especially useful where suppliers offer different M9T.9162 power ratings under similar descriptions.

M9T.9162 Starter Motor Import Support and Factory Testing

Before a repeat order, compare the first shipment for the two-ear flange, ten-tooth pinion, terminal orientation and sampled electrical performance. Pack the extended drive end away from carton walls and protect the studs so the units arrive ready for dealer or fleet distribution.

Elecdura's starter production video introduces assembly and electrical testing for wholesale buyers. It supports discussions about sample validation, order capacity and export packing while each M9T.9162 shipment remains defined by the GAZ 3308 application and the stated 5.5kW configuration.

M9T.9162 Starter Motor FAQs for GAZ Importers

How should an importer handle different M9T.9162 power listings?

Keep the required M9T.9162 line explicitly defined as 24V 5.5kW 10T CW for the stated GAZ 3308 4.4 use. Do not merge offers that show another output merely because the short reference matches. Ask the supplier to confirm the label, pinion and flange against the provided images before a sample or volume order.

What should buyers do when no pinion module is stated?

Do not infer the tooth form from another M9T.9162 listing. Record the ten-tooth count, photograph the removed pinion squarely from the side and measure its outside diameter and width where possible. Pair those observations with clockwise rotation and the two-ear flange so the offered gear can be compared without inventing an unstated module value.

Which GAZ 3308 details belong on an M9T.9162 enquiry?

Include GAZ 3308, the 4.4 application description, chassis or fleet details, the complete M9T.9162 marking and current starter photographs. State 24V 5.5kW 10T CW on the same line. This gives the supplier a defined commercial-vehicle requirement instead of a reference that appears across several vehicle and engine listings.

Does AZF4365 alone establish the required starter version?

AZF4365 is useful for locating related product offers, but it does not by itself confirm the required output or drive end. Keep M9T.9162, GAZ 3308 4.4, 5.5kW and ten teeth together, then compare the two Ø13 holes, Ø82.5 engagement and 34 mm drive position before treating a cross-listed unit as suitable.

How can the Ø110 two-hole face be checked accurately?

Take a square front photograph and measure between the two Ø13 hole centers to verify the Ø110 mounting circle. Check the Ø82.5 locating area and confirm the 34 mm drive position from the mounting face. A scale in the image and a separate pinion view make the comparison easier for an overseas supplier.

Which pinion image is most useful for this 10T starter?

Use a straight side view that shows all ten teeth without perspective distortion, plus a second image looking along the shaft. Place a ruler beside the pinion to indicate width and outside diameter. These photographs help distinguish gear form when no module is stated and provide receiving staff with a useful sample reference.

What packing reduces damage to the M9T.9162 drive end?

Support the housing so neither mounting ear carries the starter's weight inside the carton. Protect the pinion with a rigid clearance zone, cover the terminals and prevent the solenoid from touching the box wall. For sea freight, add moisture protection and reject cartons that allow the heavy unit to shift when handled.

What creates a quotable M9T.9162 wholesale request?

Send the GAZ 3308 and 4.4 details, complete M9T.9162 or AZF marking, front, pinion and terminal photographs, quantity, sample requirement, packing preference and destination. Repeat 24V 5.5kW 10T CW in the request. Elecdura can then compare the intended version and provide price, lead time and shipping terms.

Request M9T.9162 Starter Motor Wholesale Terms

Email the GAZ 3308 vehicle and 4.4 application details, full M9T.9162 or AZF markings, straight flange, pinion and terminal photographs, quantity and delivery destination to info@elecdurauto.com. Elecdura will compare the required 5.5kW version and return wholesale pricing and lead time.
