M009T65571 MAN D2066LF63 Starter Motor Wholesale

M009T65571 MAN D2066LF63 Starter Wholesale for Fleets

Long-haul and regional MAN fleets need a replacement description that works for the workshop, purchasing office and remote depot. The chassis details, D2066LF63 engine identity, old-unit numbers and required date should be collected before quantity and delivery terms are set.

This 12T starter uses an Ø144 three-hole circle, while another MAN Mitsubishi family nearby uses a different face diameter. Teeth, voltage and power alone cannot separate them, so the flange measurement must remain visible in the stock description.

M009T65571 12T Starter Geometry for Distributor Checks

Define M009T65571 as 24V, 5.5kW, 12T, module 3 and CW. Pairing that line with the D2066LF63 engine and Ø144 face gives purchasing and receiving teams a practical way to identify the correct MAN product.

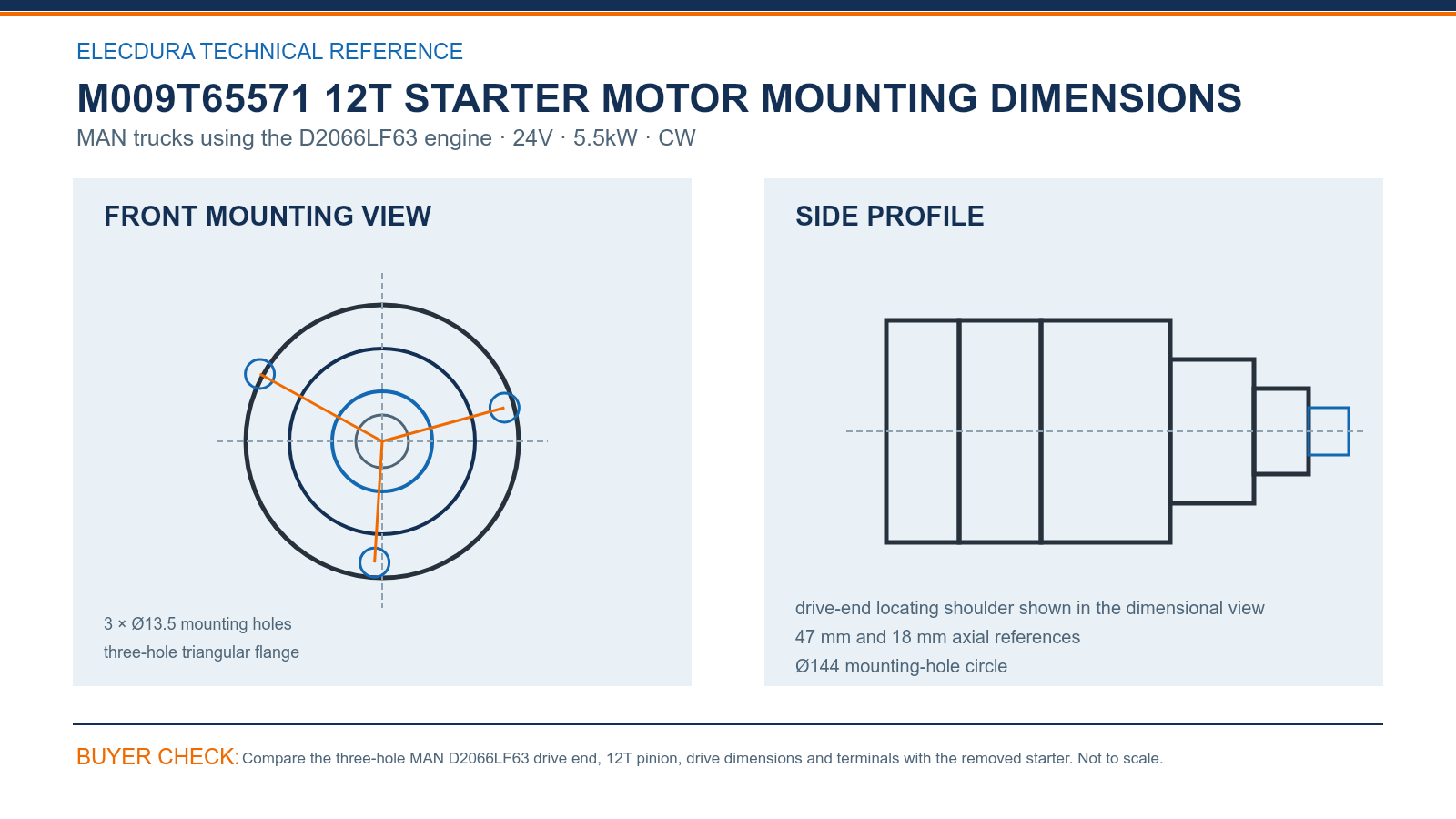

Compare three Ø13.5 holes on the Ø144 mounting circle and the 47 mm and 18 mm axial references. The locating shoulder and terminal arrangement should also match the removed starter through straight face and side photographs.

M009T65571 MAN OE Matching for Commercial-Vehicle Buyers

MAN numbers 51.26201-7238 and 51.26201-9238, along with M9T65571, LRS04121, 30321N and STR71315, broaden sourcing. Keep the D2066LF63 engine and Ø144 face beside those references on every enquiry.

Fleet groups operating several MAN engine generations should allocate this version only to confirmed D2066LF63 vehicles. A separate accepted image set for each starter family prevents a shared 24V 5.5kW description from becoming a misleading warehouse shortcut.

M009T65571 Truck Starter Receiving and Replenishment

Incoming inspection should count twelve teeth and examine all three Ø13.5 holes, the locating shoulder, terminal positions, label clarity and carton support. Retain one accepted unit's face and side images before distributing stock among fleet depots.

Elecdura's video shows starter assembly and electrical testing for commercial supply. MAN distributors can use it while agreeing on electrical sampling, heavy-unit packaging, lot labels, private branding and replenishment schedules across multiple service locations.

M009T65571 Starter FAQs for MAN D2066LF63 Buyers

What ties M009T65571 to the MAN D2066LF63 engine?

The D2066LF63 engine identity must accompany the 24V 5.5kW 12T module-3 specification and Ø144 three-hole face. Together they distinguish M009T65571 from another MAN starter with a similar output. Chassis details and removed-unit photographs make the fleet match more dependable; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

Why must the Ø144 mounting circle be recorded?

Another MAN Mitsubishi starter uses a nearby but different mounting circle, so Ø144 is a practical separator. Record the three Ø13.5 holes and 47 mm axial reference with it. Keeping these measurements visible protects mixed fleet stock from being combined under voltage and power alone.

How do 51.26201-7238 and 51.26201-9238 support purchasing?

The MAN numbers are strong search and purchasing references for M009T65571. Use the complete number from the old unit, then add D2066LF63, the 12T drive and Ø144 face. This gives suppliers and receiving staff the same technical boundary for the order; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

What should buyers compare when the locating diameter is not labeled?

Compare the locating shoulder directly with a square photograph and the removed starter, even though no diameter is printed in the dimensional view. The three Ø13.5 holes, Ø144 circle, 47 mm and 18 mm positions, pinion and terminals provide additional fixed checkpoints; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

How can a MAN fleet manage this starter across depots?

Create one accepted image set and product description for M009T65571 D2066LF63 stock. Allocate quantity by vehicle population and replenishment time, then use the same label at each depot. Transfers should carry the Ø144 face image so the destination can verify the unit; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

Which features should receiving staff check first?

Count twelve teeth, inspect all three Ø13.5 holes, examine the locating shoulder and compare terminal positions with the accepted sample. Check label clarity, sampled electrical performance and carton support. Record the lot before it is divided among workshops or customer orders; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

What electrical conditions can cause a false no-start diagnosis?

Low battery capacity, corroded grounds, positive-cable voltage drop, relay faults and poor terminal contact can prevent normal cranking. Test the circuit under load before replacing the starter. Keep the readings with the MAN chassis and engine details for later service review; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

Which documents and images improve an M009T65571 quotation?

Provide the MAN chassis, D2066LF63 engine plate, exact OE and Mitsubishi numbers, front and terminal photographs, quantity, destination, packing request and need-by date. These items let Elecdura evaluate the Ø144 version and return wholesale pricing with a realistic shipment schedule; keep this point with future M009T65571 orders for MAN trucks using the D2066LF63 engine.

Request M009T65571 MAN Starter Motor Wholesale Pricing

Send the MAN chassis details, D2066LF63 engine information, complete old-starter numbers, face and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will verify M009T65571 and provide wholesale pricing, lead time and packing choices.
