RE537519 John Deere 4045 6068 6090 24V 7.5kW Starter Motor Wholesale

RE537519 John Deere 4045 6068 6090 Starter for Machinery Buyers

John Deere machinery importers may encounter RE537519 together with several RE, SE and Denso numbers. Keeping the host machine, engine family and 7.5kW requirement together gives the quotation enough detail for a heavy-equipment order rather than a broad Deere starter request.

The 4045 and 6068 engines also appear with lower-output starters. Confirm 7.5kW, the 10T module-3.175 drive, three Ø11.5 holes, Ø127 face and terminal arrangement before this RE group is used for 4045, 6068 or 6090 stock.

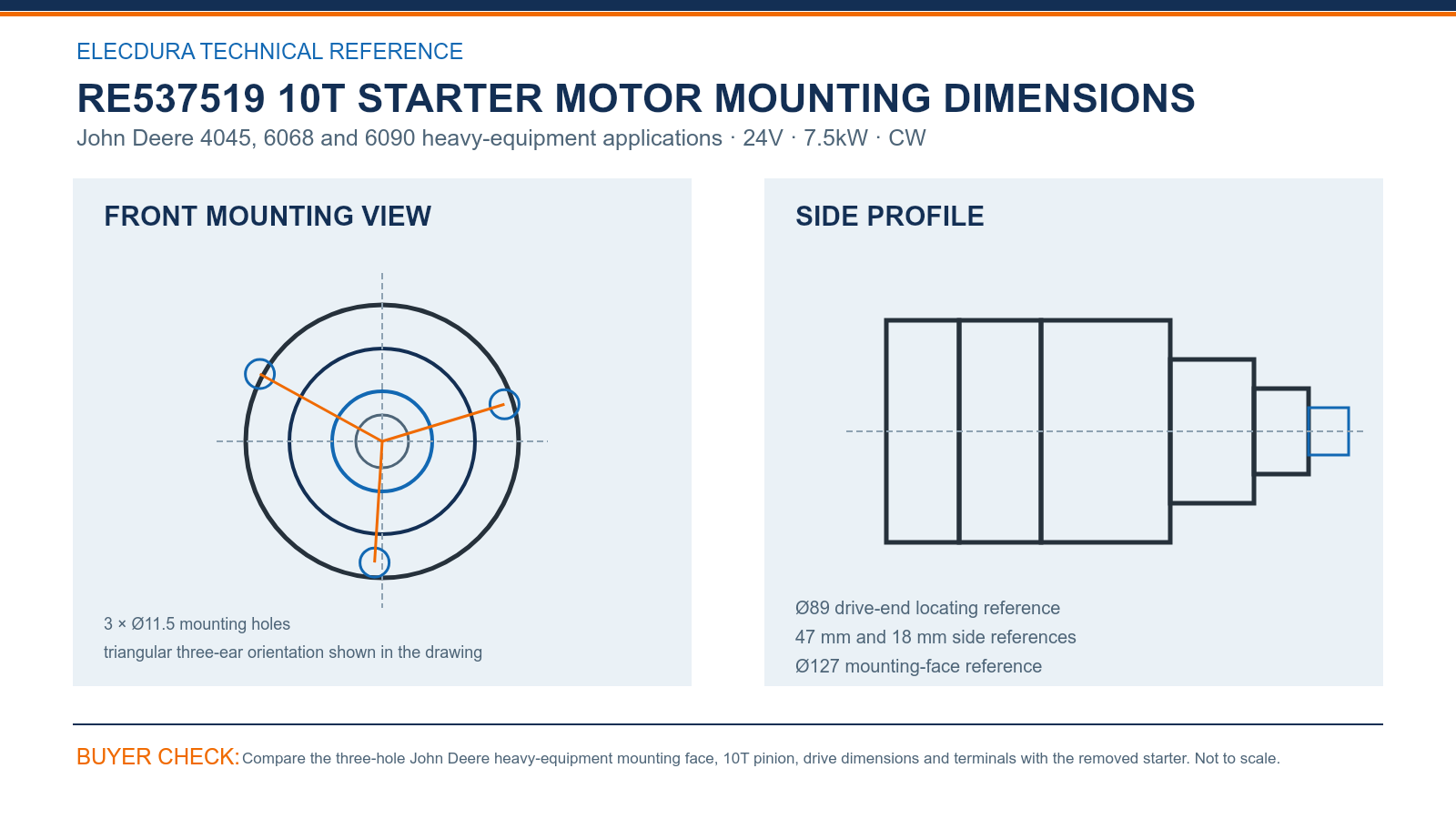

RE537519 24V 7.5kW Starter Motor Technical Drawing and Data

This high-output product combines 24V, 7.5kW, 10T, module 3.175 and clockwise rotation. Writing the complete specification on RFQs and purchase orders protects the intended cranking platform and prevents an engine-family match from overriding the output difference.

RE537519 John Deere Starter Motor Dimensions for Equipment Supply — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare three Ø11.5 mounting holes, the Ø127 face, Ø89 locating reference and the 47 mm and 18 mm side positions. One parallel flange image and one uncropped terminal-side view give receiving staff a repeatable physical reference.

RE537519 Deere OE Group and High-Output Fitment Checks

The search group includes RE537519, RE539695, RE548693, RE549230, SE502559, SE502823, 428000-6900, 428000-6901, 428000-9920, 16014N, S6428S and S-80629. Keep the exact number and engine on each order line.

A fleet supporting several Deere engines can combine purchases after old units share the high-output rating and measured drive end. Separate 4045, 6068 and 6090 consumption in the forecast so reserve stock and branch transfers remain traceable to actual machine demand.

RE537519 Starter Motor Support for Heavy Equipment Fleets

First-lot checks should cover the 10T pinion, three mounting ears, locating face, terminal protection and sampled electrical test. Strong inner supports are important for this heavy starter, particularly when units travel directly to remote construction or agricultural branches.

The video below introduces Elecdura starter-motor assembly and electrical testing for international orders. Deere buyers can use it while agreeing on sampling, shipment-lot identification, packing strength and delivery planning for the RE537519 high-output line.

RE537519 Starter Motor FAQs for B2B Buyers

Can one RE537519 line serve 4045, 6068 and 6090 demand?

Yes, after the removed units from each engine group share the 24V 7.5kW 10T configuration and the same three-hole drive end. Keep quantities separated by 4045, 6068 and 6090 in the forecast. That preserves machine-level demand while allowing a consolidated RE537519 purchase and clearer branch allocation.

Why should every RE and SE suffix be written in full?

RE537519 sits in a long group containing RE539695, RE548693, RE549230, SE502559 and SE502823, plus several Denso numbers. Complete suffixes help purchasing search the correct family and trace the source enquiry. Pair them with the engine, 7.5kW rating and photographs so a shortened John Deere code does not broaden the order.

What makes RE537519 the high-output John Deere option here?

The defining set is 24V 7.5kW, 10T, module 3.175 and clockwise rotation. Lower-output starters also appear on 4045 and 6068 engines, so application wording cannot replace the rating. Show 7.5kW on the RFQ and warehouse label, then confirm the measured flange before quantities are combined.

Which RE537519 dimensions should match the removed starter?

Compare three Ø11.5 mounting holes, the Ø127 face, Ø89 locating diameter and the 47 mm and 18 mm side references. The old unit should be photographed square to the flange and uncropped from the terminal side. Those views help identify the high-output housing before a heavy starter travels to a remote machine.

How should RE537519 be packed for construction-equipment supply?

Use firm shaped supports beneath the body and drive end, protect the ten-tooth pinion and terminal studs, and prevent movement inside the carton. High-output starters are heavy enough to damage their own flange during rough handling. Mark RE537519 and the Deere engine group clearly for jobsite or branch receiving.

What checks help diagnose slow cranking before replacing RE537519?

Test both 24V batteries, measure voltage drop on positive and ground paths during cranking, inspect cable terminals and verify the start signal. Record engine temperature and starter behavior. These readings help a fleet workshop identify resistance or battery weakness that could otherwise be mistaken for a problem with the 7.5kW unit.

How should branches forecast RE537519 across three Deere engines?

Record 4045, 6068 and 6090 consumption separately by machine group, then add planned maintenance and reserve quantities. Use one confirmed RE537519 item only where 7.5kW and the three-ear geometry agree. Engine-level forecasting reveals which branches create demand while still supporting a combined wholesale shipment by region.

What should buyers email for an RE537519 supply proposal?

Include the Deere machine and engine, complete RE, SE or Denso number, readable rating label, front, pinion and terminal photographs, quantity by engine family, delivery destination and packing need. Elecdura can review the 7.5kW configuration and return quantity pricing, lead time, shipment choices and suggested carton identification.

Request RE537519 John Deere High-Output Wholesale Pricing

Email the John Deere machine, 4045, 6068 or 6090 engine details, complete RE or Denso number, front, pinion and terminal photographs, quantity by engine group and destination to info@elecdurauto.com. Elecdura will review the 7.5kW starter and return wholesale pricing, packing and lead time.
