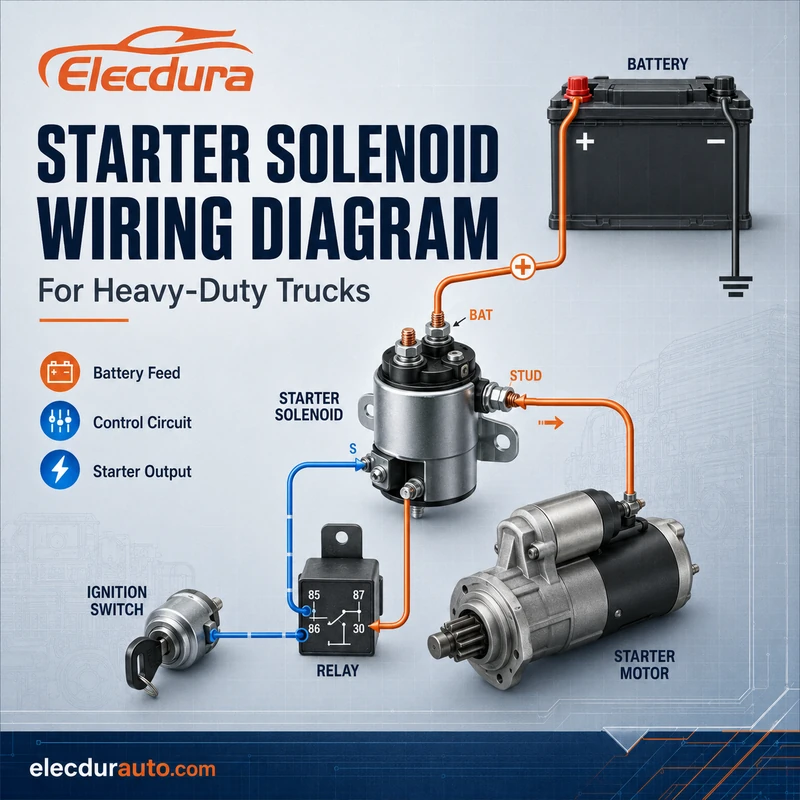

Read a starter solenoid wiring diagram by function, not by the position of its studs. Identify the main battery supply, motor output, actual return path and vehicle start-enable connection. Then establish whether the vehicle command goes to the solenoid itself or to an Integrated Magnetic Switch (IMS) or Smart IMS. Those control inputs are not interchangeable.
Heavy-duty systems may use 12 V or 24 V, grounded or insulated returns, a separate relay, electronic start authorization and over-crank protection. A generic passenger-car diagram cannot establish the connections on a truck, bus or off-highway machine. This is a circuit-reading guide for qualified technicians and buyers, not a universal installation drawing, jumper procedure or terminal-torque specification.
Use the Elecdura heavy-duty starter range to organize an inquiry after the removed-unit identity and installed wiring architecture are known. A model-family name or cross-reference number alone does not approve a replacement.
The vehicle control path may include the start switch, transmission or clutch interlock, engine controller, a separately mounted relay and a starter-mounted control module. Its endpoint depends on the fitted design. On a conventional direct-solenoid circuit, the command energizes the solenoid winding arrangement. With IMS or Smart IMS, the vehicle command first reaches the appropriate module input, which is distinct from the solenoid's own switch connection.
For a conventional pre-engaged starter, magnetic force moves the plunger and drive mechanism and closes the main contacts. Pull-in and hold-in arrangements vary. Do not use a simplified coil drawing to infer the internal path of every starter family.
The main contacts connect battery supply to the motor circuit during intended operation. The high-current return may pass through the starter housing and engine bonding or a dedicated insulated negative terminal. Battery condition, cable losses, engine load and the starter itself all affect cranking performance.
Hearing a click does not prove that the motor received adequate power. Equally, no click does not establish a failed motor: the command, module, winding, return path or an active protection state may be responsible. Keep the command path and the motor path separate while tracing the fault.
Function to identify | Typical label or location | What the exact diagram must establish |
|---|---|---|
Main battery supply | B, BAT or B+ | Battery cable and any approved distribution connections; treat as live unless the supply is isolated and verified |
Motor-side connection | M or MOT; sometimes a factory strap | The connection downstream of the main contacts, not an alternative battery stud |
Vehicle start command | Start-enable input; labeling varies | Whether it terminates at a direct solenoid, IMS input or Smart IMS input |
Solenoid switch connection | S or switch input on the identified solenoid | Its relationship to the vehicle command and any intervening module output |
Return path | Housing/bonding or an insulated negative terminal | The correct motor and control returns; do not assume a mounting bolt supplies every required ground |
Auxiliary or reference function | R, I, reference terminal or dedicated connector | The maker-assigned function; a spare small terminal is not permission to bridge it |
Protection or control connection | OCP or module-specific wiring | The exact installed protection architecture and approved replacement instructions |
This table names functions; it does not assign pin numbers, cable colors or stud positions to a particular vehicle. Confirm markings against the unit's label and service diagram. Large studs can have different roles, and similarly sized small terminals can carry different signals.
Delco Remy's IMS instruction sheet 10513665, marked 08FE24 C, distinguishes IMS input from its lead to the solenoid switch terminal. In the covered add-on arrangement, the command previously reaching the solenoid instead reaches the IMS input. The separately mounted magnetic switch remains in the circuit. Adding IMS is therefore not a general instruction to remove the vehicle relay.
When recording a measurement, name the physical endpoint: for example, “vehicle command at fitted IMS input” rather than simply “S voltage.” That avoids confusing a missing vehicle command with a failed module output or solenoid connection. Use the applicable manufacturer test sequence to investigate either side.
Smart IMS sheet 61006823, 12Apr18 Rev 2, excludes conversion where the old IMS has dual vehicle-controller inputs. It also distinguishes case-grounded and isolated-ground arrangements. The documented protection behavior includes low-voltage lockout, re-engagement protection and cranking/cool-down control, which can be mistaken for faults.
This remains a dated, application-specific instruction, not proof that every member of a named starter family is eligible for conversion. Confirm the current approved kit, vehicle-controller interface and installation instructions. Do not copy its connector, ground or protection changes into an unrelated harness.
Document any over-crank device and its relationship to the command and return paths. A protection circuit is part of the configuration, not surplus wiring. An unresolved no-crank condition is a reason to check the actual architecture and operating state, not to jumper an unknown input or defeat an interlock.
Before disturbing wiring, isolate the system using the vehicle procedure and verify it is safe. Photograph the installed starter and label conductors by their function and endpoint. Record stacked lugs, protective boots, clamps and existing connections without assuming that an earlier repair was correct.
Battery-bank voltage, disconnects and series/parallel arrangement.
Complete starter label, system voltage, polarity and installed application.
Module identity and whether the vehicle command is single-input or another architecture.
Terminal names at both ends, connector pin references and approved cable routing.
Case or insulated return, engine-to-frame bonding and battery interconnects.
Interlocks, relay, controller, OCP and any reference or auxiliary connections.
A useful schematic lets a second technician trace the actual command and current paths. It should show the source document and revision, not merely a picture of a starter. If label, diagram and installed wiring disagree, preserve the conflict and resolve it before connecting a replacement.
Names such as 39MT and 42MT narrow the search but do not define voltage, polarity, solenoid clocking, terminals or protection. The mechanical match also needs separate confirmation of mounting, pinion and engagement. This wiring guide does not approve a product for an engine simply because both references mention 39MT.
Verify battery condition before interpreting a low command or cranking voltage. Resistance that is difficult to judge with a handheld ohmmeter can produce a substantial loss at cranking current. Record loaded positive and negative cable drops using the appropriate procedure, rather than accepting clean-looking terminals as proof.
Delco Remy's voltage-drop guidance identifies cable sizing, damaged or loose connections and corrosion as practical causes. This guide does not transfer one test current or voltage-drop threshold to every 12 V and 24 V starting system.
For a direct-solenoid arrangement, the service procedure may measure the solenoid command relative to its specified return. For IMS-equipped hardware, the vehicle-side input must be distinguished from the solenoid-side connection. Record battery voltage and the relevant input voltage during the same event, along with the module and return point used.
A relay click with weak voltage downstream can indicate a control-path loss. A valid module input without the expected output needs the appropriate module, supply, return and protection checks. Neither observation justifies moving the vehicle wire onto a different small terminal.
For a simple conventional circuit, B+ may remain supplied while the start command is inactive outside START. On controller-managed systems, authorization and protection affect the command and response. Record the actual expected state from the service diagram; do not assume every output must energize whenever the key is held in START.
The heavy-duty starter solenoid testing guide is a component-level follow-up after the vehicle path is established. It does not replace the wiring identity check.
Finding | Next action | Do not assume |
|---|---|---|
Vehicle start-enable signal absent at the confirmed endpoint | Investigate upstream authorization, interlocks, relay, wiring and supply with the vehicle procedure | That the starter motor itself is defective |
Command present but too weak under the specified test condition | Compare the battery and return condition, then localize control-path loss | That an unloaded voltage reading proves the circuit can operate the fitted device |
Module input present but expected actuation absent | Check the exact module's supply, return, output and permitted operating state | That bridging the module is an acceptable repair |
Main contacts operate but cranking is weak or absent | Separate battery/cable losses, starter condition and engine or engagement problems | That hearing a click proves motor-circuit performance |
Replacement differs in polarity, module input, protection or unexplained terminals | Hold installation and reconcile the proposed replacement with approved service information | That a family-name match permits harness adaptation |
Reversed main studs: B and M are not interchangeable because both are large. Establish their functions from markings and the identified assembly. A wrong connection can defeat the intended motor and engagement sequence.
Unknown-terminal jumpers: bridging can bypass start authorization or cause unexpected engine movement. This article provides no universal jumping or remote-start procedure.
Wrong return strategy: an insulated starter and its control equipment need the specified return connections. Small control wires or incidental bracket contact must not be treated as substitutes for the motor return.
Unsupported cables: engine vibration and cable mass can loosen studs, rotate lugs into grounded metal or damage insulation. Follow the approved routing, strain-relief and fastening requirements; the terminal is not a harness support.
Mixed voltages or protection: matching the starter's appearance does not establish coil, module or battery-bank compatibility. Do not try to compensate for a 12 V/24 V mismatch by rewiring an unidentified unit.
After commissioning, retain the marked circuit, terminal photographs, battery result, measured drops and input/output observations. Record the source of each acceptance limit and the exact fitted starter and module. Any torque record must come from the applicable instructions, not a generic value borrowed from another terminal or family.
For incoming inspection, compare the ordered configuration with the label, polarity, terminal functions, module, protection and physical interfaces. A changed connector or unexplained lead is a technical hold until supported; packaging or an OE number does not settle the wiring question.
Use accurate product language. A brand reference can assist matching but does not prove genuine origin, authorization or a quality grade. Where established, describe the product as an aftermarket replacement and state its actual condition. Send the old-unit label, verified diagram, terminal and module photographs, application, voltage, polarity and required quantity through the Elecdura contact page for configuration review.
No. Identify whether the installed circuit uses direct solenoid control or an intervening module. The vehicle command endpoint and the solenoid switch connection may be different points. Confirm both on the specific diagram.
Not under the covered arrangement in Delco sheet 10513665: that relay remains upstream. Do not remove a vehicle control component because the replacement starter also carries a switch.
No. Sheet 61006823 expressly excludes that conversion. Hold the replacement until the approved controller and starter combination is established.
The sound does not prove the motor has adequate supply and return, or that the identified control output operated correctly. Test the battery, loaded main path and actual control endpoint before deciding which component failed.
No. Case-grounded and insulated-return configurations differ, and the module's required return must also be established. Use the diagram for the actual unit rather than assuming that physical mounting supplies every ground.
No. Confirm the exact assembly, terminal, voltage and current service instructions. This guide intentionally does not publish a universal torque table or voltage threshold.
A useful starter wiring diagram separates control from cranking power and distinguishes the vehicle command from any module or solenoid input. Confirm the exact architecture, preserve protection, and verify the identified paths under the relevant conditions. Do not make an unverified replacement fit the diagram by moving cables or bypassing controls.
