24V Heavy Duty Starter Relay with 2-Pin Control Connector

24V starter relay Universal Heavy duty starter relay Supplier for B2B Replacement

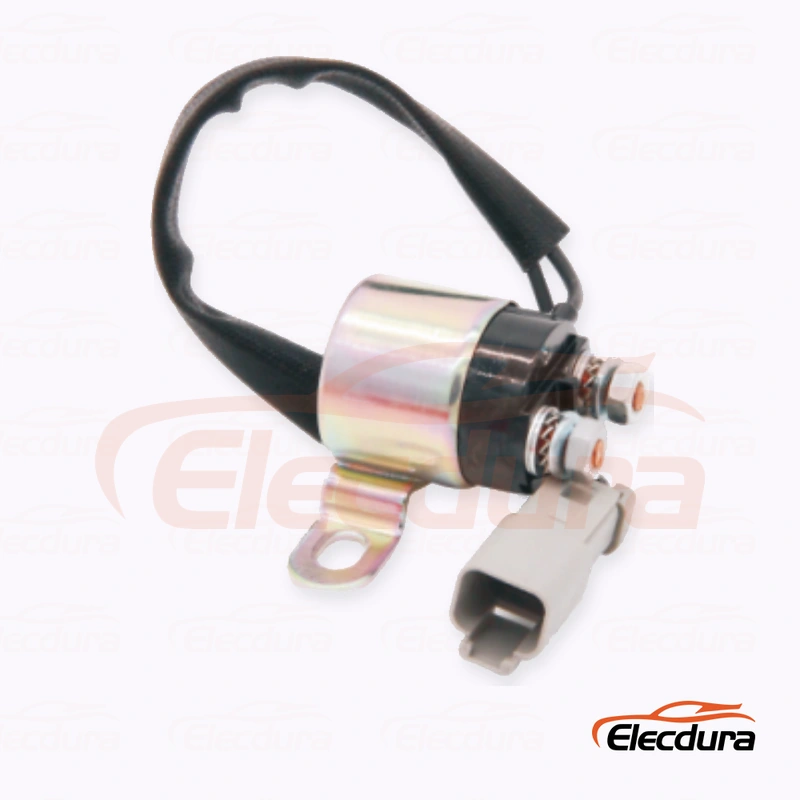

This 24V heavy duty starter relay combines two high-current studs, a bracket mount and a sealed 2-pin control connector. The source catalog does not provide an OE number, so buyers should compare terminal size, bracket angle, connector keying and circuit duty with the removed relay.

24V starter relay Heavy duty starter relay Specifications for Wholesale Buyers

24V starter relay Replacement Matching Guide for Equipment Parts Buyers

Use the complete evidence set below to prevent a visually similar but electrically or functionally different part from entering a fleet or distributor order.

24V starter relay Service Diagnostics Before Solenoid or Relay Replacement

Separate electrical command, component movement and final machine response. This avoids replacing a good part when wiring, contamination, linkage or control logic is the actual fault.

B2B Order Approval Checklist for 24V starter relay

24V starter relay Heavy duty starter relay Technical FAQ

How should the voltage of 24V starter relay be confirmed?

Use the old relay marking and measure control voltage during the actual start or stop command. Battery count alone can be misleading when converters, earlier wiring changes or mixed-voltage fleets are present. Keep voltage on the order line and carton label so 12V and 24V units cannot be mixed in the warehouse.

What is the difference between the control circuit and main relay circuit?

The small connector or control terminal energizes the coil, while the large studs or output contacts carry the controlled current. Diagnose these paths separately. Normal control voltage does not prove that worn main contacts can carry load, and good main cables do not prove that the control signal reaches the coil.

What causes a heavy duty relay to chatter?

Chatter usually points to low coil voltage under load, poor ground, loose connector terminals or an unstable controller signal. Measure voltage while the relay is commanded and inspect crimp resistance, corrosion and bracket grounding where applicable. Repeated chatter can damage contact surfaces and should be corrected before a new relay is installed.

Why must terminal layout and bracket orientation match?

A relay can share the same voltage yet place the main studs, control connector or mounting foot in another position. Cable strain, accidental contact and limited enclosure clearance can result. Compare a straight-on terminal view, stud size, bracket hole centers and installed angle with the removed assembly.

What should be tested when the relay clicks but the machine does not respond?

Check voltage drop across the main contacts while the circuit is loaded, then inspect downstream cables, the controlled solenoid or starter and the mechanical linkage. A click confirms coil movement only. It does not confirm low-resistance current transfer through the power contacts.

Can another relay with the same voltage be used?

Voltage is only the first filter. Contact rating, duty cycle, terminal arrangement, connector, bracket, suppression device and control logic must also agree. For shutdown circuits, confirm whether the relay energizes to run or energizes to stop because the wrong logic can prevent starting or shutdown.

What should a distributor include in the RFQ?

Provide the complete reference when available, voltage, equipment model and serial number, terminal photos, bracket dimensions, cable orientation, required quantity and destination. For unnumbered relays, include contact duty and a wiring diagram or measured terminal functions. This evidence supports a controlled sample approval before volume supply.

Request a Bulk Quote for 24V starter relay Heavy duty starter relay

Send the complete reference or old-unit evidence, confirmed voltage, machine information, clear photos, dimensions and required quantity for a fitment-focused B2B quotation.24V starter relay Universal Heavy duty starter relay Supplier for B2B Replacement

This 24V heavy duty starter relay combines two high-current studs, a bracket mount and a sealed 2-pin control connector. The source catalog does not provide an OE number, so buyers should compare terminal size, bracket angle, connector keying and circuit duty with the removed relay.

24V starter relay Heavy duty starter relay Specifications for Wholesale Buyers

24V starter relay Replacement Matching Guide for Equipment Parts Buyers

Release the starter relay from its 24V coil, sealed 2-pin control plug, main-stud dimensions, bracket position and high-current cable routing.

24V starter relay Service Diagnostics Before Solenoid or Relay Replacement

For a no-crank condition, compare the 2-pin control signal, contact voltage drop, battery cables, starter input and ground path under load.

B2B Order Approval Checklist for 24V starter relay

24V Heavy Duty 2-Pin Starter Relay Technical FAQ

How can a 24V starter relay be identified without an OE number?

Use the complete physical and electrical configuration: 24V coil marking, two high-current studs, sealed 2-pin control connector, bracket dimensions and installed cable orientation. Record stud thread, body size and connector keying from the removed relay. One approved sample should be linked to the intended starting circuit before any bulk quantity is released.

What roles do the 2-pin connector and main studs perform?

The sealed 2-pin connector carries the low-current control and return path for the relay coil, while the two large studs switch current to the starter circuit. Diagnose both paths separately. Correct control voltage can energize the coil even when damaged main contacts cannot carry load, and healthy power cables cannot compensate for a missing control command.

Why can the relay click while the starter does not crank?

A click shows that the magnetic mechanism moved, but it does not confirm low-resistance contact closure. Measure voltage drop across the main studs during a crank request, then inspect battery connections, cable lugs, starter input and grounds. Worn contacts or high cable resistance can consume the available voltage under heavy load.

What causes hot studs or discolored cable lugs on a starter relay?

Loose torque, damaged threads, undersized lugs, corrosion or worn internal contacts create resistance and heat during cranking. Inspect both mating surfaces and measure voltage drop under load. Replacing the relay without repairing a poor cable termination can quickly damage the new studs and leave the 24V starting system unreliable.

Why should bracket orientation and cable clearance be approved together?

High-current cables are stiff and can load the relay body when stud locations or bracket angle change. Check clearance from covers, grounded metal, heat and moving parts, along with the bend radius of each cable. A mechanically forced installation may loosen terminals or compromise insulation even when the relay functions during an initial test.

Which incoming checks suit high-current starter relay orders?

Verify 24V marking, 2-pin connector key, stud size, bracket geometry and protective terminal hardware against the approved sample. Sampled units should receive a controlled coil test and contact continuity check, followed by a load or voltage-drop test where suitable equipment is available. Keep lot traceability and prevent impact damage to studs during storage.

Request a Bulk Quote for 24V starter relay Heavy duty starter relay

Send the 24V marking, connector and stud photographs, bracket measurements, starting-circuit duty, cable orientation, quantity and destination for quotation.
