28231270
28231270 / 28231272
OE-Equivalent Replacement Quality
IATF 16949 / ISO 9001 / CE / RoHS
50 pcs
7 - 15 Days
12 Months
28231270 / 28231272
Kato HD800, HD900, HD250, HD450B and related excavators with confirmed relay marking
Confirm voltage, control logic, terminal layout, bracket and contact duty before installation.
| Availability: | |
|---|---|
| Quantity: | |

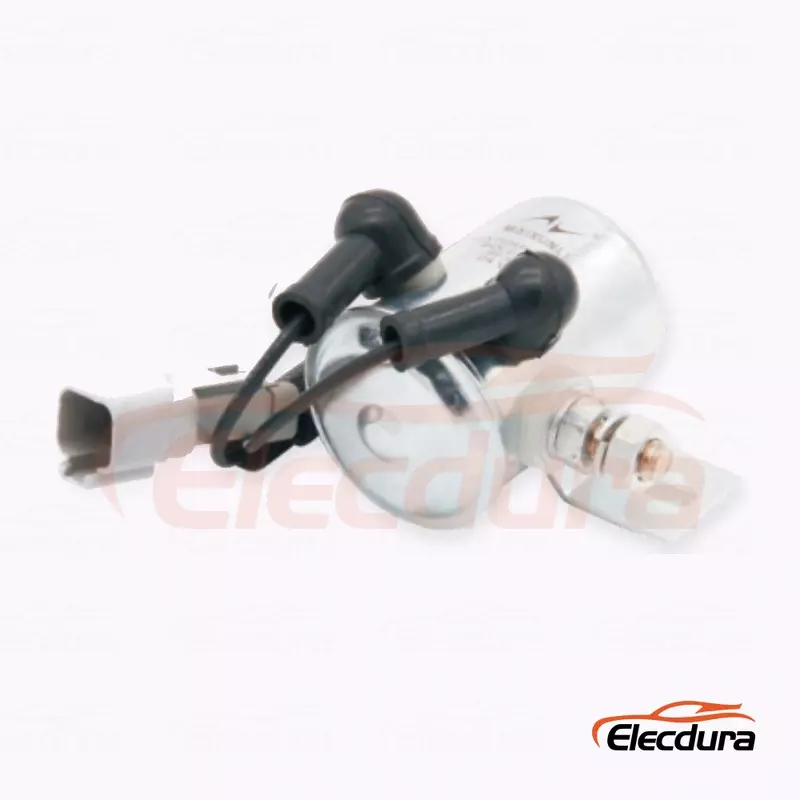

28231270 and 28231272 are catalogued as 12V and 24V stop relay variants for Kato excavator service. Keep voltage-specific order lines separate and compare the mounting foot, connector, linkage attachment and operating movement with the removed relay assembly.
Item | Confirmed Information |
Product Type | Diesel stop relay |
OE / Reference Numbers | 28231270 / 28231272 |
Voltage | 12V and 24V catalog variants |
Application Scope | Kato HD800, HD900, HD250, HD450B and related excavators with confirmed relay marking |
Electrical Version | 12V and 24V catalog variants |
Control Function | Diesel stop control relay |
Catalog Applications | Kato HD800, HD900, HD250 and HD450B |
Approval Method | Old label, voltage, mounting and linkage comparison |
MOQ | 50 pcs |
Delivery Time | 7 - 15 Days |
Warranty | 12 Months |
Control Kato relay selection through the 28231270 or 28231272 marking, measured voltage, terminal arrangement, mounting bracket and engine-stop circuit logic.
Approval Point | Buyer Review |
Reference Control | 28231270 / 28231272 |
Electrical Control | 12V and 24V catalog variants; verify at the connector under command |
Mechanical Fit | Compare terminals, bracket, connector and cable clearance |
Functional Control | Confirm control logic, contact duty and circuit function |
Application Evidence | Kato HD800, HD900, HD250, HD450B and related excavators with confirmed relay marking |
If a Kato excavator will not stop, distinguish the relay command, loaded contact output and downstream shutdown-solenoid movement before assigning the fault.
Observed Situation | Recommended Check |
No click | Check control voltage, ground, connector and coil continuity during command. |
Clicks but no output | Measure voltage drop across the loaded main contacts and inspect downstream cables. |
Rapid chatter | Check low voltage under load, loose terminals and unstable controller output. |
Hot terminals | Inspect stud torque, cable lugs, contact rating and sustained duty. |
Wrong circuit response | Confirm energize-to-run or energize-to-stop logic before replacement. |
Approval Item | Required Information |
Old Part Evidence | Complete label, connector face, mounting or cartridge side and one installed view |
Machine Evidence | Kato HD800, HD900, HD250, HD450B and related excavators with confirmed relay marking |
Measurements | Stud size, bracket holes, connector orientation and cable clearance |
Electrical Evidence | 12V and 24V catalog variants; measured under the actual command |
Commercial Evidence | Quantity, destination, packing, labeling and inspection requirements |
Read the voltage marking on the removed 28231270 or 28231272 relay and measure control voltage during the actual stop command. Do not infer voltage only from battery arrangement because converters or prior wiring changes may exist. Keep the confirmed voltage on the purchase order, carton label and receiving record to prevent mixed stock.
A correct reference narrows selection, but terminal size, control connection, bracket position and internal contact arrangement still determine installation and function. Compare all terminal markings and cable locations on the Kato machine. A relay with matching voltage and a similar housing may create cable strain or incorrect stop logic when the terminal pattern differs.
Measure voltage drop across the loaded relay contacts and check output at the shutdown solenoid while the stop command is active. Inspect cable lugs, grounds and downstream wiring for resistance. A click confirms coil movement, not reliable current transfer. The shutdown solenoid and mechanical fuel-control movement should also be tested before replacing the relay again.
The wrong control logic can prevent starting, defeat shutdown or hold the fuel-control device in the opposite state. Compare the removed relay's terminal designations and the Kato wiring arrangement before commissioning. After installation, perform controlled start and stop tests with the machine secured so unexpected engine operation does not create a safety hazard.
Maintain a configuration record by machine model, serial number, relay reference, voltage and terminal photograph. Do not pool all Kato stop relays under one warehouse description. Link each approved sample to the matching wiring and bracket arrangement, then use separate stock locations or clear labels for 12V and 24V variants.
Check the reference marking, rated voltage, terminal pattern, stud condition, bracket dimensions and connector security against the approved sample. Sampled units can be energized at the rated control voltage to confirm clean operation, followed by continuity or voltage-drop checks across the contacts. Record lot identity and keep protective covers on high-current terminals during storage.
Include the relay reference, confirmed 12V or 24V version, Kato model and serial number, terminal photograph, bracket dimensions and requested quantity.
