Diesel Control Actuator RP2309B RP2310B for Murphy RP2309B and RP2310B rack-control systems

RP2309B Diesel Engine Control Actuator

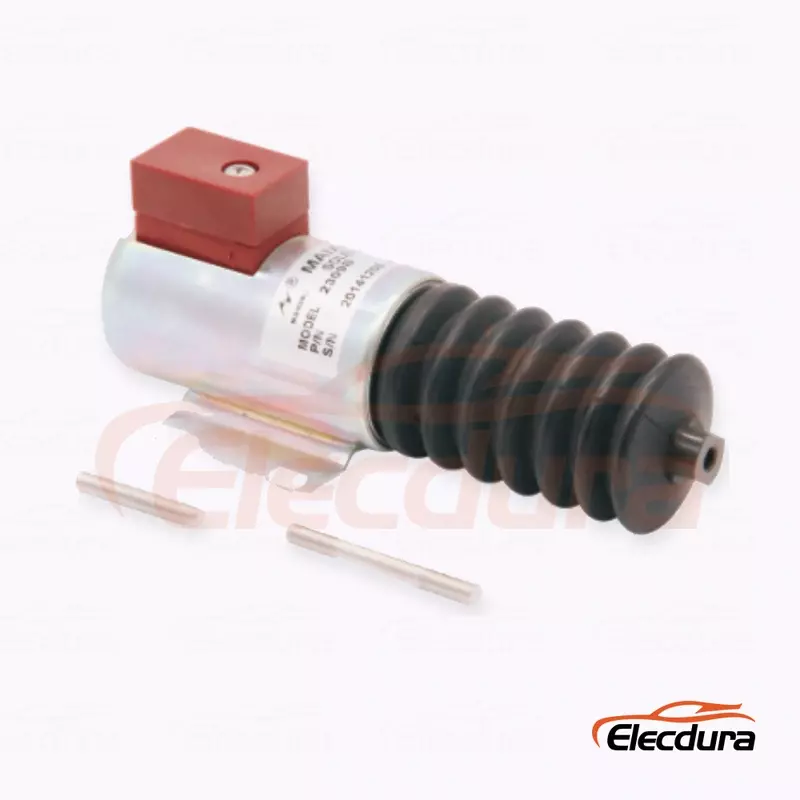

RP2309B is an actuator-style solenoid for Murphy RP2309B and RP2310B rack-control systems. Selection requires the complete reference, voltage, energized direction, stroke, mounting and control method. A motor or solenoid can energize yet fail in service when preload or linkage geometry prevents the commanded travel.

RP2309B Product Information

Control Direction and Stroke Approval for RP2309B

Match the complete stamped reference because voltage, winding, mounting, terminals, output geometry and duty can differ within the same family.

Separating Actuator, Wiring and Linkage Faults

Check the electrical command, component response and final mechanical movement as separate observations. This prevents a wiring, control-module or linkage fault from being mistaken for a failed replacement part.

RP2309B Replacement Approval Checklist

Release the order only after electrical, mechanical and application evidence agrees with the removed assembly.

RP2309B Technical FAQ

How should the voltage versions of RP2309B be separated?

Keep the complete voltage-specific reference and old-unit marking on every order line. Similar housings do not make different coils interchangeable. Measure system voltage at the original connector during operation, then label inventory by both OE and voltage so mixed fleets cannot receive the wrong electrical version.

What should be checked on Murphy RP2309B and RP2310B rack-control systems before ordering RP2309B?

Use RP2309B / RP2310B / 40700094 as the first control, then compare the old label, voltage, connector face, mounting-hole centers, output end and operating direction. Record the engine or machine model and serial number, but do not use the model name alone because production changes can introduce another shutdown arrangement.

How is energized-to-run different from energized-to-stop?

An energized-to-run actuator must remain powered while the engine operates; an energized-to-stop unit receives power only for shutdown. Confirm the original control logic because the wrong mode can create a no-start condition, uncontrolled return or continuous coil heating.

Why should installed preload be measured for RP2309B?

Excess preload can prevent full travel and force the actuator against a mechanical stop; too little can leave insufficient lever movement. Record the resting output position, commanded stroke and lever endpoints with the original actuator installed.

What does actuator movement without machine response indicate?

Electrical movement is only the first step. Inspect the clevis, rod, cable or lever for free play, loose hardware and incorrect adjustment. Confirm that the controlled lever reaches both endpoints while the actuator completes its own travel.

What should be compared with the removed RP2309B assembly?

Compare the full label, voltage, connector face, terminal count, mounting-hole centers, body orientation, output end, resting length and working travel. Include one wider installed photo showing pump, lever or surrounding clearance because close product images can hide the geometry that decides fitment.

How can repeat electrical or coil damage be prevented?

Correct the original failure cause before installation. Check supply voltage, pull/hold timing, linkage resistance, mechanical stops, terminal tightness, heat and moisture exposure. A new unit can fail quickly when the high-current stage remains energized or the output cannot complete its designed stroke.

Request a Quote for RP2309B

Send the complete reference group, confirmed voltage, Murphy RP2309B and RP2310B rack-control systems, removed-part photos, measurements and order quantity for a fitment-focused B2B quotation.
