Diesel Control Actuator HD90205981 0300-12E2LS3 for JLG 450AJ Series II, 510AJ and 460SJ boom lifts

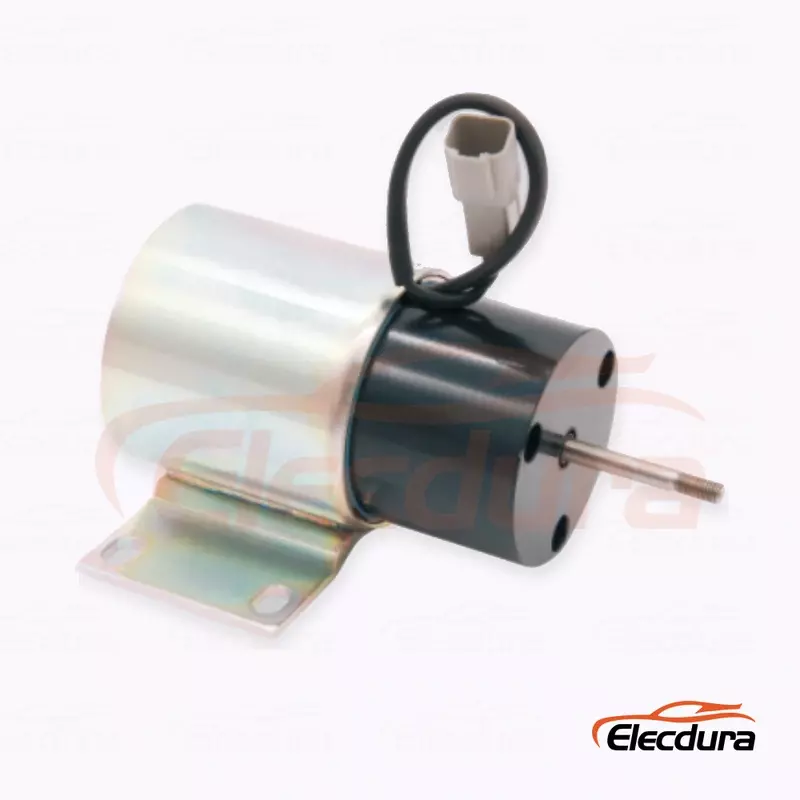

HD90205981 Diesel Engine Control Actuator

HD90205981 is an actuator-style solenoid for JLG 450AJ Series II, 510AJ and 460SJ boom lifts. Selection requires the complete reference, voltage, energized direction, stroke, mounting and control method. A motor or solenoid can energize yet fail in service when preload or linkage geometry prevents the commanded travel.

HD90205981 Product Information

Control Direction and Stroke Approval for HD90205981

Retain every character in 0300-12E2LS3. Its voltage and configuration suffix identify a specific electrical and mechanical build; compare the complete old label, mounting, terminals, output end and working travel before approval.

Separating Actuator, Wiring and Linkage Faults

Check the electrical command, component response and final mechanical movement as separate observations. This prevents a wiring, control-module or linkage fault from being mistaken for a failed replacement part.

HD90205981 Replacement Approval Checklist

Release the order only after electrical, mechanical and application evidence agrees with the removed assembly.

HD90205981 Technical FAQ

What voltage must be confirmed for HD90205981?

HD90205981 is covered here as 12V. Confirm the charging system and old label, then measure voltage at the connector during the start or stop command. A battery description alone is insufficient when converters, relays or earlier harness repairs may have changed the actual supply.

What should be checked on JLG 450AJ Series II, 510AJ and 460SJ boom lifts before ordering HD90205981?

Use HD90205981 / 0300-12E2LS3 / 7026884 / 7026842 as the first control, then compare the old label, voltage, connector face, mounting-hole centers, output end and operating direction. Record the engine or machine model and serial number, but do not use the model name alone because production changes can introduce another shutdown arrangement.

How is energized-to-run different from energized-to-stop?

An energized-to-run actuator must remain powered while the engine operates; an energized-to-stop unit receives power only for shutdown. Confirm the original control logic because the wrong mode can create a no-start condition, uncontrolled return or continuous coil heating.

Why should installed preload be measured for HD90205981?

Excess preload can prevent full travel and force the actuator against a mechanical stop; too little can leave insufficient lever movement. Record the resting output position, commanded stroke and lever endpoints with the original actuator installed.

What does actuator movement without machine response indicate?

Electrical movement is only the first step. Inspect the clevis, rod, cable or lever for free play, loose hardware and incorrect adjustment. Confirm that the controlled lever reaches both endpoints while the actuator completes its own travel.

What should be compared with the removed HD90205981 assembly?

Compare the full label, voltage, connector face, terminal count, mounting-hole centers, body orientation, output end, resting length and working travel. Include one wider installed photo showing pump, lever or surrounding clearance because close product images can hide the geometry that decides fitment.

How can repeat electrical or coil damage be prevented?

Correct the original failure cause before installation. Check supply voltage, pull/hold timing, linkage resistance, mechanical stops, terminal tightness, heat and moisture exposure. A new unit can fail quickly when the high-current stage remains energized or the output cannot complete its designed stroke.

Request a Quote for HD90205981

Send the complete reference group, confirmed voltage, JLG 450AJ Series II, 510AJ and 460SJ boom lifts, removed-part photos, measurements and order quantity for a fitment-focused B2B quotation.
