S1235S Fiat-Allis New Holland Starter Motor Wholesale

S1235S Starter Motor B2B Fitment Guide for Fiat-Allis FR128 and New Holland 7D.12C

Fiat-Allis and New Holland equipment distributors can use S1235S as the commercial identity for the starter required in Fiat-Allis FR128 and New Holland 7D.12C. The order should preserve the 9T pinion and the 9-tooth module-3 drive for the FR128 and 7D.12C catalog applications, avoiding a broad substitution based only on engine family or overall housing appearance.

Send the full S1235S application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

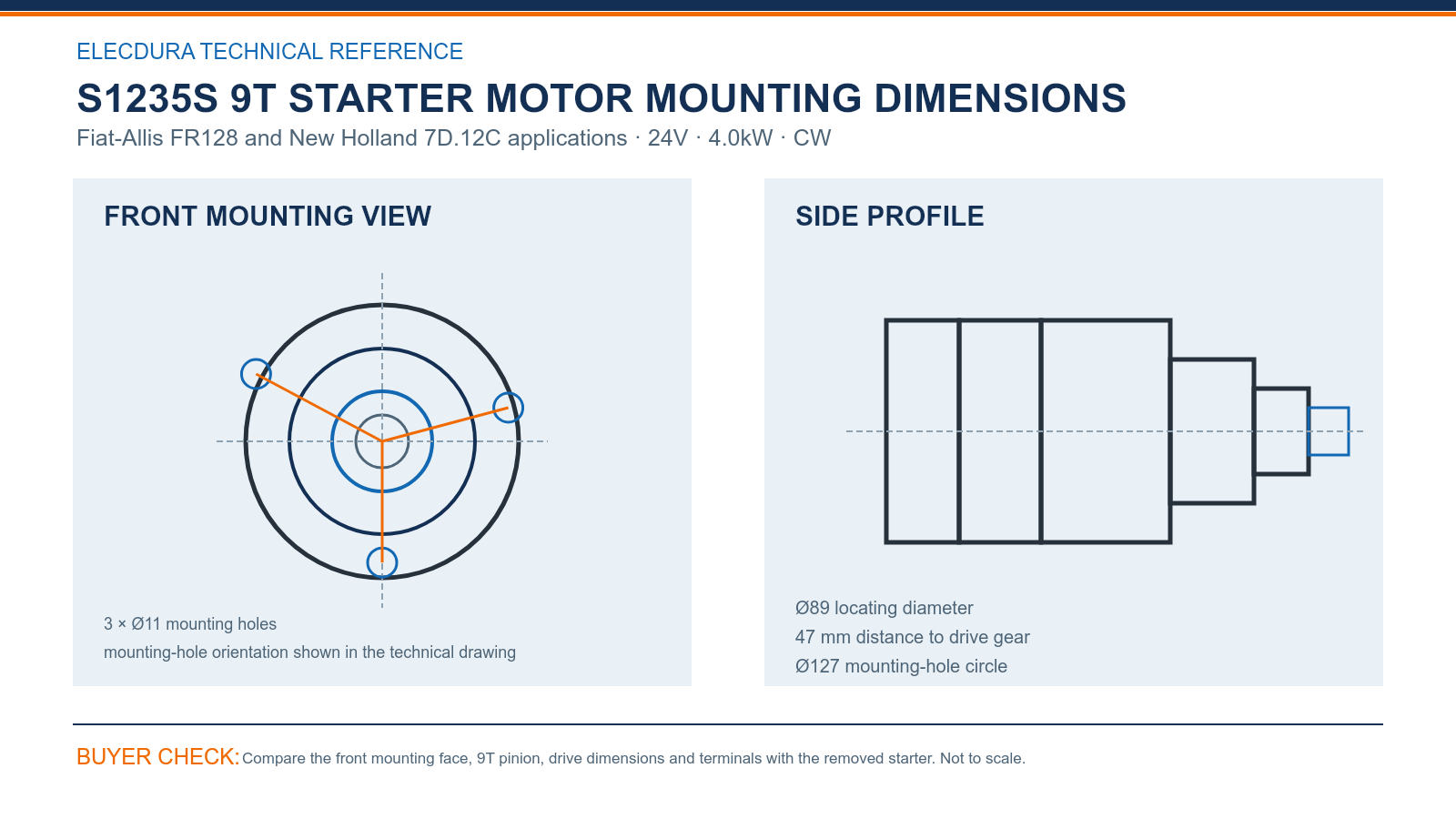

S1235S Starter Motor Drive-End Drawing for Aftermarket Distributors

For S1235S first-lot sampling, place the old and new starters in the same front-facing position. Check 3 × Ø11 mounting holes, Ø89 locating diameter, Ø127 mounting-hole circle and 47 mm distance to drive gear. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S1235S mounting check, verify 24V, 4.0kW, 9T and CW with module 3. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S1235S Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S1235S, 75259789, 5L637, 10479654, 8200065, 75327465, 201-29204 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S1235S Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S1235S, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S1235S sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

B2B buyers can use the video to review Elecdura’s starter-motor assembly and test process. The approved S1235S configuration remains defined by 24V, 4.0kW, 9T, CW, mounting geometry and terminals, which should be retained in the purchase record.

S1235S Starter Motor Questions from Commercial Buyers

Which first-lot checks protect a distributor receiving S1235S during a Fiat-Allis New Holland dealer receiving check?

For S1235S, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

What workshop readings are useful when diagnosing a starting complaint involving S1235S in a Fiat-Allis New Holland dealer workshop?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S1235S. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How can an importer avoid mixing S1235S with a similar drive-end version during dealer sourcing?

For S1235S, begin with the machine, truck or engine identification, then read the full old-unit label. The physical check should cover 9T, Ø127 mounting-hole circle, Ø89 locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item, even when an application description overlaps.

When does a cross-reference related to S1235S need a separate quotation in a Fiat-Allis New Holland dealer sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S1235S group is acceptable only when 24V, 4.0kW, 9T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

What physical controls belong on a first-lot check for S1235S during a Fiat-Allis New Holland dealer inspection?

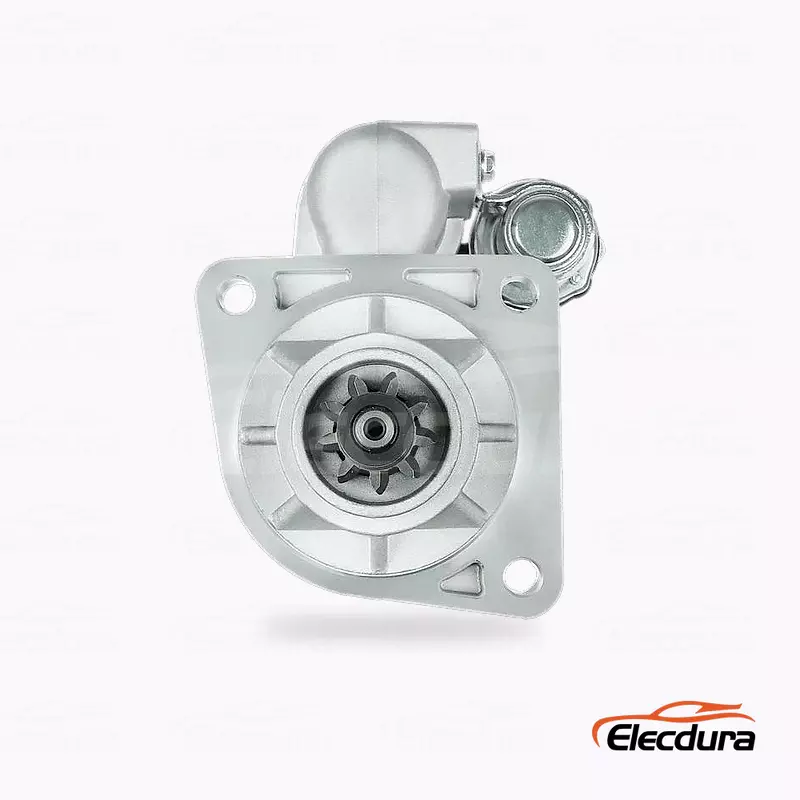

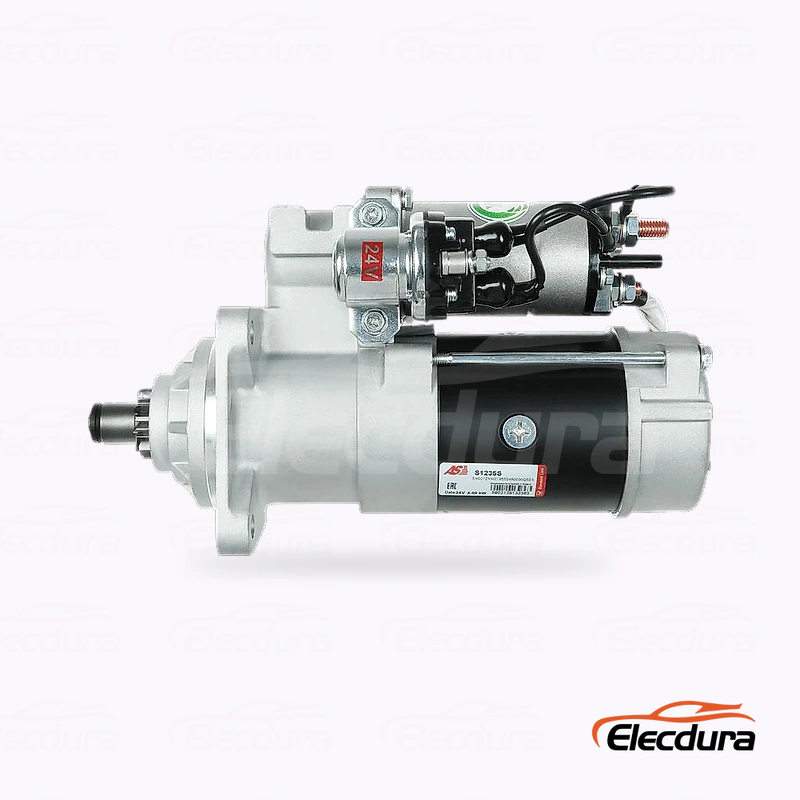

For S1235S, use a straight front view to compare the 3 × Ø11 mounting holes and Ø127 mounting-hole circle; use the side view for Ø89 locating diameter and 47 mm distance to drive gear. Complete the check with 9T, CW and terminal orientation. This combination is more reliable than an angled overall photograph alone.

How should Fiat-Allis distributors plan stock for S1235S in a Fiat-Allis New Holland dealer program?

Forecast agricultural and construction demand separately and use the accepted 9T sample for receiving control. Add recent usage, equipment population, transfer time and service level. Elecdura can then separate sample, emergency and replenishment quantities and plan packing or staged delivery around the buyer’s schedule.

What information should accompany a distributor RFQ for S1235S in a Fiat-Allis New Holland dealer sourcing program?

A useful RFQ states S1235S, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

What evidence separates an electrical-system fault from a concern involving S1235S in a Fiat-Allis New Holland dealer review?

For a service review of S1235S, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S1235S Request a Starter Motor Fleet Supply Quote

Email info@elecdurauto.com with S1235S, the supported Fiat-Allis FR128 and New Holland 7D.12C record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 24V, 4.0kW, 9T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
