S0092 Iveco EuroCargo Fiat Starter Motor Wholesale

S0092 Starter Motor B2B Fitment Guide for Iveco EuroCargo 100E and Fiat 75F10

Iveco and Fiat truck distributors, fleet operators and heavy-duty electrical wholesalers can source S0092 for Iveco EuroCargo 100E and Fiat 75F10. Preserve the 9T pinion and 24V 4.0kW 9T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

A useful enquiry pairs S0092 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

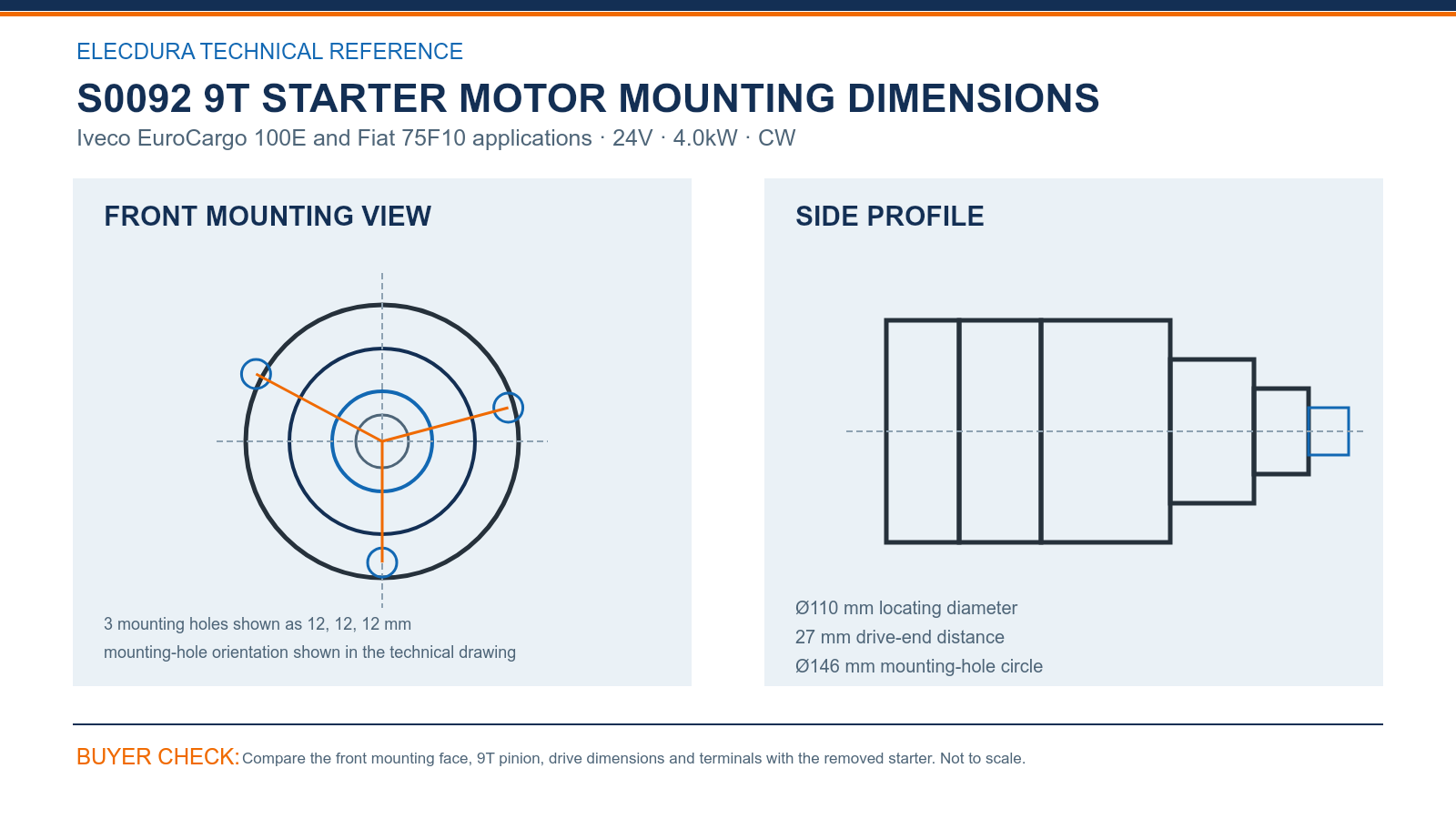

S0092 Starter Motor Mounting Dimensions for Distributor Approval

A warehouse can confirm the S0092 interface without dismantling the unit. Measure Ø110 mm locating diameter and Ø146 mm mounting-hole circle, inspect 3 mounting holes shown as 12, 12, 12 mm, then verify the 27 mm drive-end distance. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S0092, record 9T, CW, 24V and 4.0kW, including module 3. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S0092 Starter Motor Reference Matching for B2B Quotations

1. Search group: S0092, 110518, 0001360063, 0001368020, 0986011330, 0986011331, 42498212 can help distributor teams locate the relevant starter family.
2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0092 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial S0092 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

Buyers can state service urgency, supported equipment count and expected monthly use in the same RFQ. Elecdura can then discuss stock, production, packaging and staged delivery while maintaining the specified S0092 drive end and electrical rating throughout the order.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0092 remains tied to the stated Iveco EuroCargo 100E and Fiat 75F10 application, 9T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0092 Starter Motor Questions from Commercial Buyers

Which checks should follow an OE-number match for S0092 in an Iveco EuroCargo Fiat dealer sourcing program?

A number match narrows the search but does not finish it. For S0092, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S0092 during an Iveco EuroCargo Fiat dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0092. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

How should a fleet workshop verify S0092 against the removed starter during dealer sourcing?

For S0092 in Iveco EuroCargo 100E and Fiat 75F10, confirm the machine or engine identity and read the full old-unit label. Check 9T, Ø146 mm mounting-hole circle, Ø110 mm locating diameter and terminal orientation. Treat a different drive end or connector position as a separate item when the stated application overlaps.

Which S0092 dimensions are practical for a warehouse inspection during an Iveco EuroCargo Fiat dealer inspection?

For S0092, check 3 mounting holes shown as 12, 12, 12 mm, Ø110 mm locating diameter and 27 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

What demand information helps set a sensible reorder level for S0092 in an Iveco EuroCargo Fiat dealer program?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0092, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

Which physical points should be checked before S0092 enters branch stock during an Iveco EuroCargo Fiat dealer receiving check?

For S0092, match carton and product labels to the purchase order, then sample 24V, 9T, 3 mounting holes shown as 12, 12, 12 mm and terminal protection. Check the flange and pinion for shipping damage. Record lot numbers and arrival photographs, and isolate any different configuration before it is placed in saleable stock.

Which order conditions should be stated when asking about S0092 in an Iveco EuroCargo Fiat dealer sourcing program?

A useful RFQ states S0092, the machine or engine model, old-unit label, mounting and terminal photographs, requested quantity and delivery country. Include whether the demand is a sample, urgent service order or scheduled stock. Those details allow pricing to cover the correct unit and realistic shipping plan.

Which test results help investigate a returned S0092 starter in an Iveco EuroCargo Fiat dealer review?

For a service review of S0092, identify the shipment and unit, describe the starting condition and record installation details. Add photographs of the drive, flange and terminals plus battery, ground and positive-cable test results. If the unit was removed, protect it from additional damage and retain it until the review is complete.

S0092 Request Starter Motor Wholesale Pricing

For a focused S0092 quotation, share the machine or engine record, old-starter number, mounting and terminal images, order volume, delivery country and timing. You can email the RFQ directly to info@elecdurauto.com; Elecdura will reply with the matching specification, availability, packing and commercial terms.
