5801404396 Iveco 190E 11T Starter Motor Wholesale

5801404396 Iveco 190E 11T Starter Motor Wholesale Value

An Iveco 190E fleet buyer needs a product description that survives beyond one urgent replacement. Recording 5801404396, the 11T drive, chassis details and accepted mounting photographs gives purchasing, receiving and workshops the same identity for future replenishment.

The Denso 428000-8920 family also appears with a 10T Case and New Holland configuration. For this Iveco product, verify eleven teeth, module 3, the asymmetric three-hole face and cable side; shared references must not merge the two inventory lines.

5801404396 Iveco 24V 7.8kW Starter Motor Details

The stated product is 24V, 7.8kW, 11T, module 3 and clockwise rotation. Keep the full combination on quotations and carton labels because 7.8kW output and a familiar housing do not distinguish it from the related 10T version.

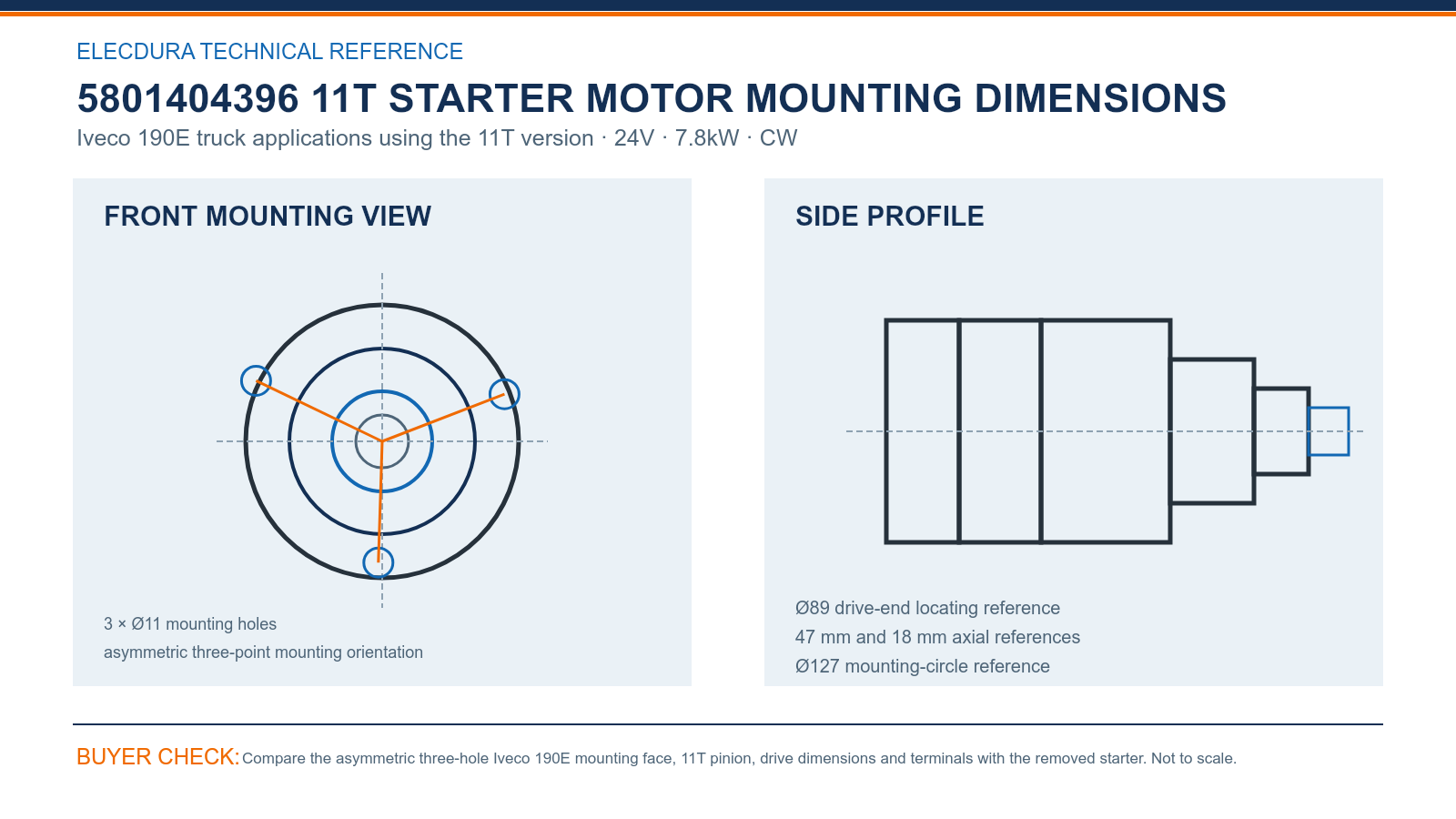

5801404396 Iveco 190E 11T Starter Motor Dimensions for Wholesale Supply — compare the drawing with the removed starter before placing a volume order.

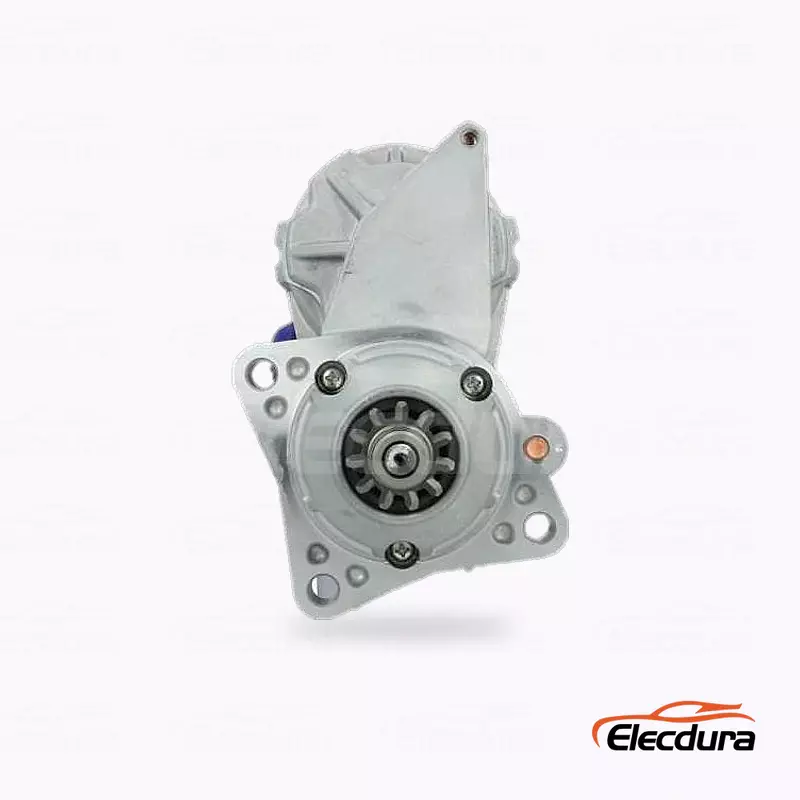

The drawing shows three Ø11 holes around an Ø127 reference circle, an Ø89 locating diameter and 47 mm plus 18 mm axial references. Take a centred front image and a clear 11T pinion photograph so both housing and drive can be checked independently.

5801404396 Iveco 190E Reference and Version Checks

5801404396 can be searched with 428000-8920, 428080-8920, DSN2032 and 84277437. Attach Iveco 190E and the 11T image to the request; the reference list is useful for sourcing but is not a reason to relabel a 10T agricultural unit.

Fleet distributors can list demand by vehicle group, operating depot and replacement urgency, then combine quantities after the physical configuration agrees. This gives procurement volume for pricing without losing the chassis-level record needed if another 190E carries a different serviced unit.

5801404396 Starter Motor Support for Truck Fleets

First-lot receiving should confirm 11T, the three-hole face, clean locating surface and undamaged studs before sampled testing. When a shipment also contains the 10T product, use separate pallet rows, carton marks and packing-list lines to prevent warehouse mixing.

Elecdura's production video presents starter assembly and electrical testing for wholesale programs. Iveco truck-parts buyers can use it while defining lot sampling, 11T carton identification, export protection and replenishment schedules for commercial fleets.

5801404396 Starter Motor FAQs for B2B Buyers

Which details identify the 5801404396 Iveco product?

State the Iveco 190E model and chassis information, copy 5801404396 and every Denso number in full, and attach an end photograph showing eleven teeth. Compare the flange and terminals as well. This complete description separates the truck product from a 10T agricultural unit sharing the wider reference family.

Why should the pinion module appear beside the tooth count?

The Iveco product uses an 11T module-3 drive, while the related Case and New Holland version is 10T module 3.175. Recording both tooth count and module prevents a shared OE from collapsing two gear interfaces into one item. Keep those values on the quotation, carton label and receiving checklist.

Can 428000-8920 be searched for the Iveco 190E starter?

Yes, it is a useful reference route alongside 5801404396 and DSN2032. The enquiry must still state Iveco 190E and show the 11T pinion, mounting face and terminals. The same Denso number also appears with a 10T product, so search compatibility is not proof that warehouse items can be merged.

What mounting checks support the Iveco 11T comparison?

Use a centred front image to compare three Ø11 holes around the Ø127 circle and the asymmetric ear spacing. Measure the Ø89 locating diameter and 47 mm plus 18 mm axial references. Pair those dimensions with a clear 11T view so the housing and drive are both confirmed.

How can an Iveco fleet make repeat 5801404396 orders clearer?

Store the confirmed chassis or vehicle group, accepted 11T and mounting photographs, full reference list and previous delivery lot with the item history. Forecast quantity by depot before combining supply. If another 190E presents a 10T or different terminal layout, review it separately rather than changing the accepted product description.

Why should the installed cable side be photographed on the 190E?

An installed photograph shows cable direction and available reach before the starter is removed. Add a clear bench image of the heavy studs and small terminal. Comparing both views helps ensure the quoted terminal clocking suits the truck and avoids forcing cables toward a similar housing with a different connection arrangement.

How should the Iveco unit ship with the 10T Case product?

Pack the two products in separately marked cartons and pallet rows, show individual quantities on the packing list and print Iveco 190E 11T on this line. Destination receiving should sample and count teeth before shelving. Shared 428000-8920 references must not replace the visible version and application labels.

What information is needed for a 5801404396 wholesale quote?

Email the Iveco 190E chassis or fleet details, complete references, straight 11T pinion, flange and terminal photographs, required quantity, delivery date, packing preference and destination. Elecdura will compare the specified 5801404396 product and reply with fitment feedback, B2B pricing, supply timing and export-delivery options. Keep the confirmed 5801404396 comparison with receiving and later purchase orders.

Request 5801404396 Iveco 190E Starter Motor Pricing

Email the Iveco 190E chassis or fleet details, complete references, straight 11T pinion, mounting and terminal photographs, quantity, delivery date and destination to info@elecdurauto.com. Elecdura will compare 5801404396 and reply with wholesale pricing, lead time and packing options.
