228000-7550 Iveco 260E 440E Starter Motor Wholesale

228000-7550 Iveco 260E 440E Starter Motor for Fleet Distributors

Iveco 260E and 440E fleets may use the same reference group across depots with different operating loads and delivery priorities. Include the truck series, chassis information, old-starter label and quantity by location so Elecdura can discuss the 228000-7550 product and a practical replenishment plan in one response.

CS1292 and other Iveco numbers may also appear near this product family, but this line uses a 10T module-3.175 drive. Confirm ten teeth, three Ø13 holes, Ø145 reference and terminal orientation before merging stock; a 12T unit belongs on a separate item even when voltage and output match.

228000-7550 24V 5.5kW Starter Motor Details for B2B Supply

The product specification is 24V, 5.5kW, 10T, module 3.175 and clockwise rotation. Keep the 10T drive prominent on quotations, cartons and bin labels because a fleet workshop may otherwise select a same-output Iveco starter whose pinion cannot serve the intended ring gear.

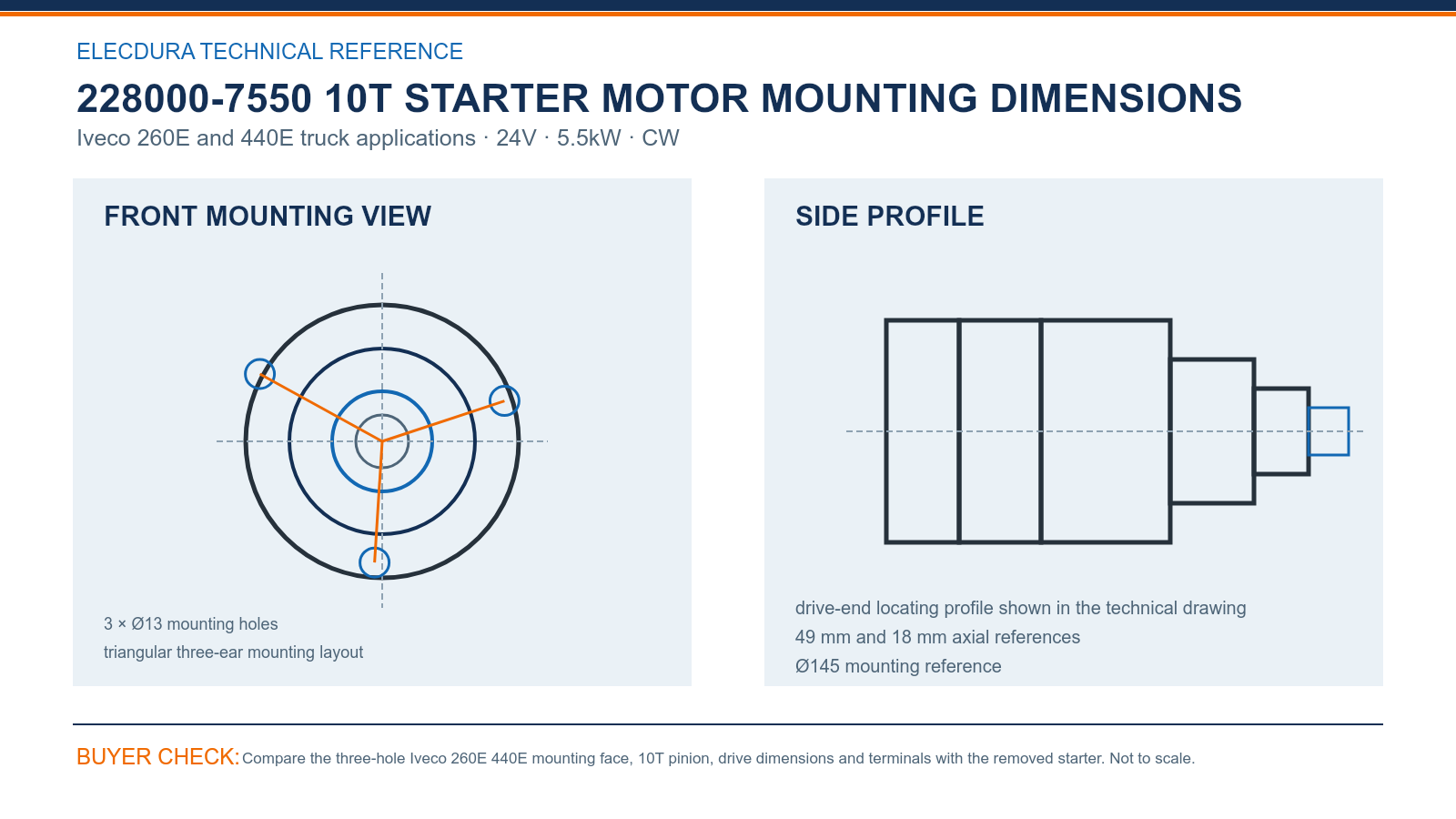

228000-7550 Starter Motor Dimensions for Iveco Fleet Supply — compare the drawing with the removed starter before placing a volume order.

Compare the triangular three-hole face around the Ø145 mounting reference, then check the 49 mm and 18 mm axial dimensions from the same points shown in the drawing. A straight terminal-side image should accompany the measurements so cable reach and stud clocking remain part of the quotation comparison.

228000-7550 Iveco Starter Motor OE and Flange Checks

228000-7550, 228000-7551, Iveco 42498115 and 99486046, Lester 32958 and STR70278 form the main number group. Copy complete suffixes and retain the 260E or 440E chassis beside them; cross-reference agreement improves search but does not replace the 10T physical comparison.

Fleet distributors can forecast emergency reserve and scheduled replacement separately for each depot, then consolidate the confirmed 228000-7550 quantity for pricing. Keeping vehicle groups on the packing list also helps receiving allocate cartons without reopening every unit or relying on a broad Iveco description.

228000-7550 Starter Motor Stock Support for Truck Fleets

Incoming inspection should count ten teeth, compare the three-hole face and terminal side, and check the nose casting for transit damage before sampled 24V testing. Store shipment-lot photographs with the item history so later branches and after-sales teams use the same baseline for repeat supply.

The production video shows Elecdura starter assembly and electrical testing for export buyers. Iveco distributors can review that capability while setting first-lot sampling, carton identification, private-label needs and delivery timing for 260E and 440E fleet support.

228000-7550 Starter Motor FAQs for B2B Buyers

Which fleet details belong with a 228000-7550 enquiry?

State whether the requirement is for Iveco 260E, 440E or another confirmed chassis, and include the engine and fleet-unit number. Add the full 228000-7550 marking plus old-unit photographs. Keeping quantities by chassis and depot helps Elecdura address the correct 10T product and the delivery priority for each operating location.

How should the Iveco and Denso references be combined?

Record 228000-7550 and 228000-7551 separately, then add any readable Iveco numbers such as 42498115 or 99486046. Do not drop the final suffix when searching or ordering. The full reference set should remain linked to the 260E or 440E chassis, 10T drive and accepted terminal-side image.

Why should 10T and module 3.175 appear on the same label?

Ten teeth describe the pinion count; module 3.175 describes the tooth size. Both values are needed to compare the ring-gear interface. Put 10T and module 3.175 beside 24V, 5.5kW and clockwise rotation on the RFQ and stock label so this product is not confused with the twelve-tooth Iveco line.

Which flange checks identify the 228000-7550 product?

Check three Ø13 mounting holes around the Ø145 reference, then confirm the 49 mm and 18 mm axial dimensions from a square side view. Include the cable side in the same image set. These points distinguish the 228000-7550 flange even when another Iveco starter has a similar motor body.

Why photograph the terminal side before removing the old starter?

Photograph the terminal side while the old starter is still installed, before cables are moved or rerouted. The image preserves stud orientation, cable approach and nearby clearance that a loose bench photograph may lose. Add a second photo after removal for the 10T pinion and three-hole face, giving purchasing both installation and component views.

How can an Iveco distributor set reserve stock by depot?

Use service history by depot, chassis group and seasonal workload to set reserve quantities. Keep 260E and 440E demand visible even if the confirmed 228000-7550 units are purchased together. A shared product can support consolidated pricing, while separate depot forecasts prevent one location from consuming stock intended for another fleet.

How should 228000-7550 ship beside another Iveco starter?

When 228000-7550 ships beside another Iveco starter, separate the products by carton section and pallet label. Mark 10T, module 3.175 and the complete reference on every inner carton. Receiving should sample both pinion count and terminal side before splitting the shipment, rather than relying on a common Iveco description.

What makes a 228000-7550 distributor request actionable?

Provide the 260E or 440E chassis details, complete 228000-7550 reference group, 10T pinion and mounting photographs, quantity by depot, destination, required date and packing instructions. Indicate whether the order is replenishment or an urgent vehicle-down request. Elecdura can then quote the confirmed product, lead time and delivery arrangement.

Request 228000-7550 Iveco Starter Motor Wholesale Terms

Send the Iveco 260E or 440E chassis, complete 228000-7550 and OE markings, straight 10T pinion, flange and terminal photographs, quantity by depot, packing requirement and target date to info@elecdurauto.com. Elecdura will review the product and respond with wholesale pricing and supply options.
