504384833 Iveco 190E Starter Motor Wholesale Supply

504384833 Starter Motor Sourcing for Iveco 190E Distributors

504384833 can appear in both commercial-truck and agricultural parts systems. For this product, keep the Iveco 190E identity, 11T drive and three-hole truck face on the inquiry so another application using the reference trail does not replace the intended unit.

Provide the VIN or chassis, engine details, complete old label and photographs of the nose and terminals. Elecdura compares the Ø127 face, Ø89 locator and axial points before preparing a wholesale offer for the identified truck.

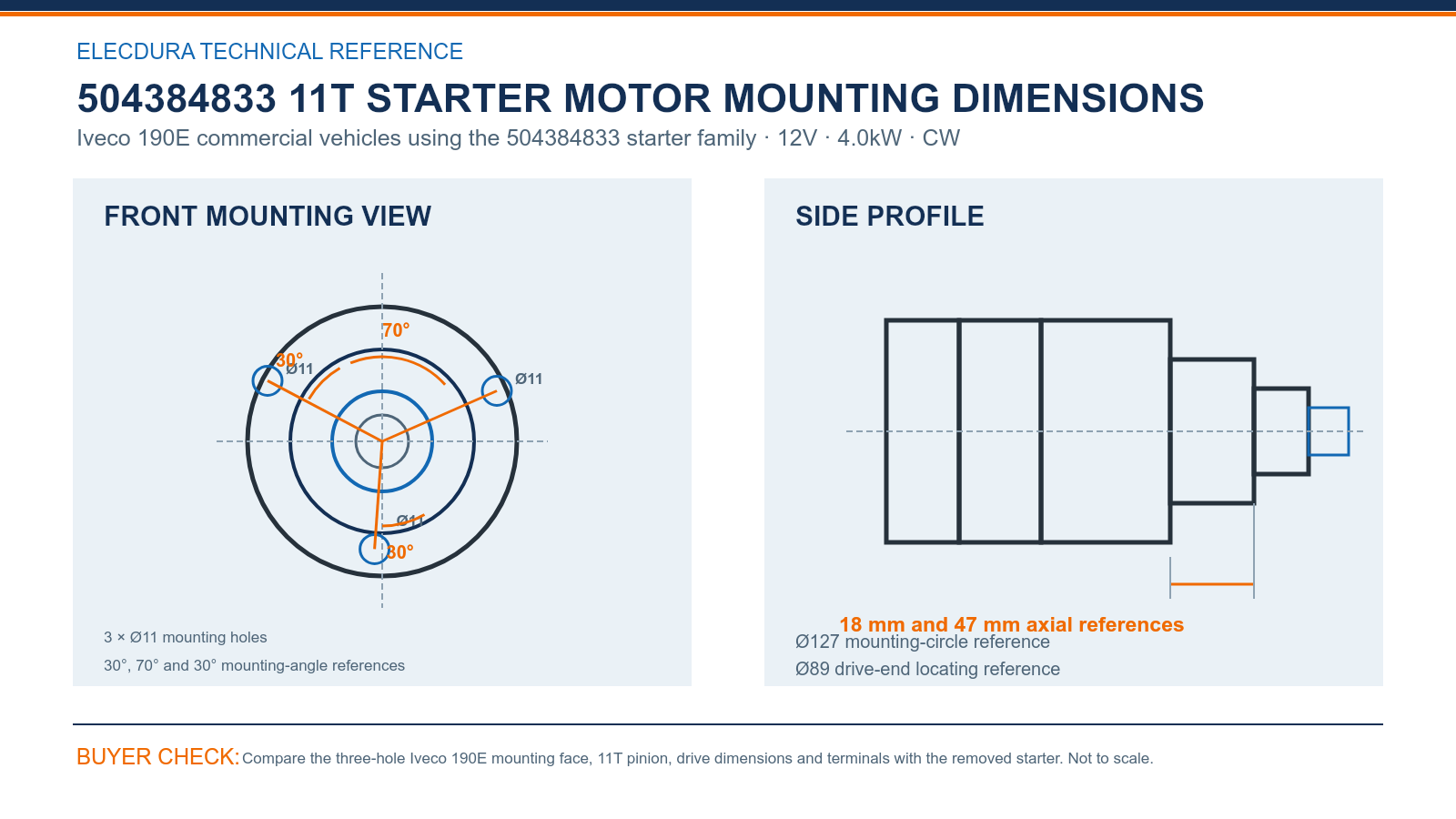

504384833 Starter Motor Drawing for Iveco Truck Distributors

504384833 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 504384833 face uses three Ø11 mounting holes on an Ø127 circle, with 30°, 70° and 30° orientation references. The Ø89 locator and 18 mm and 47 mm axial points help truck-parts buyers compare the nose before an OE shared with agricultural equipment is accepted for the 190E.

Confirm the 11-tooth pinion and terminal position on the identified Iveco chassis. Retain direct measurements and the first installation result so later export or branch orders remain tied to the same truck version.

504384833 Starter Motor Cross-Reference Checks for Truck Stock

84150030, Denso 428000-8560, S6636S and STN3536 support the purchasing trail. Because these numbers may also appear in non-truck channels, preserve the vehicle identity and every suffix from the removed starter.

1. Confirm the Iveco 190E chassis and engine.

2. Verify 11 teeth, module 3 and clockwise rotation.

3. Compare three Ø11 holes, clocking, drive position and terminals.

504384833 Starter Motor Export Supply for Iveco Parts Networks

Commercial-vehicle distributors can begin with a defined quantity for 190E service demand and combine it with other confirmed electrical lines. Elecdura can discuss neutral cartons, customer labels and shipment consolidation after each product identity is fixed.

Receiving teams should inspect the full 504384833 label, 11T pinion, three-hole casting, terminal caps and freight condition across several cartons. Keep the truck line separate from agricultural applications in both warehouse and sales systems.

The video shows Elecdura starter-motor assembly and electrical testing. Send the Iveco 190E chassis, engine details, complete old number, mounting photographs, quantity and destination for a truck-specific quotation.

504384833 Starter Motor Wholesale FAQ

Why can 504384833 require extra application checks?

The reference can appear beside Iveco, Case and New Holland applications in different parts channels. This product is written for the identified Iveco 190E vehicle, so the VIN or chassis, engine and old-unit photographs should stay with the request. The shared OE trail helps sourcing but does not remove the need to compare the physical starter.

Which geometry should an Iveco buyer compare?

Check three Ø11 mounting holes on the Ø127 circle, the 30°, 70° and 30° orientation references, Ø89 locator and 18 mm and 47 mm axial points. Measure the removed unit directly and photograph the face square. These details distinguish the intended truck nose from another application using related references.

What 190E information belongs with a starter inquiry?

Provide the complete vehicle model, VIN or chassis, production year, engine information and every number on the old starter. Add photographs of the pinion, front face, side profile and terminals. This gives Elecdura both vehicle and physical context and supports a more specific response than 504384833 alone.

What electrical checks help confirm a replacement need?

Verify the 12V system, battery condition, grounds, positive cable voltage drop and start-signal voltage. State the 4.0kW requirement and describe the symptom during engagement or cranking. These checks help separate a starter concern from a supply-circuit fault and give the distributor useful information for the first replacement.

What should be observed during the first 190E installation?

Confirm the Ø89 locator seats freely, all three bolts align and the cables reach without strain. Check clean 11-tooth engagement, normal release and cranking voltage after fitting. Retain the VIN, old and new labels, face photographs and terminal routing so later 504384833 supply can use the same verified truck details.

Can 504384833 be included in a mixed export shipment?

Yes, when every line has a complete reference, application, quantity and destination. Protect the drive and terminals, use a clearly marked carton and keep the Iveco 190E description on the packing list. The receiving distributor should verify 11T and the three-hole face before merging the units into local truck inventory.

How should truck and agricultural demand be separated?

Create distinct sales and warehouse lines by vehicle or machine, complete OE, pinion, output and mounting measurements. Mark this line for Iveco 190E and retain a chassis example. If an agricultural customer uses the same purchasing number, collect that machine's details separately rather than assuming the two applications share every physical requirement.

What belongs in a 504384833 wholesale RFQ?

Send the full Iveco or Denso number, 190E VIN or chassis, engine details, old-unit label, 11T pinion, mounting and terminal photographs, required quantity, delivery country, target date and packing needs. Elecdura can then state the specified configuration, MOQ, normal lead time, warranty and available export options.

Request a 504384833 Starter Motor Wholesale Quote

Send 504384833 or the complete Iveco, Case or Denso number, 190E VIN or chassis, engine details, old-unit label, pinion, face and terminal photographs, quantity, destination and packing request. Elecdura will quote the 12V 4.0kW 11T starter.

If your business also sells the shared reference into agricultural equipment, separate its demand and machine details from the Iveco truck quantity.
