S0111 Iveco 8140.21 Starter Motor Wholesale Supply

S0111 Starter Motor Fleet Replacement Supply for Iveco 8140.21.200 engine

S0111 supports Iveco 8140.21.200 engine sourcing where buyers need a defined electrical and drive-end match. Its 12V, 2.5kW, 9T CW specification must remain linked to the 12V 2.5kW 9T module-3 unit with an Ø110 mm locating face and mixed mounting-hole detail; a visually related unit may belong on a different RFQ line.

Before comparing S0111 prices, state whether the request covers an initial sample, urgent breakdown demand or routine distributor replenishment. Include the full OE reference, application, photographs, quantity and destination so the offer remains connected to the physical unit the customer expects to receive.

S0111 Starter Motor Technical Data for Fleet Parts Buyers

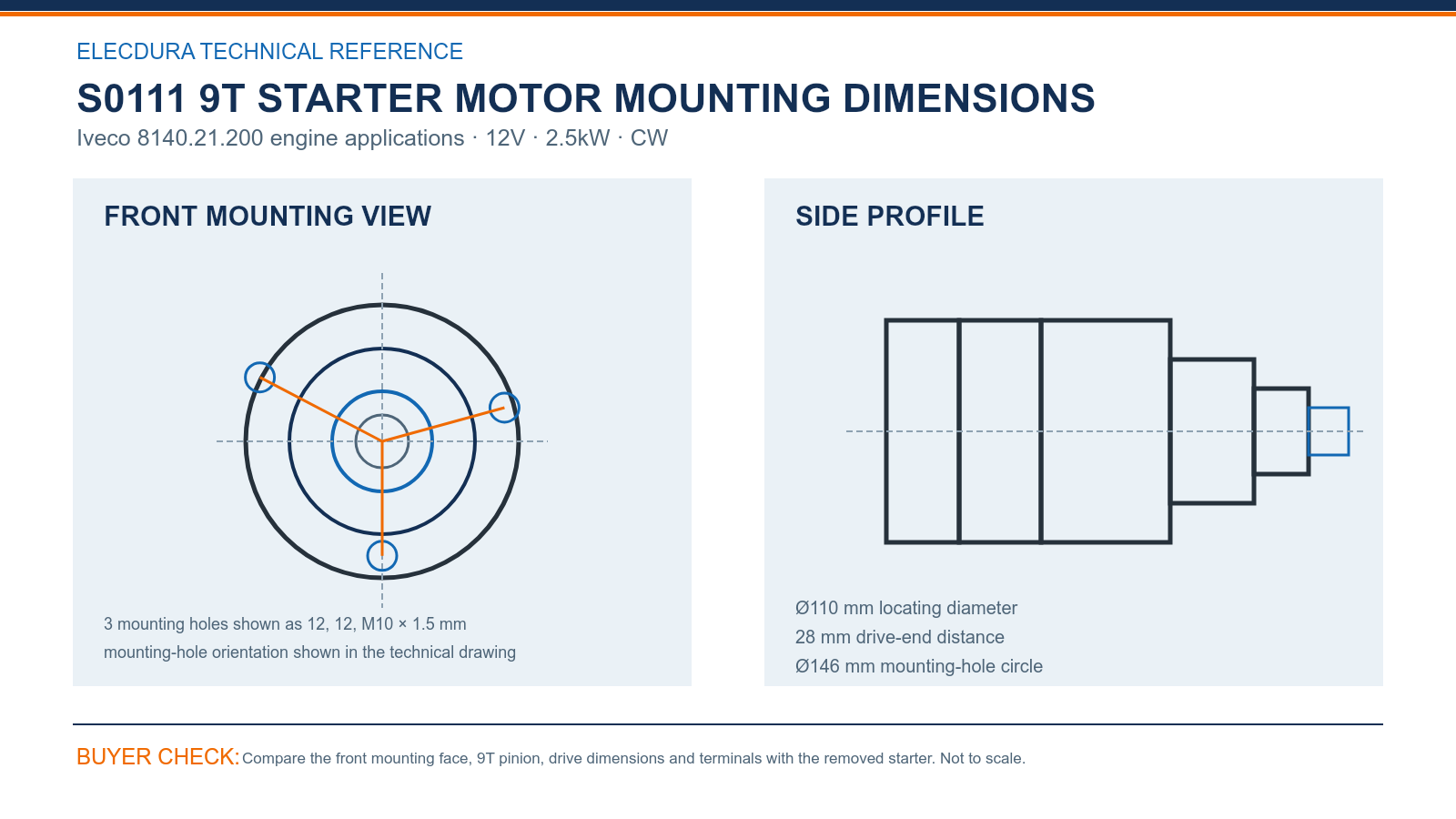

The S0111 dimensional review starts at the mounting face: verify 3 mounting holes shown as 12, 12, M10 × 1.5 mm, Ø146 mm mounting-hole circle and Ø110 mm locating diameter. Then compare the 28 mm drive-end distance. The drawing is not a scale template, so record actual measurements and review terminal orientation separately.

For S0111, electrical and mechanical identity must agree: 12V, 2.5kW, 9T, module 3 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0111 Starter Motor Cross-Reference Review for Fleet Buyers

The S0111 cross-reference group includes S0111, 111693, 0001362102, 0986019320, 1516792R, 11130532, STB0689LC. Use these numbers to search supplier systems, then confirm 12V, 2.5kW, 9T, CW, mounting geometry and terminals.

For S0111, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0111 Starter Motor Fleet Supply and Replenishment Support

Wholesale planning for S0111 can cover a sample stage, routine replenishment and urgent service demand. Elecdura normally works from 20 pieces, confirms a 7–15 day lead time after order approval and provides an 18-month warranty under the agreed commercial terms.

Stock planning should reflect the supported Iveco 8140.21.200 engine population, recent consumption and transfer time between service locations. Keeping S0111, the 9T drive and the approved mounting interface visible in the inventory record reduces emergency substitution and improves later reorder accuracy.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0111, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0111 Starter Motor Questions from Commercial Buyers

Before removing S0111, what should the workshop test under load in an Iveco 8140.21 workshop workshop for mixed plain and threaded mounting-hole approval?

Before fitting S0111, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What should an importer include in the replenishment forecast for S0111 in an Iveco 8140.21 workshop program for mixed plain and threaded mounting-hole approval?

Build the forecast around actual equipment counts, failure history and the time needed to replenish each service location. For S0111, keep the specified pinion and mounting interface visible in the stock record. This reduces emergency substitutions and gives purchasing a clearer basis for MOQ, packing and delivery discussions.

What should a distributor match before ordering S0111 for Iveco 8140.21.200 engine during workshop sourcing for mixed plain and threaded mounting-hole approval?

Use the full old-unit number and Iveco 8140.21.200 engine record. Compare the 9T pinion, 3 mounting holes shown as 12, 12, M10 × 1.5 mm, Ø110 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S0111 from an alternate OE number in an Iveco 8140.21 workshop sourcing program for mixed plain and threaded mounting-hole approval?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0111 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

Which S0111 dimensions are practical for a warehouse inspection during an Iveco 8140.21 workshop inspection for mixed plain and threaded mounting-hole approval?

For S0111, check 3 mounting holes shown as 12, 12, M10 × 1.5 mm, Ø110 mm locating diameter and 28 mm drive-end distance. Record the 9T pinion, rotation and terminal position so the warehouse can isolate a mixed or incorrectly labelled unit before dispatch.

Which first-lot checks protect a distributor receiving S0111 during an Iveco 8140.21 workshop receiving check for mixed plain and threaded mounting-hole approval?

For S0111, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 12, 12, M10 × 1.5 mm, Ø110 mm locating diameter and the specified 9T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0111 in an Iveco 8140.21 workshop sourcing program for mixed plain and threaded mounting-hole approval?

Send the complete OE number, exact Iveco 8140.21.200 engine details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 2.5kW 9T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0111 after installation in an Iveco 8140.21 workshop review for mixed plain and threaded mounting-hole approval?

Keep the carton or product traceability code and note when and where S0111 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S0111 Ask for Starter Motor Export Pricing

Prepare the S0111 enquiry with the exact application, full removed-unit reference, front and terminal-side photos, quantity, destination and target date. Send it to info@elecdurauto.com so Elecdura can return a technically defined offer covering samples or bulk supply, export packing, warranty and delivery options.
