M009T64071 Iveco 440 Starter Motor Distributor

M009T64071 Iveco 440 Starter Distributor Supply

Iveco 440 tractors may operate across borders and depots where a starter shortage leads to towing and schedule disruption. A distributor needs the chassis, engine, current unit and delivery point before quoting quantities or allocating a spare from shared heavy-truck stock.

The product combines a 12T module-3.175 drive with an Ø127 mounting circle and Ø92 locating diameter. Do not merge it with an Iveco starter using an Ø146 face merely because both carry 24V 5.5kW Mitsubishi specifications.

M009T64071 12T Starter Dimensions for Fleet Buyers

Keep 24V, 5.5kW, 12T, module 3.175 and CW beside M009T64071. This full line helps purchasing and warehouse teams recognize the Iveco 440 version before a heavy carton travels to another depot.

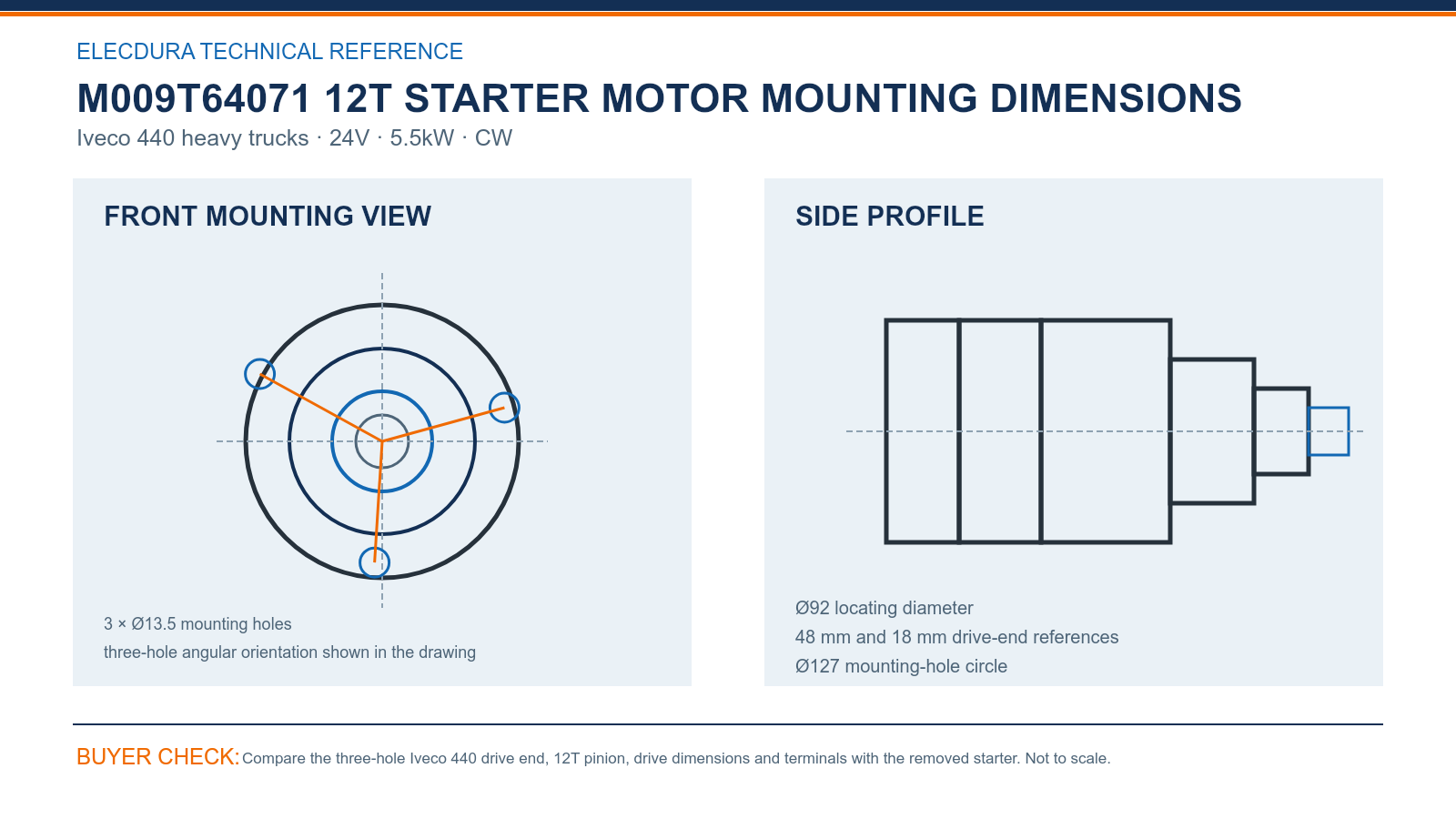

M009T64071 Iveco 440 Starter Drawing for Fleet Distributors — compare the drawing with the removed starter before placing a volume order.

Compare three Ø13.5 holes on the Ø127 circle, the Ø92 locating diameter, and 48 mm and 18 mm drive references. Ask for a direct front view and terminal-side photograph so flange size and cable routing remain visible.

M009T64071 20851685 OE Matching for Iveco Wholesalers

M009T64072, M009T66471, M009T66472, 20851685, 21219920 and 21632129 support the sourcing route. Their use should stay connected to the Iveco 440 and confirmed Ø127 face instead of broadening the listing to every heavy truck.

Fleet wholesalers can place reserve units according to 440 vehicle count, breakdown history and transfer time between depots. Record the accepted Ø127 face beside the bin so staff do not substitute the neighboring Ø146 product during an urgent request.

M009T64071 Iveco 440 Stock Checks for Volume Orders

Sample tooth count, mounting-hole condition, locating face, terminals, labels and carton reinforcement across the shipment. Keep an accepted image set with the delivery record so later transfers and warranty discussions use the same physical baseline.

The Elecdura video shows heavy-duty starter assembly and electrical testing for distributor programs. Iveco buyers can use it while defining sample quantities, pallet protection, batch labels and recurring delivery schedules for highway-fleet support.

M009T64071 Starter FAQs for Iveco 440 Parts Distributors

Which Iveco 440 details belong with M009T64071?

Send the Iveco 440 model, chassis range, engine details and every number on the removed starter, including M009T64071 or 20851685 where present. Add direct face, pinion and terminal photographs, quantities by depot and the required date. These details let the distributor connect the replacement to the actual truck instead of a general Iveco heavy-duty listing.

Why must the Ø127 face remain visible in the order?

The Ø127 mounting circle distinguishes this product from an Iveco starter with an Ø146 face. Keep the circle, three Ø13.5 holes, Ø92 locating diameter and 48/18 mm drive references on the order. A 24V 5.5kW 12T module-3.175 headline alone cannot show which flange will fit the truck.

How should 20851685 and M009T66471 support sourcing?

Use 20851685, 21219920, 21632129, M009T66471 and M009T66472 as search routes for the M009T64071 family. Then confirm the Iveco 440 chassis, 12T module-3.175 pinion, Ø127 face and terminal side. If a listing carries one reference but shows an Ø146 flange, keep it outside this order before it enters distributor stock.

How is this product kept separate from an Ø146 Iveco starter?

Mark M009T64071 stock with Iveco 440, 12T module 3.175 and Ø127 face, and attach the accepted front image to the bin record. The neighboring Ø146 product needs its own label and location. This visible separation prevents warehouse staff from choosing by voltage, power or housing appearance during an urgent fleet request.

How can wholesalers place reserve stock across depots?

Set reserve quantities from the number of active Iveco 440 trucks, route exposure, breakdown history and transfer time between depots. Hold checked emergency stock where towing or schedule loss is most costly. Keep the confirmed Ø127 face and terminal images with each depot record so a transferred unit can be verified before dispatch.

Which packaging points matter for heavy truck starters?

Use rigid fitted supports that keep the heavy starter from moving, and shield the pinion, flange ears and cable studs from carton contact. Inspect pallet edge and center cartons for compression or impact. Moisture protection, clear labels and a stored packing photograph help the wholesaler maintain the same protection on repeated international shipments.

What vehicle-side checks precede a warranty request?

Load-test the 24V battery bank, inspect battery links, grounds and main cables, and measure voltage drop during cranking. Verify the solenoid trigger circuit and inspect the ring gear where accessible. A low battery, poor connection or switching fault can produce slow or failed cranking even when the M009T64071 starter is serviceable.

What completes an M009T64071 distributor enquiry?

Provide the Iveco 440 chassis and engine, all OE and Mitsubishi numbers, clear mounting-face, pinion and terminal photographs, quantity by destination and required date. State packing and labeling needs. Elecdura can then confirm the 24V 5.5kW 12T module-3.175 Ø127 version and return distributor pricing and lead time.

Request M009T64071 Iveco 440 Starter Distributor Pricing

Email the Iveco 440 chassis and engine details, M009T64071 or related numbers, face and terminal photographs, quantities by destination and required date to info@elecdurauto.com. Elecdura will provide distributor pricing and lead time.
