M3T95082 Mitsubishi Starter Motor 24V 5.5kW 13T

M3T95082 Heavy-Duty Starter Motor for MITSUBISHI 6D22

For inventory buyers preparing a volume quote, Elecdura offers M3T95082 as an aftermarket heavy-duty starter motor for MITSUBISHI 6D22. The 24V, 5.5kW and 13T configuration is intended for professional replacement sourcing by heavy-duty parts distributors, importers and fleet suppliers.

For fleet-parts buyers planning a repeat order, importers can use the same reference and specification bundle from enquiry through receiving. That continuity helps sales, purchasing and warehouse teams keep a repeat-order item separate from similar housings with another electrical or drive configuration.

M3T95082 Starter Motor Specifications and Technical Drawing

For fleet-parts buyers evaluating a direct replacement, this reference group can cover nearby starter versions. Keep M3T95082, 24V, 5.5kW and 13T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

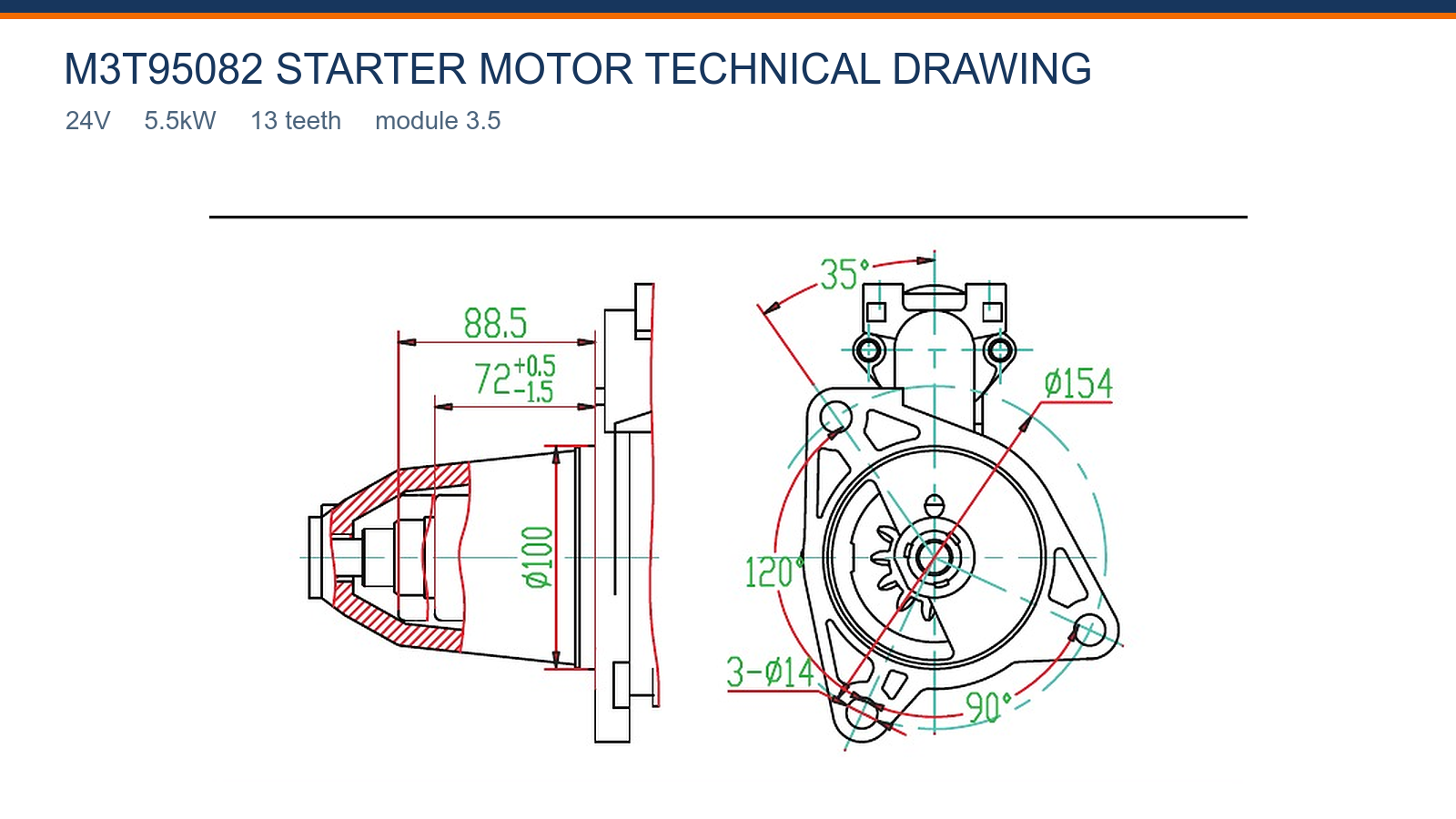

For technical sales teams comparing the flange and terminals, the source-faithful technical drawing records the available mounting information for M3T95082, including 3×Ø14, Ø100, 88.5 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M3T95082 Aftermarket Replacement and Application

For equipment-parts dealers checking repeat-order specifications, the replacement search starts with M3T95082, M4T55075, ME057985 and the MITSUBISHI 6D22 application. For mixed fleets or previously repaired machines, add clear old-unit photos so a substituted starter does not become the only fitment evidence.

For purchasing teams matching the old starter, use the gallery to compare the flange, 13T pinion and rear connections before approving the order. Keep module 3.5 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

M3T95082 Wholesale Supply for Distributors and Importers

For distributors preparing distributor pricing, Elecdura supports repeat-order and new-line sourcing for M3T95082. Commercial planning can cover a 20 pcs MOQ, 7–15 day lead time subject to confirmation, neutral packaging or private-label review, and an 18-month agreed warranty.

For aftermarket product managers building a new starter range, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

M3T95082 Starter Motor Buyer FAQ

What must be matched before quoting M3T95082 side-profile photograph before stock is assigned?

For service-parts networks matching the starter being replaced, the side profile of M3T95082 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 88.5 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which check should lead M3T95082 solenoid and cable routing when the old starter is available?

For importers reviewing drive-end geometry, use the side and rear photographs of M3T95082 to check solenoid position, battery-stud direction and start-terminal access in MITSUBISHI 6D22. Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a workshop distinguish M3T95082 drive-end photograph when the original unit in hand is available?

For product managers preparing an OE-based quote, the drive-end image for M3T95082 should be used to count 13 teeth and compare the flange, locating shoulder and pinion rest position. Use a matching frontal view of the starter being replaced. A profile photograph may not show the drive teeth and mounting points clearly; a frontal image is better for the final comparison.

How should a distributor confirm 24V system compatibility when preparing a product enquiry?

For maintenance suppliers separating similar housings, M3T95082 is a 24V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement prior to purchase. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

Which comparison prevents a mismatch for module 3.5 when several versions look alike?

For equipment-parts dealers evaluating a direct replacement, module 3.5 is part of the gear geometry for M3T95082. Confirm it together with the 13-tooth count and pinion diameter; another module changes tooth pitch even when the number of teeth is unchanged. The old starter or ring-gear specification should therefore support the module match before a substitute is accepted.

What evidence best identifies M3T95082 rear-terminal photograph when the removed unit is available?

For purchasing teams comparing the flange and terminals, use the rear view of M3T95082 to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in MITSUBISHI 6D22. A correct drive end with an unusable terminal position is not a complete fitment match.

How should a workshop distinguish M3T95082 technical claim evidence during fitment review?

For distributors planning mixed-model inventory, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the MITSUBISHI 6D22 equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

What evidence best identifies M3T95082 stock identification during fitment review?

For aftermarket product managers confirming an incoming batch, label the storage location with M3T95082, 24V, 5.5kW and 13T, and keep a verified drive-end and rear-view image with the item master. Do not combine close-looking Mitsubishi units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

Request a Wholesale Quote for M3T95082 Heavy-Duty Starter Motor

For engine-parts specialists requesting production pricing, send M3T95082, M4T55075, ME057985, the MITSUBISHI 6D22 application, required quantity, destination and packaging preference. Add old-unit photos when available. Elecdura will review the 24V, 5.5kW, 13T version and prepare a product-specific wholesale quotation.
