300516-00041 Starter Motor 24V 4.5kW 11T

300516-00041 Heavy-Duty Starter Motor for DL06 (DX150-9C)

For fleet-parts buyers building a new starter range, Elecdura offers 300516-00041 as an aftermarket heavy-duty starter motor for DL06 (DX150-9C). The 24V, 4.5kW and 11T configuration is intended for professional replacement sourcing by heavy-duty parts distributors, importers and fleet suppliers.

For private-label buyers requesting production pricing, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

300516-00041 Starter Motor Specifications and Technical Drawing

For technical sales teams confirming electrical ratings, the product identity combines 300516-00041, DL06 (DX150-9C), 24V, 4.5kW and 11T. Keeping those facts together helps buyers separate this starter from adjacent versions.

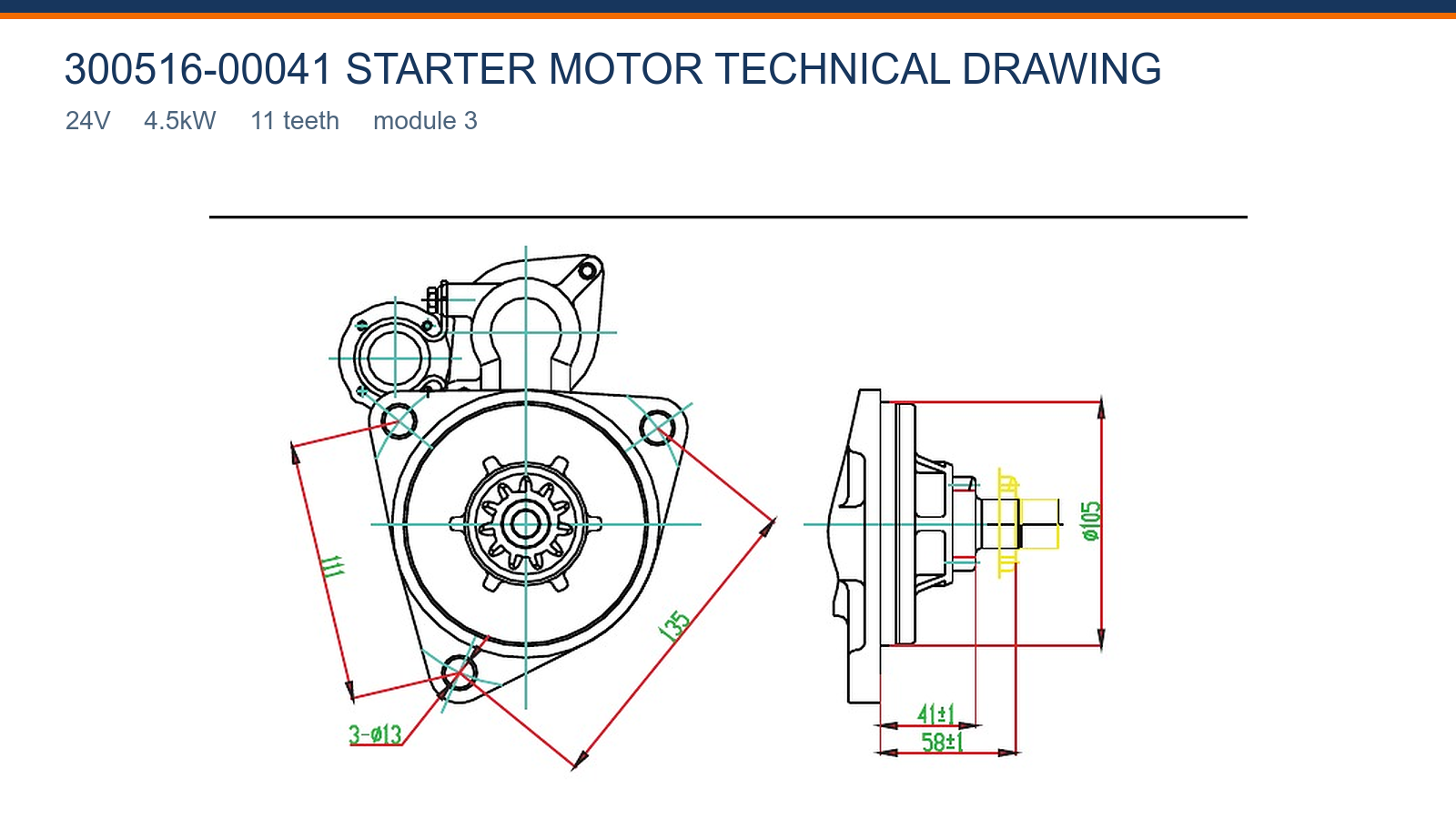

For fitment reviewers reviewing a replacement proposal, the source-faithful technical drawing records the available mounting information for 300516-00041, including 3×Ø13, Ø105, 41±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

300516-00041 Aftermarket Replacement and Application

For purchasing teams evaluating a direct replacement, use 300516-00041 as the primary product identity for DL06 (DX150-9C). The cross-reference group 300516-00041 supports aftermarket matching, while the electrical rating and drive-end configuration distinguish the exact version supplied here.

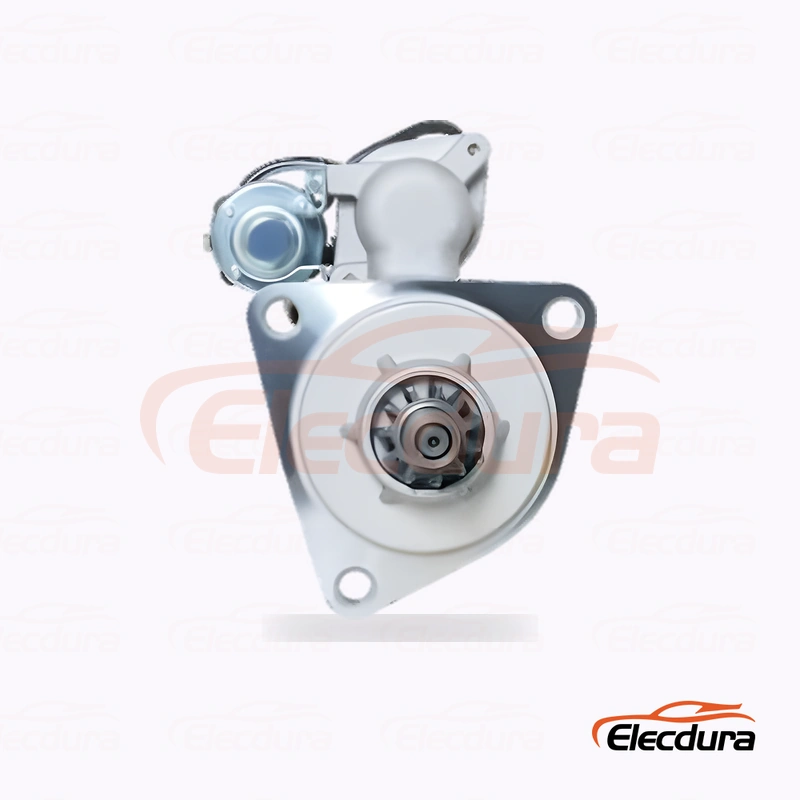

For distributors comparing the flange and terminals, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

300516-00041 Wholesale Supply for Distributors and Importers

For aftermarket product managers opening a first distributor purchase, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For engine-parts specialists confirming an incoming batch, define the reference group, accepted product version, inspection request and packaging standard before production. Those records help both sides manage replenishment and resolve any receiving question efficiently.

300516-00041 Starter Motor Buyer FAQ

Which check should lead flange clocking for repeatable sourcing?

For importers comparing the flange and terminals, no separate angular callout is stated for 300516-00041. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

How can a buyer screen DL06 (DX150-9C) cranking condition for a first distributor purchase?

For product managers comparing nearby starter versions, before replacing the starter on DL06 (DX150-9C), test battery state, voltage drop across positive and ground paths, the start signal and ring-gear condition. Note cranking voltage and any abnormal noise. Those observations help distinguish a supply-circuit or engine-load problem from a fault in the 24V, 4.5kW starter and make a technical RFQ easier to resolve.

What must be matched before quoting 11-tooth pinion identification before a purchase order is released?

For maintenance suppliers preparing a technical RFQ, count all 11 teeth on the 300516-00041 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

What should purchasing verify first for 300516-00041 solenoid and cable routing when confirming the offer line?

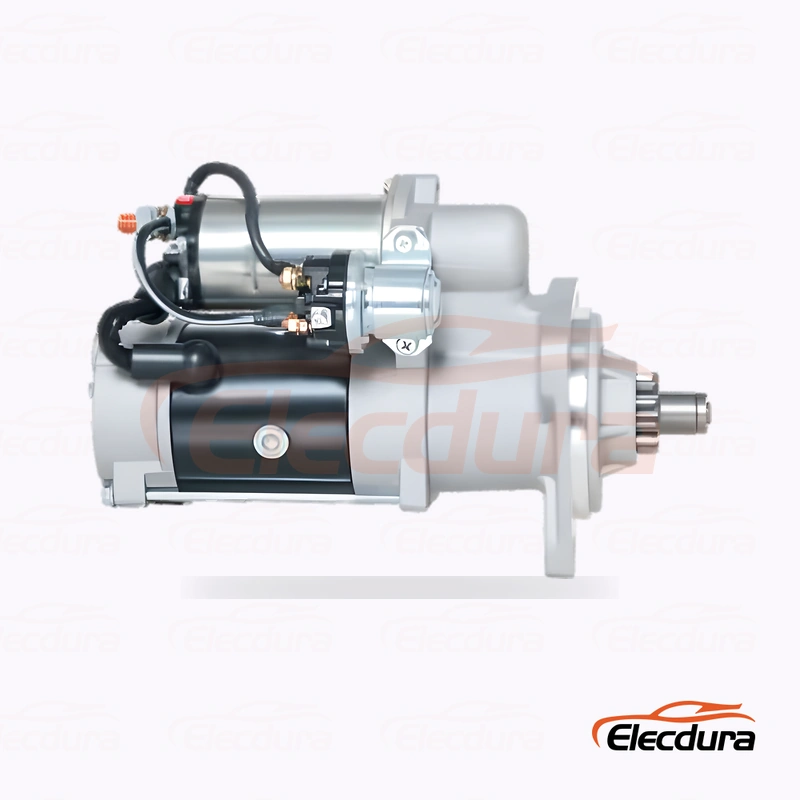

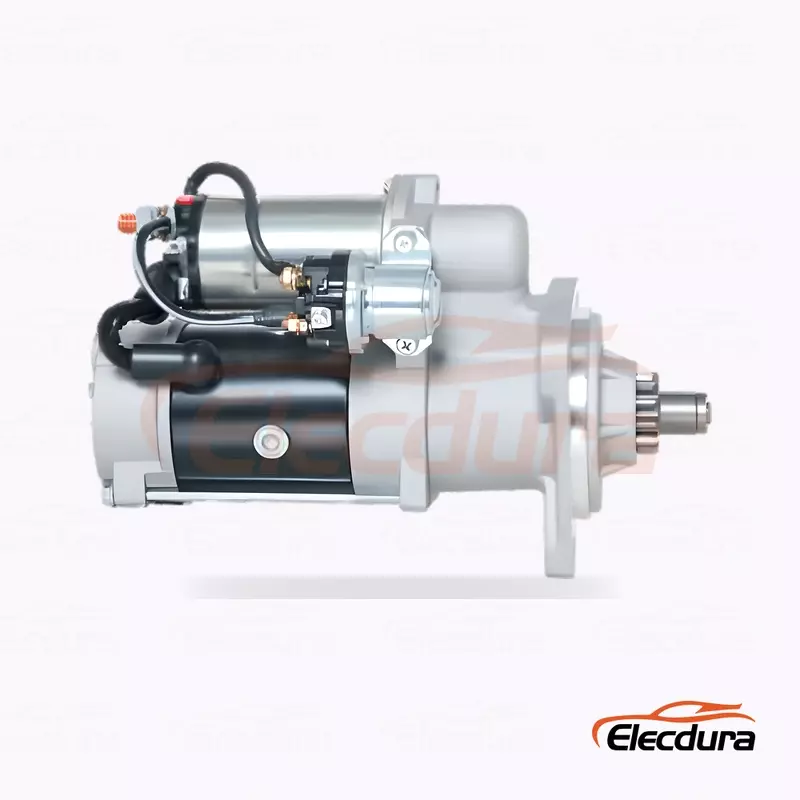

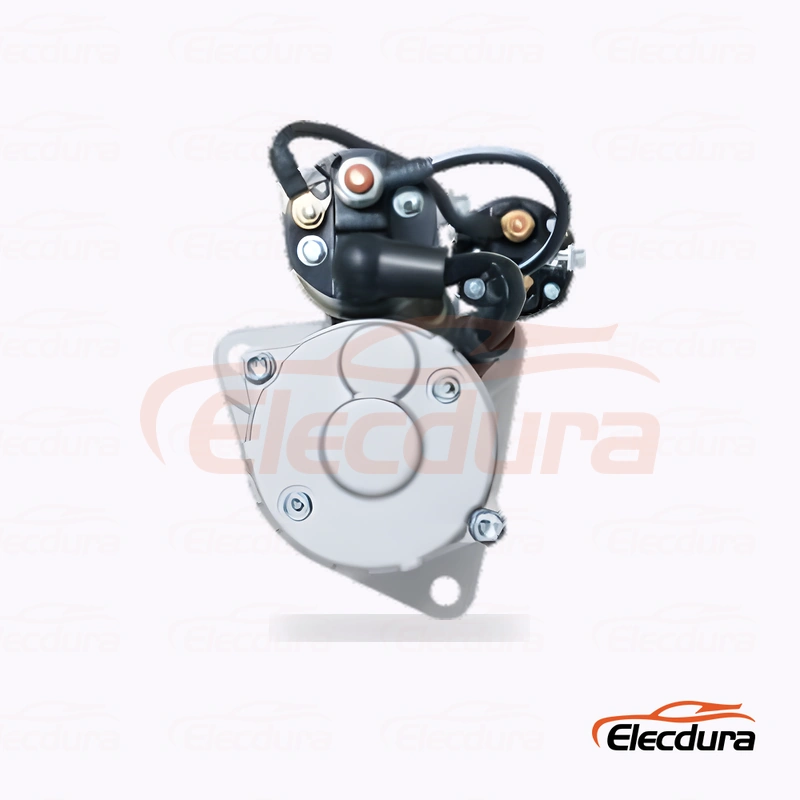

For equipment-parts dealers checking version-defining data, use the side and rear photographs of 300516-00041 to check solenoid position, battery-stud direction and start-terminal access in DL06 (DX150-9C). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Which check should lead DL06 (DX150-9C) during fitment review?

For purchasing teams confirming electrical ratings, DL06 (DX150-9C) identifies the intended heavy-duty engine family, but it should not be used by itself. Pair the application with 300516-00041, the 24V electrical system and the 11-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration during quotation and schedule review.

What should purchasing verify first for 300516-00041 drawing dimensions before accepting a substitute?

For distributors checking repeat-order specifications, read the 300516-00041 drawing as a comparison aid, not as permission to ignore the starter removed from the machine. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

How can a buyer screen 11T and module 3 before accepting a substitute?

For technical buyers confirming the stated application, the supplied drive uses 11 teeth with module 3. Count the old pinion teeth and compare outside diameter, rest position and engagement depth at inquiry stage. The 3 module is part of the gear definition, so another pitch must not be combined on the single RFQ position. This check protects the ring gear from an incorrect mesh.

How should a distributor confirm 3×Ø13 when preparing a product enquiry?

For engine-parts specialists checking application evidence, the drawing lists 3×Ø13 for 300516-00041. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

Request a Wholesale Quote for 300516-00041 Heavy-Duty Starter Motor

For regional parts suppliers preparing a volume quote, request pricing for 300516-00041 by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
