Xinchang 485 / 490 24V 4.5kW 11T Starter Motor

Xinchang 485 / 490 24V 4.5kW 11T Agricultural Machinery Starter Motor for Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105

For aftermarket product managers defining label requirements, Elecdura offers Xinchang 485 / 490 24V 4.5kW 11T as an aftermarket agricultural machinery starter motor for Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105. The 24V, 4.5kW and 11T configuration is intended for professional replacement sourcing by agricultural-machinery distributors, importers and engine-parts wholesalers.

For engine-parts specialists confirming commercial terms, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

Xinchang 485 / 490 24V 4.5kW 11T Starter Motor Specifications and Technical Drawing

For service-parts networks matching the removed unit, the product identity combines Xinchang 485 / 490 24V 4.5kW 11T, Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105, 24V, 4.5kW and 11T. Keeping those facts together helps buyers separate this starter from adjacent versions.

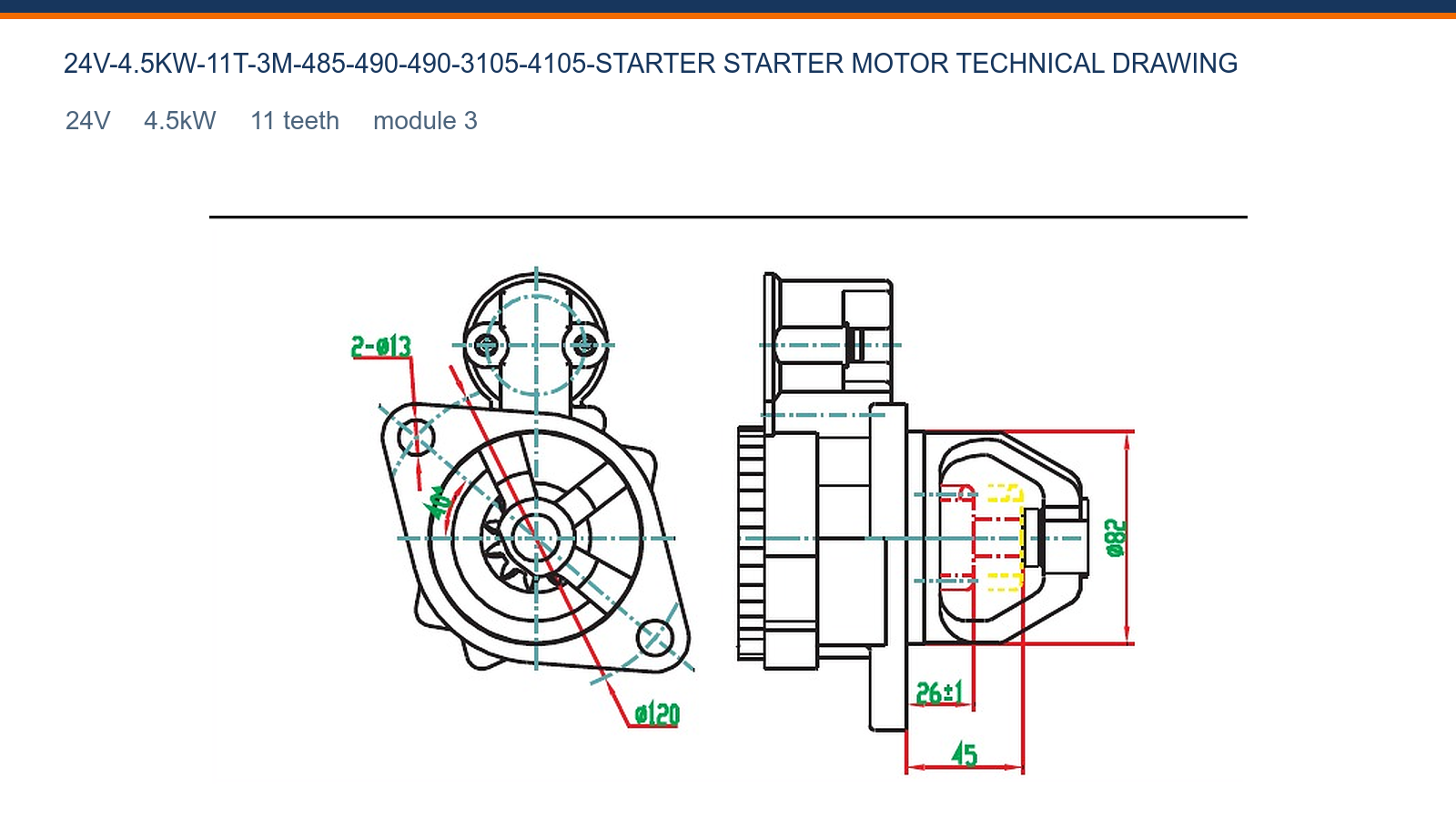

For importers reviewing drive-end geometry, the source-faithful technical drawing records the available mounting information for Xinchang 485 / 490 24V 4.5kW 11T, including 2×Ø13, 26±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

Xinchang 485 / 490 24V 4.5kW 11T Aftermarket Replacement and Application

For fleet-parts buyers reviewing a replacement proposal, xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 is the stated application for Xinchang 485 / 490 24V 4.5kW 11T. Buyers comparing Xinchang 485 / 490 24V 4.5kW 11T should confirm that the original unit in hand shares the same 24V system, 4.5kW output and 11T drive before adding the item to a distributor order.

For technical sales teams confirming the stated application, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

Xinchang 485 / 490 24V 4.5kW 11T Wholesale Supply for Distributors and Importers

For sourcing managers preparing a volume quote, xinchang 485 / 490 24V 4.5kW 11T is available for professional aftermarket supply to agricultural-machinery distributors, importers and engine-parts wholesalers. Ask for wholesale pricing with quantity, destination and packaging requirements; standard terms are 20 pcs MOQ, 7–15 days after confirmation and 18 months warranty.

For wholesale program managers planning a repeat order, available quality support includes armature, solenoid, no-load and load testing. Buyers may define sampling, report format, reference labels, terminal protection and carton marks before production so the shipment can be checked against the approved order specification.

Xinchang 485 / 490 24V 4.5kW 11T Starter Motor Buyer FAQ

How can a buyer screen Xinchang 485 / 490 24V 4.5kW 11T carton identification when the unit taken from service is available?

For purchasing teams updating a customer item master, ask that unit and carton labels repeat the agreed reference, 24V, 4.5kW and 11T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

How can an importer validate Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 production changes for a documented fitment decision?

For distributors checking application evidence, xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match Xinchang 485 / 490 24V 4.5kW 11T, 24V, 4.5kW and 11T to the unit taken from service. A changed suffix, flange or terminal layout should open a separate review for that machine.

How can a buyer screen Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 previously replaced starter during fitment review?

For technical buyers confirming electrical ratings, ask whether the starter removed from Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with Xinchang 485 / 490 24V 4.5kW 11T, 24V, 4.5kW and 11T before turning that history into a bulk stocking decision.

Which comparison prevents a mismatch for Xinchang 485 / 490 24V 4.5kW 11T terminal access before comparing delivery options?

For engine-parts specialists checking repeat-order specifications, compare the rear housing and terminal direction in the approved product views for Xinchang 485 / 490 24V 4.5kW 11T. The battery cable and start-signal lead must reach without sharp bends, rubbing or contact with hot and moving parts. If the body can be clocked differently within the same reference family, confirm the actual terminal position before stock is committed to the order.

Which check should lead 26±1 mm before a purchase order is released?

For fleet-parts buyers matching the starter removed from the machine, use 26±1 mm when comparing Xinchang 485 / 490 24V 4.5kW 11T. Measure from the drawing's indicated faces and keep pinion rest position separate from overall body length. These axial values influence how the drive sits and engages, so the set should agree with the removed starter before a fleet or distributor quantity is released.

How should a distributor confirm Xinchang 485 / 490 24V 4.5kW 11T locating face before comparing delivery options?

For technical sales teams reviewing drive-end geometry, the Xinchang 485 / 490 24V 4.5kW 11T flange should sit flat against the Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

What should receiving teams compare on Xinchang 485 / 490 24V 4.5kW 11T side-profile photograph for a first stocking order?

For fitment reviewers preparing an OE-based quote, the side profile of Xinchang 485 / 490 24V 4.5kW 11T shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 26±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which detail separates 4.5kW output on Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105 before an installation slot is booked?

For application specialists separating similar housings, the 4.5kW rating belongs to the Xinchang 485 / 490 24V 4.5kW 11T configuration used for Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105. Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

Request a Wholesale Quote for Xinchang 485 / 490 24V 4.5kW 11T Agricultural Machinery Starter Motor

For sales teams setting packaging requirements, provide Xinchang 485 / 490 24V 4.5kW 11T, Xinchang 485 / 490, Chengnei 490, Lijia 3105 / 4105, expected order quantity and destination. Include photos or measurements when the original unit in hand differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
