M009T65171 Mitsubishi Starter Motor 24V 5.5kW 11T

M009T65171 Heavy-Duty Starter Motor for MITSUBISHI 6D17

For distributors reviewing customer demand, M009T65171 gives heavy-duty parts distributors, importers and fleet suppliers a defined aftermarket starter motor for MITSUBISHI 6D17. The supplied version combines 24V, 5.5kW and 11T for OE-reference matching, wholesale quotation and repeat purchasing.

For aftermarket product managers planning a repeat order, the product is positioned for professional aftermarket supply, with product identification, fitment boundaries, inspection options and commercial terms visible before the buyer requests pricing.

M009T65171 Starter Motor Specifications and Technical Drawing

For replacement-parts sellers evaluating a direct replacement, the product identity combines M009T65171, MITSUBISHI 6D17, 24V, 5.5kW and 11T. Keeping those facts together helps buyers separate this starter from adjacent versions.

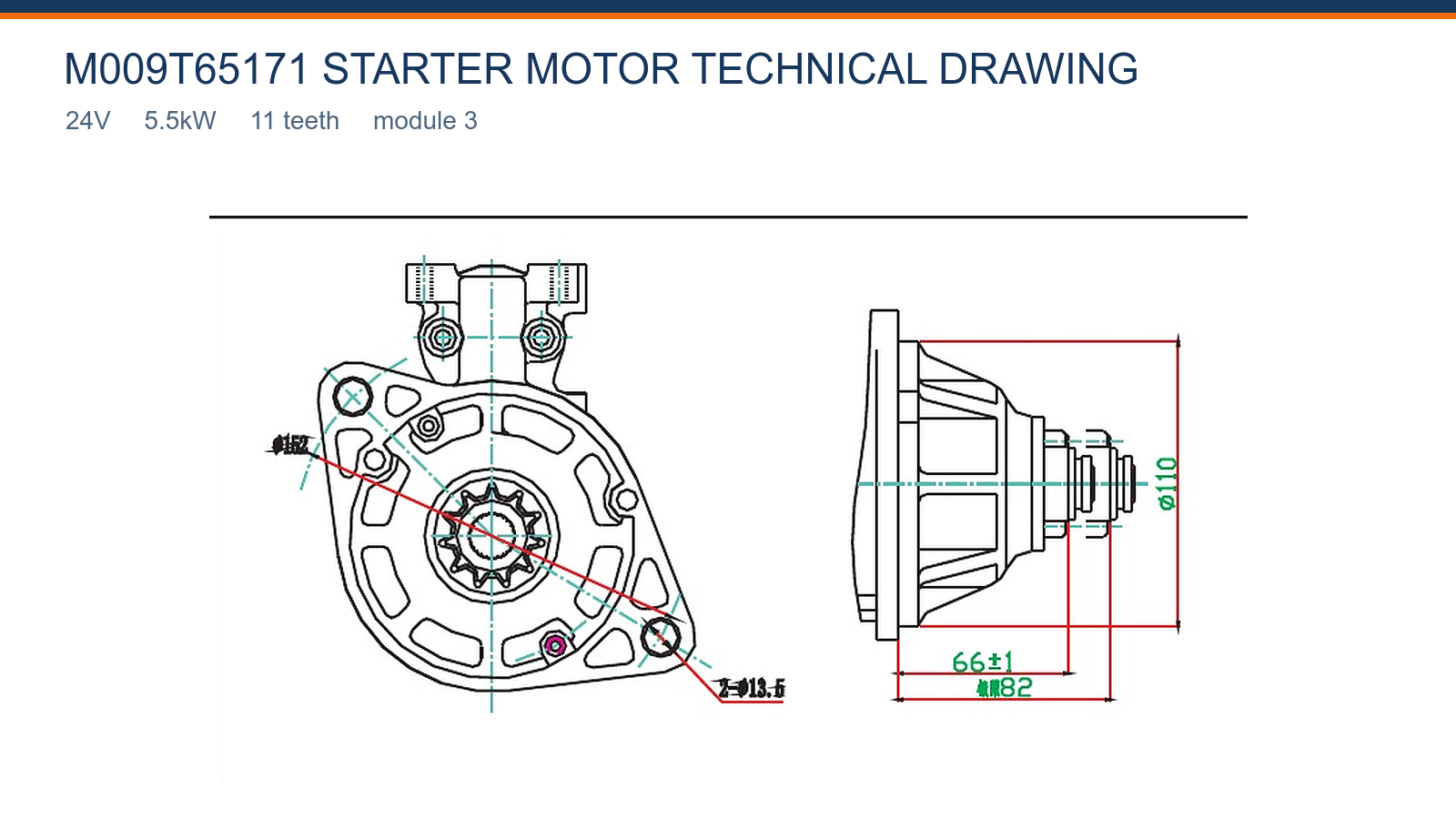

For service-parts networks comparing the flange and terminals, the source-faithful technical drawing records the available mounting information for M009T65171, including Ø110, 66±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T65171 Aftermarket Replacement and Application

For engine-parts specialists checking repeat-order specifications, send M009T65171, ME304500, the full MITSUBISHI 6D17 description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For fleet-parts buyers matching the starter being replaced, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

M009T65171 Wholesale Supply for Distributors and Importers

For aftermarket wholesalers preparing distributor pricing, wholesale enquiries for M009T65171 can combine product matching with packaging and inspection planning. Elecdura offers neutral packaging and private-label review for qualified orders, with 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For sourcing managers building a new starter range, technical and commercial requirements should be confirmed on the same RFQ. Buyers can request suitable electrical tests, product identification photos, customer labels and carton information before the shipment is released.

M009T65171 Starter Motor Buyer FAQ

Which comparison prevents a mismatch for M009T65171 rear-terminal photograph when the existing starter is available?

For equipment-parts dealers matching the original unit in hand, use the rear view of M009T65171 to identify battery and signal terminals, their direction and the clearance around each stud. Match the customer's photograph from the same orientation and consider cable routing in MITSUBISHI 6D17. A correct drive end with an unusable terminal position is not a complete fitment match.

Which comparison prevents a mismatch for 11T and module 3 during fitment review?

For purchasing teams reviewing drive-end geometry, the supplied drive uses 11 teeth with module 3. Count the old pinion teeth and compare outside diameter, rest position and engagement depth before the PO is released. The 3 module is part of the gear definition, so another pitch must not be combined on the single RFQ position. This check protects the ring gear from an incorrect mesh.

How should a workshop distinguish 11-tooth pinion identification when preparing a product enquiry?

For distributors comparing nearby starter versions, count all 11 teeth on the M009T65171 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

What should receiving teams compare on M009T65171 drive-end photograph when the old starter is available?

For technical buyers separating similar housings, the drive-end image for M009T65171 should be used to count 11 teeth and compare the flange, locating shoulder and pinion rest position. Ask for the replaced starter to be photographed from the corresponding angle. A poorly aligned photo can obscure drive and flange details; request another image before approving a near-match.

What should purchasing verify first for MITSUBISHI 6D17 before a purchase order is released?

For engine-parts specialists evaluating a direct replacement, MITSUBISHI 6D17 identifies the intended heavy-duty engine family, but it should not be used by itself. Pair the application with M009T65171, the 24V electrical system and the 11-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before the priced offer is released.

Which specification deserves priority for M009T65171 side-profile photograph before stock is assigned?

For fleet-parts buyers comparing the flange and terminals, the side profile of M009T65171 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 66±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

Which check should lead M009T65171 three-view gallery for a documented fitment decision?

For technical sales teams reviewing a replacement proposal, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to M009T65171; they should be reviewed together with the 11T drive and MITSUBISHI 6D17 application. Request an additional close-up when the customer's unit hides a deciding feature.

What should purchasing verify first for flange clocking before stock is assigned?

For fitment reviewers preparing a technical RFQ, no separate angular callout is stated for M009T65171. Align the old and offered starters by the locating face, then photograph bolt positions and terminal clocking from matching viewpoints. This provides a usable orientation check for the purchasing team without assigning an angle taken from another model that only shares a similar flange outline.

Request a Wholesale Quote for M009T65171 Heavy-Duty Starter Motor

For wholesale program managers requesting production pricing, to source M009T65171 for a distributor or importer program, send the OE group, MITSUBISHI 6D17, planned volume and destination. Elecdura will confirm the quoted starter configuration, commercial terms and available inspection support.
