M008T60871 Mitsubishi Starter Motor 24V 5.0kW 10T

M008T60871 Heavy-Duty Starter Motor for MITSUBISHI S6E (E320C)

For sales teams preparing a volume quote, M008T60871 supports commercial and off-highway replacement programs for MITSUBISHI S6E (E320C). This heavy-duty starter motor is defined by its 24V electrical system, 5.0kW output and 10T pinion, giving distributors a practical basis for quotation and stock matching.

For warehouse planners planning a repeat order, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

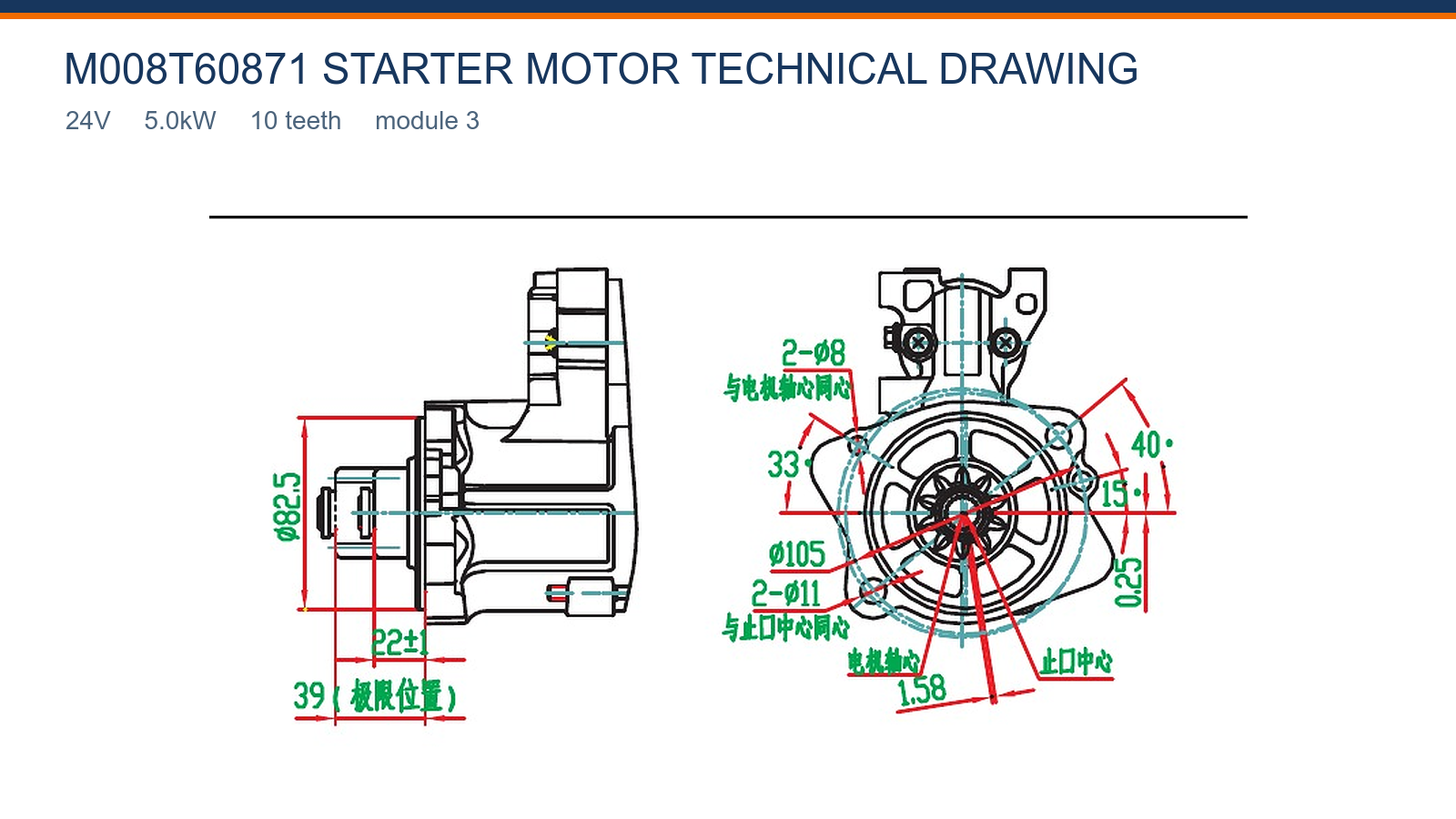

M008T60871 Starter Motor Specifications and Technical Drawing

For distributors evaluating a direct replacement, this starter should be identified by the complete mounting set, including 2×Ø8, 2×Ø11, Ø105 and 22±1 mm. A single matching dimension does not establish a direct replacement.

For technical buyers reviewing drive-end geometry, the source-faithful technical drawing records the available mounting information for M008T60871, including 2×Ø8, 2×Ø11, Ø105, 22±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M008T60871 Aftermarket Replacement and Application

For importers checking repeat-order specifications, this aftermarket starter motor is organized around M008T60871 for MITSUBISHI S6E (E320C). Related numbers remain useful search and purchasing references, but Elecdura treats a changed rating, pinion, flange or terminal layout as a separate version for quotation.

For product managers confirming the stated application, use the gallery to compare the flange, 10T pinion and rear connections before approving the order. Keep module 3 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

M008T60871 Wholesale Supply for Distributors and Importers

For fleet-parts buyers reviewing customer demand, Elecdura supplies M008T60871 for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For private-label buyers building a new starter range, technical and commercial requirements should be confirmed on the same RFQ. Buyers can request suitable electrical tests, product identification photos, customer labels and carton information before the shipment is released.

M008T60871 Starter Motor Buyer FAQ

What should purchasing verify first for M008T60871 drawing dimensions before stock is assigned?

For fitment reviewers confirming the stated application, read the M008T60871 drawing as a comparison aid, not as permission to ignore the starter removed from the machine. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What should purchasing verify first for M008T60871 solenoid and cable routing before a purchase order is released?

For application specialists checking application evidence, use the side and rear photographs of M008T60871 to check solenoid position, battery-stud direction and start-terminal access in MITSUBISHI S6E (E320C). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

How should a distributor confirm 2×Ø8 and 2×Ø11 during fitment review?

For replacement-parts sellers preparing an OE-based quote, the drawing lists 2×Ø8 and 2×Ø11 for M008T60871. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

How can a buyer screen M008T60871 stock identification before stock is assigned?

For warehouse planners requesting production pricing, label the storage location with M008T60871, 24V, 5.0kW and 10T, and keep a verified drive-end and rear-view image with the item master. Do not combine comparable-looking Mitsubishi units when a module, mounting reference or terminal orientation differs. Clear version separation supports faster picking and reduces returns caused by near-match stock.

How can a buyer screen 2×Ø8, 2×Ø11, Ø105 and 22±1 mm when checking a replacement proposal?

For importers evaluating a direct replacement, use the supplied technical drawing to compare 2×Ø8, 2×Ø11, Ø105 and 22±1 mm. Take each measurement from the same face shown or described, then compare the locating shoulder, bolt pattern and drive-end projection as one set. A single matching diameter is not enough if the hole pattern or axial reach places the pinion differently.

How can an importer validate M008T60871 replenishment when confirming the quoted item?

For inventory buyers preparing distributor pricing, keep M008T60871, 24V, 5.0kW, 10T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different old starter appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

What evidence best identifies M008T60871 cartons and units before an installation slot is booked?

For fleet-parts buyers opening a first trade order, sample cartons from different positions in the shipment and compare the M008T60871 labels, 24V marking, 10-tooth pinion, flange shape and terminal protection with the buying description. Photograph any mixed marking, damaged terminal or different drive end before workshop fitting, and isolate those pieces so the rest of the lot can be assessed consistently.

How should a distributor confirm M008T60871 inquiry package for repeatable sourcing?

For private-label buyers confirming an incoming batch, A useful inquiry for M008T60871 includes quantity, destination, required date, MITSUBISHI S6E (E320C), the full old-unit number and clear photos of the label, drive end, mounting face and terminals. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 24V, 5.0kW, 10T version against an exact starter specification.

Request a Wholesale Quote for M008T60871 Heavy-Duty Starter Motor

For purchasing teams requesting production pricing, request pricing for M008T60871 by sharing the application, quantity, delivery country and any neutral or private-label packaging needs. Clear label, drive-end, flange and terminal photos help confirm the exact starter before the offer is issued.
