M009T20471 Mitsubishi Starter Motor 24V 6.0kW 12T

M009T20471 Heavy-Duty Starter Motor for MITSUBISHI D06FRC-TAA (SY245H)

For importers reviewing customer demand, M009T20471 is an aftermarket heavy-duty starter motor for MITSUBISHI D06FRC-TAA (SY245H). Its 24V system, 6.0kW output and 12T pinion give heavy-duty parts distributors, importers and fleet suppliers a clear product definition for OE-reference replacement and repeat-order sourcing.

For inventory buyers planning a repeat order, distributors can quote the exact application and starter configuration without turning the page into a generic component guide. Elecdura can also review customer labels, carton requirements and inspection documents for planned orders.

M009T20471 Starter Motor Specifications and Technical Drawing

For engine-parts specialists evaluating a direct replacement, this starter should be identified by the complete mounting set, including 2×Ø11, Ø105, Ø82.5, 22±1 mm and 40±1 mm. A single matching dimension does not establish a direct replacement.

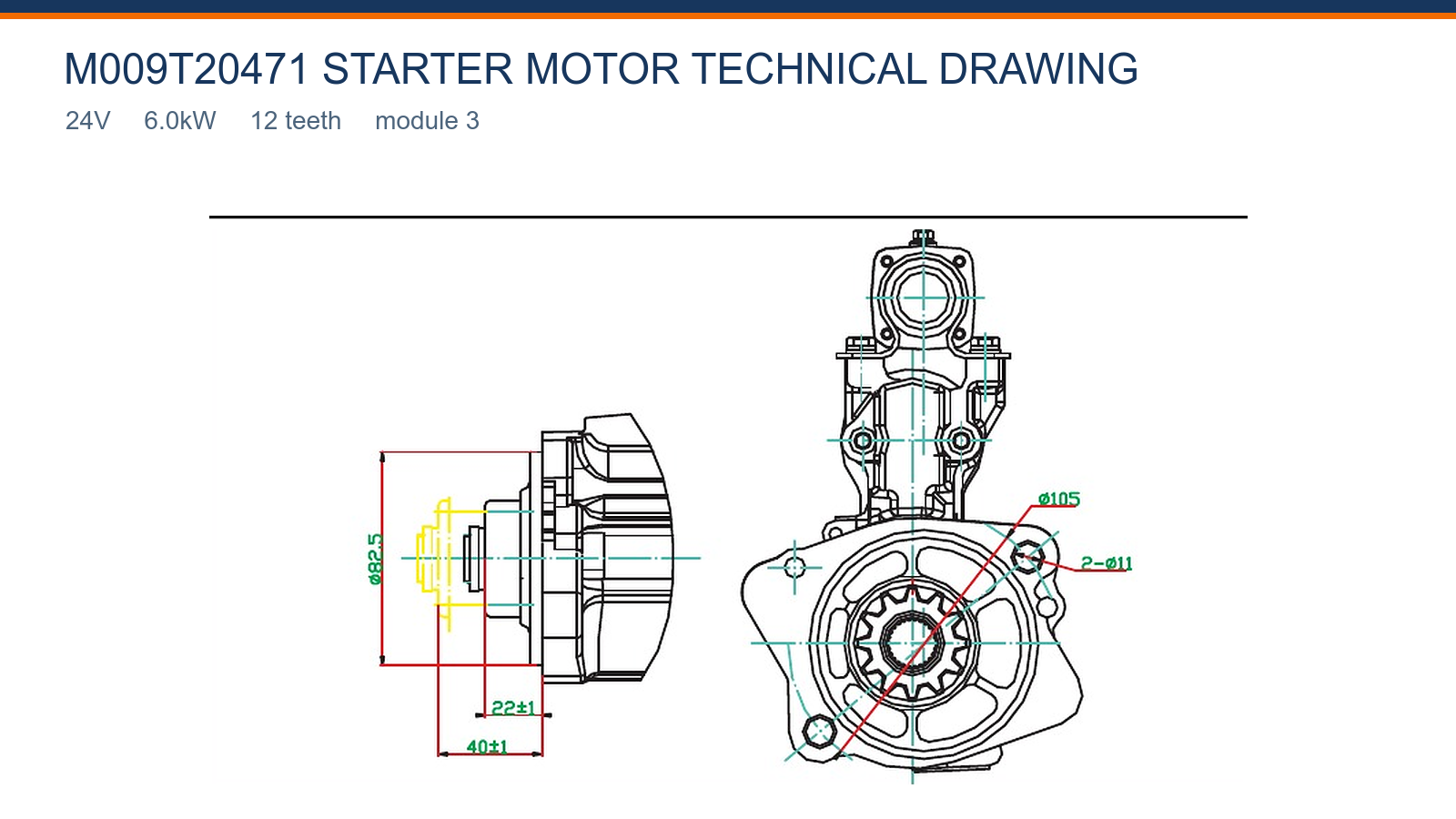

For fleet-parts buyers comparing the flange and terminals, the source-faithful technical drawing records the available mounting information for M009T20471, including 2×Ø11, Ø105, Ø82.5, 22±1 mm, 40±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

M009T20471 Aftermarket Replacement and Application

For maintenance suppliers checking repeat-order specifications, MITSUBISHI D06FRC-TAA (SY245H) is the stated application for M009T20471. Buyers comparing M009T20471, 32R66-00101 should confirm that the old starter shares the same 24V system, 6.0kW output and 12T drive before adding the item to a distributor order.

For equipment-parts dealers matching the starter removed from the machine, do not merge a easily confused unit into this order only because the main number is related. The 12T drive, module 3, flange and terminals should agree with the version shown here.

M009T20471 Wholesale Supply for Distributors and Importers

For purchasing teams preparing distributor pricing, Elecdura supplies M009T20471 for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For distributors opening a first B2B purchase, the order specification may include armature, solenoid, no-load or load testing together with label and packaging requirements. This gives receiving teams practical points for sampling a batch without treating appearance alone as proof of fitment.

M009T20471 Starter Motor Buyer FAQ

What should purchasing verify first for M009T20471 order testing during an application review?

For sales teams planning replenishment, Elecdura can discuss armature, solenoid, no-load and load testing for M009T20471. State the required report format, sampling expectation and acceptance points in the RFQ. Testing should use the stated 24V and 6.0kW configuration, while identity and mounting checks remain separate because electrical results do not prove physical interchangeability.

How should a workshop distinguish Ø105 and Ø82.5 before stock is assigned?

For service-parts networks reviewing drive-end geometry, M009T20471 shows Ø105 and Ø82.5. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

Which specification deserves priority for M009T20471 solenoid and cable routing when the starter being replaced is available?

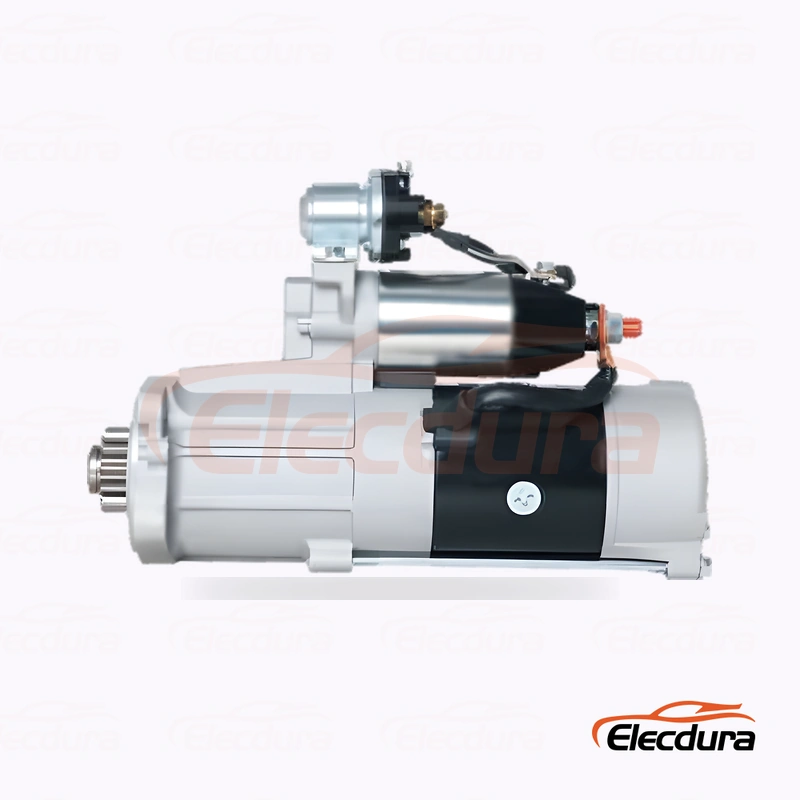

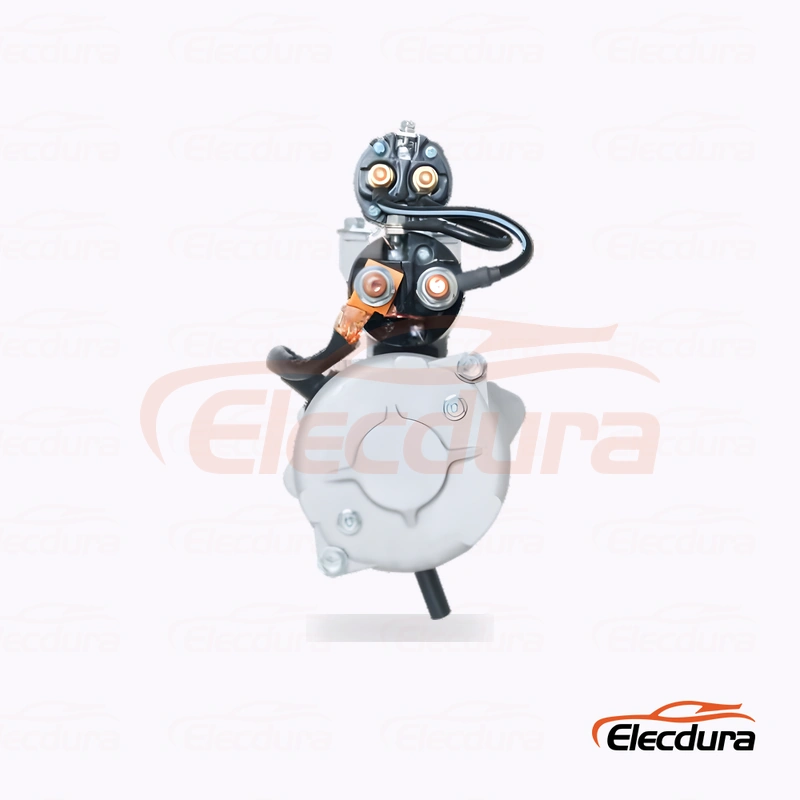

For importers comparing nearby starter versions, use the side and rear photographs of M009T20471 to check solenoid position, battery-stud direction and start-terminal access in MITSUBISHI D06FRC-TAA (SY245H). Cables should reach without stretching, sharp bends or contact with hot and moving parts. If the customer's old unit is clocked differently, request an installed photo before the order is assigned.

Which specification deserves priority for M009T20471 drawing dimensions during fitment review?

For product managers separating similar housings, read the M009T20471 drawing as a comparison aid, not as permission to ignore the starter removed from the machine. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

What must be matched before quoting M009T20471 three-view gallery for a documented fitment decision?

For maintenance suppliers evaluating a direct replacement, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to M009T20471; they should be reviewed together with the 12T drive and MITSUBISHI D06FRC-TAA (SY245H) application. Request an additional close-up when the customer's unit hides a deciding feature.

How can a buyer screen M009T20471 drive-end photograph when the starter removed from the machine is available?

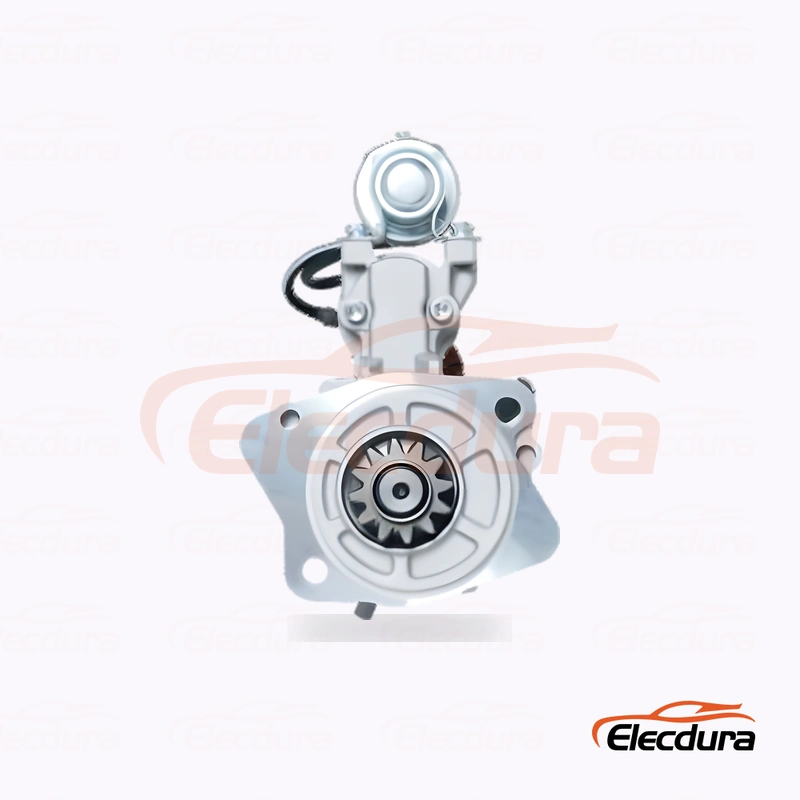

For equipment-parts dealers comparing the flange and terminals, the drive-end image for M009T20471 should be used to count 12 teeth and compare the flange, locating shoulder and pinion rest position. Use the same viewing angle when recording the unit taken from service. A side view alone may hide the deciding tooth and mounting information, so keep the direct drive-end view with the RFQ.

How can an importer validate MITSUBISHI D06FRC-TAA (SY245H) previously replaced starter before an installation slot is booked?

For purchasing teams reviewing a replacement proposal, ask whether the starter removed from MITSUBISHI D06FRC-TAA (SY245H) is original or an earlier replacement. If it has been substituted before, the visible unit may not represent the equipment's initial build. Use its label and geometry together with M009T20471, 24V, 6.0kW and 12T before turning that history into a bulk stocking decision.

How can a buyer screen MITSUBISHI D06FRC-TAA (SY245H) production changes when the existing starter is available?

For distributors confirming the stated application, MITSUBISHI D06FRC-TAA (SY245H) may appear across equipment years or engine revisions, so the application name is an entry point rather than the sole proof of fitment. Match M009T20471, 24V, 6.0kW and 12T to the original unit in hand. A changed suffix, flange or terminal layout should open a separate review for that machine.

Request a Wholesale Quote for M009T20471 Heavy-Duty Starter Motor

For aftermarket product managers requesting production pricing, prepare the RFQ with M009T20471, 32R66-00101, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 24V 6.0kW 12T starter motor line rather than a generic substitute.
