2601-7074A-24V-9.0KW-11T-3M Daewoo Starter Motor

2601-7074A-24V-9.0KW-11T-3M Construction Equipment Starter Motor for DE12TIA (DAEWOO 370, 400 excavators)

For warehouse planners opening a first trade order, this construction equipment starter motor serves DE12TIA (DAEWOO 370, 400 excavators) replacement demand under reference 2601-7074A-24V-9.0KW-11T-3M. Its 24V system, 9.0kW rating and 11T drive help importers and distributors identify the required version before discussing volume supply.

For importers confirming an incoming batch, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

2601-7074A-24V-9.0KW-11T-3M Starter Motor Specifications and Technical Drawing

For technical buyers confirming electrical ratings, this reference group can cover nearby starter versions. Keep 2601-7074A-24V-9.0KW-11T-3M, 24V, 9.0kW and 11T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

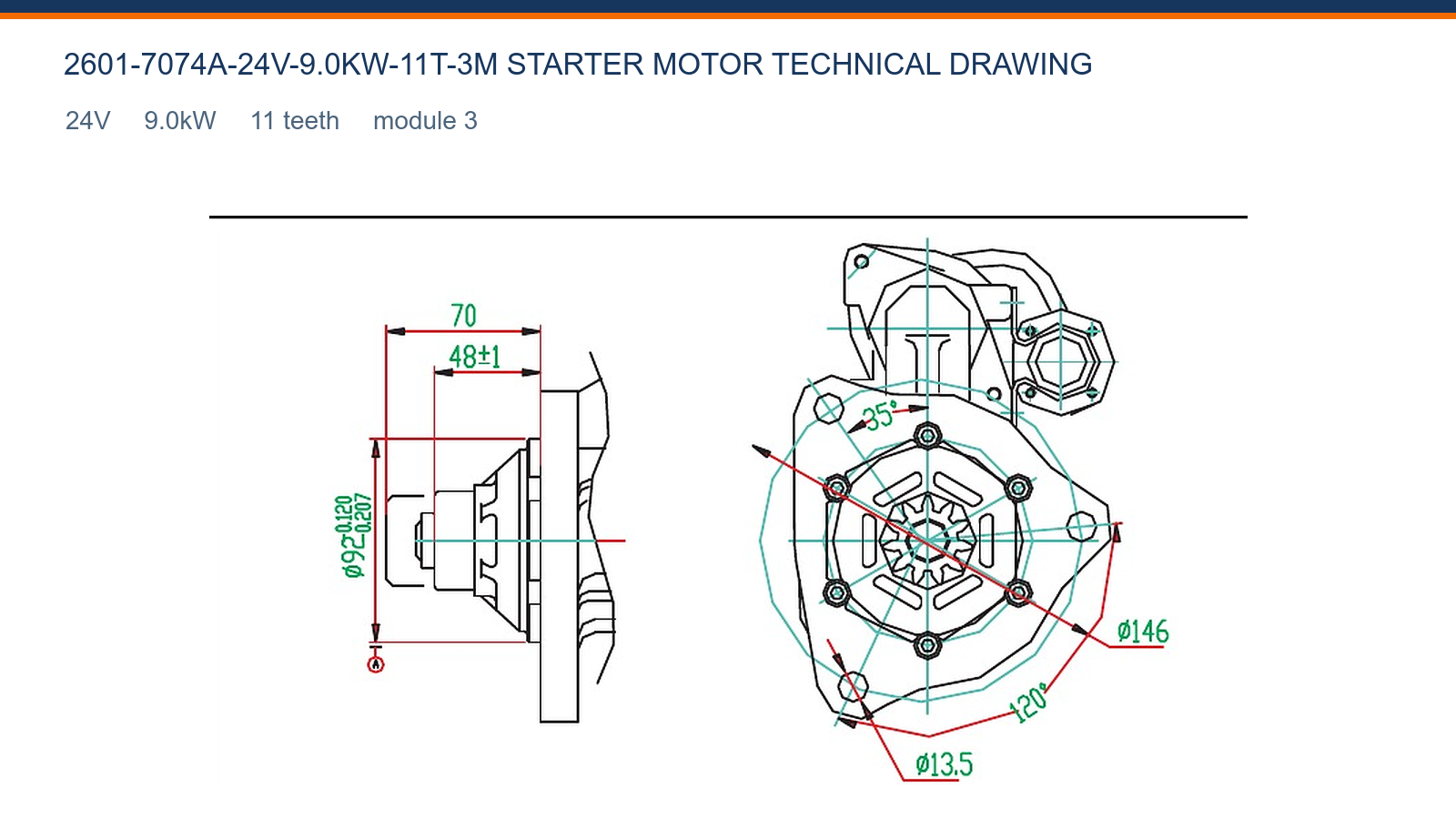

For engine-parts specialists checking repeat-order specifications, the source-faithful technical drawing records the available mounting information for 2601-7074A-24V-9.0KW-11T-3M, including Ø146, 48±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

2601-7074A-24V-9.0KW-11T-3M Aftermarket Replacement and Application

For product managers evaluating a direct replacement, match 2601-7074A-24V-9.0KW-11T-3M to DE12TIA (DAEWOO 370, 400 excavators) and keep the related numbers 2601-7074A-24V-9.0KW-11T-3M, 2601-7074A, 2601-7074D on the same enquiry. If the old unit carries another suffix, flange, drive or terminal arrangement, quote it separately until the physical version is confirmed.

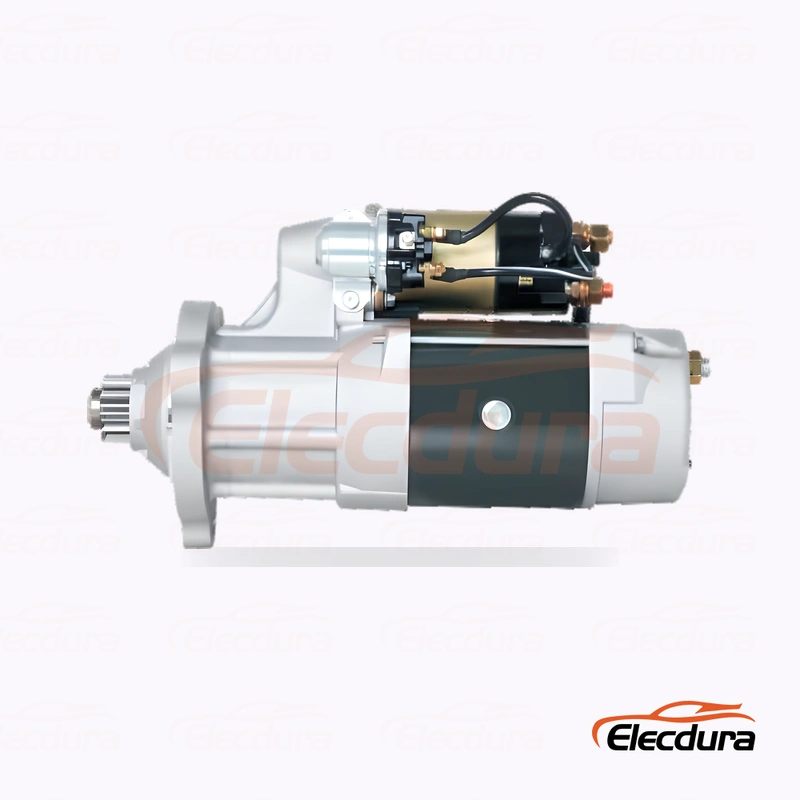

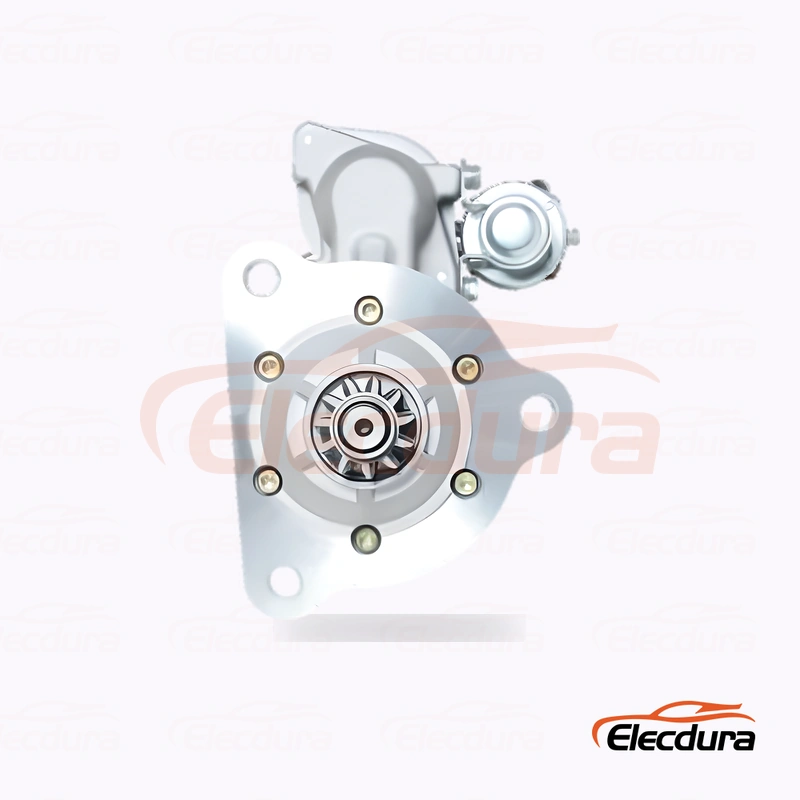

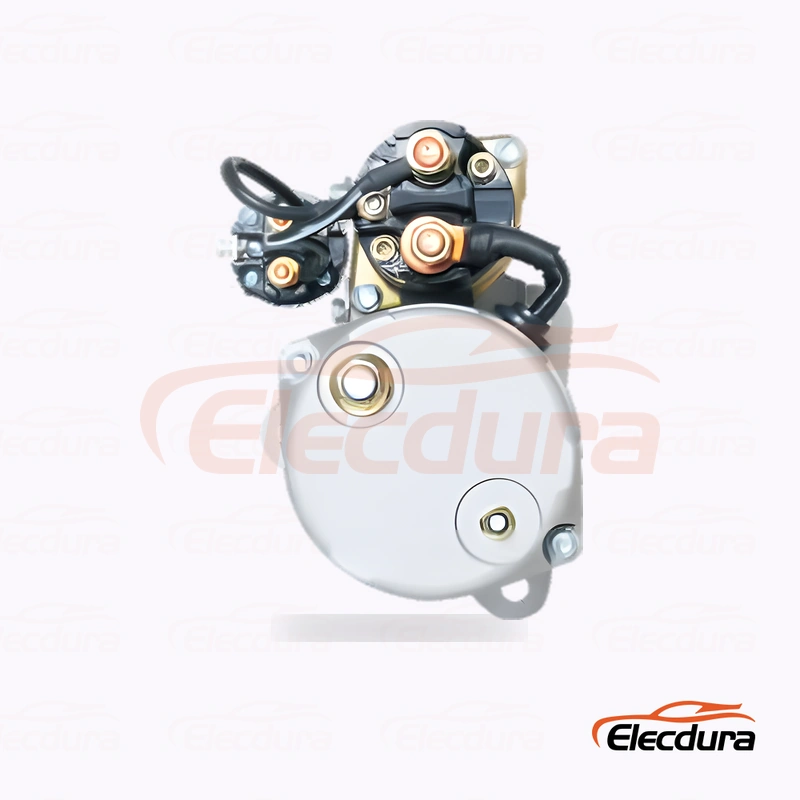

For maintenance suppliers comparing the flange and terminals, the starter being replaced should agree with the approved drive-end, side and rear views. Confirm the 11T pinion and module 3, then keep any different flange or terminal layout outside the current quoted item.

2601-7074A-24V-9.0KW-11T-3M Wholesale Supply for Distributors and Importers

For private-label buyers planning mixed-model inventory, buyers can discuss 20 pcs MOQ, production planning around 7–15 days after confirmation, neutral cartons or private-label packaging, and an 18-month warranty under the agreed sales terms.

For purchasing teams updating a customer item master, available quality support includes armature, solenoid, no-load and load testing. Buyers may define sampling, report format, reference labels, terminal protection and carton marks before production so the shipment can be checked against the approved order specification.

2601-7074A-24V-9.0KW-11T-3M Starter Motor Buyer FAQ

Which detail separates Ø146 before accepting a substitute?

For application specialists comparing the flange and terminals, 2601-7074A-24V-9.0KW-11T-3M shows Ø146. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

What evidence best identifies 2601-7074A-24V-9.0KW-11T-3M drawing dimensions when preparing a service question?

For replacement-parts sellers reviewing a replacement proposal, read the 2601-7074A-24V-9.0KW-11T-3M drawing as a comparison aid, not as permission to ignore the unit taken from service. Check every visible diameter, hole callout, length and angle that affects seating or engagement, then confirm the terminal view from the product photos. The drawing is schematic and not to scale, so decisions must follow the printed values rather than a visual estimate from the image.

Which check should lead 2601-7074A-24V-9.0KW-11T-3M technical claim evidence when preparing a service question?

For warehouse planners updating a customer item master, retain the unit label, affected quantity, carton condition, installation photos and cranking-voltage results. Add close images of the drive and terminals and note the DE12TIA (DAEWOO 370, 400 excavators) equipment. This evidence helps separate transport damage, an electrical-system problem, incorrect fitment and a starter fault without relying on a general description of failure.

How should a workshop distinguish 2601-7074A-24V-9.0KW-11T-3M ring-gear engagement before an installation slot is booked?

For importers checking application evidence, review the 11T pinion, module 3, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

What should receiving teams compare on 11-tooth pinion identification when the starter being replaced is available?

For product managers confirming electrical ratings, count all 11 teeth on the 2601-7074A-24V-9.0KW-11T-3M pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

Which comparison prevents a mismatch for 2601-7074A-24V-9.0KW-11T-3M carton identification for repeatable sourcing?

For fleet-parts buyers setting packaging requirements, ask that unit and carton labels repeat the agreed reference, 24V, 9.0kW and 11T where the packaging format permits. Add the customer's barcode and destination marks before production. Clear identification allows distributors to receive, bin and pick this version without opening packaging or relying on a generic starter description.

Which comparison prevents a mismatch for 24V system compatibility when the old starter is available?

For equipment-parts dealers matching the old starter, 2601-7074A-24V-9.0KW-11T-3M is a 24V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement ahead of the order. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

What evidence best identifies 9.0kW output on DE12TIA (DAEWOO 370, 400 excavators) for a documented fitment decision?

For purchasing teams reviewing drive-end geometry, the 9.0kW rating belongs to the 2601-7074A-24V-9.0KW-11T-3M configuration used for DE12TIA (DAEWOO 370, 400 excavators). Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

Request a Wholesale Quote for 2601-7074A-24V-9.0KW-11T-3M Construction Equipment Starter Motor

For distributors reviewing customer demand, discuss a 2601-7074A-24V-9.0KW-11T-3M supply program with Elecdura by sending the OE reference, application, annual or initial quantity, destination and branding needs. The reply will identify the offered product version and agreed commercial options.
