300516-00020-24V-9.0KW-11T-4.233M Daewoo Starter Motor

300516-00020-24V-9.0KW-11T-4.233M Construction Equipment Starter Motor for DAEWOO DH500LC excavator

For regional parts suppliers opening a first wholesale order, 300516-00020-24V-9.0KW-11T-4.233M gives construction-equipment parts distributors, importers and fleet suppliers a defined aftermarket starter motor for DAEWOO DH500LC excavator. The supplied version combines 24V, 9.0kW and 11T for OE-reference matching, wholesale quotation and repeat purchasing.

For aftermarket wholesalers confirming an incoming batch, this page is designed to support a distributor decision: identify the correct replacement, confirm the key specification, define packaging and inspection needs, and request one consistent quotation for the required quantity.

300516-00020-24V-9.0KW-11T-4.233M Starter Motor Specifications and Technical Drawing

For product managers confirming electrical ratings, the key version difference is the mounting and housing clocking. Compare 3×120° spacing and 3×Ø13.5 with the unit taken from service so the pinion alignment and cable access remain correct.

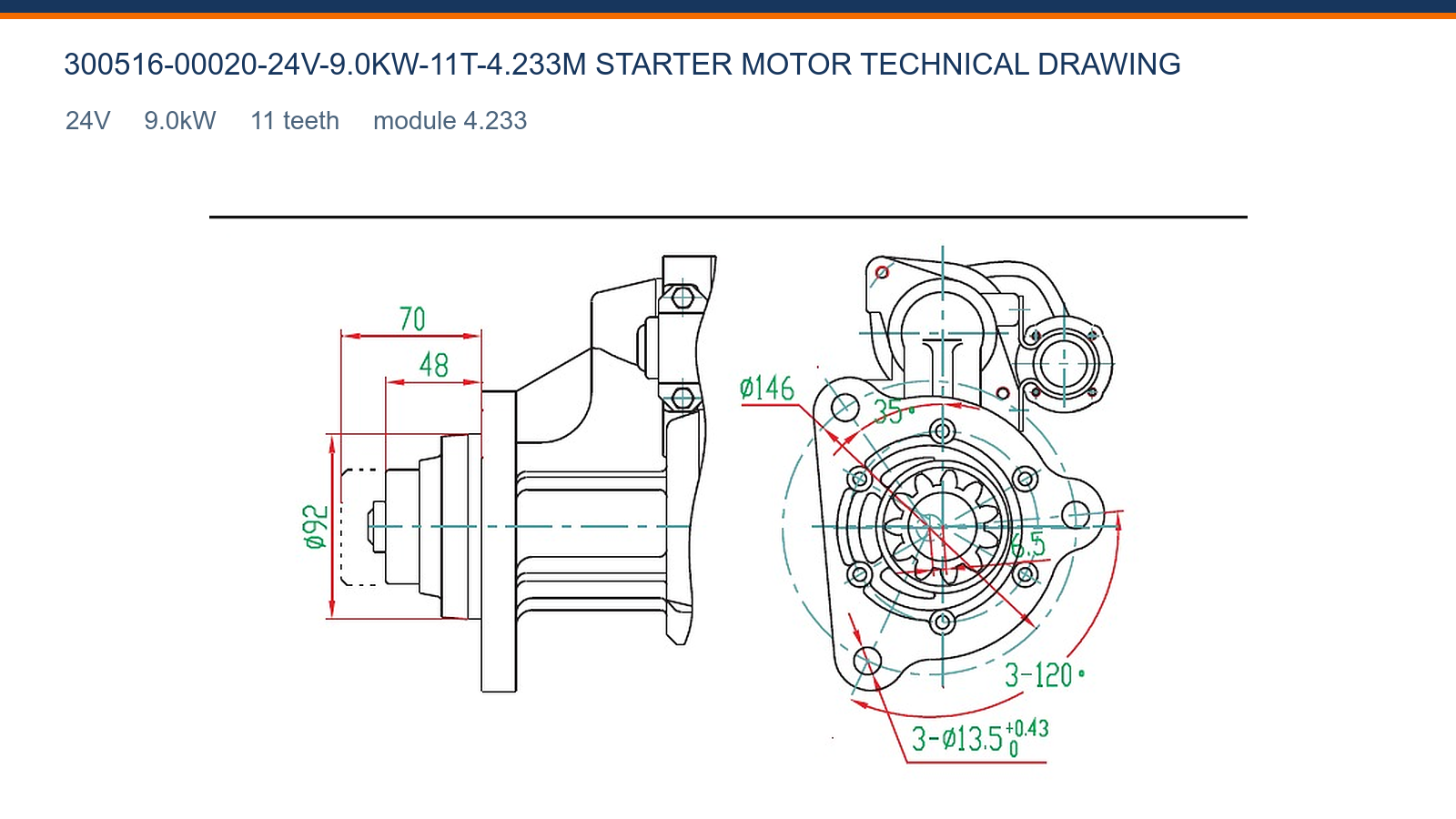

For maintenance suppliers checking repeat-order specifications, the source-faithful technical drawing records the available mounting information for 300516-00020-24V-9.0KW-11T-4.233M, including 3×Ø13.5, Ø146, 3×120° spacing; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

300516-00020-24V-9.0KW-11T-4.233M Aftermarket Replacement and Application

For fitment reviewers evaluating a direct replacement, the replacement search starts with 300516-00020-24V-9.0KW-11T-4.233M, 300516-00020 and the DAEWOO DH500LC excavator application. For mixed fleets or previously repaired machines, add clear old-unit photos so a substituted starter does not become the only fitment evidence.

For application specialists comparing the flange and terminals, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

300516-00020-24V-9.0KW-11T-4.233M Wholesale Supply for Distributors and Importers

For sales teams planning mixed-model inventory, distributor supply for 300516-00020-24V-9.0KW-11T-4.233M can include neutral packaging, customer-brand review and order-specific labels. Current commercial guidance is 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For warehouse planners updating a customer item master, the order can specify testing scope, sampling level, label content and packing details. Reference-label, drive-end and terminal-protection photos may also be requested before shipment for the agreed product version.

300516-00020-24V-9.0KW-11T-4.233M Starter Motor Buyer FAQ

Which detail separates 300516-00020-24V-9.0KW-11T-4.233M ring-gear engagement before an installation slot is booked?

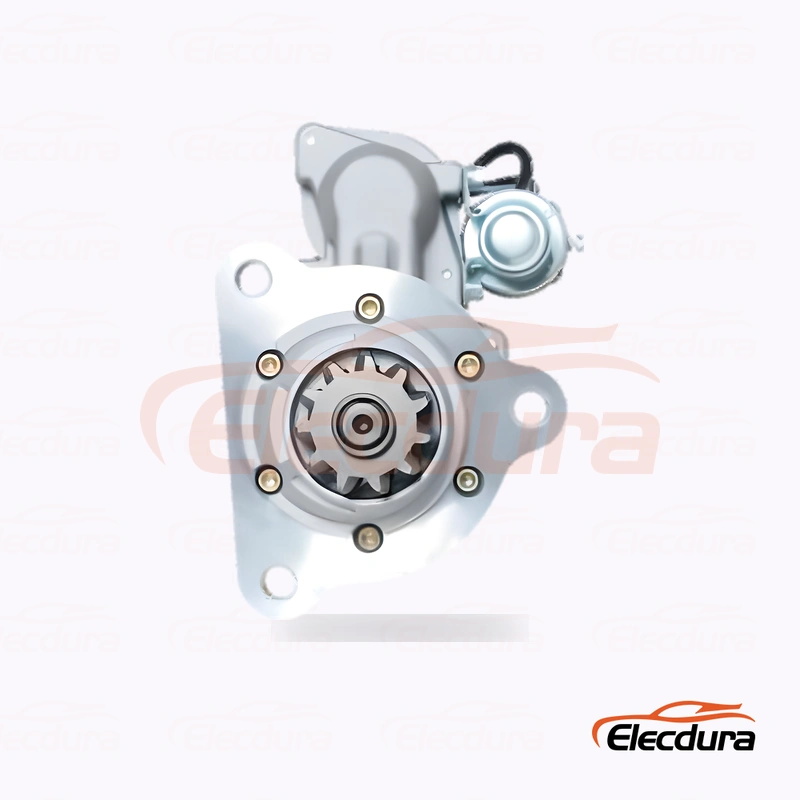

For technical buyers comparing the flange and terminals, review the 11T pinion, module 4.233, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

Which specification deserves priority for 300516-00020-24V-9.0KW-11T-4.233M replenishment during an application review?

For engine-parts specialists planning mixed-model inventory, keep 300516-00020-24V-9.0KW-11T-4.233M, 24V, 9.0kW, 11T, the application description and the agreed packaging on the same replenishment line. Add dated photos when the equipment fleet changes or a different starter removed from the machine appears. This gives purchasing and warehouse teams enough detail to avoid silently merging a new version into established stock.

How should a distributor confirm 300516-00020-24V-9.0KW-11T-4.233M terminal access when confirming the quoted item?

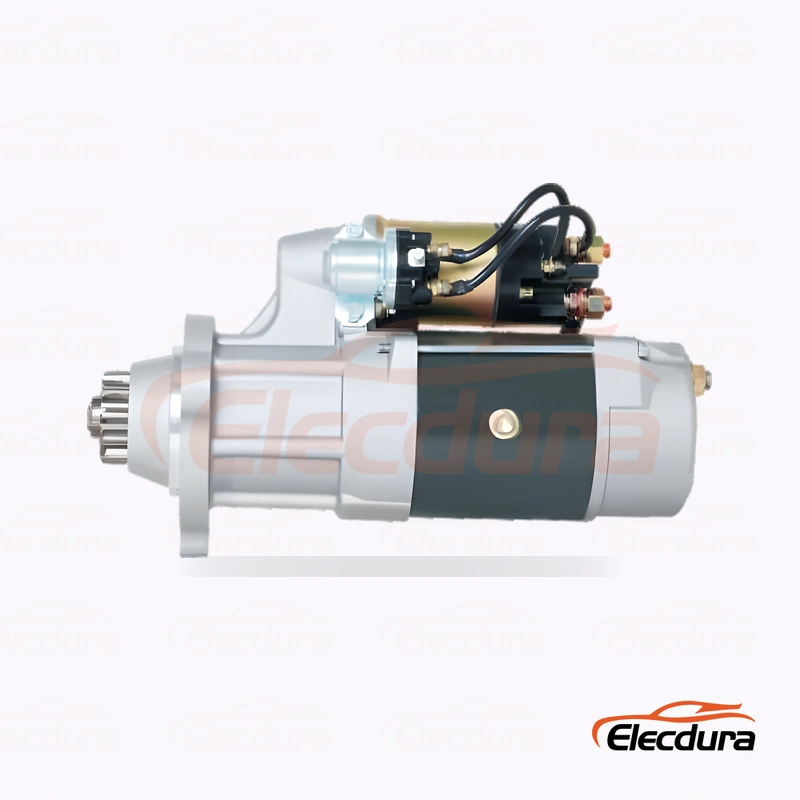

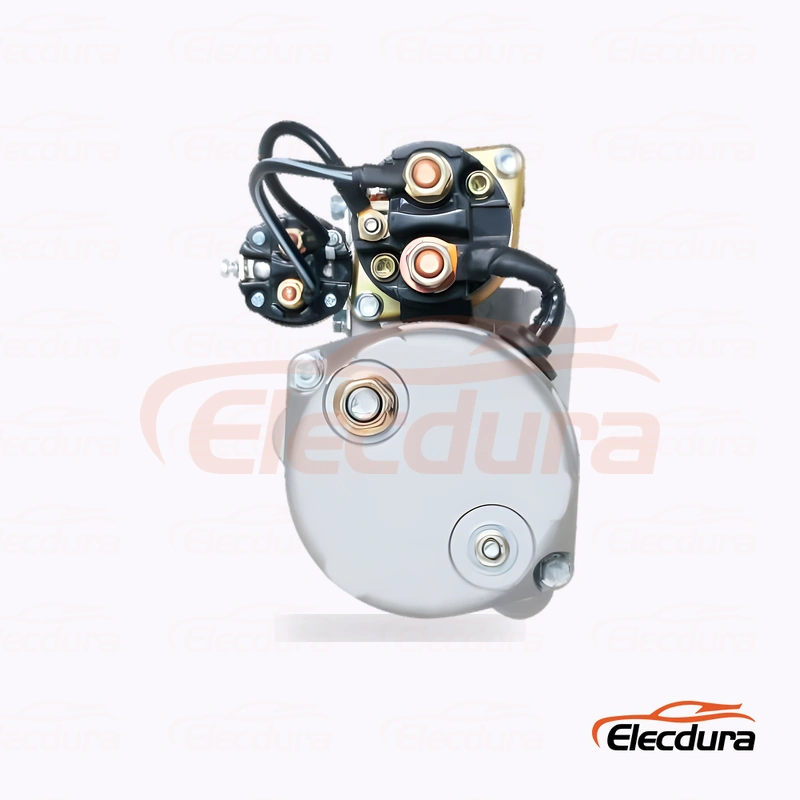

For fleet-parts buyers confirming the stated application, compare the rear housing and terminal direction in the approved product views for 300516-00020-24V-9.0KW-11T-4.233M. The battery cable and start-signal lead must reach without sharp bends, rubbing or contact with hot and moving parts. If the body can be clocked differently within the same reference family, confirm the actual terminal position before stock is committed to the order.

What should receiving teams compare on DAEWOO DH500LC excavator when confirming the commercial line?

For technical sales teams checking application evidence, DAEWOO DH500LC excavator identifies the intended construction machine family, but it should not be used by itself. Pair the application with 300516-00020-24V-9.0KW-11T-4.233M, the 24V electrical system and the 11-tooth drive. That combination lets purchasing exclude nearby versions used on another engine build, chassis revision or equipment configuration before agreeing cost and lead time.

How can an importer validate 24V and 9.0kW for a documented fitment decision?

For fitment reviewers confirming electrical ratings, 300516-00020-24V-9.0KW-11T-4.233M is defined as 24V and 9.0kW. Confirm the machine electrical system and the old starter rating together, because the voltage rating must match the installed network while output affects cranking performance. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

Which check should lead 3×Ø13.5 for warehouse identification?

For application specialists checking repeat-order specifications, the drawing lists 3×Ø13.5 for 300516-00020-24V-9.0KW-11T-4.233M. Count the holes, measure their diameters and compare their positions from the locating face. A matching outer housing does not compensate for a hole pattern that will not seat squarely, so flange geometry should pass before the starter reaches the installation bay.

How should a workshop distinguish axial reach when checking a replacement proposal?

For replacement-parts sellers matching the old starter, the source drawing does not provide a complete axial length for 300516-00020-24V-9.0KW-11T-4.233M. Ask for measured pinion rest position, flange-to-drive distance and a square side photograph of the old unit. Keep those customer measurements with the 11T drive definition so an unstated length is not borrowed from a neighboring reference.

What should receiving teams compare on Ø146 before accepting a substitute?

For service-parts networks reviewing drive-end geometry, 300516-00020-24V-9.0KW-11T-4.233M shows Ø146. Measure each diameter at the same shoulder or circle indicated in the drawing, rather than taking an unrelated outside-housing dimension. The locating feature centers the starter at the ring gear, so a diameter mismatch can matter even when the bolt holes appear to align.

Request a Wholesale Quote for 300516-00020-24V-9.0KW-11T-4.233M Construction Equipment Starter Motor

For importers reviewing customer demand, ask for a quote on 300516-00020-24V-9.0KW-11T-4.233M with the full DAEWOO DH500LC excavator record, quantity and packaging plan. We will verify the requested 24V, 9.0kW and 11T configuration and return the relevant wholesale terms.
