300516-00020-12V-9.0KW-11T-4.233M Daewoo Starter Motor

300516-00020-12V-9.0KW-11T-4.233M Construction Equipment Starter Motor for DAEWOO DH500LC excavator

For sourcing managers planning mixed-model inventory, this aftermarket construction equipment starter motor is specified for DAEWOO DH500LC excavator with 12V, 9.0kW and 11T. The page keeps the replacement identity, technical definition and bulk order information in one place.

For wholesale program managers updating a customer item master, the commercial value is a clearly identified starter rather than a generic visual match. Buyers can use the OE group, application, product images and technical data together, while neutral packaging and private-label review can be discussed for qualified bulk orders.

300516-00020-12V-9.0KW-11T-4.233M Starter Motor Specifications and Technical Drawing

For equipment-parts dealers comparing nearby starter versions, the 11T pinion and module 4.233 are important replacement identifiers. Match them with the flange and drive projection to protect the ring gear from an incorrect tooth pitch or engagement depth.

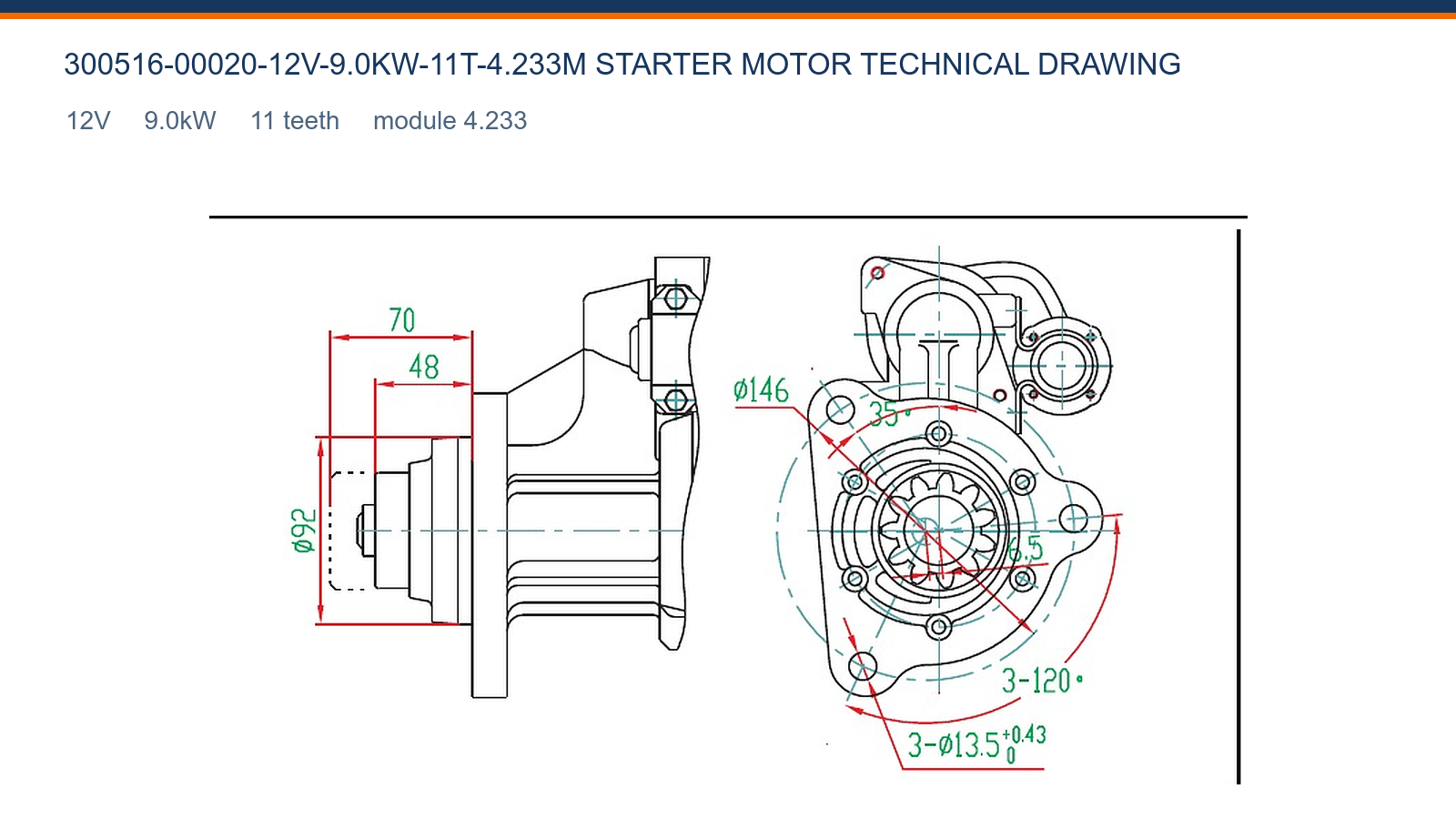

For purchasing teams preparing a technical RFQ, the source-faithful technical drawing records the available mounting information for 300516-00020-12V-9.0KW-11T-4.233M, including 3×Ø13.5, Ø146; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

300516-00020-12V-9.0KW-11T-4.233M Aftermarket Replacement and Application

For replacement-parts sellers checking application evidence, send 300516-00020-12V-9.0KW-11T-4.233M, 300516-00020, the full DAEWOO DH500LC excavator description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For service-parts networks preparing an OE-based quote, A direct replacement decision should combine the OE group with physical comparison. Check the mounting face, 11T drive and cable-stud direction, and ask for a separate review when one of those features differs.

300516-00020-12V-9.0KW-11T-4.233M Wholesale Supply for Distributors and Importers

For importers requesting production pricing, Elecdura supplies 300516-00020-12V-9.0KW-11T-4.233M for wholesale and distributor orders with a standard MOQ of 20 pcs, an indicative 7–15 day lead time after order confirmation and an 18-month warranty under agreed terms. Neutral packaging and private-label review are available for qualified programs.

For inventory buyers planning replenishment, batch consistency should be controlled through the agreed reference, electrical rating, pinion, packaging and inspection points. Elecdura can discuss test documentation and pre-shipment photos that match the needs of the distributor or importer.

300516-00020-12V-9.0KW-11T-4.233M Starter Motor Buyer FAQ

Which specification deserves priority for 9.0kW output on DAEWOO DH500LC excavator when the starter removed from the machine is available?

For fleet-parts buyers preparing an OE-based quote, the 9.0kW rating belongs to the 300516-00020-12V-9.0KW-11T-4.233M configuration used for DAEWOO DH500LC excavator. Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

What should purchasing verify first for 11T and module 4.233 during an application review?

For technical sales teams separating similar housings, the supplied drive uses 11 teeth with module 4.233. Count the old pinion teeth and compare outside diameter, rest position and engagement depth prior to purchase. The 4.233 module is part of the gear definition, so another pitch must not be combined on the combined buying line. This check protects the ring gear from an incorrect mesh.

What should receiving teams compare on 300516-00020-12V-9.0KW-11T-4.233M inquiry package for a first stocking order?

For sourcing managers planning replenishment, A useful inquiry for 300516-00020-12V-9.0KW-11T-4.233M includes quantity, destination, required date, DAEWOO DH500LC excavator, the full old-unit number and clear photos of the label, drive end, flange geometry and terminal layout. State neutral or private-label packaging needs at the same time. Elecdura can then quote the 12V, 9.0kW, 11T version against one clear technical purchasing line.

How can an importer validate 12V system compatibility when several versions look alike?

For application specialists reviewing drive-end geometry, 300516-00020-12V-9.0KW-11T-4.233M is a 12V starter and must be connected only to the matching machine electrical system. Read the voltage marking on the old unit and verify the battery arrangement before stock is committed. A housing can look correct while the winding and solenoid are designed for another voltage, so appearance must not override the electrical label.

How should a workshop distinguish 300516-00020-12V-9.0KW-11T-4.233M locating face when checking a replacement proposal?

For replacement-parts sellers comparing nearby starter versions, the 300516-00020-12V-9.0KW-11T-4.233M flange should sit flat against the DAEWOO DH500LC excavator mounting surface without being pulled into place by the bolts. Clean both faces and compare the locating shoulder, hole pattern and any stated diameters. Rocking, a visible gap or bolt misalignment indicates that the version check is incomplete and installation should stop.

What should purchasing verify first for 300516-00020-12V-9.0KW-11T-4.233M order testing during fitment review?

For warehouse planners confirming an incoming batch, Elecdura can discuss armature, solenoid, no-load and load testing for 300516-00020-12V-9.0KW-11T-4.233M. State the required report format, sampling expectation and acceptance points in the RFQ. Testing should use the stated 12V and 9.0kW configuration, while identity and mounting checks remain separate because electrical results do not prove physical interchangeability.

Which specification deserves priority for 12V and 9.0kW when the existing starter is available?

For importers checking version-defining data, 300516-00020-12V-9.0KW-11T-4.233M is defined as 12V and 9.0kW. Confirm the machine electrical system and the old starter rating together, because system voltage establishes electrical compatibility while the power rating relates to cranking demand. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

How can an importer validate 300516-00020-12V-9.0KW-11T-4.233M inside a mixed starter shipment when preparing a technical inquiry?

For inventory buyers confirming commercial terms, give each carton line its own reference, 12V, 9.0kW and 11T marking. The packing list should preserve those same fields. Receiving can then compare labels and drive-end appearance without opening every carton, while any mixed or unclear unit is isolated for review.

Request a Wholesale Quote for 300516-00020-12V-9.0KW-11T-4.233M Construction Equipment Starter Motor

For fleet-parts buyers preparing distributor pricing, prepare the RFQ with 300516-00020-12V-9.0KW-11T-4.233M, 300516-00020, the complete application, quantity, target delivery and packaging requirements. We will respond with the defined 12V 9.0kW 11T starter motor line rather than a generic substitute.
