0001359021 Iveco 8041 3.9L 9T Starter Motor Wholesale

0001359021 Iveco 8041 Starter Motor Supply for Industrial Engine Buyers

Iveco 8041 inquiries may come from trucks, industrial machines or rebuilders carrying a Fiat number. The buyer should keep the host application and complete old reference with the starter instead of assuming every 8041 installation uses the same cable and face arrangement.

Send the engine plate, equipment or vehicle details and clear photographs of the 9T pinion, large mounting face and terminals. Elecdura can then prepare a defined commercial offer for the stated 0001359021 configuration.

0001359021 Iveco 8041 Starter Motor Specifications for Rebuilder Supply

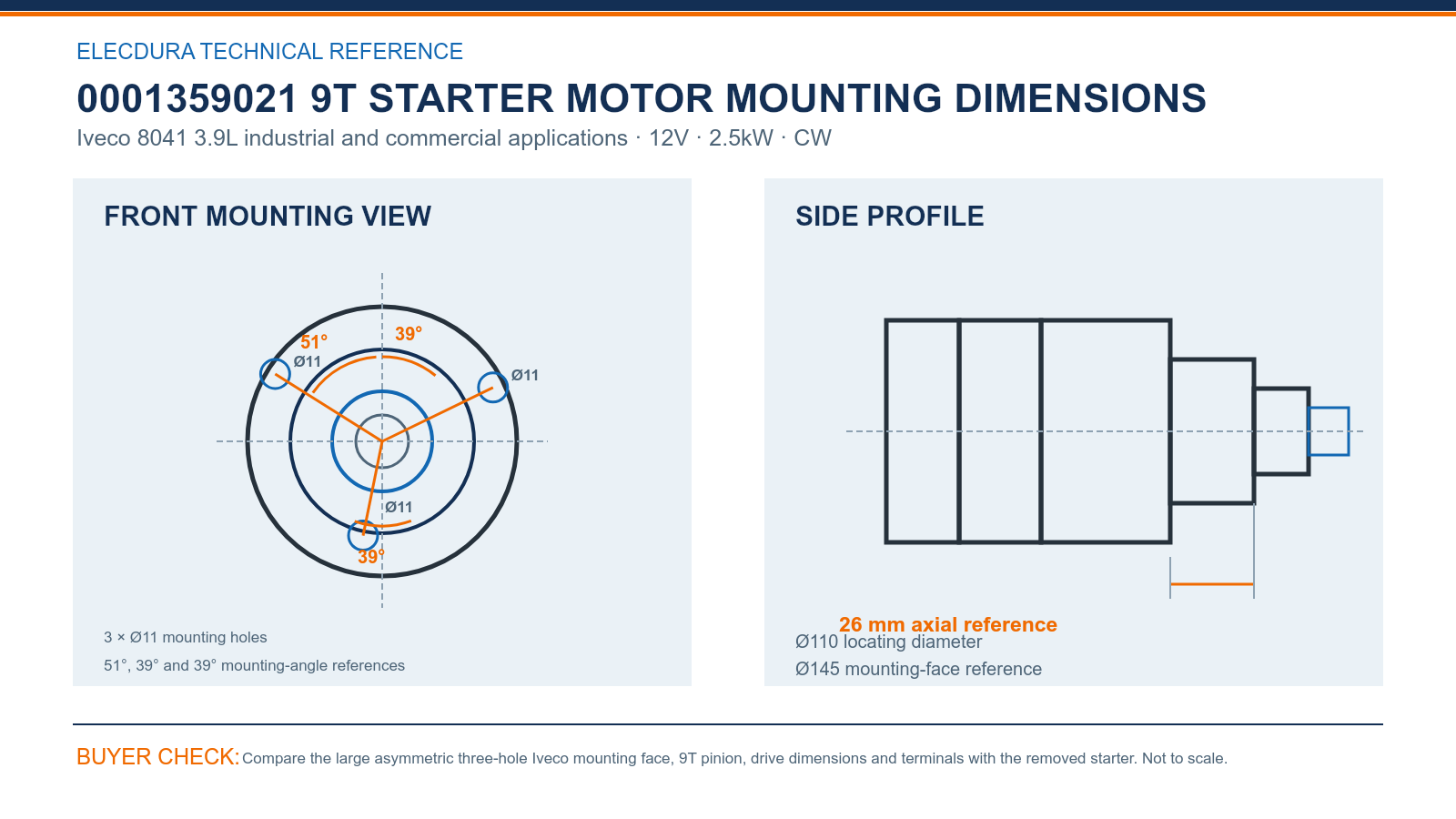

0001359021 9T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 0001359021 mounting face uses three Ø11 holes at 51°, 39° and 39°, an Ø110 locator, Ø145 mounting face and 26 mm axial reference. This large asymmetric pattern and 9T module 3 drive provide useful checks when Fiat and Iveco numbers reach a buyer through different service channels.

Pair the drawing with the host vehicle or machine and an installed terminal-side photograph. The physical dimensions help identify the starter, while the application view shows whether cable reach and surrounding clearance suit the intended 8041 installation.

0001359021 Starter Motor Fiat Number Mapping for Wholesale Importers

2022506, 4172113 and 11.130.127 are useful routes into the same purchasing discussion. Preserve the exact number supplied by the customer and confirm the old unit directly.

1. Check 12V, 2.5kW, 9 teeth, module 3 and CW.

2. Measure three Ø11 holes and the Ø110 locator.

3. Compare the Ø145 face, 26 mm axial point and terminal orientation.

The full set gives rebuilders and importers a clearer identity than one shortened Fiat number.

0001359021 Starter Motor Supply Programs for Iveco Rebuilders

Engine rebuilders can connect each 0001359021 unit to a completed 8041 engine or customer job, while distributors may hold separate stock for industrial and commercial-vehicle channels. Elecdura can review labels, protective packing and scheduled releases for both uses.

Provide monthly demand, engine or vehicle mix, destination and delivery schedule. The video below shows starter assembly and electrical testing for buyers comparing factory support for recurring rebuild programs.

The production video helps Iveco and AIFO parts buyers evaluate Elecdura manufacturing and test capability before arranging recurring 8041 starter supply.

0001359021 Starter Motor Wholesale FAQ

How should Fiat 2022506 and 4172113 be used?

Keep the exact Fiat number from the old unit, invoice or customer request and place it beside 0001359021. Confirm 12V, 2.5kW, 9 teeth, module 3, CW and the large three-hole face. The reference mapping supports purchasing traceability, while direct comparison with the removed starter decides suitability.

What Iveco 8041 information is needed with 0001359021?

Provide the engine model and serial, host vehicle or industrial machine, complete number from the removed starter and clear photographs of the label, 9T pinion, mounting face and terminals. Add quantity and destination. These details let Elecdura address the actual 8041 installation instead of treating the engine family as complete fitment information.

What should an engine rebuilder inspect on the bench?

Check the complete label, nine-tooth pinion, locator, mounting holes and terminals before the starter is fitted to the rebuilt 8041 engine. Confirm free pinion movement and protect the electrical studs during handling. Keep the engine serial and shipment lot with the job so later warranty or repeat-order discussions remain traceable.

Which dimensions identify the 0001359021 drive end?

Compare three Ø11 holes, 51°, 39° and 39° angle references, an Ø110 locating diameter, Ø145 mounting face and 26 mm axial point. Measure the old unit and photograph the face squarely. This large asymmetric pattern is a stronger identifier than motor paint, solenoid finish or a general Iveco description.

Can Elecdura support scheduled releases for rebuild programs?

Scheduled releases can be reviewed when the buyer provides total quantity, monthly demand, destination, packing requirements and target dates. The technical identity should remain unchanged across releases. Clear forecasts let production and freight be planned while the rebuilder receives manageable quantities aligned with engine completion and customer demand.

Can truck and industrial 8041 demand share one stock line?

Only after the removed starters and installation details agree with the same 0001359021 configuration. Keep the truck or machine identity beside each quantity and use separate carton marks if customers differ. This allows a distributor to combine matching volume without losing the application information needed by sales and workshop teams.

What traceability should accompany an 0001359021 after-sales case?

Retain the shipment lot, carton label, installation date, Iveco 8041 engine identity and the service channel that received the unit. Record cranking voltage, cable condition, mounting security and pinion engagement before disassembly. This gives Elecdura a clear technical and commercial history for the 9T large-face starter and prevents unrelated rebuilt cores from entering the same review.

How should rebuild and field-service quantities be quoted?

Show the complete 0001359021, Fiat or Iskra reference, the Iveco 8041 host applications, rebuild-program quantity, field-service quantity, destinations and target dates. Elecdura can return pricing, scheduled-release options, packing and labeling for each channel while using one confirmed 12V 2.5kW 9T CW configuration where the large mounting face and terminal arrangement match.

Request a 0001359021 Starter Motor Wholesale Quote

Send 0001359021, 2022506, 4172113 or 11.130.127, the Iveco 8041 engine and host vehicle or equipment details, old-unit photographs, quantity, destination and schedule. Elecdura will quote the 12V 2.5kW 9T CW starter with fitment, packing and wholesale delivery terms.

If the order covers both rebuilt engines and field-service stock, separate the quantities and label requirements so the same confirmed unit can be prepared for both supply uses.
