Iveco 24V 4.5kW 10T Starter Motor Wholesale

Iveco 24V 4.5kW 10T Wholesale Starter Motor for Iveco commercial and industrial vehicles

For Iveco commercial-vehicle distributors handling requests when the old-unit number is incomplete or unreadable, the decisive Iveco 24V 4.5kW 10T check is the complete 24V 4.5kW 10T module-3.175 CW configuration and its three-point face. A specification-only search can still return another Iveco starter with different mounting angles or terminals.

Iveco 24V 4.5kW 10T Starter Motor Dimensions for B2B Buyers

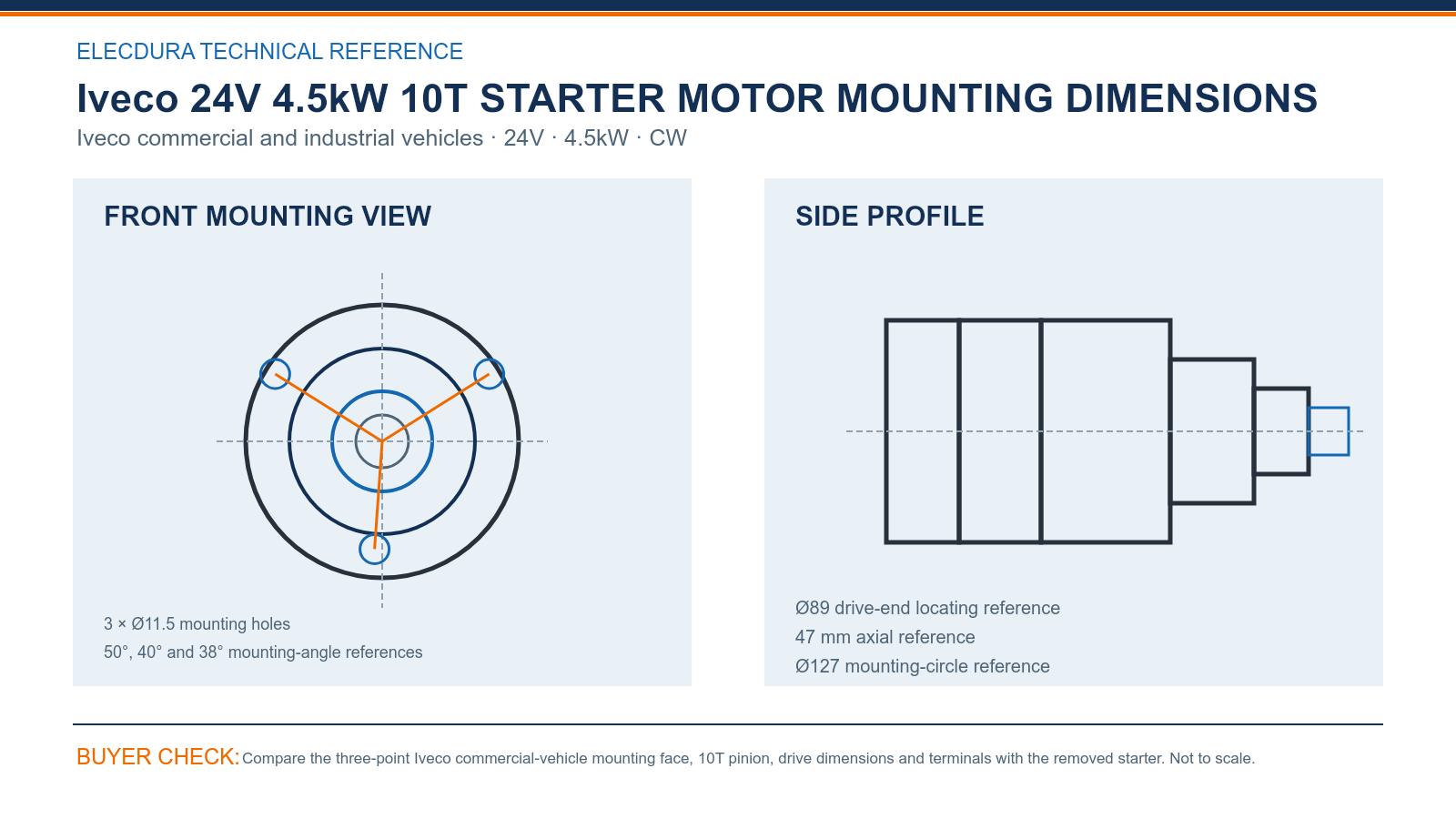

Iveco 24V 4.5kW 10T starter motor mounting dimensions.

Check Iveco 24V 4.5kW 10T using 3 × Ø11.5 mounting holes and 50°, 40° and 38° mounting-angle references before comparing Ø89 drive-end locating reference. The hole pattern and pilot decide whether the drive end can seat correctly in Iveco commercial and industrial vehicles.

Bench comparison for Iveco 24V 4.5kW 10T should retain 24V, 4.5kW, 10T, module 3.175, CW. Receiving staff should match all three holes, the Ø89 location, 47 mm drive reference, Ø127 circle, pinion and cable side, using the old unit or confirmed sample for the final physical check.

Iveco 24V 4.5kW 10T Starter Motor Identification and Fitment Checks

1. Identification: When the old OE number is unreadable, use the complete 24V, 4.5kW, 10T, module 3.175, CW specification, the complete 24V 4.5kW 10T module-3.175 CW configuration and its three-point face and clear old-unit photographs to identify the required Iveco starter.

2. Alternative review: Compare any Iveco 24V 4.5kW 10T substitute with the same application, 24V, 4.5kW, 10T, module 3.175, CW, drive-end image and connection side. A change in one of those points identifies another product for Iveco commercial and industrial vehicles.

Iveco 24V 4.5kW 10T Starter Motor MOQ, Lead Time and Export Supply

Distributor terms for Iveco 24V 4.5kW 10T are MOQ 20 pieces, normally 7–15 days after order confirmation and an 18-month warranty under agreed sales terms. Buyers should use a quotation description that includes 10T, module 3.175 and the mounting image rather than inventing an OE number.

The Iveco 24V 4.5kW 10T video below shows Elecdura starter-motor assembly and electrical testing. Buyers can use the footage to review supply capability; final selection for Iveco commercial and industrial vehicles still depends on the confirmed drive end and terminals.

Iveco 24V 4.5kW 10T Starter Motor FAQs for Iveco Parts Buyers

How can buyers distinguish Iveco 24V 4.5kW 10T from a similar starter?

A specification-only search can still return another Iveco starter with different mounting angles or terminals. Confirm Iveco 24V 4.5kW 10T by comparing the complete 24V 4.5kW 10T module-3.175 CW configuration and its three-point face against the old unit's label, pinion and terminals. Keep Iveco commercial and industrial vehicles on the enquiry; a matching rating or housing is not enough.

Which details are needed for an Iveco 24V 4.5kW 10T wholesale quotation?

Send vehicle model and VIN, engine information, every partial number, measured pinion, straight flange and terminal photographs, quantity, destination and target date for Iveco 24V 4.5kW 10T. For Iveco commercial and industrial vehicles, list immediate service quantity separately from routine stock and state allocation needs. Elecdura can then price 24V, 4.5kW, 10T, module 3.175, CW with MOQ, timing, warranty and freight options for Iveco 24V 4.5kW 10T.

What drive-end dimensions should be compared for Iveco 24V 4.5kW 10T?

For Iveco 24V 4.5kW 10T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 10T pinion for Iveco commercial and industrial vehicles. Request a square-on drive-end photograph, because an angled image can disguise hole position, pilot diameter or pinion depth for Iveco commercial and industrial vehicles.

How should distributors plan stock for Iveco 24V 4.5kW 10T?

Use a quotation description that includes 10T, module 3.175 and the mounting image rather than inventing an OE number. Plan the Iveco 24V 4.5kW 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the Iveco commercial and industrial vehicles and drive description on the bin helps branches avoid issuing another Iveco starter during an urgent repair.

Which electrical checks should precede starter replacement on Iveco commercial and industrial vehicles?

Test batteries, high-current cables and start-command voltage before using physical identification for replacement. After removing the old starter from Iveco commercial and industrial vehicles, check the flange, drive teeth and ring gear for unusual marks. Those readings on Iveco commercial and industrial vehicles distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Iveco starter?

Match all three holes, the Ø89 location, 47 mm drive reference, Ø127 circle, pinion and cable side. Match the Iveco 24V 4.5kW 10T label and 24V, 4.5kW, 10T, module 3.175, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Iveco commercial and industrial vehicles.

What should remain on a repeat order for Iveco commercial and industrial vehicles?

Keep Iveco 24V 4.5kW 10T, Iveco commercial and industrial vehicles, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps allow an accurate quotation without presenting an unverified cross-reference as product identity.

Which records support an after-sales review for Iveco buyers?

Provide VIN, engine, fitted date, shipment lot, electrical measurements and comparable drive-end photographs for an Iveco 24V 4.5kW 10T review. For Iveco commercial and industrial vehicles, include operating conditions and electrical readings taken before removal, then photograph the old and returned units from matching angles. This helps Iveco buyers separate product condition from installation, electrical-system, transport or application causes for Iveco commercial and industrial vehicles.

Request Iveco 24V 4.5kW 10T Starter Motor Wholesale Pricing

Email vehicle model and VIN, engine information, every partial number, measured pinion, straight flange and terminal photographs, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote Iveco 24V 4.5kW 10T with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 3.175, CW unit.
