S0068 Iveco Deutz F6L913 Starter Motor Wholesale

S0068 Starter Motor B2B Fitment Guide for Iveco MK 75-9 and Deutz F6L913 or BF4L913T

Iveco truck distributors, Deutz service networks and commercial starter wholesalers can source S0068 for Iveco MK 75-9 and Deutz F6L913 or BF4L913T. Preserve the 9T pinion and 24V 4.0kW 9T module-3 catalog configuration; do not substitute by engine family or housing appearance alone.

Build the S0068 RFQ around the complete removed-unit number, exact machine or engine information, mounting-face and terminal-side photographs, quantity and delivery point. These details let Elecdura quote the specified starter, export packing and timing without turning the offer into a general application guess.

S0068 Starter Motor Specifications and Drawing for Wholesale Buyers

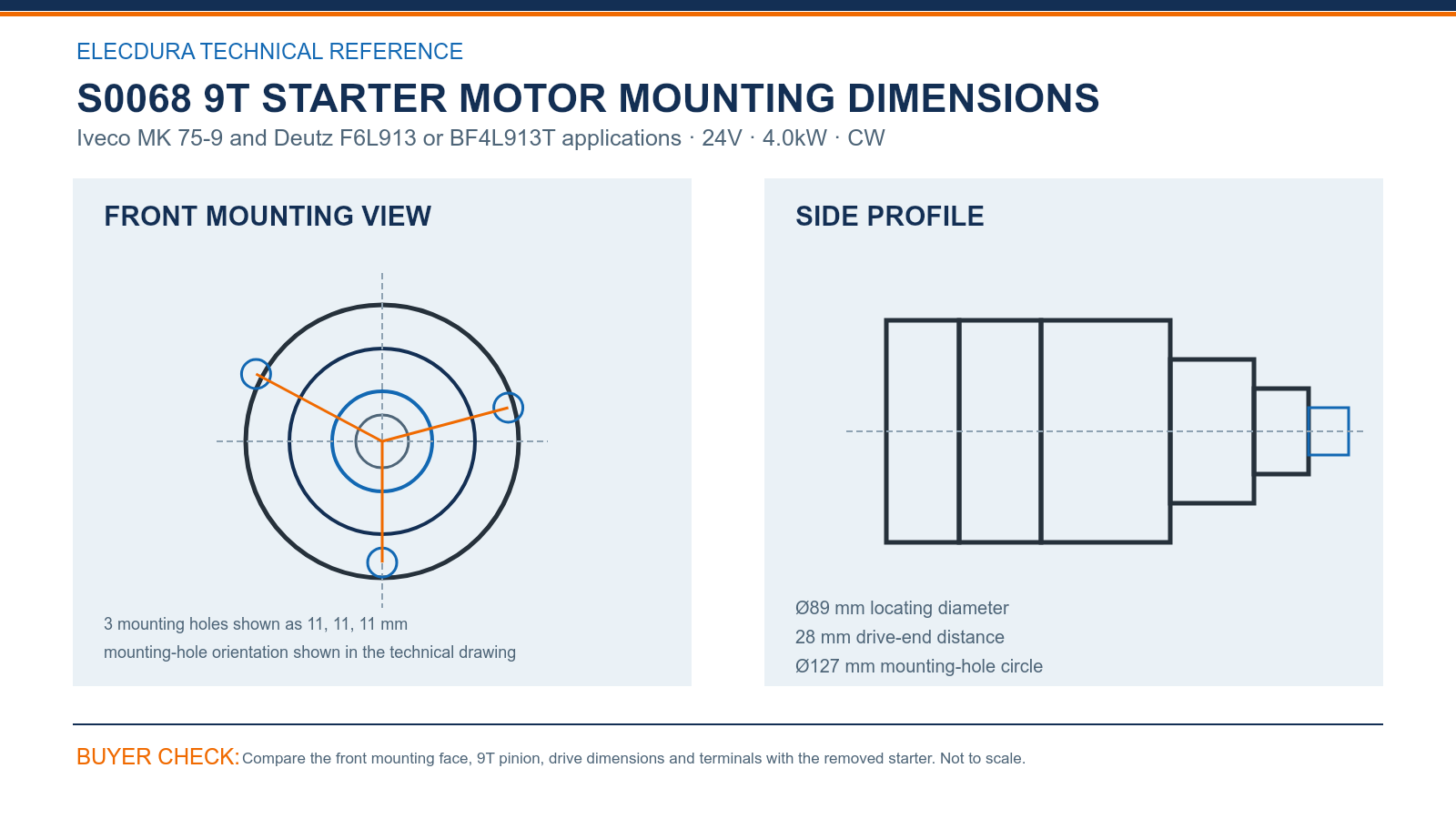

S0068 Iveco MK 75-9 and Deutz F6L913 or BF4L913T 24V 4.0kW 9T starter mounting dimensions.

For S0068 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 28 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S0068 mounting check, verify 24V, 4.0kW, 9T and CW with module 3. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S0068 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S0068, 110523, 0001360003, 0001360012, 0001360014, 0001360019, 0001360030 can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 24V, 4.0kW, 9T, CW, the drawing and terminal photographs before accepting one physical unit.

S0068 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S0068, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0068 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S0068 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S0068 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S0068 during an Iveco Deutz F6L913 dealer inspection?

Align the removed starter and S0068 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 28 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

Can S0068 be selected from the application name alone during dealer sourcing?

Confirm S0068 with the complete OE number, Iveco MK 75-9 and Deutz F6L913 or BF4L913T record and clear front, side and terminal photographs. Check 9T, 3 mounting holes shown as 11, 11, 11 mm and 28 mm drive-end distance so visually related starters stay on separate order lines.

Which checks should follow an OE-number match for S0068 in an Iveco Deutz F6L913 dealer sourcing program?

A number match narrows the search but does not finish it. For S0068, compare the stated application, electrical output, 9T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

Which cranking-circuit tests should precede replacement of S0068 during an Iveco Deutz F6L913 dealer electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0068. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's S0068 reserve quantity in an Iveco Deutz F6L913 dealer program?

Review workshop consumption by the stated Iveco MK 75-9 and Deutz F6L913 or BF4L913T population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S0068 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S0068 during an Iveco Deutz F6L913 dealer receiving check?

Use a first-lot sample to confirm S0068, 24V, 4.0kW, 9T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0068 without delay in an Iveco Deutz F6L913 dealer sourcing program?

List S0068 together with the supported equipment record, 24V, 4.0kW, 9T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0068 in an Iveco Deutz F6L913 dealer review?

For S0068, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0068 Start a Starter Motor Wholesale Enquiry

To discuss S0068 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
