0001360063 Iveco Ursus Starter Motor Wholesale 24V

0001360063 Starter Motor Wholesale Supply for Iveco and Ursus

The same starter group serves Iveco engine customers and Ursus agricultural customers. Keeping the host application visible on each enquiry prevents two sales channels from becoming one vague product request.

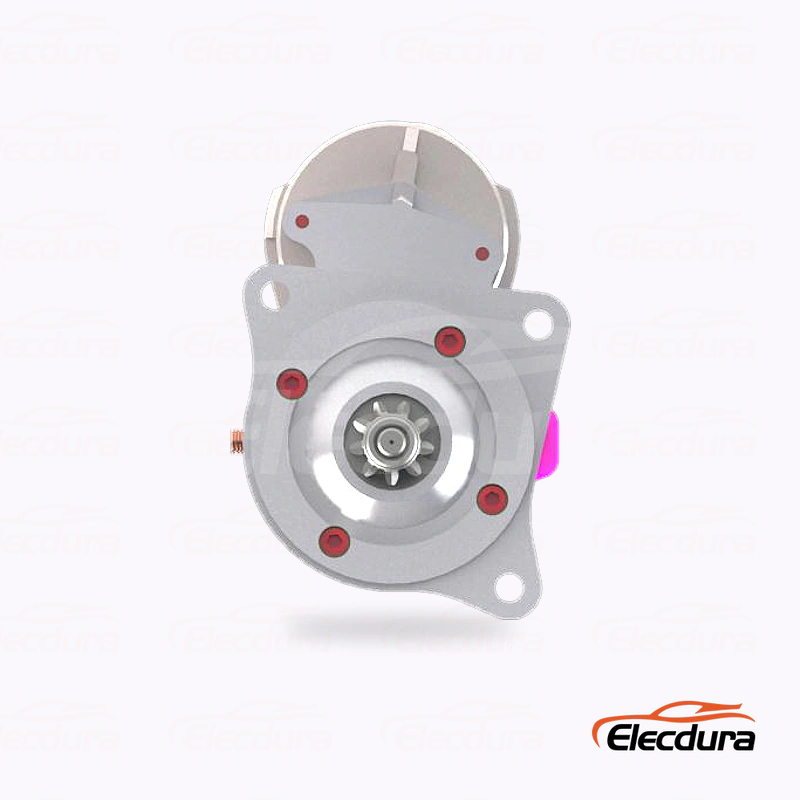

A long cross-reference list is useful for search but cannot prove the mounting orientation. The nine-tooth pinion, locating diameter, three holes and terminal side should agree with the unit being replaced.

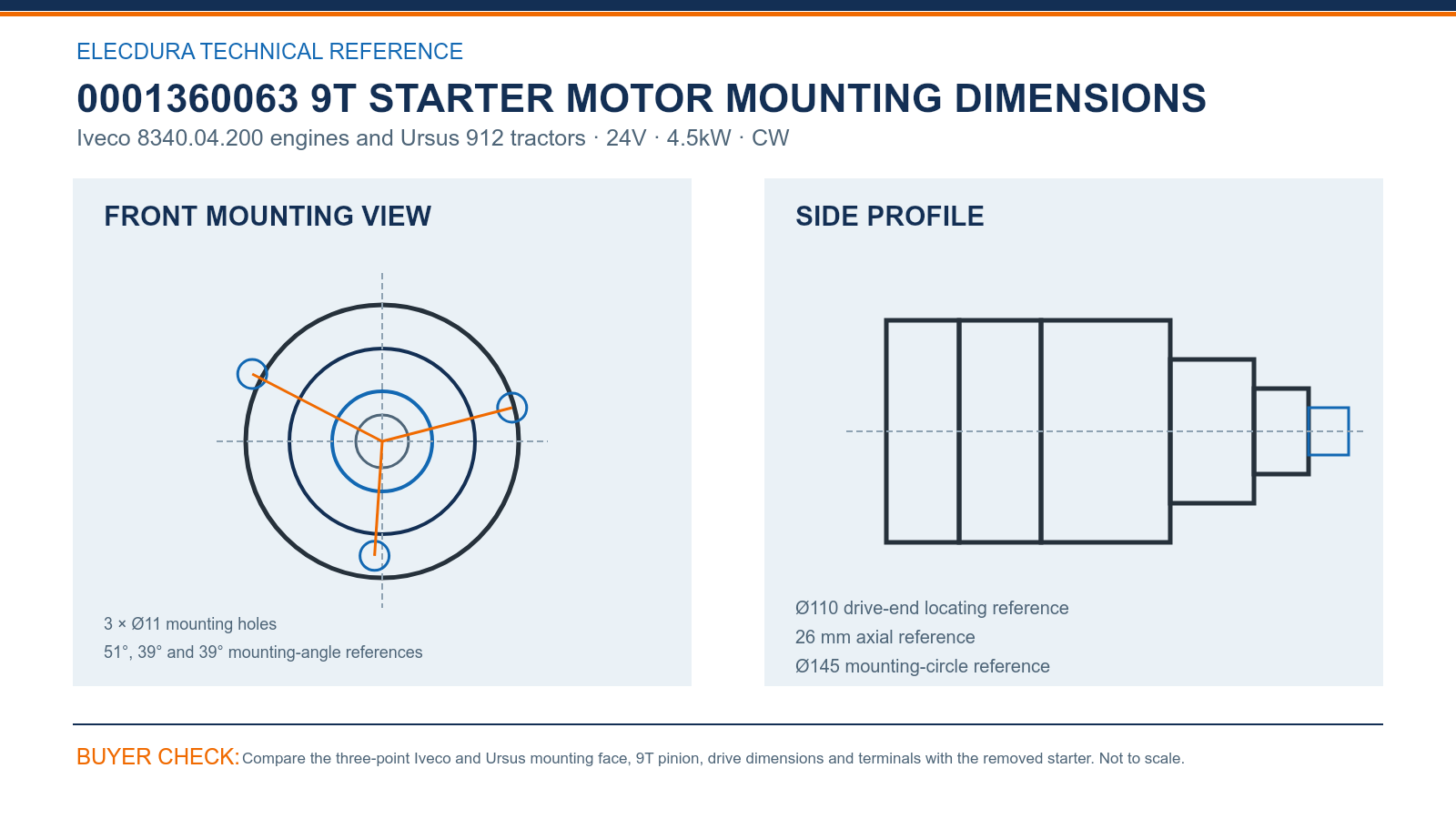

0001360063 Starter Motor Mounting Drawing for B2B Procurement

Elecdura supplies this product as 24V, 4.5kW, 9T, module 3 and clockwise rotation. One consistent rating across the quotation and product description helps avoid specification drift.

0001360063 Starter Motor Dimensions for Iveco and Ursus Orders — compare the drawing with the removed starter before placing a volume order.

Compare the three Ø11 holes, Ø145 mounting circle, Ø110 locating reference, 26 mm axial position and 51°, 39° and 39° mounting angles shown in the drawing.

0001360063 Starter Motor Reference Matching for Mixed Applications

0001360063 links to Bosch, Fiat, Cargo and Iskra numbers listed in the reference table. Buyers should add either the 8340.04.200 engine or Ursus 912 tractor identity before confirming quantities.

Ursus dealers can forecast seasonal reserve stock separately from Iveco engine demand, while a shared physical product remains traceable. Application notes should follow every branch transfer and customer order.

0001360063 Starter Motor Seasonal Supply and Factory Video

For after-sales review, retain the application, installation date, delivery lot, cranking-circuit readings and matching photographs. These details help distinguish fitment, electrical and handling causes without delaying a useful response.

The production video below shows Elecdura starter assembly and electrical testing for wholesale programs. It supports a supplier review while application-specific forecasting and fitment comparison remain visible in the purchasing discussion.

0001360063 Starter Motor FAQs for B2B Buyers

How should 0001360063 enquiries be routed between Iveco and Ursus customers?

Mark each enquiry as either an Iveco 8340.04.200 engine requirement or an Ursus 912 tractor requirement, then attach the corresponding model or serial details and old-unit photographs. The physical starter group may be shared, but keeping the customer application on the quotation, carton and reorder record prevents the two sales channels from becoming one vague fitment claim.

Which references can procurement consolidate under the 0001360063 review?

Use Bosch, Fiat, Cargo and Iskra references listed in the reference set as a search set, then keep Iveco 8340.04.200 engines and Ursus 912 tractors on the same enquiry. Confirm the Iveco or Ursus application, 9T drive and 145 mm three-hole face on the removed unit before treating the numbers as one 0001360063 product. This builds a searchable OE group without reducing the product to one broad brand label.

What proves whether the order is for an 8340.04.200 engine or an Ursus 912 tractor?

The buyer should provide engine or tractor model, serial information, old-unit label and comparable photographs. For 0001360063, those details must agree with the Iveco or Ursus application, 9T drive and 145 mm three-hole face rather than a broad brand description. This preserves application evidence for repeat orders and after-sales support. Preserve the Iveco 8340.04.200 engines and Ursus 912 tractors fitment and mounting comparison in the customer's reorder notes.

How should an Ursus distributor plan 0001360063 stock before field season?

Plan and label 0001360063 stock from Ursus 912 population, seasonal workshop withdrawals and replenishment lead time. Keep the Iveco or Ursus application, 9T drive and 145 mm three-hole face visible on cartons, bin cards and branch transfers so urgent demand does not create a wrong substitution. This supports agricultural uptime without overgeneralizing Iveco demand. Carry the agreed 0001360063 identity through packing and branch-transfer documents.

What must agree on the 145 mm three-hole drive end?

The 0001360063 physical comparison should cover 3 × Ø11 holes, Ø145 circle, Ø110 locating, 26 mm axial reference and 51°/39°/39° angles. Relate those dimensions to the Iveco or Ursus application, 9T drive and 145 mm three-hole face before accepting a similar-looking housing. This checks the mounting orientation that a long cross-reference list cannot prove. Retain the 0001360063 comparison photographs with the delivery lot for after-sales review.

Why should nine teeth and module 3 appear on the stock label?

Verify 9T and module 3 on the removed unit. For 0001360063, pair the drive data with the 24V system and measured mounting face so a same-output starter is not assumed suitable. This prevents a nearby Iveco or tractor starter from being picked by reference family alone. Include the confirmed 0001360063 configuration in later forecasts and repeat purchases.

What record helps investigate a return from an Iveco or Ursus customer?

A useful no-crank report records application, serial, installation date, shipment lot, circuit readings and matched photos. Relating that evidence to the 0001360063 installation in Iveco 8340.04.200 engines and Ursus 912 tractors gives after-sales staff more than a short failure description. This separates fitment, electrical-system and handling causes. Retain the application channel and accepted mounting view with each 0001360063 order.

What commercial information improves a 0001360063 supply proposal?

Send immediate quantity, annual forecast, packing or label needs, delivery schedule and destination in one enquiry. Elecdura can then check the Iveco or Ursus application, 9T drive and 145 mm three-hole face and quote quantity, packing and lead time against the actual destination. This lets the supplier propose terms suited to mixed-channel demand. Attach the confirmed 0001360063 comparison to the quotation so receiving can check the same product.

Request 0001360063 Starter Motor Distributor Pricing

Email the Iveco 8340.04.200 or Ursus 912 details, full old-unit number, pinion and flange photographs, immediate quantity, forecast, packing needs and destination to info@elecdurauto.com. Elecdura will review the 0001360063 configuration and prepare distributor pricing.
