D11-101-13 Shangchai Starter Motor 24V 8.5kW 12T

D11-101-13 Heavy-Duty Starter Motor for SHANGCHAI SC8DT SC9DF300.2Q5

For sourcing managers planning replenishment, D11-101-13 is an aftermarket heavy-duty starter motor for SHANGCHAI SC8DT SC9DF300.2Q5. Its 24V system, 8.5kW output and 12T pinion give heavy-duty parts distributors, importers and fleet suppliers a clear product definition for OE-reference replacement and repeat-order sourcing.

For wholesale program managers preparing distributor pricing, this page is designed to support a distributor decision: identify the correct replacement, confirm the key specification, define packaging and inspection needs, and request one consistent quotation for the required quantity.

D11-101-13 Starter Motor Specifications and Technical Drawing

For equipment-parts dealers confirming the stated application, this reference group can cover nearby starter versions. Keep D11-101-13, 24V, 8.5kW and 12T together on the RFQ, then compare the flange, drive end and terminal layout before treating another number as a direct replacement.

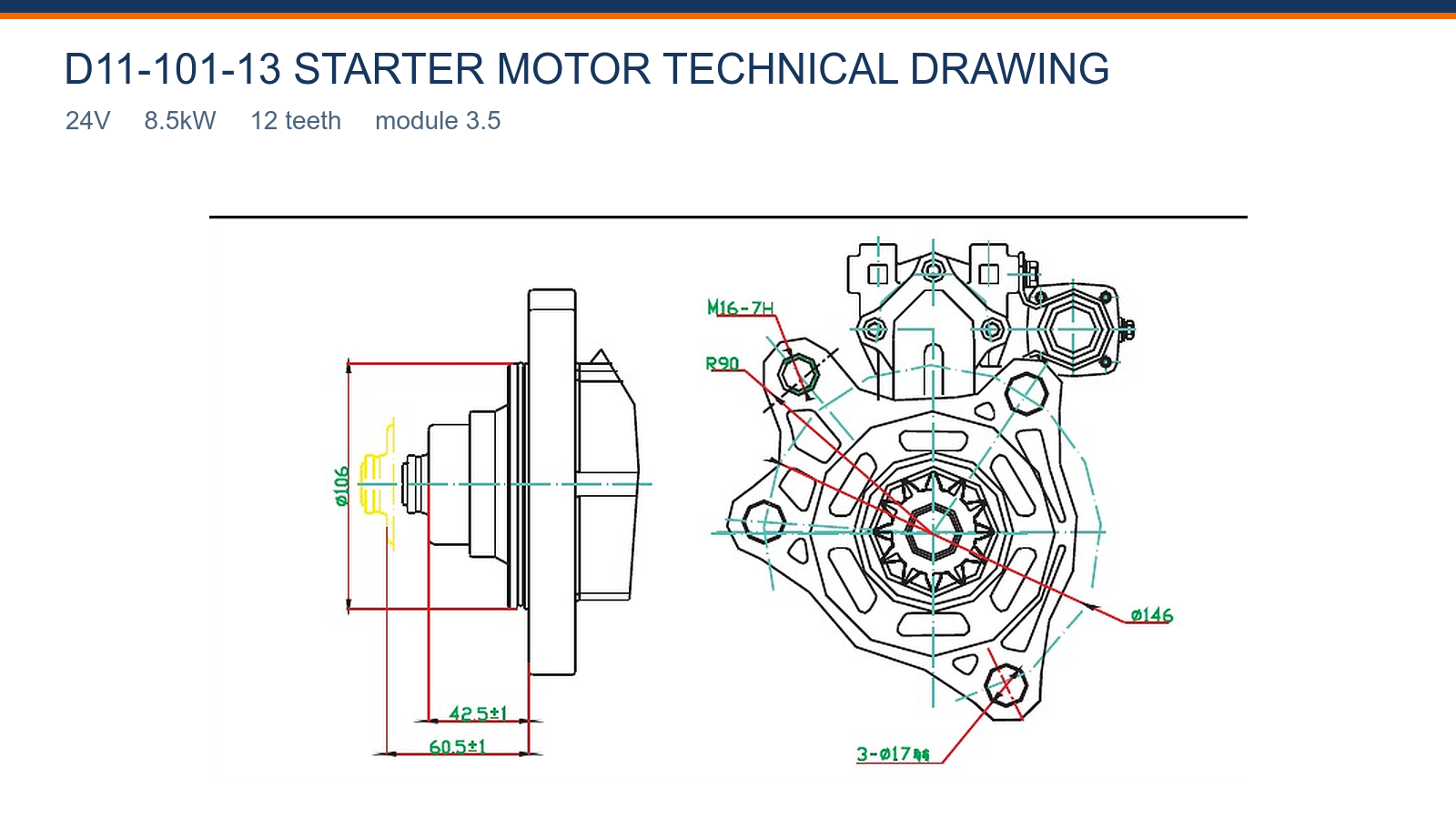

For purchasing teams checking application evidence, the source-faithful technical drawing records the available mounting information for D11-101-13, including Ø106, Ø146, 42.5±1 mm, 60.5±1 mm; use the printed values together with the product views because the drawing supports comparison and should not be scaled from the screen.

D11-101-13 Aftermarket Replacement and Application

For replacement-parts sellers comparing nearby starter versions, send D11-101-13, D11-101-13+A, S00013524+01, the full SHANGCHAI SC8DT SC9DF300.2Q5 description and photos of the starter being removed. These details allow the quotation to stay product-specific when related numbers appear on more than one housing version.

For service-parts networks preparing a technical RFQ, use the gallery to compare the flange, 12T pinion and rear connections before approving the order. Keep module 3.5 with the tooth count. A changed mounting or terminal feature should be quoted as another starter version.

D11-101-13 Wholesale Supply for Distributors and Importers

For importers preparing a volume quote, distributor supply for D11-101-13 can include neutral packaging, customer-brand review and order-specific labels. Current commercial guidance is 20 pcs MOQ, 7–15 days subject to confirmation and an 18-month warranty under agreed terms.

For inventory buyers confirming commercial terms, batch consistency should be controlled through the agreed reference, electrical rating, pinion, packaging and inspection points. Elecdura can discuss test documentation and pre-shipment photos that match the needs of the distributor or importer.

D11-101-13 Starter Motor Buyer FAQ

Which detail separates 8.5kW output on SHANGCHAI SC8DT SC9DF300.2Q5 when confirming the quote position?

For fleet-parts buyers preparing a technical RFQ, the 8.5kW rating belongs to the D11-101-13 configuration used for SHANGCHAI SC8DT SC9DF300.2Q5. Verify the old-unit rating and investigate battery voltage, cable drop and engine turning resistance before choosing another output. A higher or lower kW figure is not an automatic upgrade; it can indicate a separate starter design with different electrical and mechanical requirements.

How can an importer validate D11-101-13 label and suffix before comparing delivery options?

For technical sales teams checking version-defining data, photograph the complete old-unit label for D11-101-13, including every prefix, suffix and separator. Shortened numbers can group starters that differ in voltage, output, drive or housing. Pair the label with a front and rear view, then retain the full marking in the RFQ and purchase order so later receiving checks use the same identity.

Which specification deserves priority for 12-tooth pinion identification when checking a replacement proposal?

For fitment reviewers comparing the flange and terminals, count all 12 teeth on the D11-101-13 pinion and compare the gear diameter with the removed starter. Tooth count is a fast screening point, but engagement depth, pitch and rest position still need agreement. If the old unit carries another count, treat it as a different drive version and review the ring gear before fitting.

What must be matched before quoting 12T and module 3.5 for a first stocking order?

For application specialists reviewing a replacement proposal, the supplied drive uses 12 teeth with module 3.5. Count the old pinion teeth and compare outside diameter, rest position and engagement depth at inquiry stage. The 3.5 module is part of the gear definition, so another pitch must not be combined on the combined buying line. This check protects the ring gear from an incorrect mesh.

What must be matched before quoting D11-101-13 ring-gear engagement before comparing delivery options?

For replacement-parts sellers confirming the stated application, review the 12T pinion, module 3.5, rest position and available axial dimensions as one engagement set. Inspect the ring gear for wear before fitting. A correct bolt pattern cannot protect the gear if pitch or projection differs, so drive geometry should be resolved before the starter is energized.

Which detail separates 24V and 8.5kW when confirming the RFQ entry?

For service-parts networks checking application evidence, D11-101-13 is defined as 24V and 8.5kW. Confirm the machine electrical system and the old starter rating together, because voltage determines system compatibility while output level must suit the starting requirement. Battery condition, cable size and ground integrity should also suit this rating; a different voltage or output is a separate product, even when the housings appear similar.

What should receiving teams compare on D11-101-13 side-profile photograph when the starter being replaced is available?

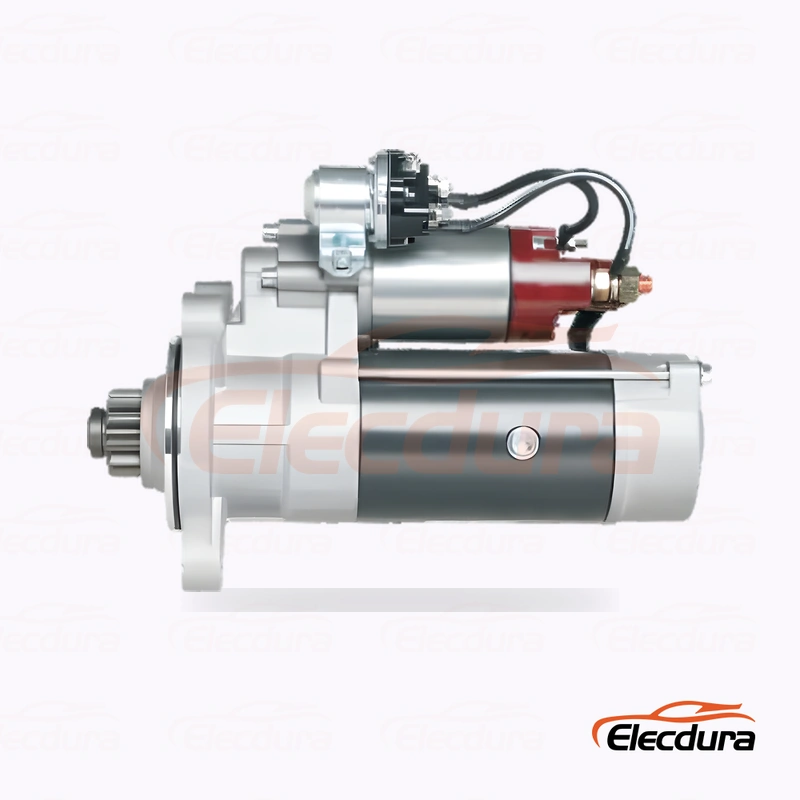

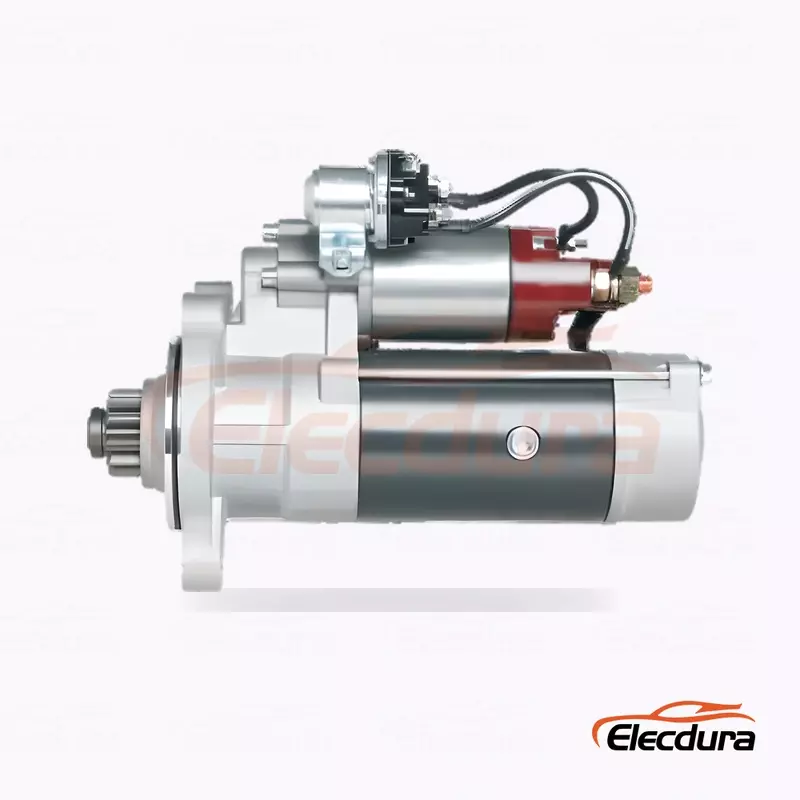

For importers preparing an OE-based quote, the side profile of D11-101-13 shows body length, solenoid placement and the relationship between flange and drive. Compare it with a square side view of the removed starter, then use 42.5±1 mm and 60.5±1 mm where available. This angle helps reveal a housing or projection difference that a front-only photograph can miss.

What should purchasing verify first for D11-101-13 three-view gallery for warehouse identification?

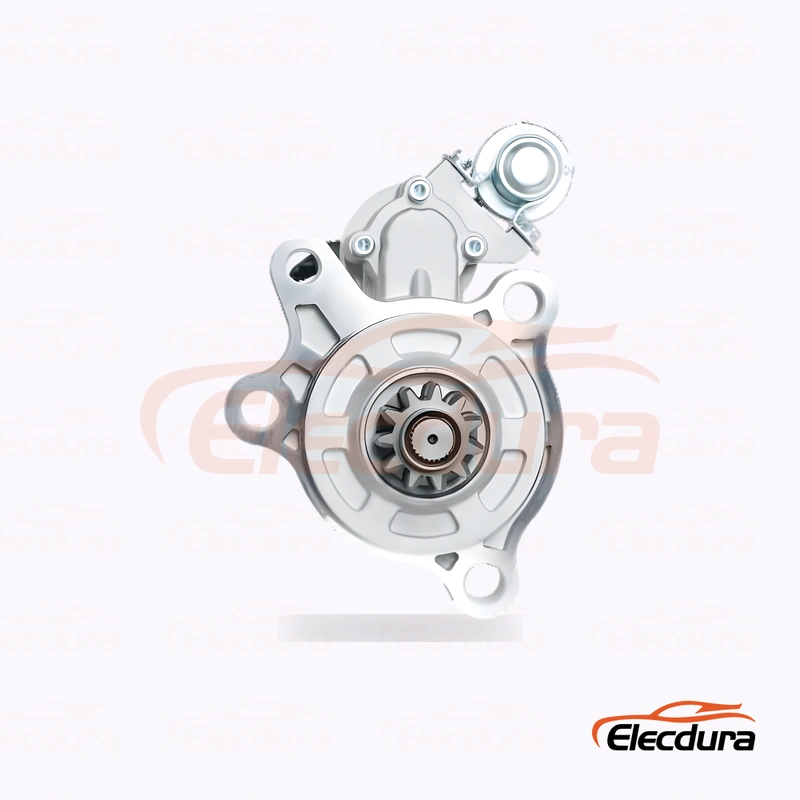

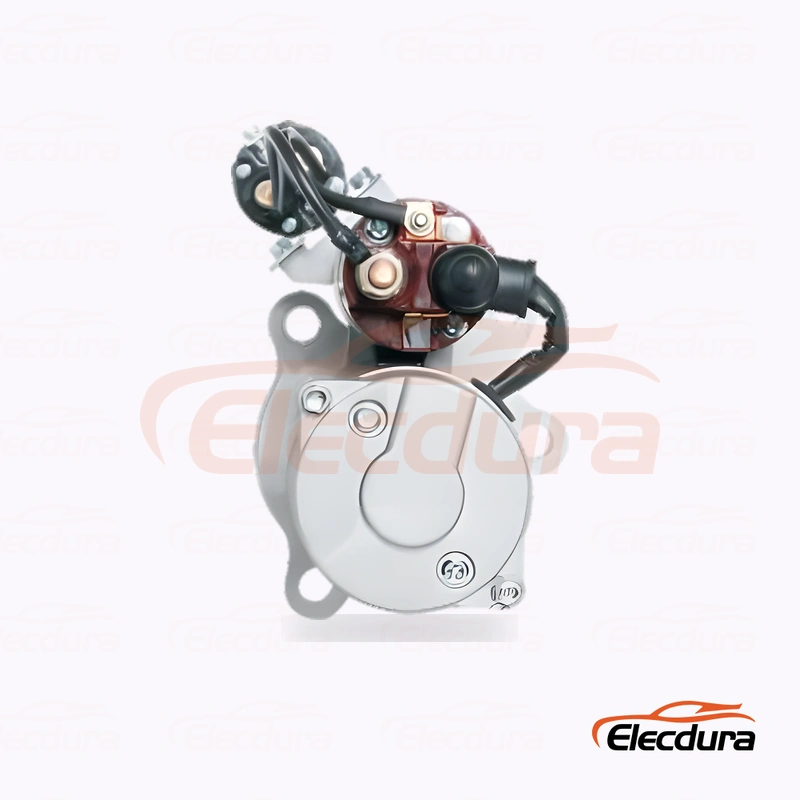

For product managers checking repeat-order specifications, use the drive-end view to compare the pinion and flange, the side profile to judge housing length and solenoid position, and the rear view to check terminals. All three images belong to D11-101-13; they should be reviewed together with the 12T drive and SHANGCHAI SC8DT SC9DF300.2Q5 application. Request an additional close-up when the customer's unit hides a deciding feature.

Request a Wholesale Quote for D11-101-13 Heavy-Duty Starter Motor

For fleet-parts buyers planning mixed-model inventory, provide D11-101-13, SHANGCHAI SC8DT SC9DF300.2Q5, expected order quantity and destination. Include photos or measurements when the existing starter differs in suffix or mounting appearance, and Elecdura will review the correct version before pricing.
